Rockford Fosgate Prime 200W 2-Channel Full Range Class D Amplifier +Install kit
- Purchase this amp and install kit bundle at no additional cost!
- Auto-Sense bypass switch for vehicles with RAP
- 200W Total Power
- Short Circuit & Over Current Protection
- Full Range Class D

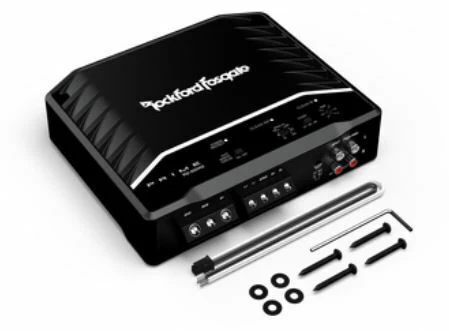

Rockford Fosgate Prime 200W 2-Channel Full Range Class D Amplifier +Install kit
Primed for Performance, the R2-200X2 amplifier is a 200 watt, full-range class-D, capable of operating at 4 or 2 stereo, and 4 bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.

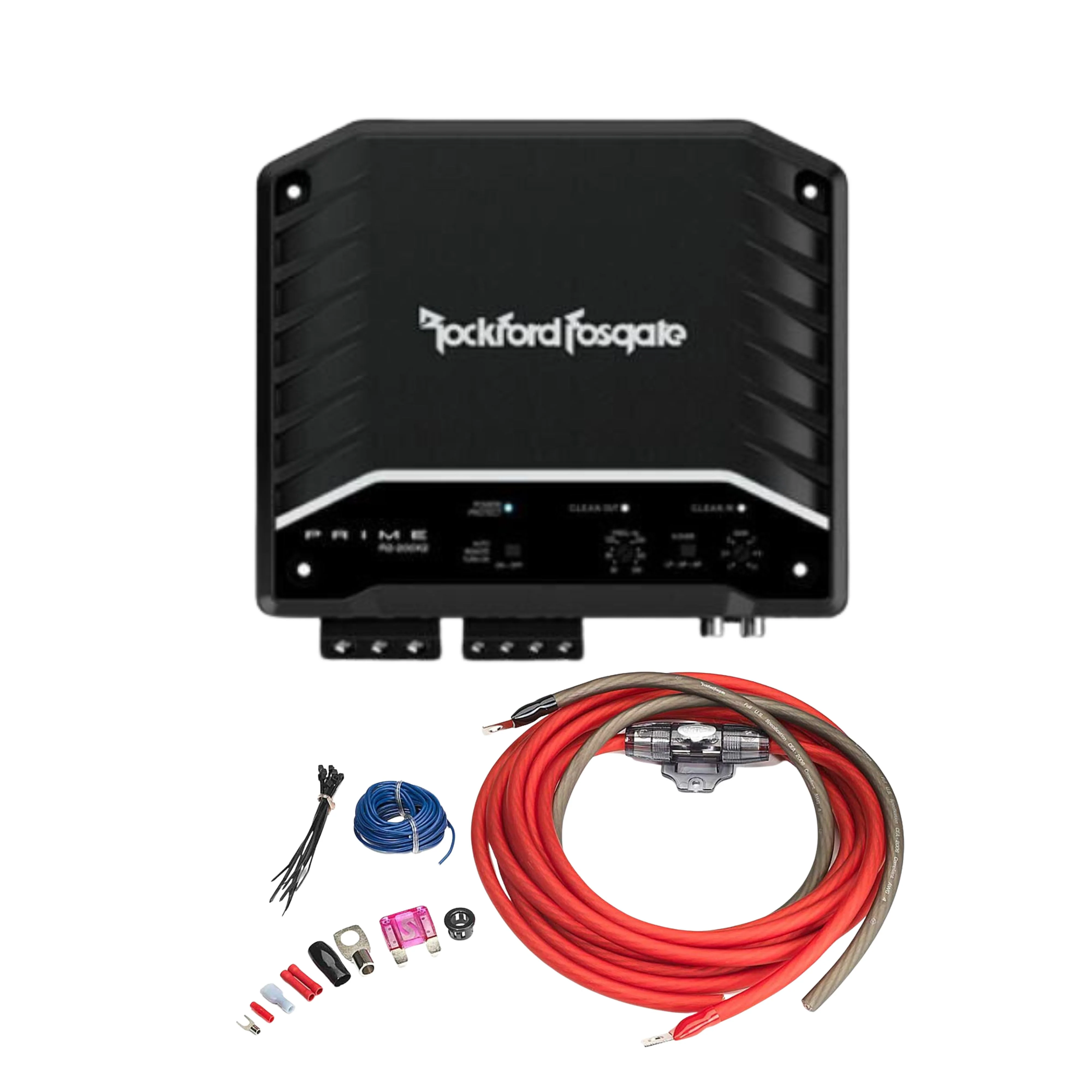

This listing includes:
(1) R2-200X2 2 Channel Full Range Class D Amplifier R2-200X2
(1) 4 Gauge PC-OFC Power Install Amplifier Kit RFK4
Balanced Differential Inputs with RCA Pass Through Outputs
High Level Input Capable
Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
Features C.L.E.A.N. Set-up
Variable Input Gain adjustment level
Continuously Variable On Board Punch EQ
Top Mounted Control Panel
Short Circuit & Over Current Protection
CEA-2006 Compliant & CE Compliant
Cast aluminum heat sink
Full Range Class D
Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
1 Year Warranty
Features:
2 Channels
200W Total Power
Rated Power:
50W x 2 @ 4 Ohm
100W x 2 @ 2 Ohm
200W x 1 @ 4 Ohm Bridged / Mono
Dynamic Power:
60W x 2 @ 4 Ohm
107W x 2 @ 2 Ohm
215W x 1 @ 4 Ohm Bridged/Mono
Bridgeable: Yes
Frequency Response: 20 Hz - 20 kHz
Input Sensitivity:
Low-Level: 150mV - 4V
High-Level: 450mV - 12V
Class D Circuit Topology Class

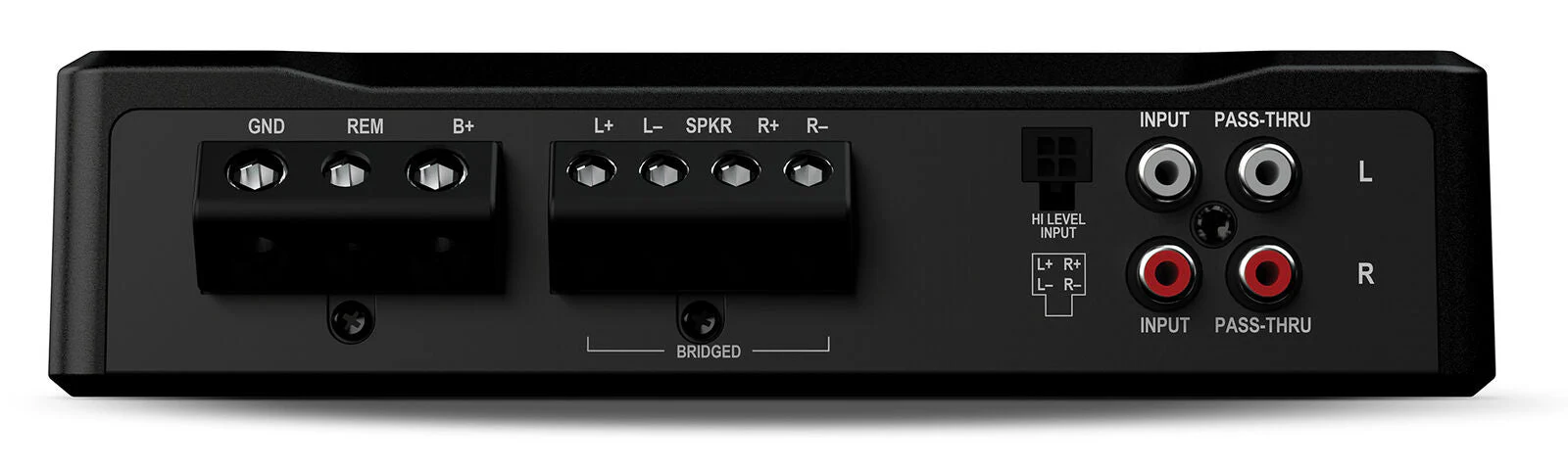

Signal Input:
Low-Level: 2 RCA
High-Level: 4-Pin Molex
Crossover Controls:
High-Pass:
50Hz-250Hz @ 12dB/Octave Butterworth
Low-Pass:
50Hz-250Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Remote Control: No
Power Wire Gauge: 4 AWG
Power Input Connector: Compression Terminal Block
Speaker Wire Gauge: 8 AWG
Speaker Output Connector: Compression Terminal Block
Cooling: Convection
Operating Voltage: 9-16VDC
Recommended Fuse: 30 A (Not Included)
Max. Current Draw (13.8V Sinewave) 18A
Dimensions: (HxWxD)
1.9" x 6.8" x 8.1"
(4.9cm x 17.3cm x 20.5cm)
