Rockford Fosgate Prime 200W 2-Channel Full Range Class D Amplifier R2-200X2

This listing includes:

(1) R2-200X2 2 Channel Full Range Class D Amplifier

(1) 7" Speaker Input Harness

(1) 3mm Allen Hex Key

(4) 3/4" Screws

(4) Flat Washers

(1) Installation Manual

(1) Certificate of Performance

(1) Rockford Fosgate Contact Information

Primed for Performance, the R2-200X2 amplifier is a 200 watt, full-range class-D, capable of operating at 4 or 2 stereo, and 4 bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.

The Prime Series were developed for car audio fanatics that want a reliable amplifier with all the power and performance youve come to expect from Rockford Fosgate at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being under rated, easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of Prime Series amplifiers are also designed to be easy to setup and configure, making them perfect for use with factory audio or custom aftermarket systems.

Balanced Differential Inputs with RCA Pass Through Outputs

High Level Input Capable

Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)

Features C.L.E.A.N. Set-up

Variable Input Gain adjustment level

Continuously Variable On Board Punch EQ

Top Mounted Control Panel

Short Circuit & Over Current Protection

CEA-2006 Compliant & CE Compliant

Cast aluminum heat sink

Full Range Class D

Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers

1 Year Warranty

Features:

2 Channels

200W Total Power

Rated Power:

50W x 2 @ 4 Ohm

100W x 2 @ 2 Ohm

200W x 1 @ 4 Ohm Bridged / Mono

Dynamic Power:

60W x 2 @ 4 Ohm

107W x 2 @ 2 Ohm

215W x 1 @ 4 Ohm Bridged/Mono

Bridgeable: Yes

Frequency Response: 20 Hz - 20 kHz

Input Sensitivity:

Low-Level: 150mV - 4V

High-Level: 450mV - 12V

Class D Circuit Topology Class

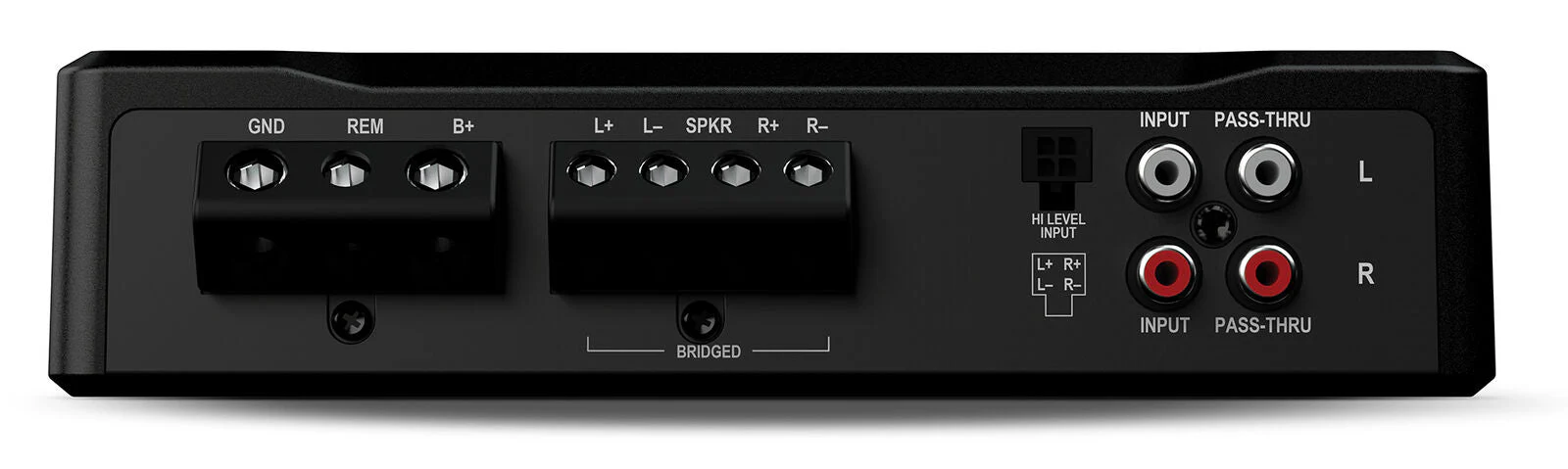

Signal Input:

Low-Level: 2 RCA

High-Level: 4-Pin Molex

Crossover Controls:

High-Pass:

50Hz-250Hz @ 12dB/Octave Butterworth

Low-Pass:

50Hz-250Hz @ 12dB/Octave Butterworth

All-Pass: Yes

Remote Control: No

Power Wire Gauge: 4 AWG

Power Input Connector: Compression Terminal Block

Speaker Wire Gauge: 8 AWG

Speaker Output Connector: Compression Terminal Block

Cooling: Convection

Operating Voltage: 9-16VDC

Recommended Fuse: 30 A (Not Included)

Max. Current Draw (13.8V Sinewave) 18A

Dimensions: (HxWxD)

1.9" x 6.8" x 8.1"

(4.9cm x 17.3cm x 20.5cm)
