• Purchase this amp and install kit bundle at no additional cost!
• Front and Rear Variable Input Gain adjustment level
• Full Range Class D
• 300W Total Power
• 2/4 Channel Input Selection Switch

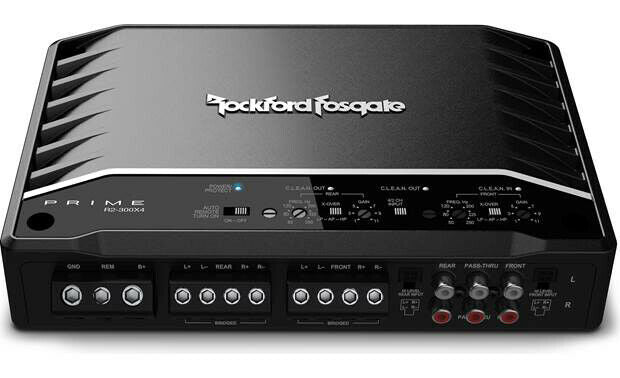

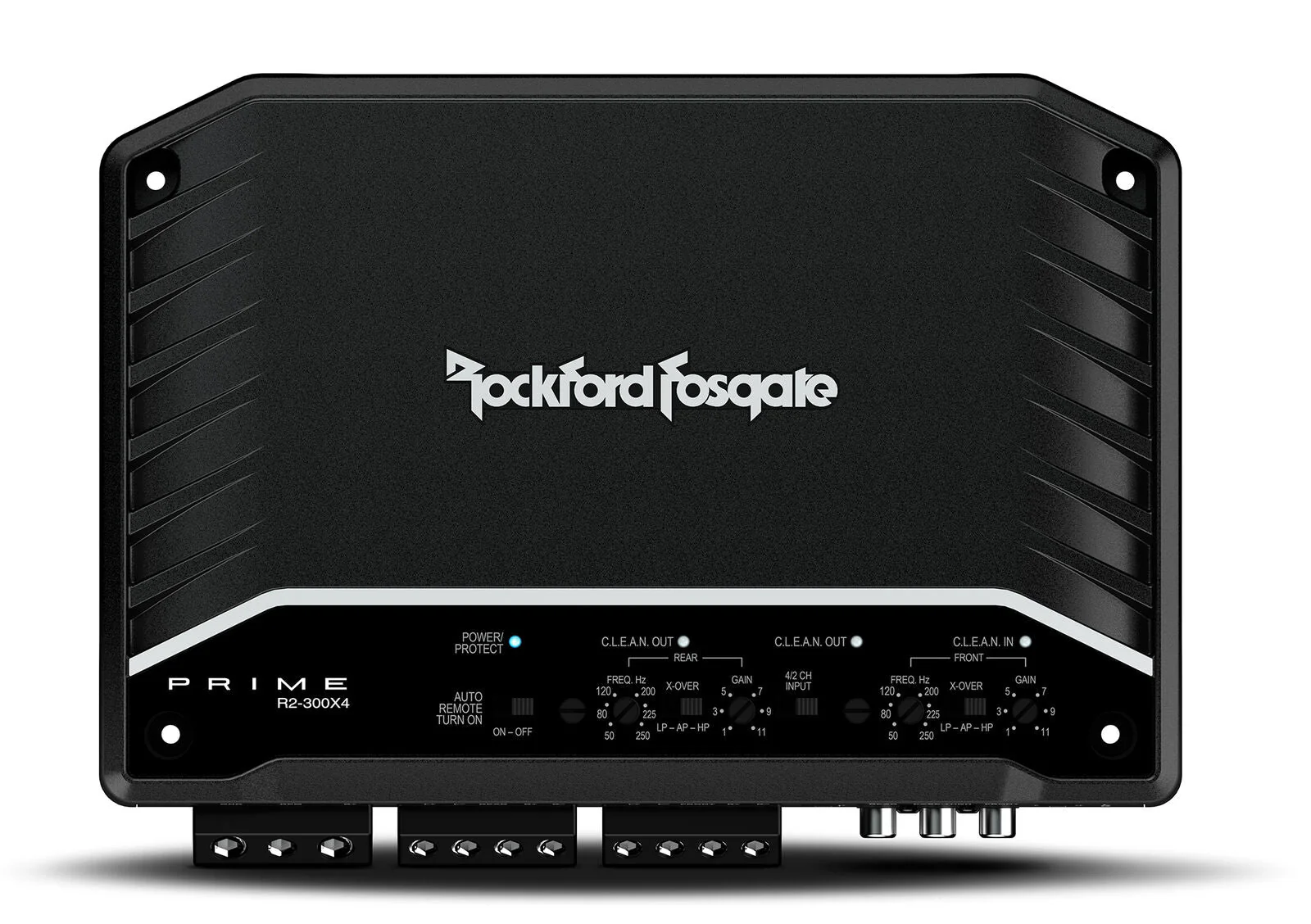

Rockford Fosgate Prime 300W 4-Channel Full Range Class D Amplifier +Install Kit

Primed for Performance, the R2-300X4 amplifier is a 300 watt, full-range class-D, capable of operating at 4 or 2 stereo, and 4 bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.

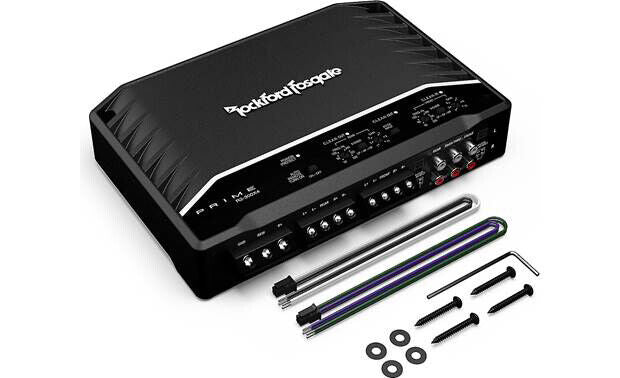

This listing includes:

(1) R2-300X4 4-Channel Amplifier

(1) RFK4 4 Gauge PC-OFC Power Install Amplifier Kit

The Prime Series were developed for car audio fanatics that want a reliable amplifier - with all the power and performance you've come to expect from Rockford Fosgate - at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being "under rated," easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of Prime Series amplifiers are also designed to be easy to setup and configure, making them perfect for use with factory audio or custom aftermarket systems.

Features

• Balanced Differential Inputs with RCA Pass Through Outputs


• High Level Input Capable


• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)


• Features C.L.E.A.N. Set-up


• 2/4 Channel Input Selection Switch


• Front and Rear Variable Input Gain adjustment level


• Continuously Variable On Board Punch EQ


• Top Mounted Control Panel


• Short Circuit & Over Current Protection


• CEA-2006 Compliant & CE Compliant


• Cast aluminum heat sink


• Full Range Class D


• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers


• 1 Year Warranty

Specifications

• 4 Channels


• 300W Total Power


• Bridgeable: Yes


• Frequency Response: 20 Hz - 20 kHz


• All-Pass: Yes


• Remote Controls: No


• Power Wire Gauge: 4 AWG


• Speaker Wire Gauge: 8 AWG


• Cooling: Convection


• Operating Voltage: 9-16 VDC


• Recommended Fuse (Not Included): 60 A


• Max. Current Draw (13.8 Sinewave): 39A

Rated Power:

• 50W x 4 @ 4 Ohm


• 75W x 4 @ 2 Ohm


• 150W x 2 @ 4 Ohm Bridged / Mono

Dynamic Power:

• 70W x 4 @ 4 Ohm


• 115W x 4 @ 2 Ohm


• 230W x 2 @ 4 Ohm Bridged / Mono

Input Sensitivity

• Low-Level: 150 mV - 4V


• High-Level: 450mV - 12V


• Class D Circuit Topology Class


• Crossover Controls


• Front High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth


• Front Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth


• Rear High-Pass: 50 Hz - 250 Hz @ 12 dB /Octave Butterworth


• Rear Low-Pass: 50 Hz - 250 Hz @ 12 dB /Octave Butterworth

Dimensions: (H x W x D) 1.9" x 6.8" x 10.1"
