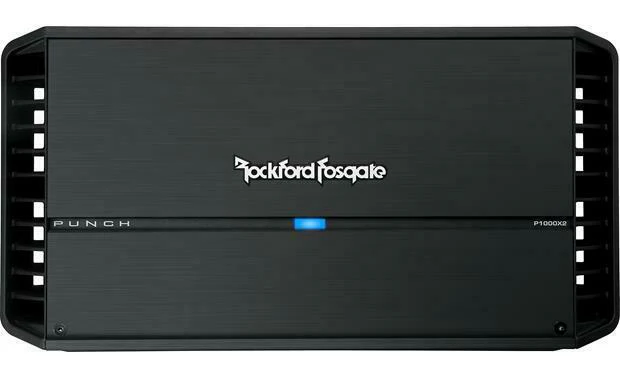

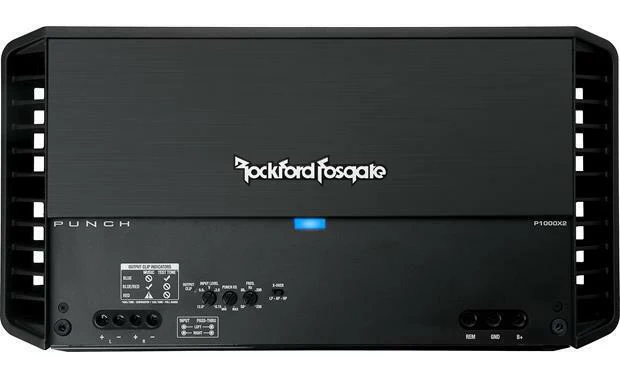

Rockford Fosgate Punch 1000 Watt 2-Channel Amplifier Class A/B + Install Kit
- Purchasing this amp and install kit bundle at no additional cost gives you an additional year warranty on your amplifier!
- 12dB/octave Butterworth crossover
- Cast aluminum heatsink
- RCA pass-thru outputs
- On-board Punch EQ with +18dB boost @ 45Hz
Rockford Fosgate Punch 1000 Watt 2-Channel Amplifier Class A/B + Install Kit
The P1000X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.

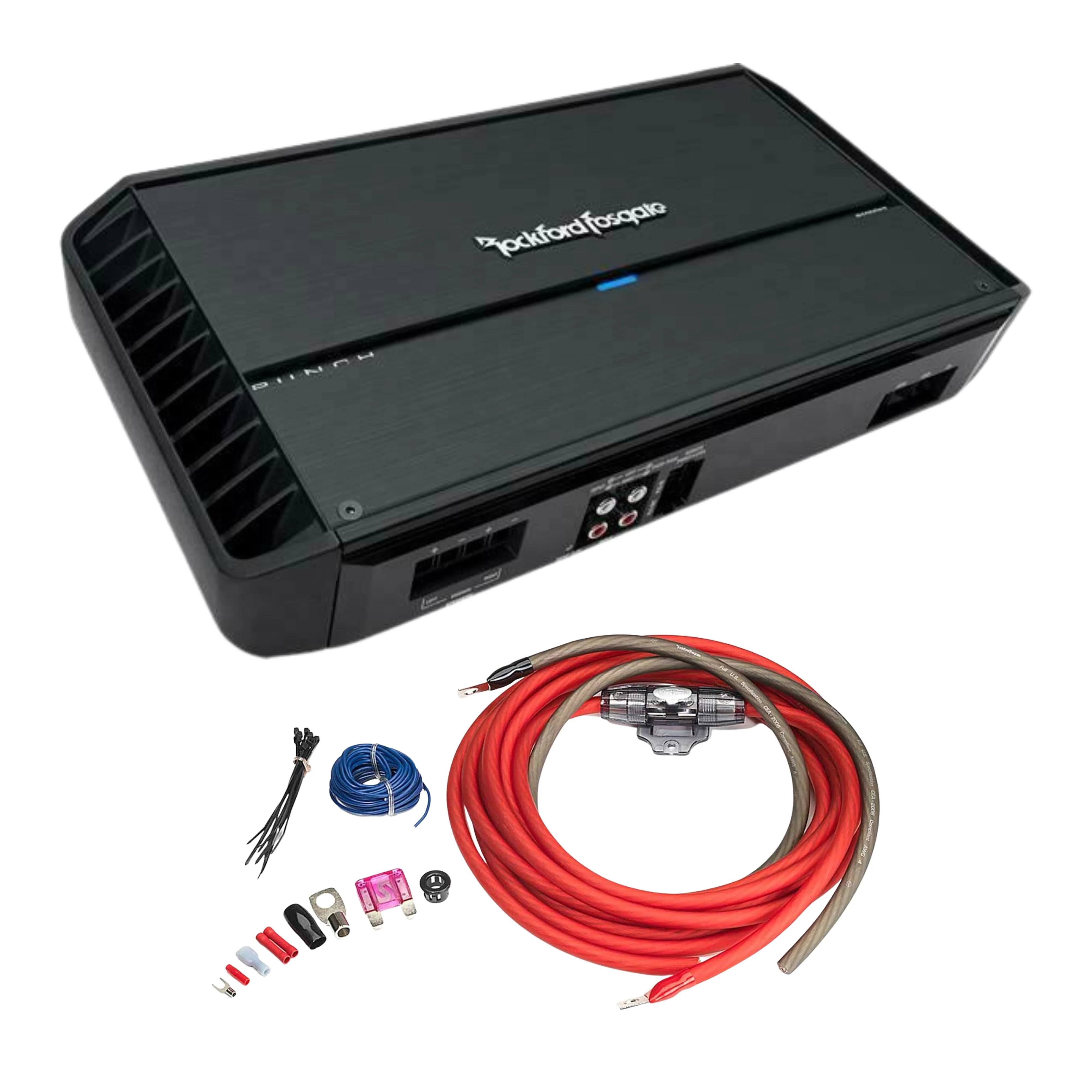

This Listing Includes:
(1) Punch 1000 Watt 2-Channel Amplifier P1000X2
(1) RFK4 4 Gauge PC-OFC Power Install Amplifier Kit
Features:
- High level input capable with Auto Turn-On circuit
- RCA pass-thru outputs - Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz
- Muted turn on - Stealth top mounted control panel
- Cast aluminum heatsink - Short circuit protection
- Over current protection
Specifications:
Number of Channels: 2
Total Power: 1000 Watts RMS
Bridgeable: Yes
Frequency Response: 20Hz to 20kHz +/- 1.0dB
Input Sensitivity: 150 mV - 12 V
Circuit Topology Class: Class A/B
Efficiency: 69% @ 4-Ohm - 64% @ 2-Ohm
Total Harmonic Distortion (THD+Noise): 4-Ohm: Less than 1.0% - 2-Ohm: Less than 1.0%
Signal Input: Hi/Low level: 1 RCA pair
Signal Output: Low level: 1 RCA pair
Crossover Controls: High-Pass/Low-Pass (HP/LP): 50Hz-250Hz 12dB/octave Butterworth
Power Wire Gauge: 4 AWG
Power Input Connector: Captive C-Clamp
Speaker Wire Gauge: 8 AWG to 18 AWG
Speaker Output Connector: Captive C-Clamp
Cooling: Convection
Operating Voltage: 9 - 16 VDC
Recommended Fuse(not included): 140 A
Average Current Draw (13.8V Music): 70 A
Max. Current Draw (13.8V Sinewave): 140 A
Suggested Alternator: 100 A
Dynamic Power
401 Watts x 2 @ 4-Ohms 0 Res
656 Watts x 2 @ 2-Ohms 0 Res
Rated Power: 300 Watts x 2 @ 4-Ohm
500 Watts x 2 @ 2-Ohm
1000 Watts x 1 @ 4-Ohm Bridged
