• Purchasing this amp and install kit bundle at no additional cost gives you an additional year warranty on your amplifier!
• On-board Punch EQ with +18dB boost @ 45Hz
• Cast aluminum heatsink
• 12dB/octave Butterworth crossover
• 2.38 x 7.76 x 11.03 (in)

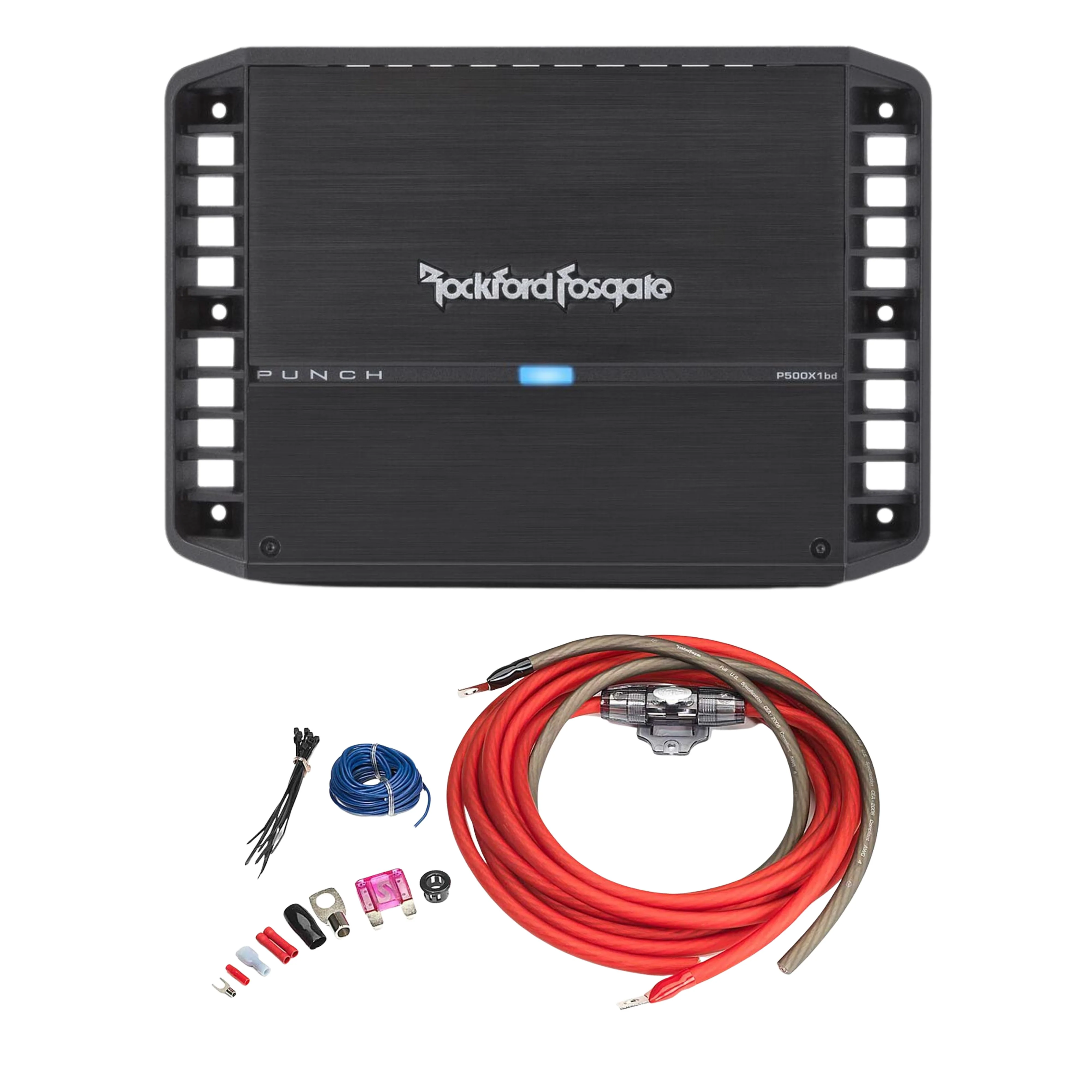

Rockford Fosgate Punch 500W Class-BD Monoblock 1/2/4 Ohm Amplifier + Install Kit



This listing includes:

(1) P500X1BD - 500W Class-bd Mono Amplifier

(1) RFK4 4 Gauge PC-OFC Power Install Amplifier Kit



With its super efficient Class-bd circuit topology, the P500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.



High level input capable with Auto Turn-On circuit

Features C.L.E.A.N. Set-up

Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)

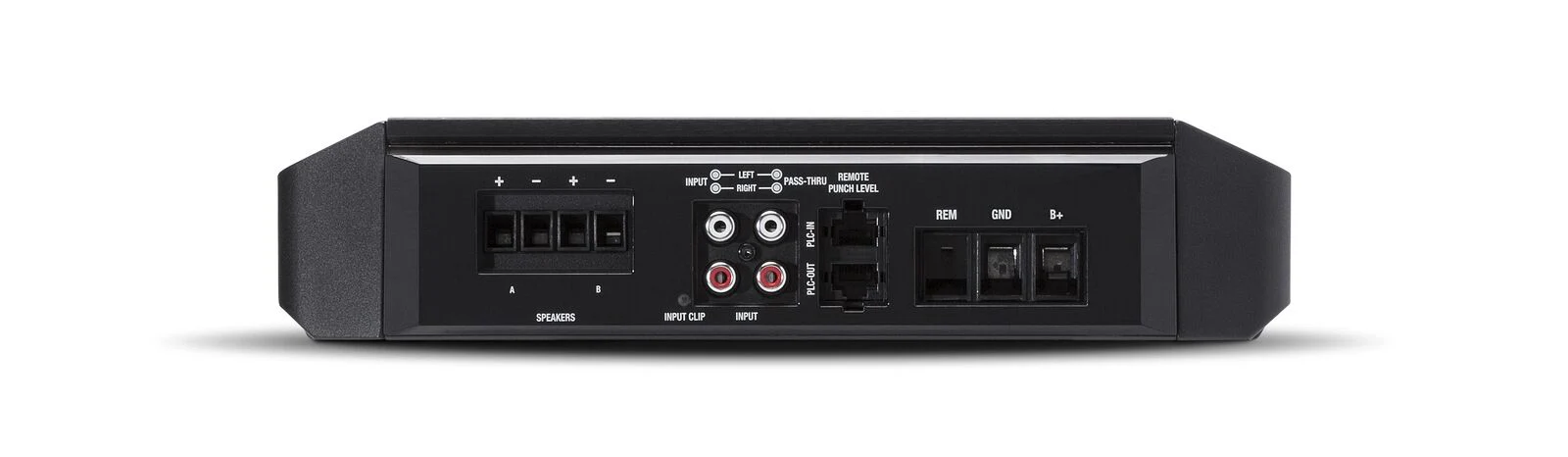

RCA pass-thru outputs

12dB/octave Butterworth crossover

On-board Punch EQ with +18dB boost @ 45Hz

Muted turn on

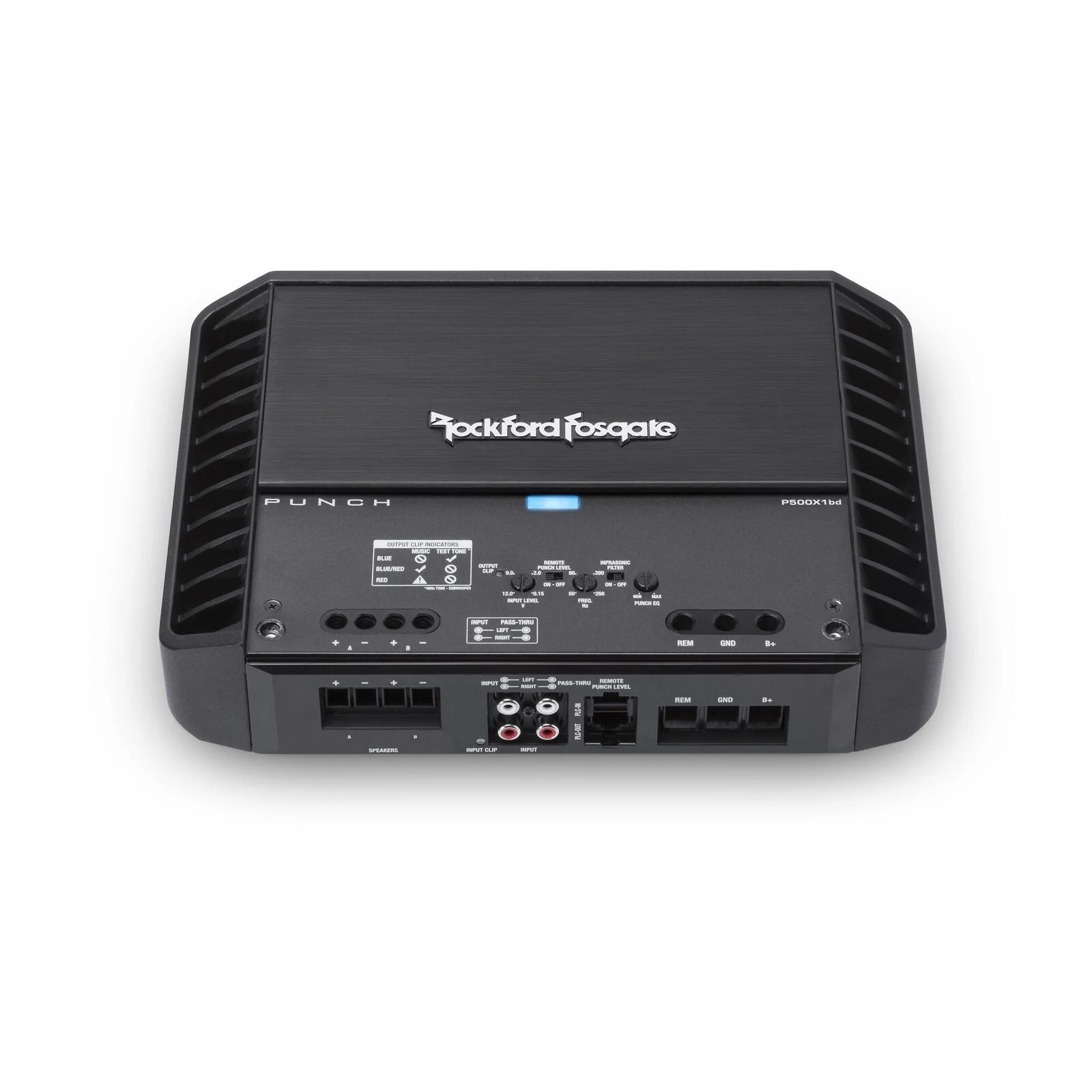

Stealth top mounted control panel

Cast aluminum heatsink

Short circuit protection

Over current protection

Infrasonic filter

1 Year Warranty



Features:

Number of Channels: 1

Total Power: 500W

Rated Power:

150W x 1 @ 4 Ohm

300W x 1 @ 2 Ohm

500W x 1 @ 1 Ohm



Dynamic Power:

224W x 1 @ 4 Ohm

410W x 1 @ 2 Ohm

787W x 1 @ 1 Ohm



Frequency Response: 20Hz to 250Hz +/- 1.0dB

Input Sensitivity: 150 mV - 12V

Efficiency: 86% @ 4 Ohm



Dimensions:

2.38 x 7.76 x 11.03 (in)
