• Peak Power rating of 500 Watts with 250 Watt RMS
• Water Resistant cone design
• Hybrid design featuring a 1 inch Titanium VC Horn Driver
• Mounting depth: 4.39 inches

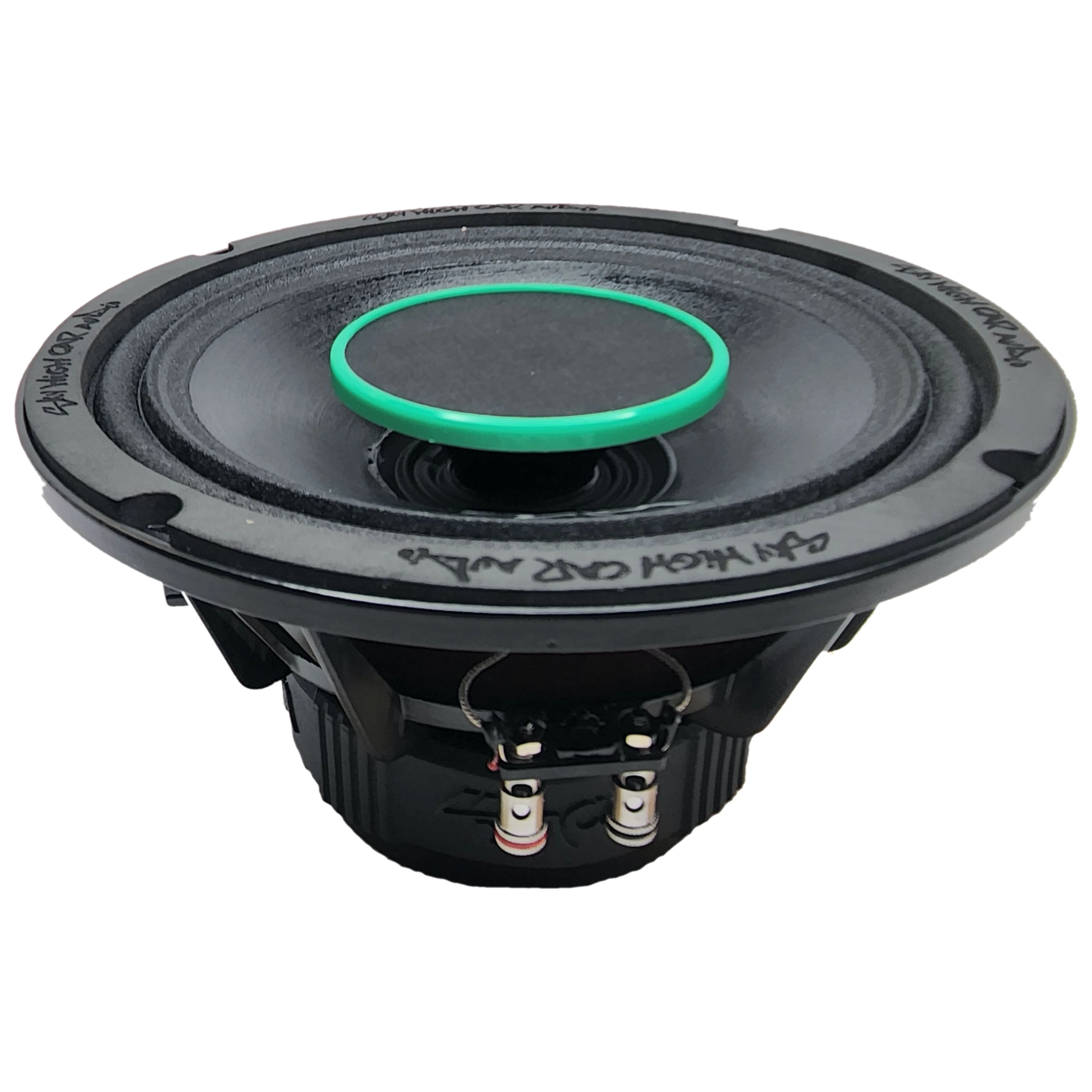

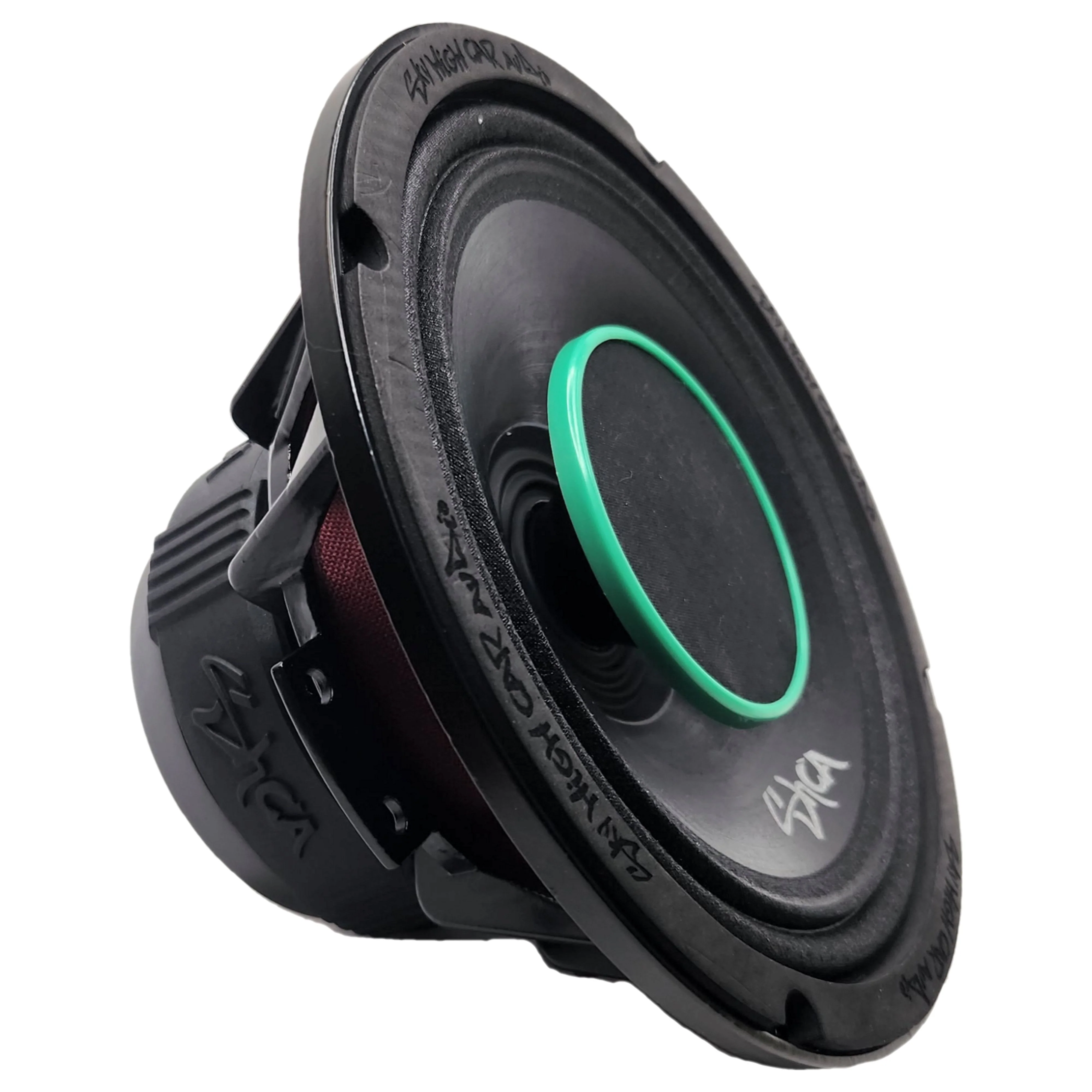

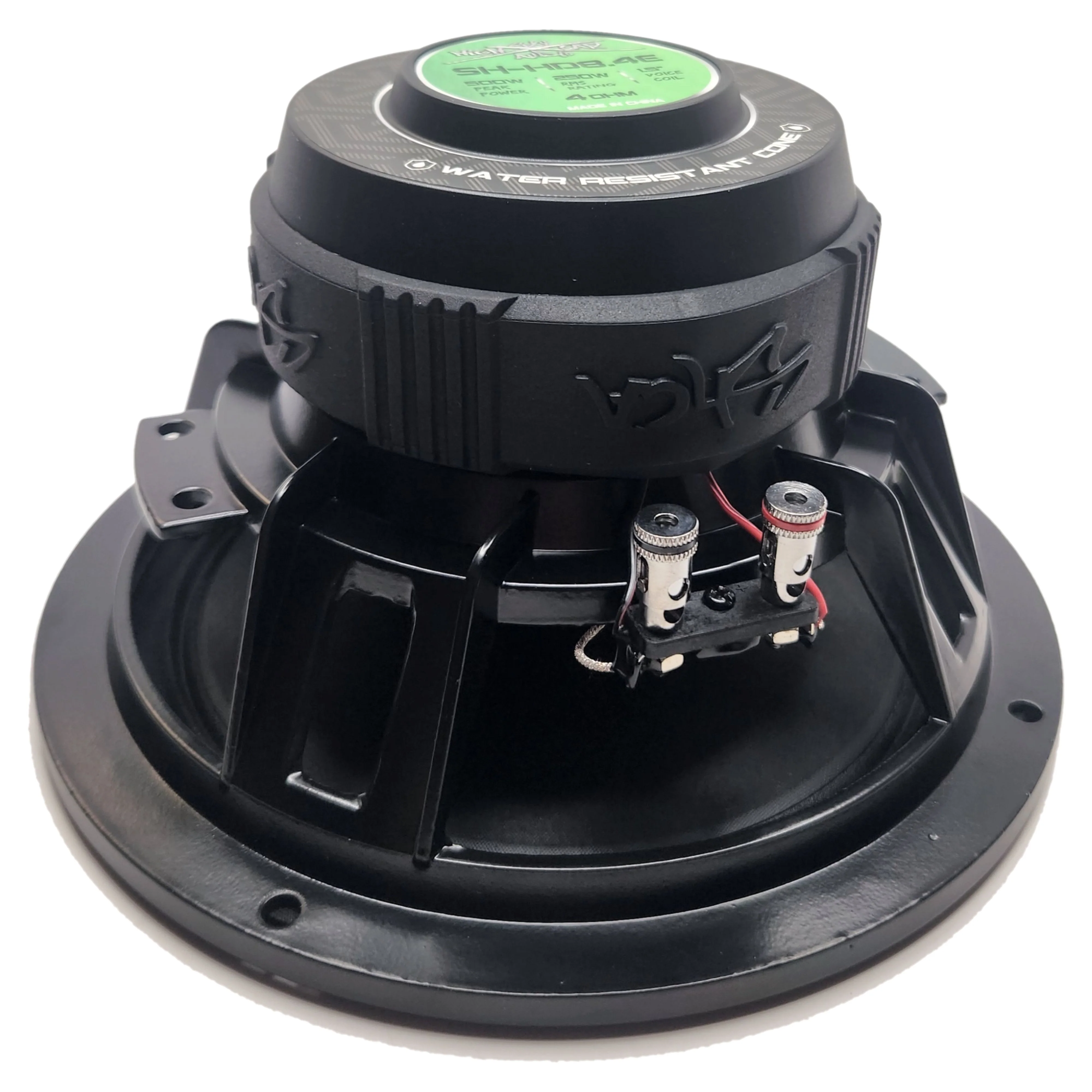

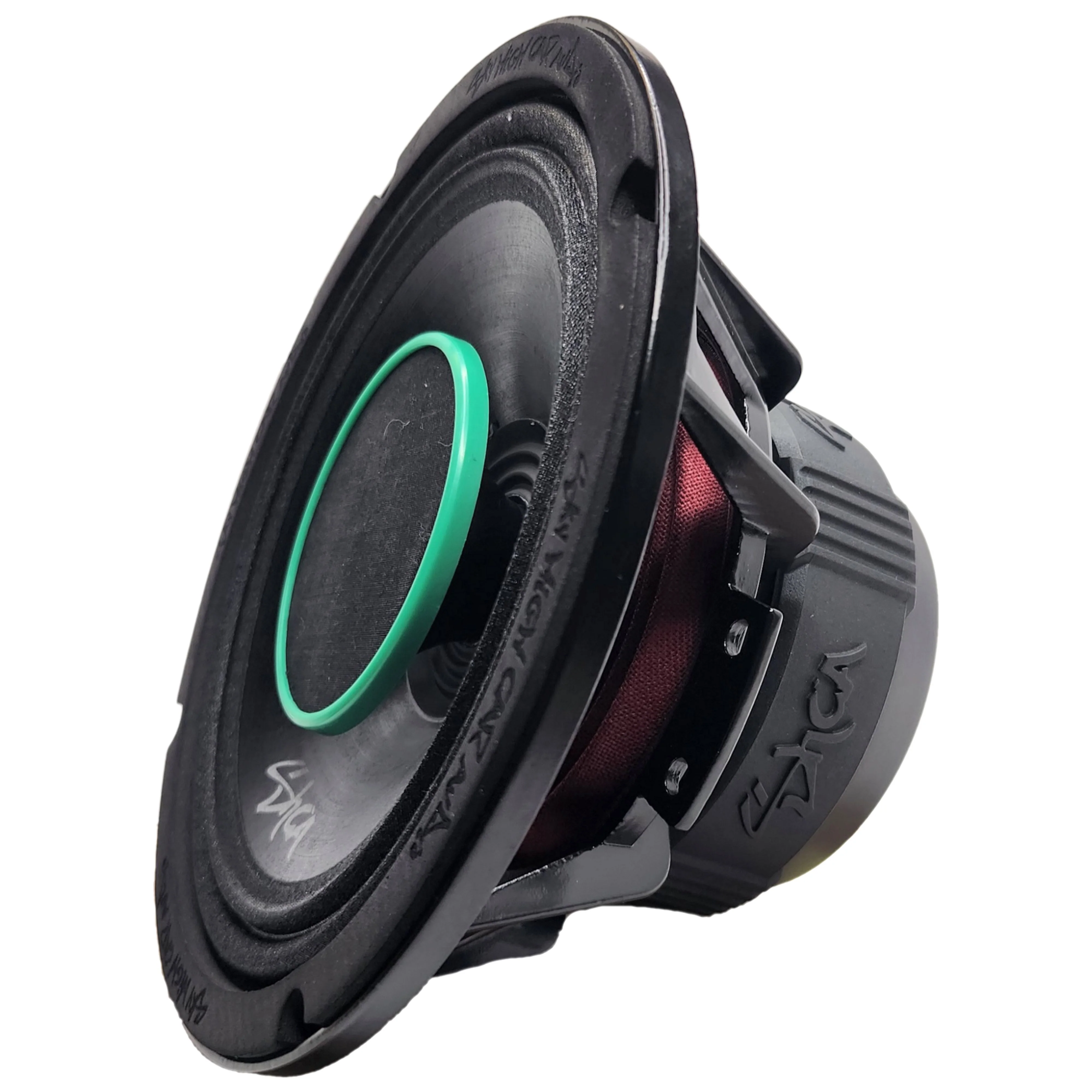

Sky High Car Audio 8 Inch 500W 4 Ohm Hybrid Midrange Loud Speaker + Horn HD8.4E

This listing includes:

• (1) 8" Hybrid Midrange 500W Peak 250W RMS 4 Ohm Loudspeaker

Specifications:

• Nominal Diameter: 8 inches


• Nominal Impedance: 4 Ohms


• Peak Power Handling: 500 Watts


• RMS Power Handling: 250 Watts


• Sensitivity (1w/1m): 97dB


• Frequency Response: 80Hz - 20KHz


• Recommended Hi Pass Crossover: 100Hz

Woofer Specifications:

• Voice Coil Diameter: 1.5 inches


• Voice Coil Former Material: Fiberglass


• Winding Material: CCAW


• Cone Material: Paper


• Surround Material: Cloth


• Basket Material: Aluminum


• Magnet Material: Ferrite


• Magnet Weight: 27 oz.


• Displacement volume: 0.051L / 0.0018ft3

Thiele & Small Parameters:

• Equivalent Volume / Vas: 10L / 0.35ft3


• Excursion (one way) Xmax: 9.2mm


• Free Air Resonance / Fs: 135 Hz


• Mechanical Factor / Qms: 5.96


• Electrical Factor / Qes: 1.321


• Total Factor / Qts: 1.011


• DC Resistance / Re: 3.2 Ohms


• Mechanical Mass / Mms: 9.69g


• Mechanical Compliance / Cms: 137.345 mm/N


• BL Factor / BL: 4.580


• Voice Coil Inductance / Le: 4.22mH


• Cone Area / Sd: 226.98 Cm2


• Mechanical Mass Without Air / Mmd: 7.724g

Driver Specifications:

• Voice coil diameter: 1 inch


• Voice coil former material: Kapton


• Winding material: CCAW


• Diaphragm material: Titanium


• Magnet material: Neodymium


• Horn diameter: 3.26 inches

Dimensions:

• Overall Diameter: 8.2 inches


• Front Mount Baffle Cutout: 7.2 inches


• Mounting Depth: 4.39 inches


• Overall Depth: 4.75 inches


• Motor Diameter: 4.6 inches
