• Versatile Configuration - Class A/B for multi channels, ensuring flexibility and high-quality audio reproduction.
• Advanced Cooling - Redesigned chassis and heatsink with 33% more aluminum for efficient heat dissipation during heavy loads.
• Compact Design - Utilizes the latest Half Bridge technology, providing a small footprint without compromising signal strength.
• High Fidelity Performance - Delivers 300 Watts RMS at 2 Ohm to each channel, offering clean and powerful signal power for your car audio system.
• Optimized Filtering - 12dB/Octave variable subsonic, high pass, and low pass filters, ensuring precise tuning and audio customization.

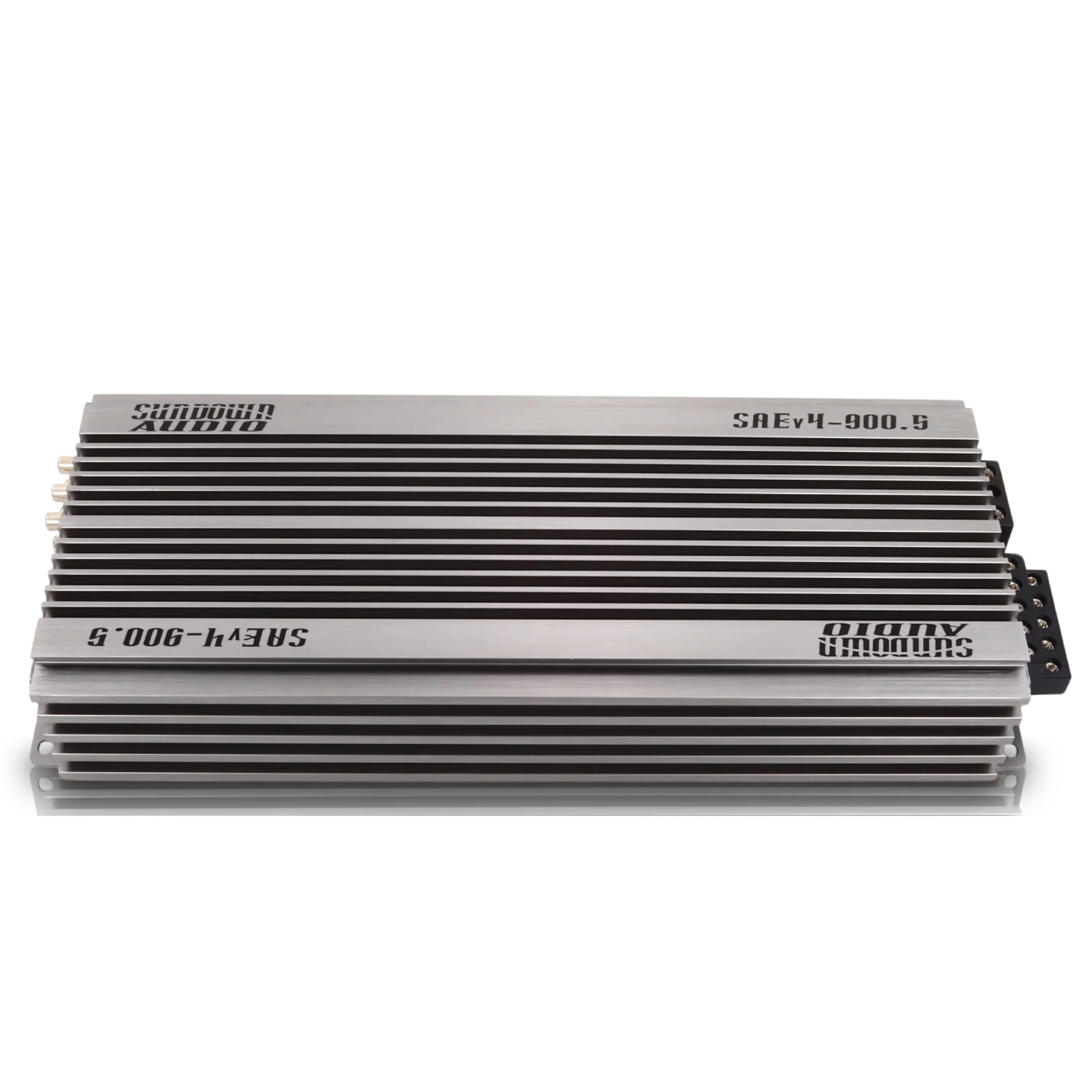

Sundown Audio Class-A/B 1-Ohm 900-Watt 5-Channel Amplifier SAE-900.5-V4

This Listing Includes:

• (1) Digital Class-D Mono Block Amplifier

Introducing the Sundown Audio SAE-900.5-V4 5 Channel Class A/B Amplifier, a response to customer demand for a budget-friendly Korean-style amplifier. With a focus on versatility and high fidelity, the SAEv4 series features Class A/B for multi channels, ensuring optimal audio reproduction. The upgraded chassis and heatsink, with 33% more aluminum, enhance heat dissipation during heavy loads, while the Half Bridge technology keeps the amplifier compact without sacrificing signal strength. Boasting 900 Watts RMS at 1 ohm, this amplifier delivers a clean and powerful audio experience. For those seeking a balance between affordability and performance, the SAEv4 series is the perfect choice.

FEATURES:

• High Fidelity Class A/B Multi-Channel Design


• 12dB/Octave-Variable Subsonic Filter


• 12dB/Octave-Variable High Pass Filter


• 12dB/Octave-Variable Low Pass Filter


• Clipping Indicator


• 4 Way Protection Circuit (Thermal,


• Voltage Speaker short and DC Offset)


• Optional Wired Remote Control with Clipping Indicator

SPECIFICATIONS:

• Input Sensitivity 6V Max


• 500 x 1@ 1 ohms RMS (Channel 5)


• 120 x 4 / 325 x 1 @ 2 ohms RMS


• 80 x 4 / 225 x 1 @ 4 ohms RMS


• Variable Low Pass Filter: 540Hz - 5kHz (Channel 5)


• Variable High Pass Filter: 40HZ - 5kHZ (Channel 1 - Channel 4)


• Variable High Pass Filter: 10Hz - 40Hz (Channel 5 Subsonic)


• -12dB/8 Variable Crossover Slope (LPF/HPF)


• Signal / Noise Ratio: 92DB


• Operation Voltage: DC 10.5V - 15.5V Power Input

Dimensions:

• Length: 17.5"


• Width: 6.5"


• Height: 2.75"
