• Digital Class-D Mono Block Amplifier
• Dual MOS-FET PWM Power Supply
• 1 Ohm Stable Load
• 4 Way Protection Circuit (Thermal, Voltage, Speaker Short, DC Offset)
• Wired Remote Control with Clipping Indicator

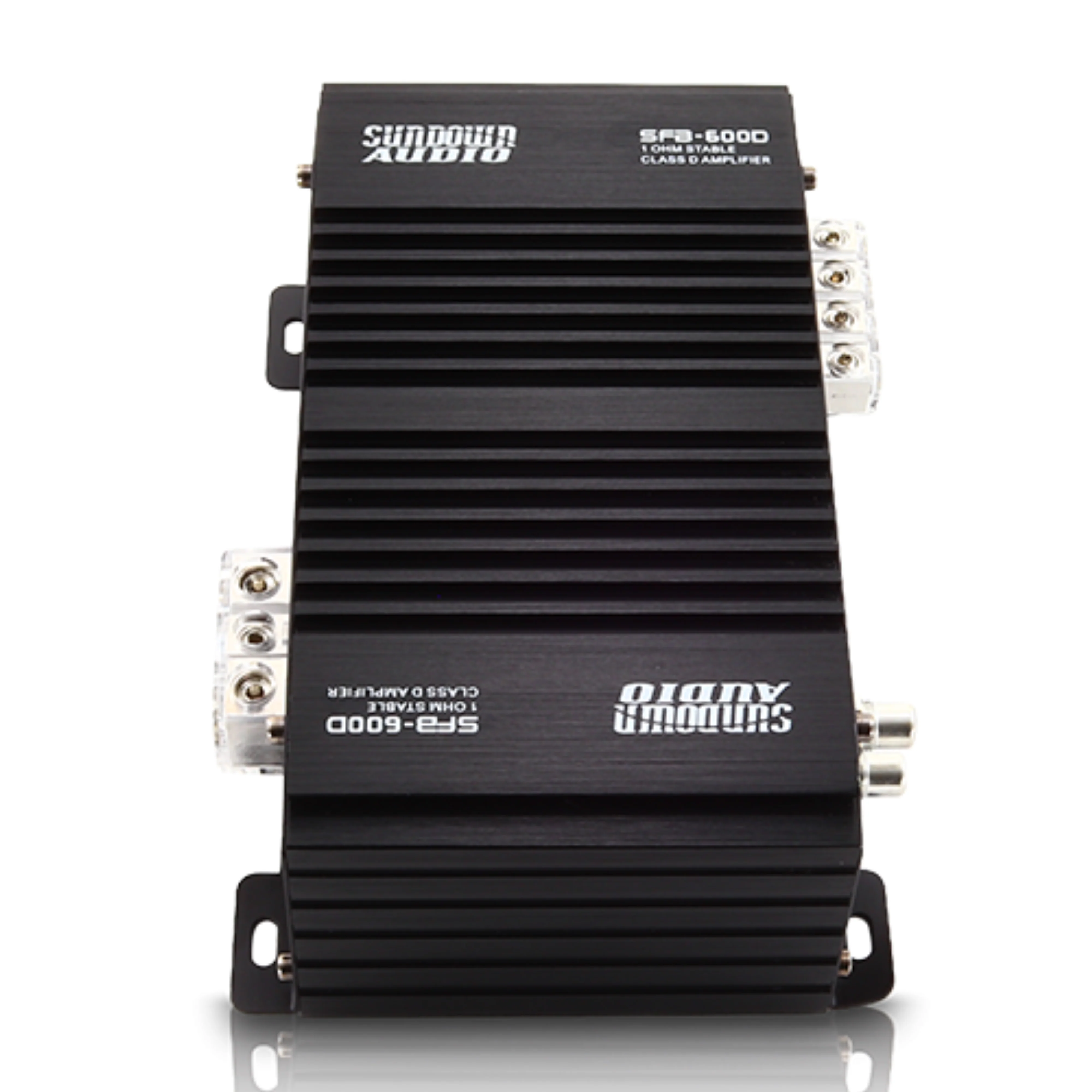

Sundown Audio Amplifier Full Range Monoblock 600W 1 ohm 1 ch Class D SFB-600D

This listing includes:

• (1) Sundown Audio Amplifier Full Range Monoblock 600W 1 ohm 1 ch Class D SFB-600D

The Sundown Audio SFB-600D is a compact yet powerful full-range monoblock amplifier designed for versatility and efficiency. Delivering 600W RMS at 1 ohm, this Class D amplifier ensures high-performance output with minimal power consumption. Equipped with a dual MOS-FET PWM power supply, variable high-pass and low-pass filters, and a 9dB octave variable bass boost, it offers precise audio tuning for optimal sound quality. The built-in 4-way protection circuit safeguards against thermal, voltage, speaker short, and DC offset issues, ensuring long-term reliability. A wired remote control with a clipping indicator allows for easy on-the-fly adjustments. Whether you're running subwoofers or full-range speakers, the SFB-600D delivers clean, dynamic sound in a durable and compact design, making it an excellent choice for any car audio system.

Features:

• Digital Class-D Mono Block Amplifier


• Dual MOS-FET PWM Power Supply


• 1 Ohm Stable Load


• 12 dB/Octave – Variable Low Pass Filter


• 12 dB/Octave – Variable High Pass Filter


• 9 dB/Octave – Variable Bass Boost


• 4 Way Protection Circuit (Thermal, Voltage, Speaker Short, DC Offset)


• Wired Remote Control with Clipping Indicator


• Specifications:


• 1 ohm Mono RMS 600W


• 2 ohm Mono RMS 350W


• 4 ohm Mono RMS 250W


• Recommended Fuse Rating 60A


• Low Pass Filter (Variable) 80Hz-20kHz


• High Pass Filter (Variable) 15Hz-1kHz


• Bass Boost @ 50Hz 0-12dB


• Input Sensitivity 5V Max


• S/N Ratio 86dB


• Working Voltage 10.5v-15.5v

Dimensions

• Length: 7.25"


• Width:  5.00"


• Height: 2.50"
