• Digital Class-D Mono Block Amplifier
• Dual MOS-FET PWM Power Supply
• 1 Ohm Stable Load
• DC Auto sense feature
• Cast Aluminum Heat Sync

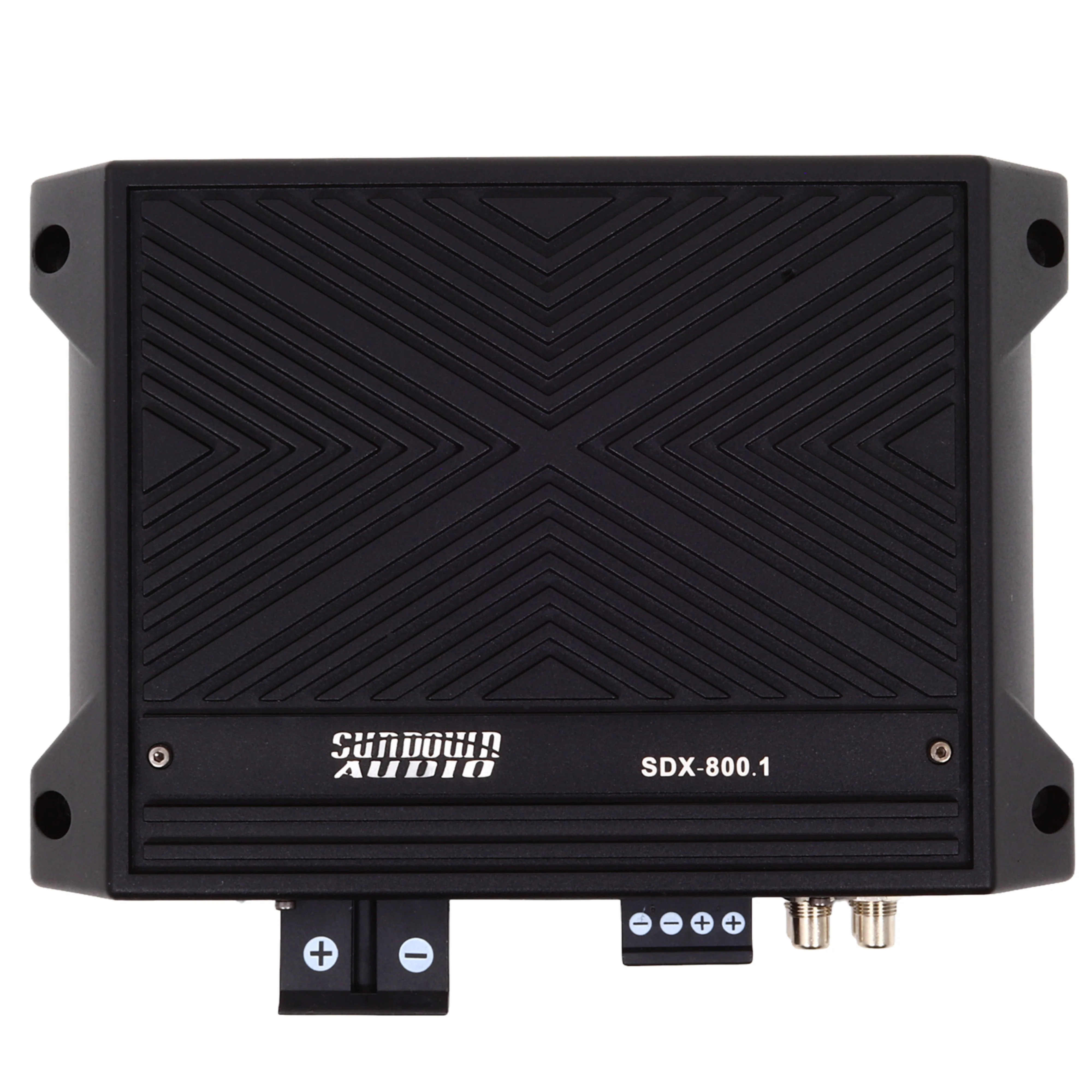

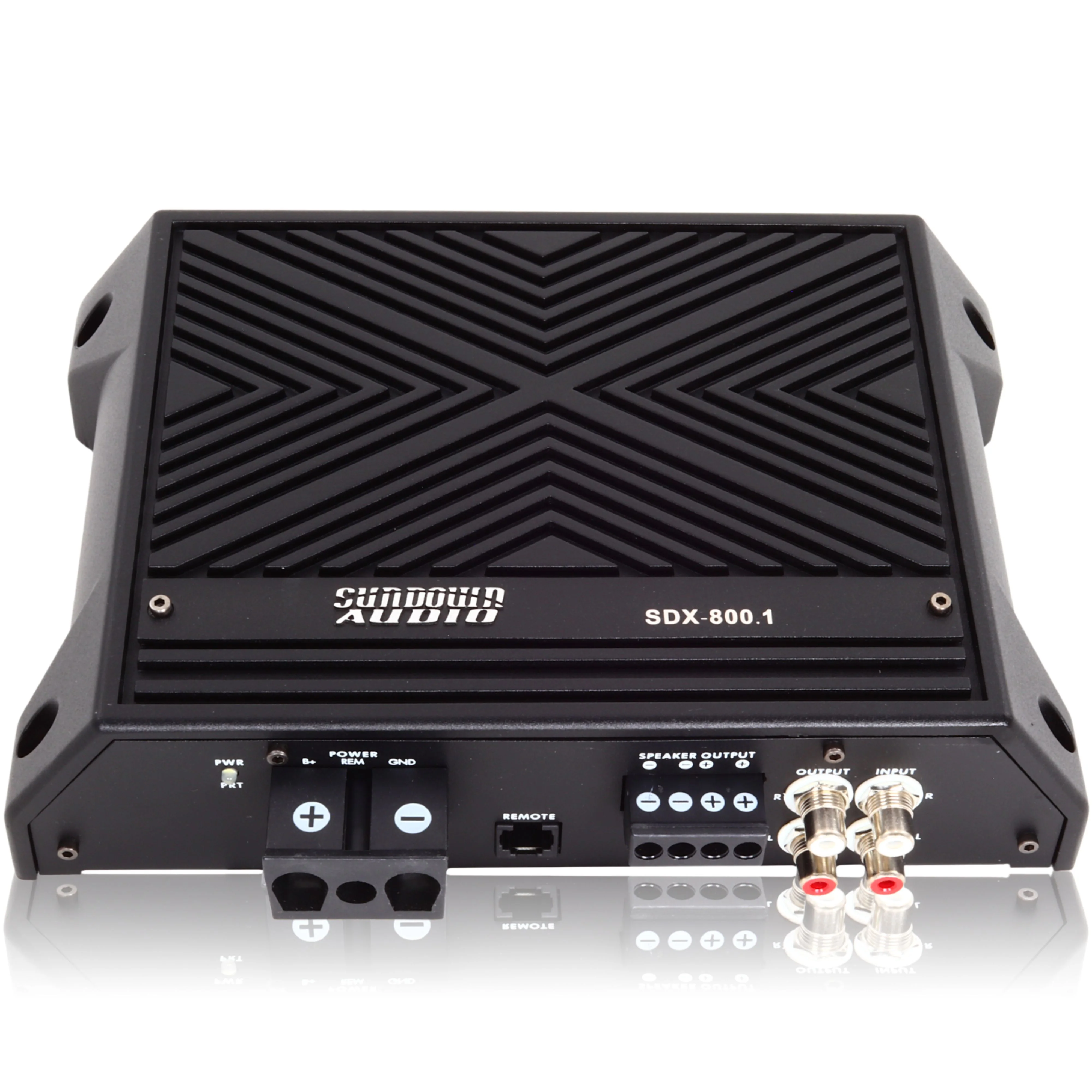

Sundown Audio Full Range Class D Monoblock Digital Amplifier 1-Ohm SDX-800.1

Moderate power, tiny size, but at the top-end of Full-Range Class-D fidelity. The controls will have a removable cover that bolts down on top of them. The overall case is a big chunk of cast aluminum to keep temperatures in check!

This Listing Includes:

(1) Full Range Class D Monoblock Digital Amplifier 1-Ohm

Features:

• Dual MOS-FET PWM Power Supply


• 1 Ohm Stable Load


• 12 dB/Octave - Variable Low Pass Filter


• DC Auto sense feature


• 0 to 12dB - Variable Bass Boost


• 4 Way Protection Circuit (Thermal, Voltage Speaker short and DC Offset)


• Wired Remote Control

Specifications:

• Mono Block Class-D Amplifier


• 1 x 400W at 1 Ohm


• 1 x 300W at 2 Ohm


• 1 x 175W at 4 Ohm


• Recommended Fuse Rating: 40A


• Low Pass Filter (-12dB/8) Variable: 50hz-250hz


• Input Sensitivity: 6V Max


• S/N: >90dB


• Cast Aluminum Heat Sync


• Water Resistant


• Highpass / Lowpass / Bandpass Filter


• Gain Adjustment


• Suitable for vehicles with start / stop function

Dimensions: 5.8" x 4.1" x 2.2"

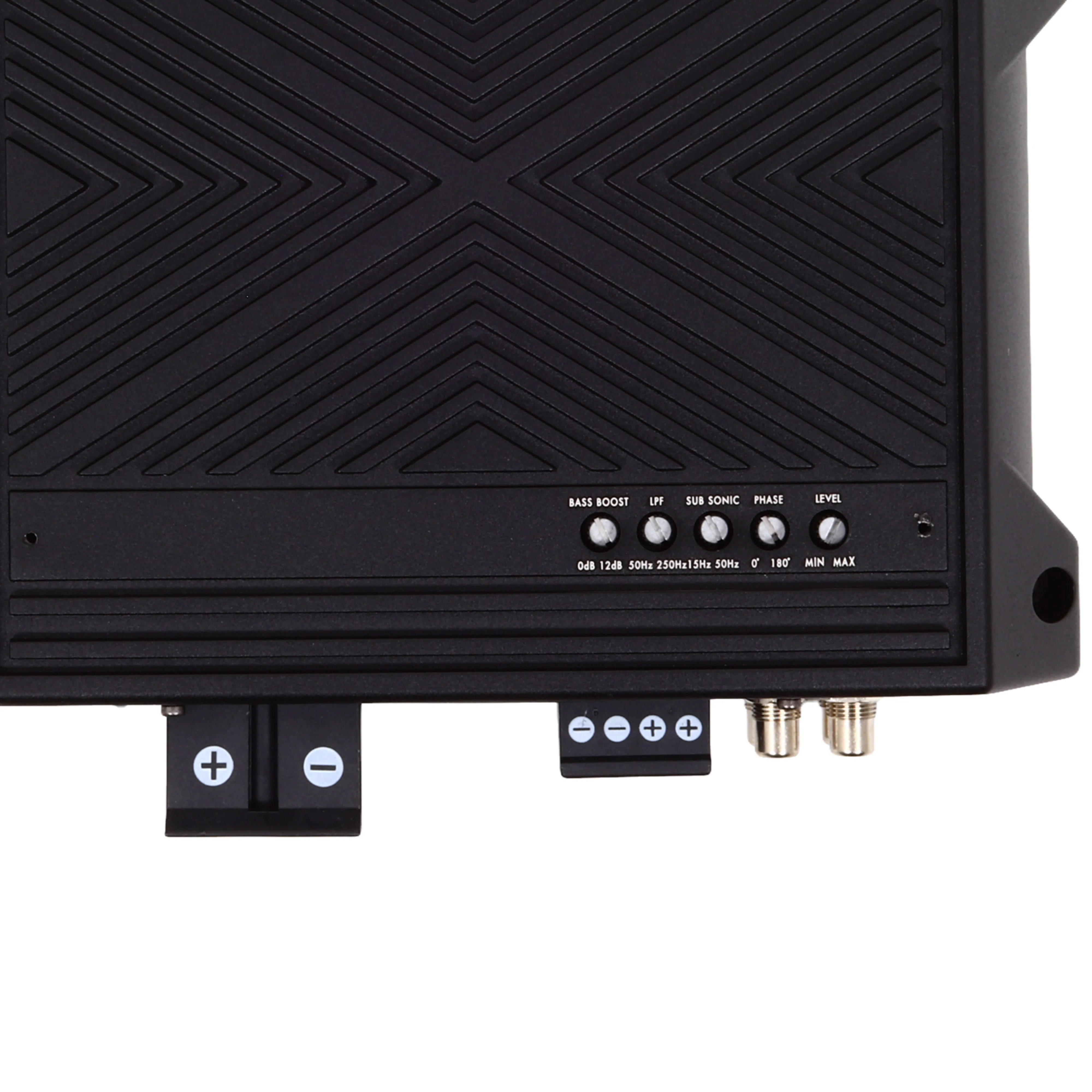

Note: Unscrew the badge using an allen key to access audio settings.
