• Powerful Performance - Unleash 1k Watts RMS at 1 ohm, delivering a dynamic and clean audio experience for your car audio system.
• Enhanced Cooling - Redesigned chassis and heatsink with 33% more aluminum ensure optimal heat dissipation, keeping your amplifier cool even during heavy loads.
• Budget-Friendly Korean Style - Responding to customer demands, the SAEv4 series combines affordability with the beloved Korean-style amplifier design.
• Advanced Protection - 4-way protection circuit, variable low pass filter, and subsonic filter guarantee stable operation and customizable audio output.

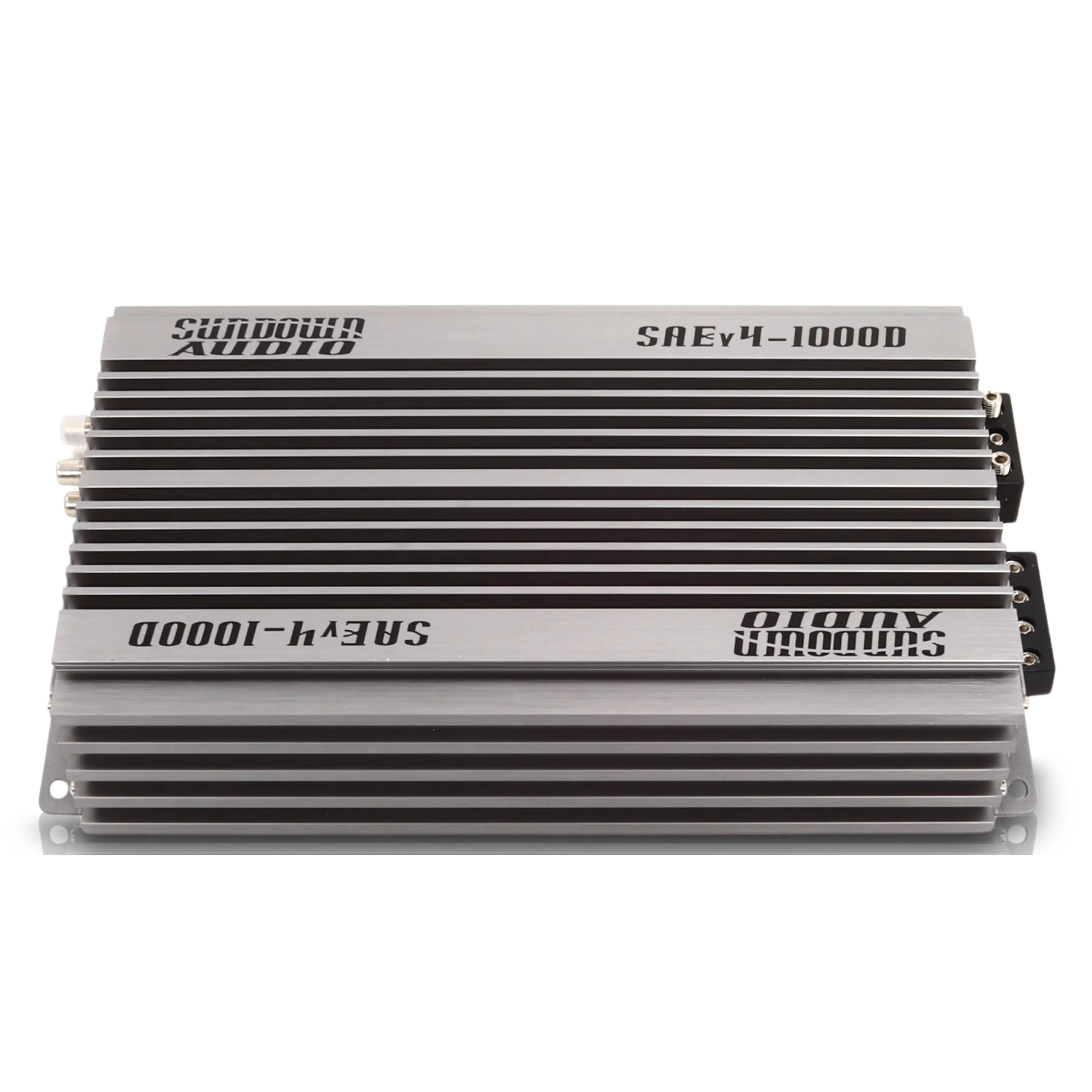

Sundown Audio Class-D 1-Ohm 1k Watts Monoblock Amplifier SAE-1000-V4

This Listing Includes:

• (1) Digital Class-D Mono Block Amplifier

Introducing the Sundown Audio SAE-1000-V4 Monoblock Class D Amplifier, a budget-friendly powerhouse designed in response to customer demand. Boasting 1000 Watts RMS at 1 ohm, this amplifier combines affordability with the latest technology. The upgraded chassis and heatsink, featuring 33% more aluminum, ensure efficient heat dissipation during demanding use. Alongside the latest Half Bridge technology, the SAEv4 series delivers powerful performance while maintaining a compact design. For those seeking a balance between price and stability, the SAEv4 series is the perfect choice.

FEATURES

• Digital Class-D Mono Block Amplifier


• Dual MOS-FET PWM Power Supply


• 1 Ohm Stable Load


• 12 dB/Octave - Variable Low Pass Filter


• 12 dB/Octave - Variable Subsonic Filter


• 4 Way Protection Circuit (Thermal, Voltage Speaker short and DC Offset)


• Wired Remote Control

SPECIFICATIONS

• Input Sensitivity 6V Max


• 1000 x 1 @ 1 ohms RMS


• 650 x 1 @ 2 ohms RMS


• 375 x 1 @ 4 ohms RMS


• 1 OHM Stable


• Variable Low Pass Filter: 40HZ - 180HZ


• -12dB/8 Variable Crossover Slope (LPF)


• Signal / Noise Ratio: 92DB


• Operation Voltage: DC 10.5V - 15.5V Power Input


• Recommended Fuse: 100 Amps

Dimensions:

• Length: 12.5"


• Width: 6.5"


• Height: 2.75"
