• Introducing the SAEv4 series from Sundown Audio, a budget-friendly Korean-style amplifier delivering high-fidelity sound.
• Features an all-new chassis and heatsink with 33% more aluminum for enhanced heat dissipation during heavy loads.
• Class A/B design for multi-channels and Class D for mono channels, offering a balance of size, power, and signal purity.
• Equipped with a range of features including variable subsonic, high pass, and low pass filters, clipping indicator, and 4-way protection circuit.
• Optional wired remote control available, providing convenient control and monitoring of amplifier performance.

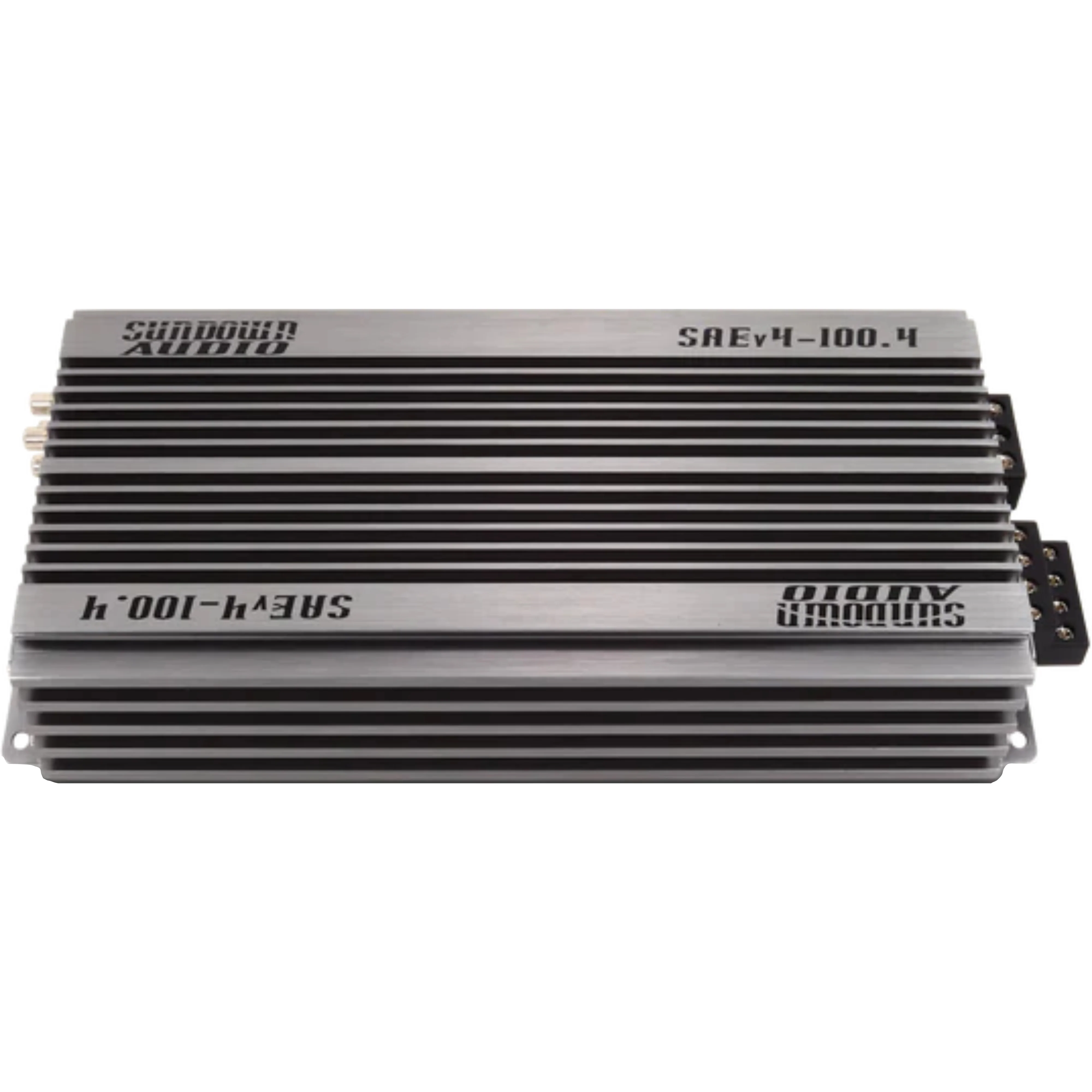

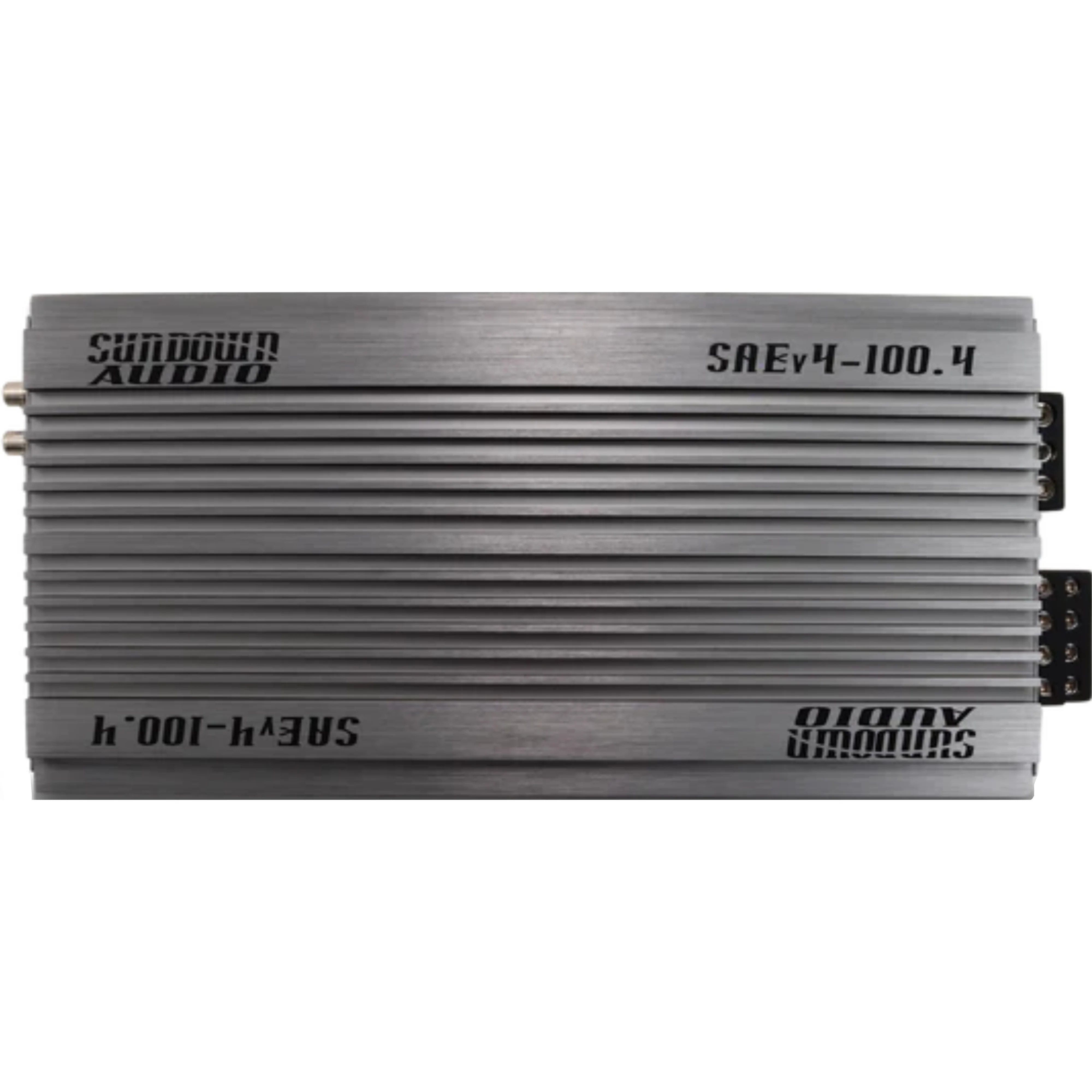

Sundown Audio SAEv4-100.4 4x100W 4-Channel Amplifier SD-SAE-100.4-V4

This Listing Includes:

• (1) Sundown Audio SAEv4-100.4 4-Channel Amplifier

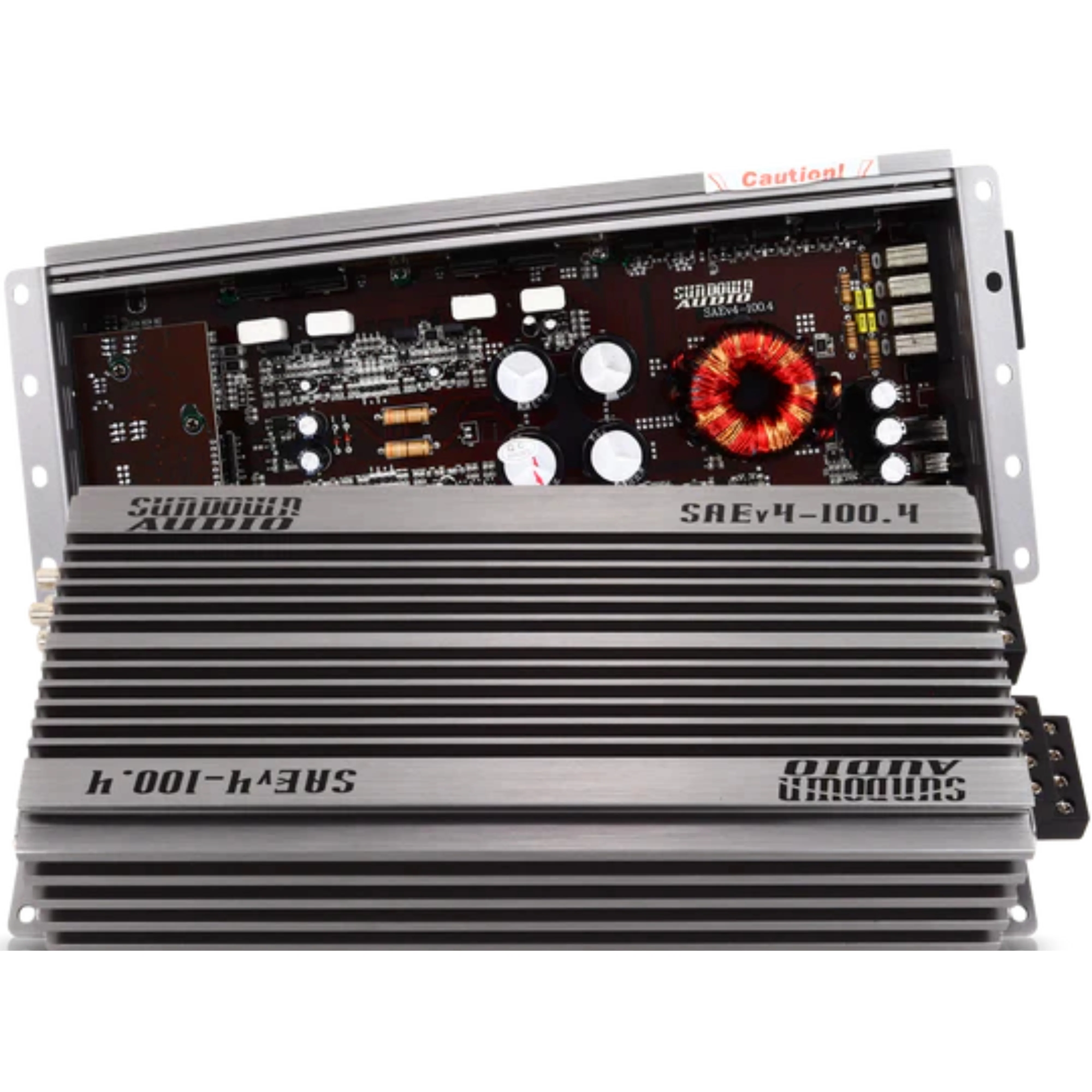

The Sundown Audio SAEv4-100.4 4-channel amplifier is back by popular demand, reintroducing the beloved budget-friendly Korean-style amplifiers of the SAEv1 and SAEv2 series. With an all-new chassis and heatsink design featuring 33% more aluminum, this amplifier ensures optimal heat dissipation even during heavy loads, keeping your system cool for extended listening sessions.

Designed with high-fidelity Class A/B multi-channel architecture and Class D mono channels, the SAEv4 series strikes a balance between performance and affordability. Utilizing the latest half-bridge technology, these amplifiers maintain a compact form factor while delivering clean and powerful audio signals.

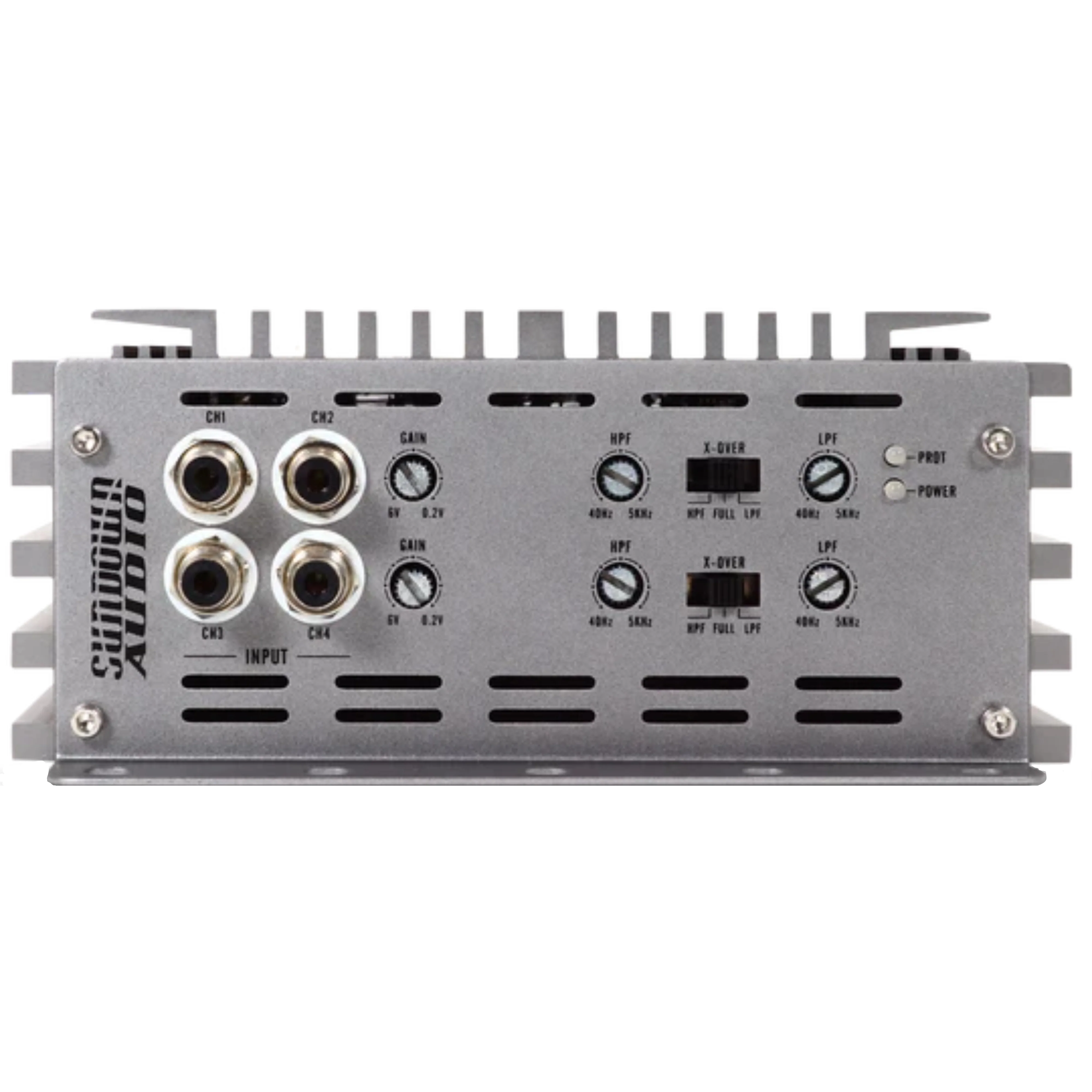

Featuring a comprehensive set of features, including variable subsonic, high pass, and low pass filters, as well as a clipping indicator and 4-way protection circuit (thermal, voltage, speaker short, and DC offset), the SAEv4-100.4 ensures optimal audio performance and amplifier protection.

With an input sensitivity of 6V max and RMS power output of 125W x 4 at 2 ohms and 100W x 4 at 4 ohms, this amplifier is capable of driving your car audio system with precision and clarity. The variable crossover slope (LPF/HPF) and high signal-to-noise ratio of 92dB further enhance audio quality.

Experience the perfect blend of affordability, performance, and reliability with the Sundown Audio SAEv4-100.4 4-channel amplifier.

FEATURES:

• High Fidelity Class A/B Multi-Channel Design


• 12dB/Octave-Variable Subsonic Filter


• 12dB/Octave-Variable High Pass Filter


• 12dB/Octave-Variable Low Pass Filter


• Clipping Indicator


• 4 Way Protection Circuit (Thermal,


• Voltage Speaker short and DC Offset)


• Optional Wired Remote Control with Clipping Indicator

SPECIFICATIONS:

• Input Sensitivity 6V Max


• 125 x 4 @ 2 ohms RMS


• 100 x 4 @ 4 ohms RMS


• Variable High Pass Filter: 40HZ - 5kHZ


• -12dB/8 Variable Crossover Slope (LPF/HPF)


• Signal / Noise Ratio: 92DB


• Operation Voltage: DC 10.5V - 15.5V Power Input

Dimensions:

• Length: 14.88"


• Width: 6.3"


• Height: 2.75"
