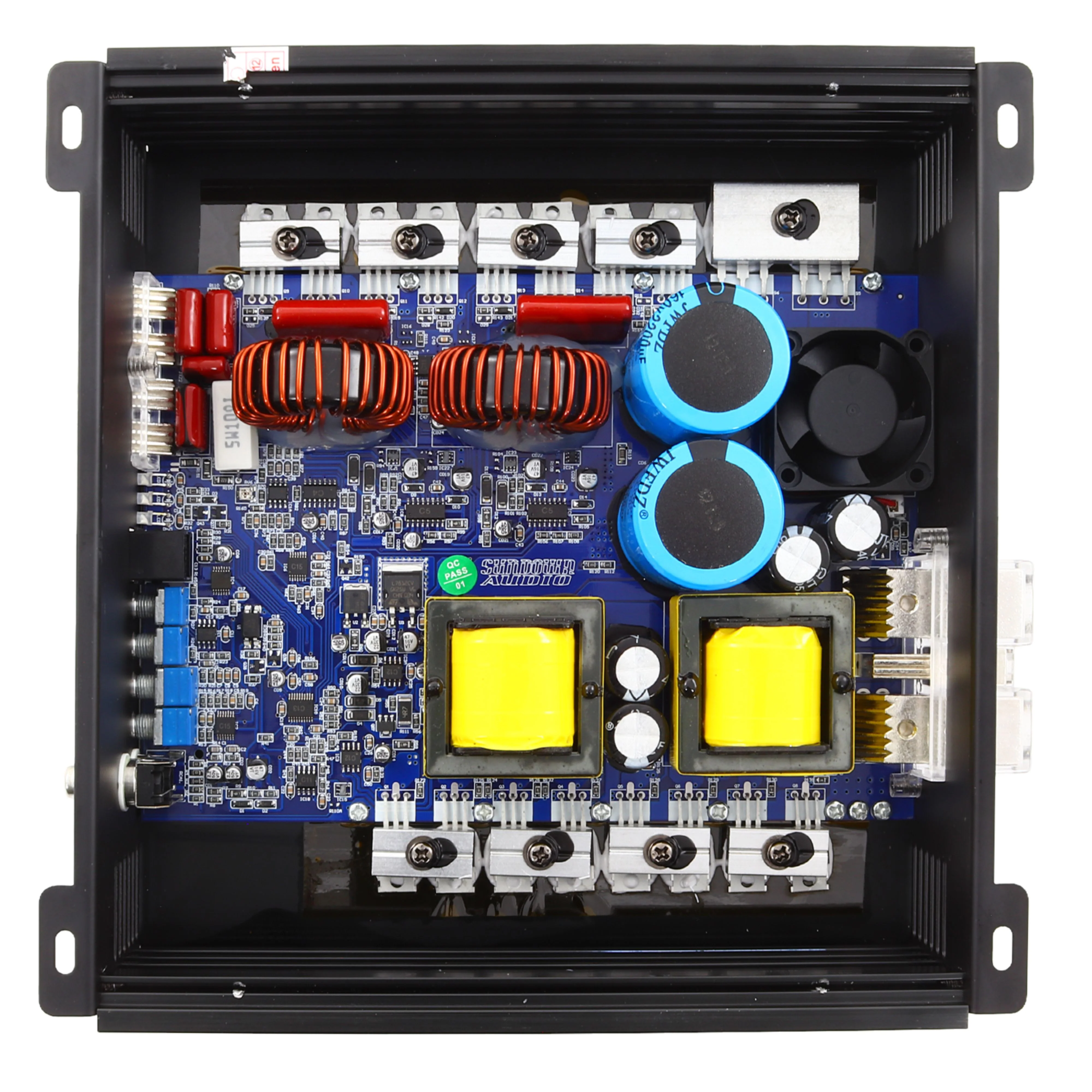

• Intelligent Full Bridge Design - Sundown Audio's latest SIA-3500D-V2 amplifier with a robust power supply and enhanced heatsink for superior performance.
• Smart Cooler Technology - Intelligent low voltage technology and a smart cooler with 3 speeds, fan-powered by temperature or audio, ensuring optimal thermal management.
• Powerful Output - Monoblock amplifier with dual MOS-FET PWM power supply, 1 Ohm stable load, delivering 3500W RMS at 1 Ohm, 3000W RMS at 2 Ohms, and 1750W RMS at 4 Ohms.
• Versatile Controls - 12dB/Octave variable low pass filter, variable bass boost (0 to 12dB at 50Hz), and a wired remote control with clipping indicator for precise audio customization.
• Advanced Protection Circuitry - 4-way protection circuit for thermal, voltage, speaker short, and DC offset, ensuring the amplifier's durability and longevity.

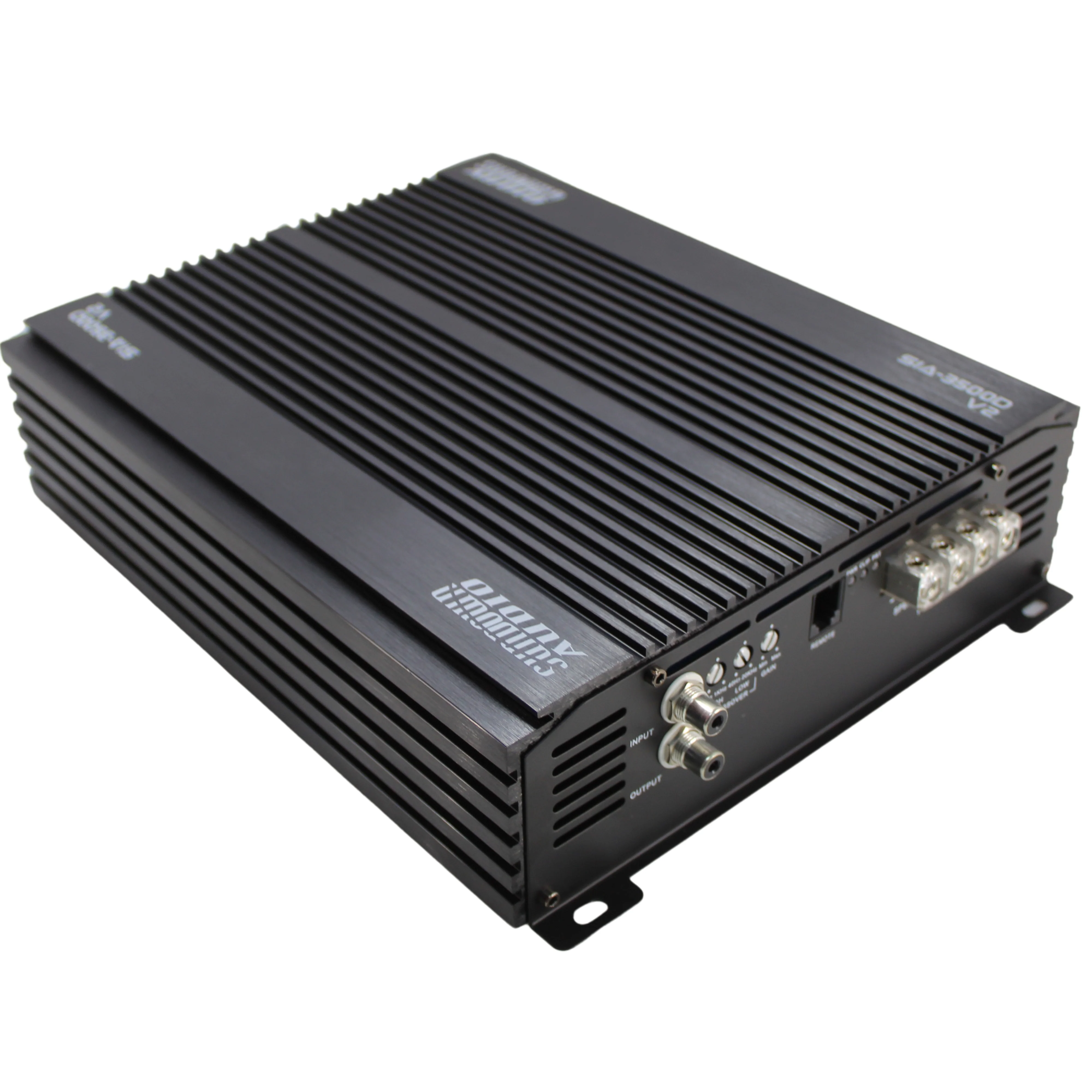

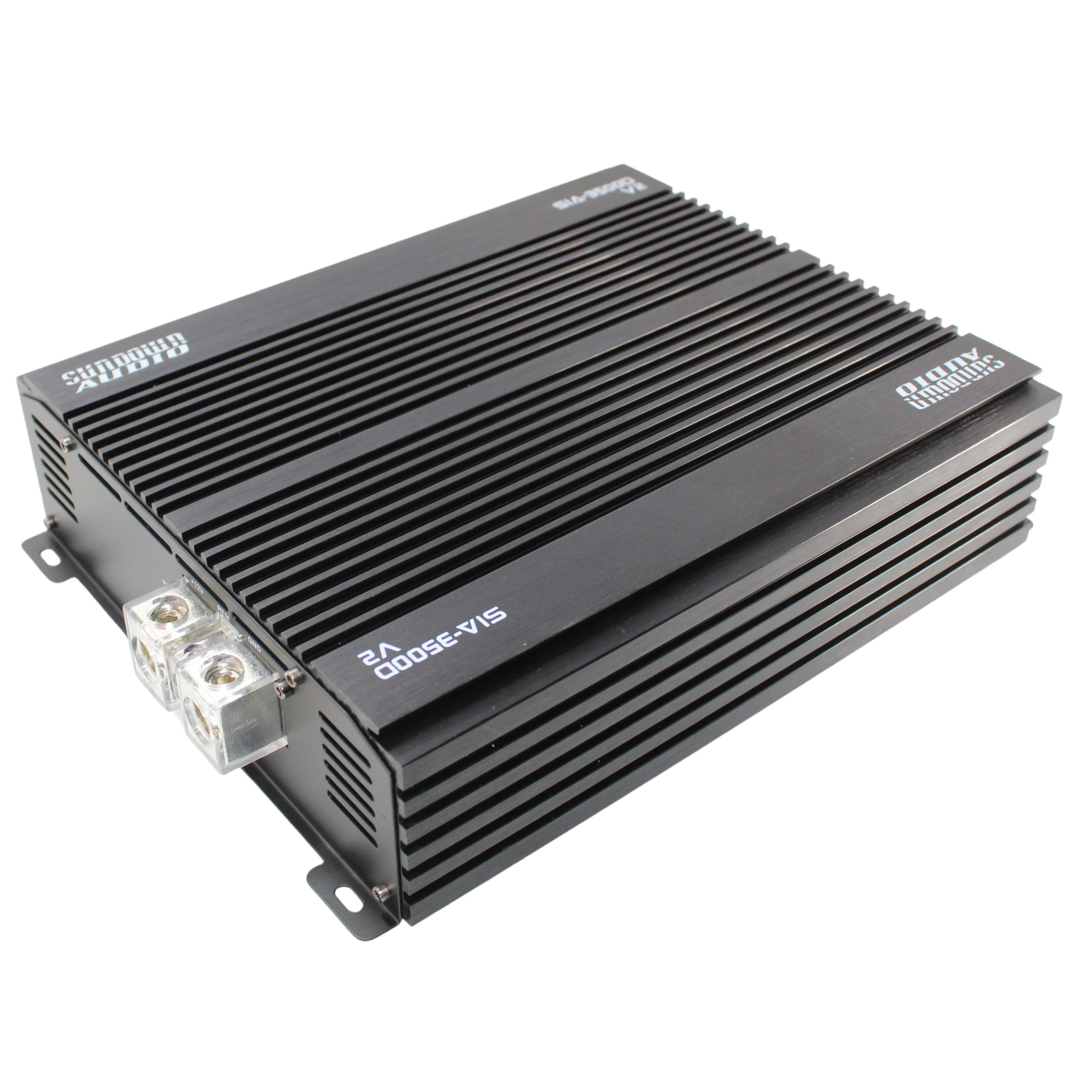

Sundown Audio Smart Monoblock Amplifier Full-Range Class-D 3500W SIA-3500D-V2

This Listing includes:

• (1) Monoblock Amplifier Full-Range Class-D 3500W

Experience the pinnacle of audio performance with the Sundown Audio SIA-3500D-V2 Smart Monoblock Amplifier. This intelligent full bridge amplifier boasts a reinforced power supply, a heavier heatsink, and innovative features such as smart cooler technology. The smart cooler, with 3 speeds, is powered by temperature or audio, providing efficient thermal management. The SIA-3500D-V2 delivers a powerful 3500W RMS at 1 Ohm, 3000W RMS at 2 Ohms, and 1750W RMS at 4 Ohms, ensuring an immersive audio experience. Customize your sound with a 12dB/Octave variable low pass filter, variable bass boost (0 to 12dB at 50Hz), and a wired remote control with a clipping indicator. The amplifier is equipped with advanced protection circuitry, safeguarding against thermal issues, voltage fluctuations, speaker shorts, and DC offset.

Features:

• Dual MOS-FET PWM Power Supply


• 1 Ohm Stable Load


• 12dB/Octave - Variable Low Pass Filter


• 0 to 12 dB - Variable Bass Boost


• 4 Way Protection Circuit (Thermal, Voltage, Speaker Short, and DC Offset)

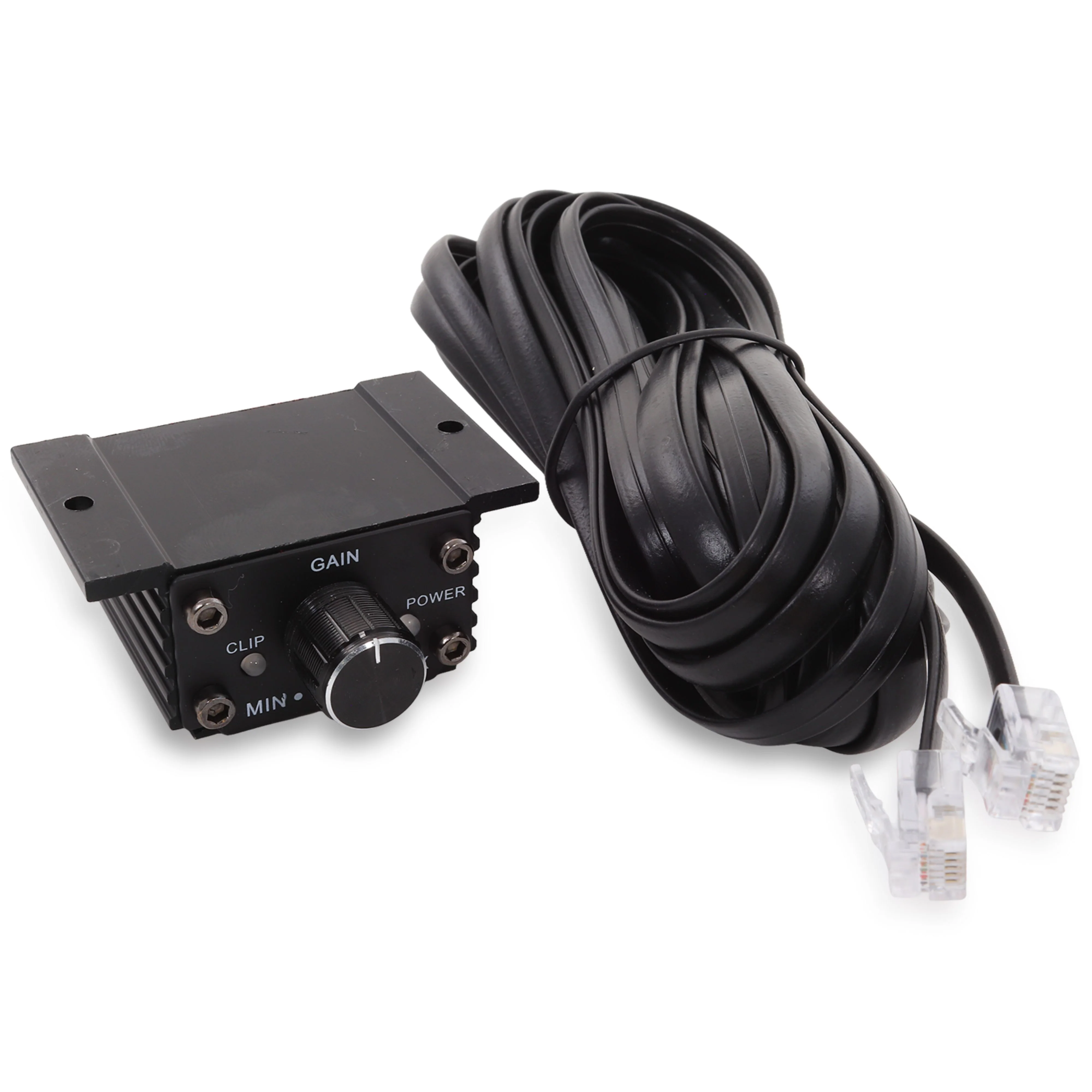

• Wired Remote Control with Clipping Indicator

Specifications

• NUMBER OF CHANNELS : 1 CH


• MAX OUTPUT POWER : 14.4VDC - 1 OHM :3500W RMS


• MAX OUTPUT POWER : 14.4VDC - 2 OHM :3000W RMS


• MAX OUTPUT POWER : 14.4VDC - 4 OHM :1750W RMS


• INPUT SENSITIVITY : 200MV


• SIGNAL TO NOISE RATIO 108 DB


• FREQUENCY RESPONSE: 10HZ 20KHZ (-3DB)


• HPF: 10 TO 1KHZ (-12DB/8) VARIABLE


• LPF: 40HZ TO 20KHZ (-12DB/8) VARIABLE


• BASS BOOST : 0 TO 12DB (50HZ)


• THERMAL MANAGMENT ; SMART COOLER ( FAN POWERED BY TEMPERATURE OR AUDIO, WITH 3 SPEEDS)


• INPUT IMPEDANCE: 56K OHMS


• PROTECTION SYSTEM ; OUTPUT SHORT / HIGH /LOW SUPPLY VOLTAGE / THERMAL PROTECTION


• MINIMUM SUPPLY VOLTAGE : 9VDC


• MAXIUM SUPPLY VOLTAGE : 16VDC

Dimensions: 8.86"x7.87"x2.7"
