• Full Range Digital 2 Channel Amplifier.
• Double Sided Through Hole Epoxy PCB.
• Multi-Way Protection Circuitry (Thermal / Voltage / Speaker Short / DC Offset ).
• Voltage, Temperature, and Clipping Display Wired Remote Control (Optional / Not Included with Multi-Channels).
• Clipping indicator on amplifier side-panel.

Sundown Car Audio 2 Channel Amplifier Full Range 700 Watt Class D SALT-200.2

The Sundown Audio SALT amplifiers represent the pinnacle of Korean Class-D amplifier technology. They stand on the shoulders of the previous three generations of Sundown high-end Korean amplifiers spanning 15-years (the SAZ v.1, SAZ, v.2, and SCV series) to reach even greater heights of performance. The SALT  Sundown Audio Low-Voltage Technology  series is our answer!

Highlights:

- Full Range Digital 2 Channel Amplifier.

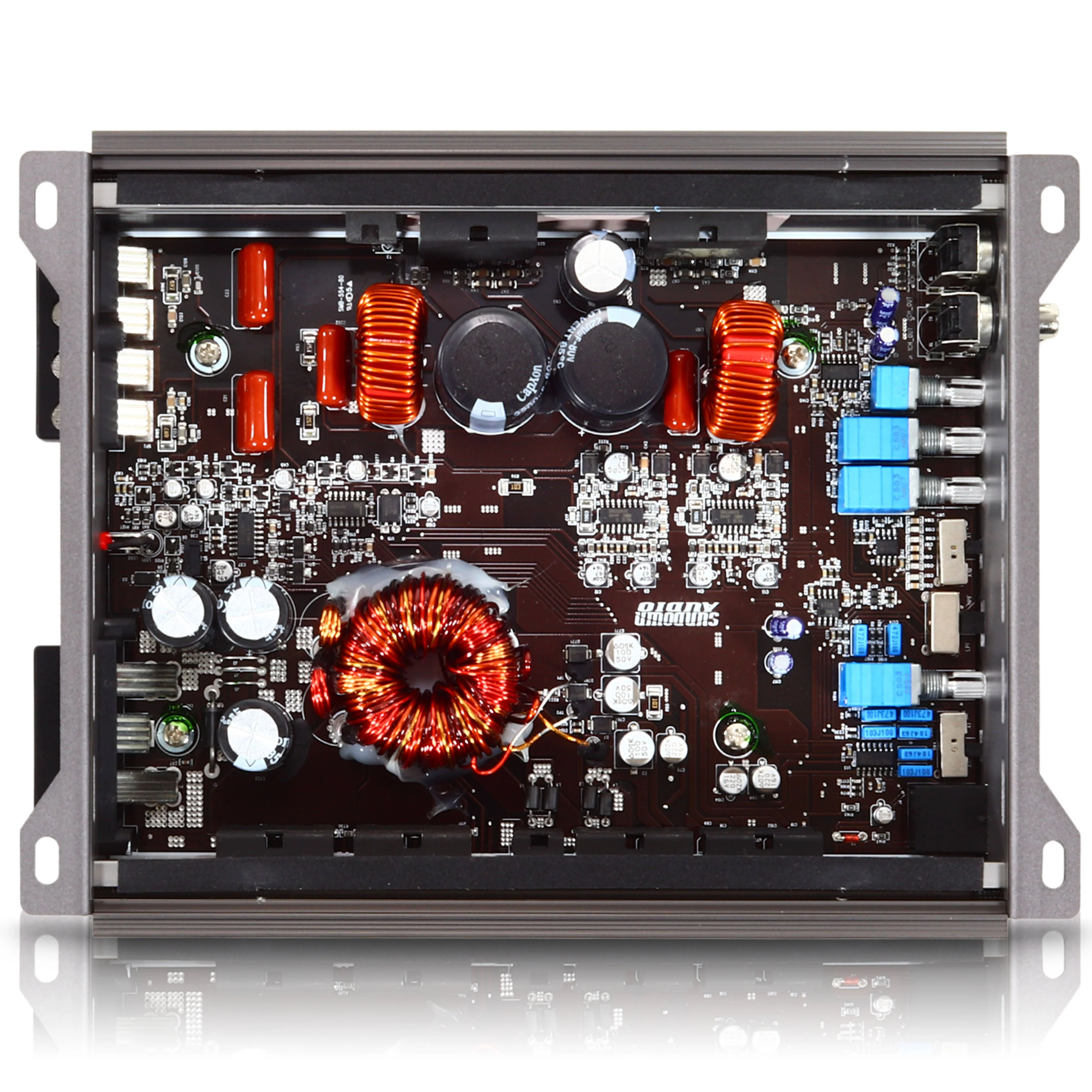

- Double Sided Through Hole Epoxy PCB.

- Multi-Way Protection Circuitry (Thermal / Voltage / Speaker Short / DC Offset ).

- Voltage, Temperature, and Clipping Display Wired Remote Control (Optional / Not Included with Multi-Channels).

- Clipping indicator on amplifier side-panel.

- Optimized for standard 12v charging systems (Low Voltage Technology).

- 12DB/ OCT Variable Crossover Slope (HPF/LPF).

- 12DB/ OCT Variable Subsonic Crossover Slope.

This listing includes:

(1) Sundown Audio 2 Channel Amplifier SALT-200.2

POWER SPECIFICATIONS:

RMS Power @ 4 OHM: 200 Watts x 2CH

RMS Power @ 2 OHM: 325 Watts x 2CH

RMS Power @ 4 OHM Bridge: 700 Watts x 1CH

AUDIO SPECIFICATIONS:

Frequency Response (+/- 1dB): 10Hz ~ 25KHz

Signal To Noise Ratio: 105dB

Efficiency @ 4 OHM: 75%<

Damping Factor: 400<

Input Sensitivity (+/- 5%): 6V ~ 0.2V

Total Harmonic Distortion (THD): 12.8V & < 0.1%

High Pass Filter: 50 (500) Hz ~ 500Hz (5KHz)

High Pass Filter Multiplier: X1 / X10

Low Pass Filter: 50 (500) Hz ~ 500Hz (5KHz)

Low Pass Filter Multiplier: X1 / X10

Subsonic Filter: 10Hz ~ 500Hz

FEATURES:

Amplifier Class: D

Amplifier Type: Full Range

Number Of Channels: 2

Minimum Impedance: 2 Ohm

Operation Voltage : DC 9V - 15.5V Power Input

Led Indicator: Yes (Power/Protect/Clip)

Recommended Fuse Rating: 60A

Thermal Protection: Yes

Speaker Short Protection: Yes

DC Offset Protection: Yes

Voltage Protection: Yes

Clipping Indication: Yes

Body Color | Finish: Brushed Silver

DIMENSIONS:

Overall Length: 7.88 (200mm)

Overall Width: 6.85 (174mm)

Overall Height: 2.66 (67.5mm)

Unit Weight: 9 lbs (4.08 kgs)
