1760W 2x 8" Midrange Speakers + 2x Bullet Tweeters + 1600W 4 Ch Amplifier

This listing includes:(1) DS18 GEN-X1600.4 4 Channel 1600W Amplifier

(2) PRO-GM8.4 8" 580W Midrange Loudspeakers

(2) PRO-TW120 Black 300W Super Bullet Tweeters

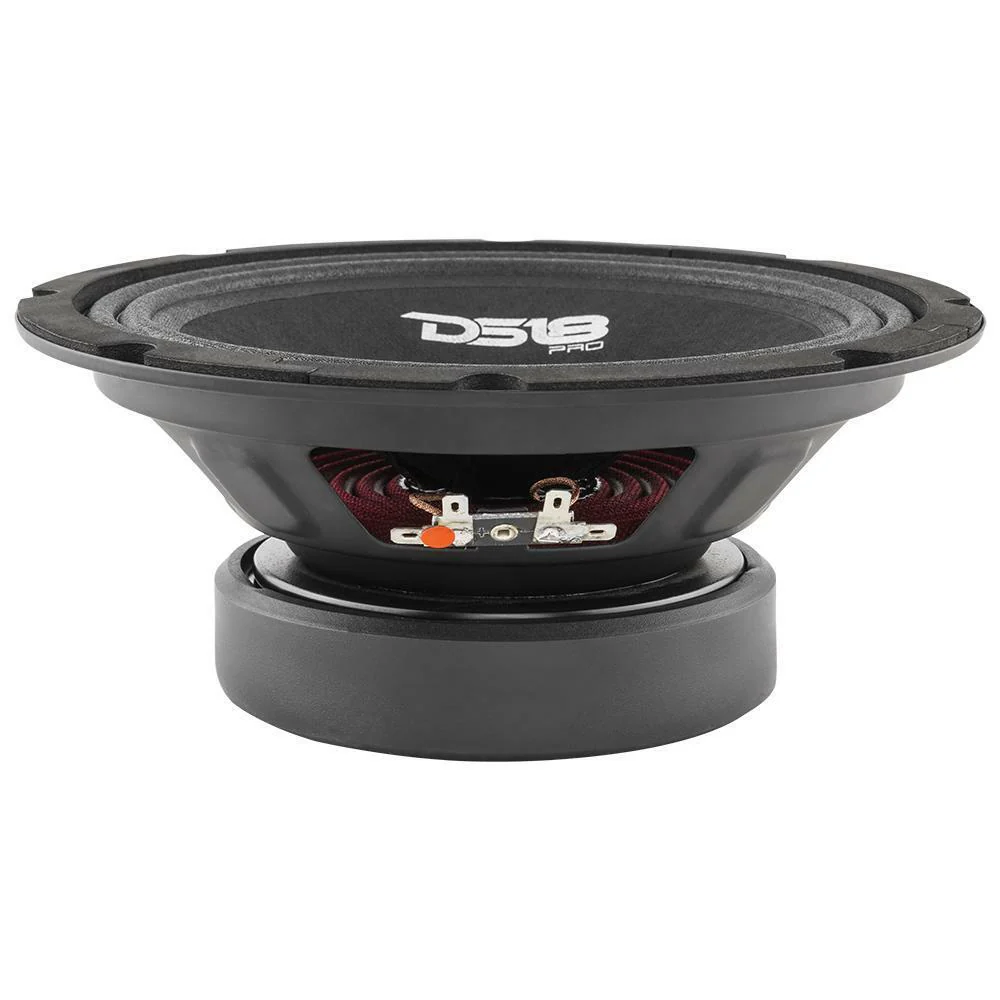

SPECIFICATIONS FOR PRO-GM8.4

Type: Midrange Loudspeaker

Size: 8"

RMS: 190W Per Speaker

MAX: 580W Per Speaker

Frequency Response: 90-10kHz

Impedance: 8 Ohm

Sensitivity: 95 dB

Materials

Surround: Cloth Surround

Frame: Black Stamp Steel Basket

Cone: Black Paper Woofer Cone

Magnet: Ferrite

Voice Coil Wire: Kapton

Diameters

Voice Coil Size: 1.5"

Magnet Size: 30 oz

Mounting Depth:.22" (82 mm)

Cut out Dimension: 7.2" (183 mm)

SPECIFICATIONS FOR PRO-TW120

Type: Super Bullet Tweeter

RMS: 120W Per Tweeter

MAX: 240W Per Tweeter

Diaphragm Material: Aluminum

Sensitivity: 103 dB

Impedance:4 Ohm

Frequency Response: 3.5kHz-20kHz

Package Quantity: 2

MEASUREMENTS

Overall Diameter: 3.78 (96 mm)

Overall Depth:1.78" (45 mm)

Front Mount Baffle cutout: 2.76" (70 mm)

Mounting Depth:1.57" (40 mm)

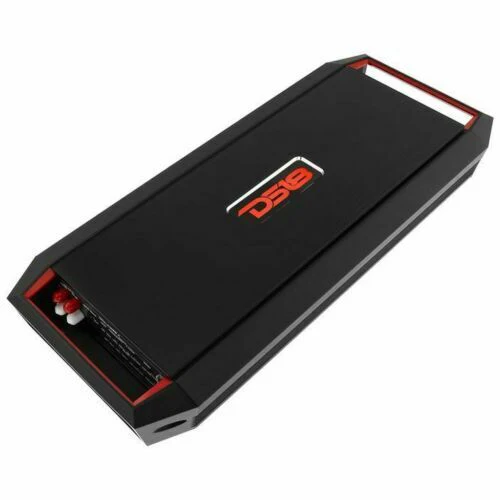

SPECIFICATIONS FOR GEN-X1600.4

Number of Channels: 4

Max Power: 1600W

2 Ohms RMS Power (14.4V) Per Channel: 4 x 120W

4 Ohms RMS Power (14.4V) Per Channel: 4 x 80W

4 Ohms RMS Power Bridge (14.4V) Per Channel: 2 x 200W

Speaker Impedance Range: 2-4 Ohms

Frequency Response: 20Hz-20KHz

Input Sensitivity: 0.2V-+6V

Input Impedance: 15K

Signal to Noise Ratio: 98dB

Channel Separation: 50dB

Remote Gain Control: 0.2V-+6V

Crossover Network High Pass Filter: 50Hz-500Hz

Crossover Network Low Pass Filter: 50Hz-500Hz

Bass Boost: 0dB/+6dB/+12dB

Fuse Size: 2 x 25A

THD: 0.08%

Product Dimensions (L x W x H): 16.9" x 7.5" x 2.16" (430 x 190 x 55mm)
