DS18 Deluxe DX2 6.5" 460 Watts 4 Ohm 2-Way Component Speaker System

DS18 has an amazing line of component sets that are sure to leave you with goosebumps when you hear the full and rich sound they produce.

The DX2 Silver line has been developed with the greatest care and over engineered to give you the highest quality along with strength that will last ages.

This Listing Includes:

(2) Woofers

(2) Tweeters

(2) Crossovers

Features:

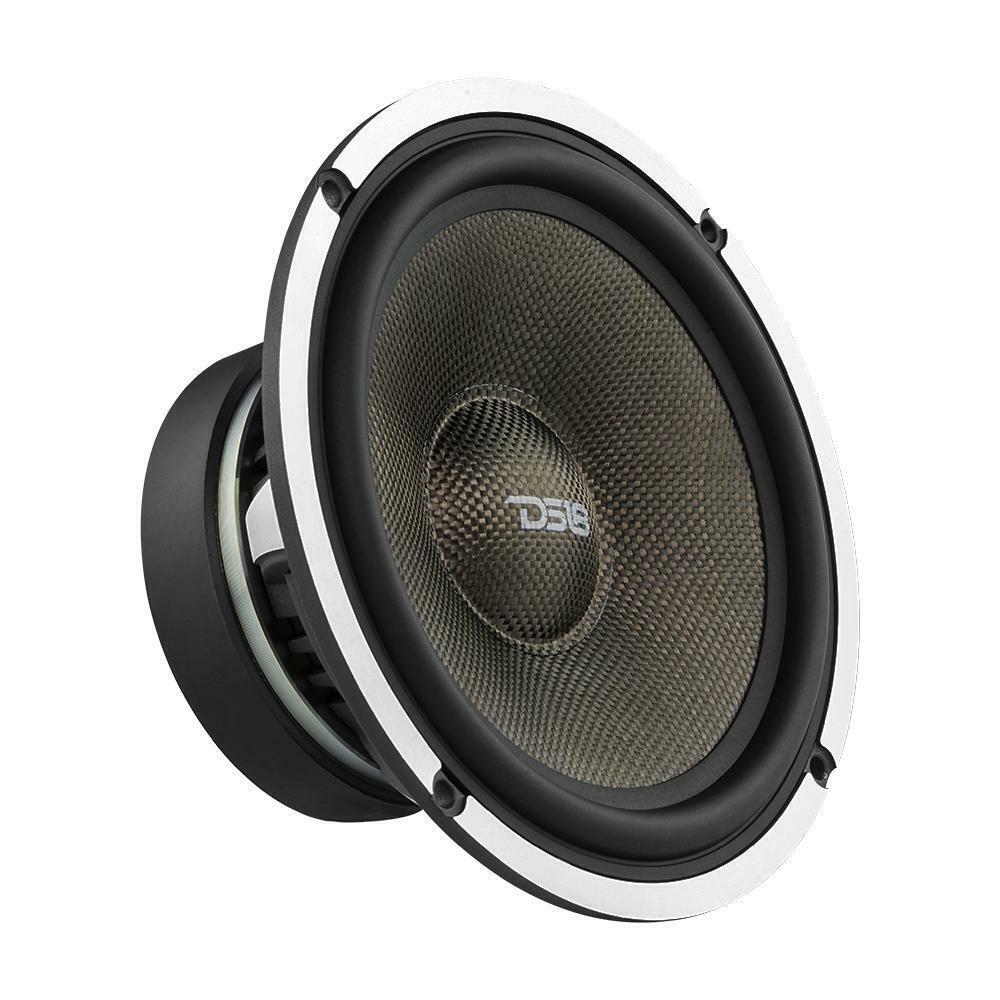

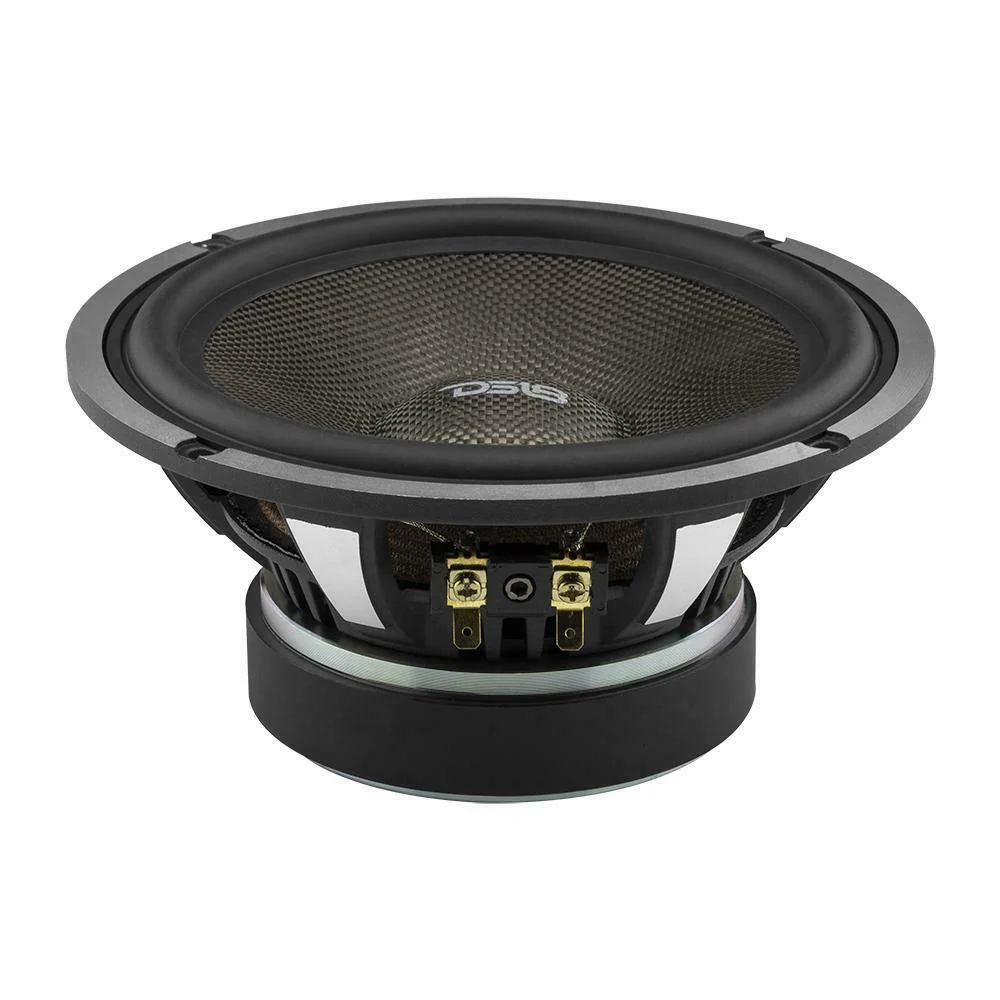

- DX2W 6.5 inch woofer which handles 100w AES. Featuring a carbon fiber cone, machined basket, and high quality terminals.

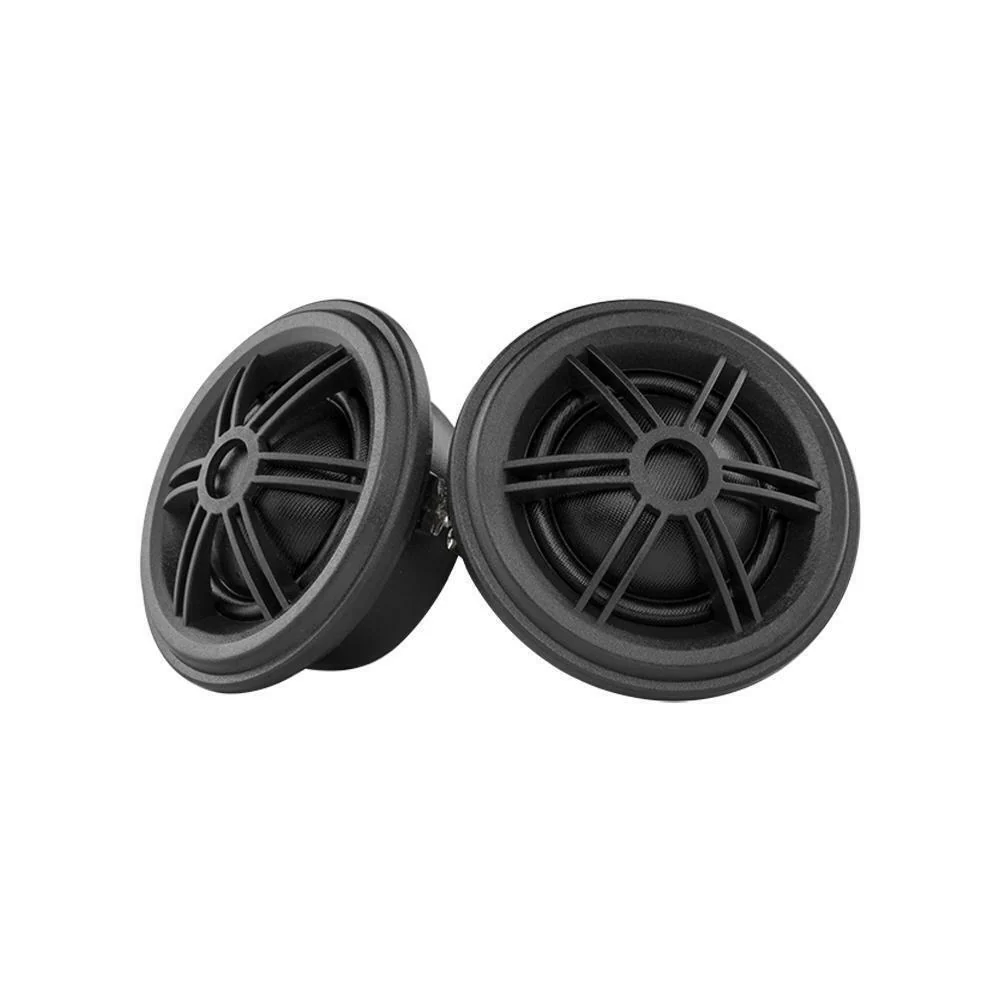

- DX2T high fidelity tweeter that is easy to mount and will complete your HQ full range experience.

- DX2 2 way passive crossover with multiple DB selections so you can be sure to get distortion free HQ sound accurately routed to the

proper speaker with ease.

Specifications Woofer:

Nominal Diameter: 6.5"

Nominal Impedance: 4 OHMS

Peak Power Handling: 400W

Program Power Handling: 200W

AES Power Handling: 100W

Sensitivity (1w/1m): 89 dB

Frequency Response: 50hz-12KHz

Recommended HI Pass Crossover: 45 Hz

Voice Coil Diameter: 1.2"/30.5 mm

Voice Coil Former Material: TIL

Winding Material: SV

Cone Material: Carbon Fiber

Surround Materia: Rubber Edge

Basket Materia: Aluminum

Magnet Materia: Ferrite

Magnet Weight: 20.2 oz

Dimensions:

Overall Diameter: 6.49"/165 mm

Front Mount Baffle Cutout: 5.59"/142 mm

Mounting Depth: 2.85"/72.5 mm

Overall Depth: 3.05/77.5mm

Motor Diameter: 3.93"/100mm

Specifications Tweeter:

Nominal Diameter: 1.18"

Nominal Impedance: 4 ohms

Peak Power Handling: 60 Watts

Program Power Handling: 30 Watts

AES Power Handling: 15 Watts

Sensitivity (1w/1m): 90dB

Frequency Response: 800Hz-20Khz

Recommended HI Pass Crossover: 3.8 KHz

Voice Coil Diameter: 0.98"

Voice Coil Former Material: ASV

Winding Material: CCAW

Diaphragm Material: Silk

Magnet Material: Neodymium

Magnet Weight: 14 oz

Body Material: ABS

Dimensions:

Overall Diameter: 2" / 51mm

Overall Depth: 1.1"/28.1 mm

Front Mount Baffle Cutout: 1.85" x 47 mm

Mounting Depth: 0.7" / 18 mm

Specifications Crossover:

Passive Crossover Ways: 3 Ways

Frequency Crossover: 800HZ (Mid) 3.8 Khz (Tw)

Power Handling: 300 Watts

Cut Off Slope: 6dB (Mid) 12dB (Tw)/ Oct

Tweeter Attenuation (+/-): 3dB

Capacitor Type: Metac Film

Coil Type: Inductor

Terminals Type: Screw Terminal

Housing Material: ABS

Adjustments: Tw Att Switch

Extra Features: Spk Phase Switch

Dimensions:

Overall Length: 4.3"/110 mm

Overall Depth: 4.3"/110 mm

Overall Height: 1.37"/35 mm
