DS18 GEN-X 6x9" + 5.25" Car Audio Door Speakers Combo 630 Watts 4 Ohm Coaxial

The GEN-X Coaxial Series features Mylar balanced dome tweeters, black paper cones with rubber edges, and sleek mesh grills with red accents. These unique speakers will hit all frequencies with great style. They boast a fine clarity that is unparalleled by any other speaker in their class.

This listing includes:

(2) GEN-X6.9 DS18 6x9" Coaxial Speakers

(2) GEN-X5.25 DS18 5.25" Coaxial Speakers

Highlights:

-2 to 4 way design for extreme full range quality hitting all the right frequencies.

-Rubber surrounds with treated paper cones for great volume and sensitivity to power ratio.

-included grills to protect your speakers as well as great looks to blend in to any vehicle.

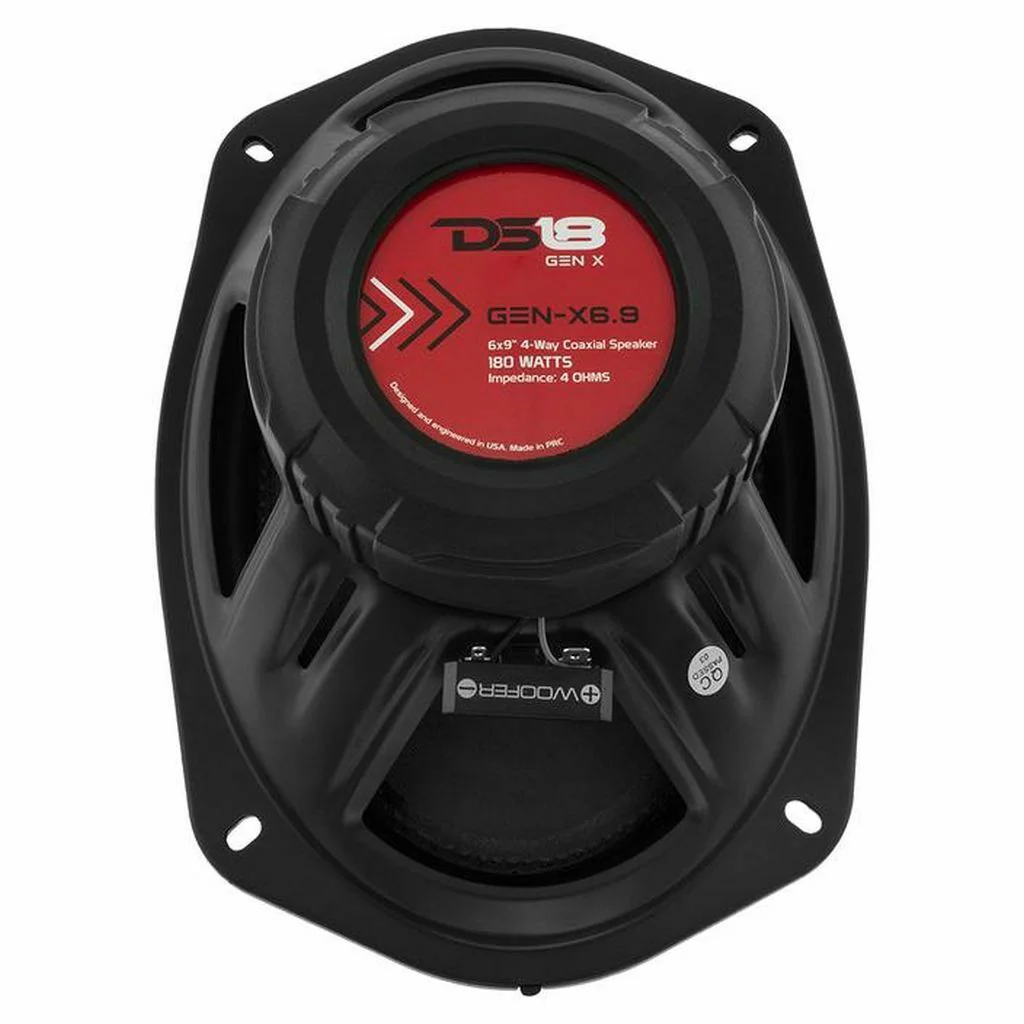

SPECIFICATIONS PER GEN-X6.9 SPEAKER:

Size: Woofer 6x9" Mid: 45mm Tweeter: 26 + 18mm

RMS Power: 60W

MAX Power: 180W

Impedance: 4 Ohm

Sensitivity: 87dB/W/M

Frequency Response: 65-20kHZ

Grilles: Yes

Tweeter Design: Coaxial 3 WAY

MATERIALS FOR GEN-X6.9:

Surround: Rubber Edge

Woofer Cone: Black Paper

Voice Coil Wire: ASV

Woofer Surround: Rubber

Tweeter Magnet Material: Ferrite

Tweeter Dome Material: Mylar

DIAMETERS FOR GEN-X6.9:

Voice coil size: 1.25" (30 mm)

Magnet Size: 3.93 x 2.36 x 0.70 (100 x 60 x 18 mm)

Tweeter Size: 1.10/0.78 (28 mm/20 mm) Mylar Dome Top (No Grill): 3.30 (84 mm)

Mounting depth: Top (w/Grill) 4.25 (108.2 mm) Bottom: 2.97 (76.5 mm)

Cut-out dimension: 6.59 x 4.68 (167.5 x 119mm)

Mounting Hole: 5.90 x 8.66 (150 x 220 mm)

Top Mount Depth (No Grill): 3.30 (84 mm)

Tweeter Protrusion: 0.35 (9 mm)

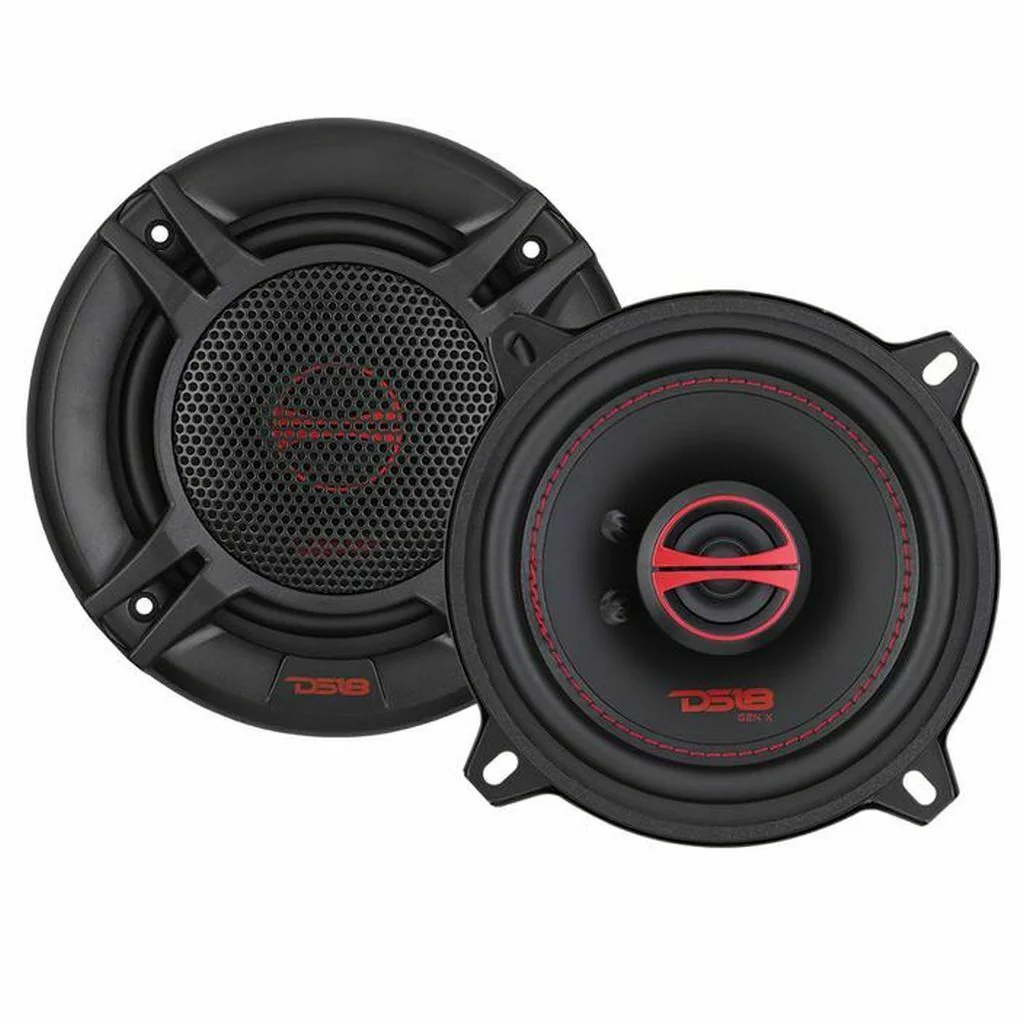

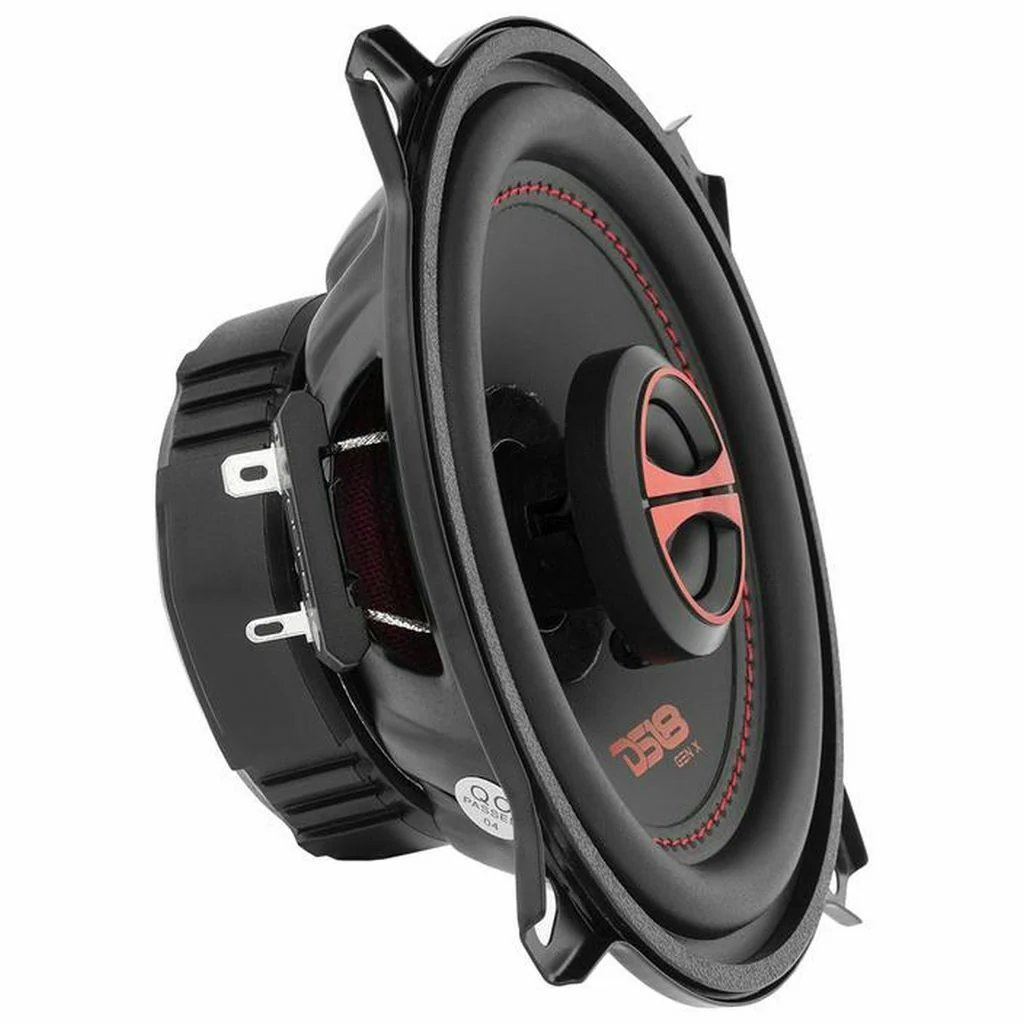

SPECIFICATIONS PER GEN-X5.25 SPEAKER:

Type: Coaxial

Size(woofer): 5.25" Tweeter: 1.02(26 mm)

Impedance: 4 ohms

RMS Power: 45W

MAX Power: 135W

Sensitivity: 83 dB/w/m

Frequency response: 90Hz - 20KHz

Speaker Design: 2 WAY

Tweeter Design: Coaxial 1 WAY

Grilles: Yes

MATERIALS FOR GEN-X5.25 SPEAKER:

Surround: Rubber Edge

Cone: Black Paper

Voice Coil Wire: ASV

DIAMETERS for GEN-X5.25 SPEAKER:

Voice coil size: 0.98"(25mm)

Magnet Size: 2.75 x 1.25 x 0.47 (70 x 32 x 12 mm)

Tweeter Size: 1.10 (28mm) Mylar Balanced Dome

Top (No Grill); 2.20 (56mm)

Mounting depth:Top (w/Grill): 2.95 (75mm)

Bottom: 1.92 (49mm)

Cut-out dimension: 5.47-0.15 (139-4mm) (5x9")
