• High Definition 4MP Resolution: Capture clear and detailed video footage for precise monitoring.
• Outdoor Ready: Designed to withstand outdoor conditions, ensuring durability and reliability in any weather.
• Wide-Angle 2.8mm Fixed Lens: Offers a broad field of view to cover larger areas with fewer cameras.
• PIR Motion Detection: Advanced passive infrared technology detects motion accurately, reducing false alarms.
• Night Vision Capability: Built-in IR LEDs provide visibility in low-light conditions, maintaining surveillance around the clock.

OEM Dahua 4MP Outdoor CCTV Motion Security Camera 2.8MM Fixed HD-CVI 2K PIR

This listing includes:

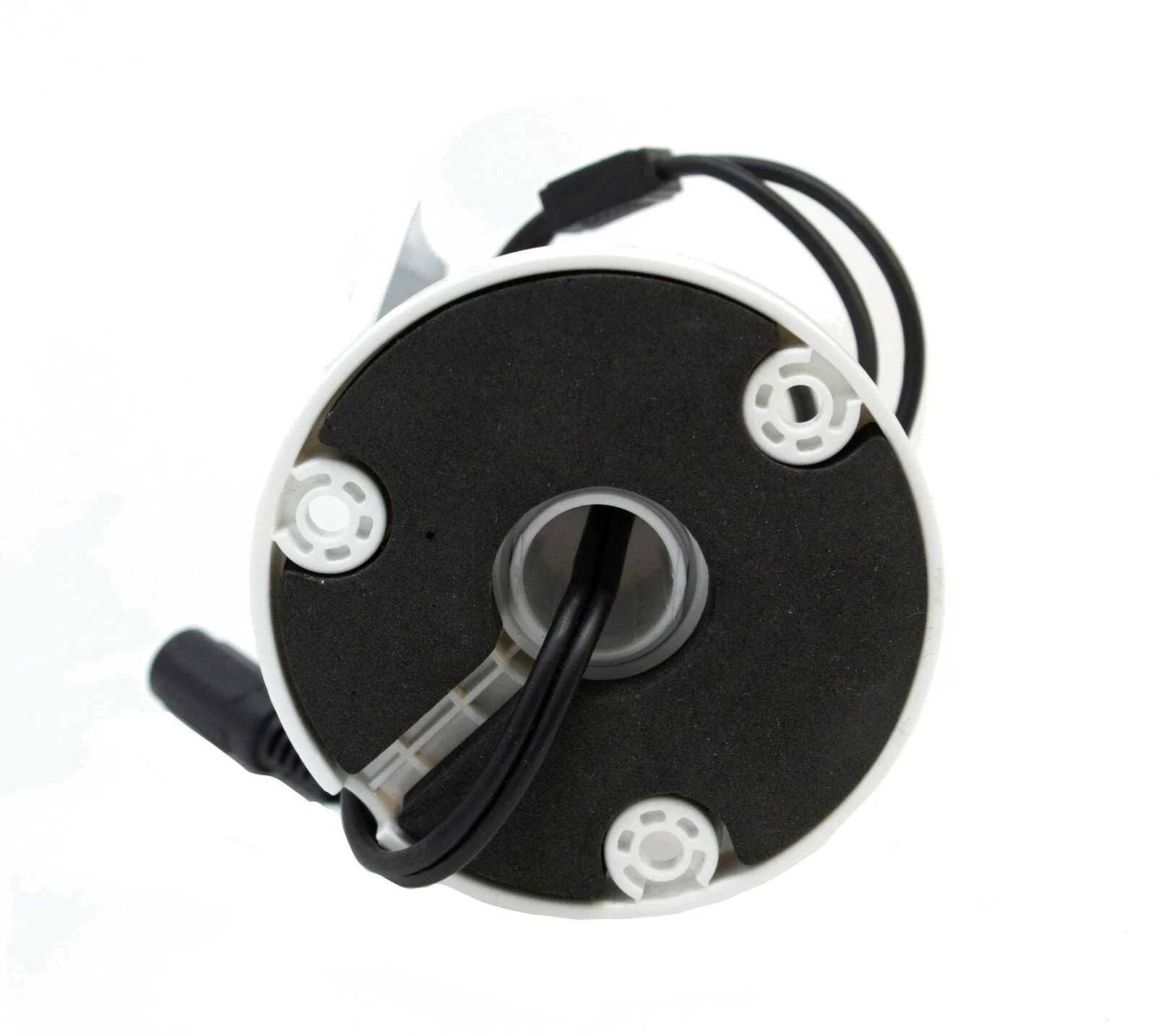

• (1) OEM Dahua 4MP Outdoor CCTV Motion Security Camera HCC3840B-IRP/28

DESCRIPTION:

Enhance your security setup with the OEM Dahua 4MP Outdoor CCTV Motion Security Camera. Featuring cutting-edge HD-CVI 2K resolution and a 2.8mm fixed lens, this camera ensures crisp, detailed surveillance footage day and night. Built-in PIR (Passive Infrared) motion detection technology enhances accuracy, making it a reliable choice for safeguarding your property.

SPECIFICATIONS:

Camera

• Image Sensor: 1/3" CMOS


• Effective Pixels: 2688(H)xl520(V), 4.lMP Interface


• Scanning System: Progressive


• Audio Interface: N/A


• Electronic Shutter Speed PAL: 112s~1/100000s NTSC: 1/30~1/lO0000s


• Minimum Illumination: 0.03Lux/F2.0(Color), 30IRE, 0Lux IR on


• S/N Ratio: More than 65dB


• IR Distance: Up to 20m (66 feet)


• IR On/Off Control: Auto / Manual


• IR LEDs: 1

Lens

• Lens Type: Fixed lens/ Fixed iris


• Mount Type: Board-in


• Focal Length: 2.8mm


• Max Aperture: Fl.8


• Angle of View: H: 107.2


• Focus Control: N/A


• Close Focus Distance: 1100mm 43.31"


• Pan/ Tilt/ Rotation


• Pan: 0 ~ 360


• Tilt: 0 ~ 90


• Rotation: 0 ~ 360

Video

• Resolution: 4MP (2560x1440)


• Frame Rate: 25fps@4MP, 25/30fps@l080P, 25/30fps@720P


• Video Output: 1-channel BNC HDCVI high definition video output/ CVBS video output (Can switch)


• Day/Night: Auto (ICR) / Manual


• OSD Menu: Multi-language


• BLC Mode: BLC / HLC / DWDR


• WDR: DWDR


• Gain Control: AGC


• Noise Reduction: 2D


• White Balance: Auto / Manual


• Smart IR: Auto / Manual

PIR

• Detection: Passive infrared


• Detection Range: 10m, 110


• Alarm prompt: Red led


• Installation height: Default bracket, wall mount, 2.2-2.Sm

Electrical

• Power Supply: 12V DC 30%


• Power Consumption: Max 4.4W (12V DC, IR on)

Environmental

• Operating Conditions: -l0C ~ +S0C (+14F ~ +122F) / Less than 95% RH *Startup should be done at above-l0C (14F)


• Storage Conditions: -l0C ~ +S0C (+14F ~ +122F) / Less than 95% RH


• Ingress Protection & Vandal Resistance: IP67
