• Max 30fps@1080P
• 2.8mm fixed lens
• IR LEDs: 1
• Smart IR: Support
• Max. Aperture: F1.85

Dauha OEM 2MP IR Indoor/Outdoor 2.8mm Fixed CCTV Bullet Security Camera CVI

The Dauha 2MP HD bullet security camera is a high-quality affordable solution to your home or business surveillance needs. It has an IP67 rating and is 100% protected against solid objects like dust and sand, and it has been tested to work for at least 30 minutes while under 15cm to 1m of water, so it can be used indoors or outdoors. The camera supports multiple video formats including HDCVI, CVBS and

other two common HD analog formats in the market. The four formats can be switched over through OSD menu or by PFM820(UTC controller). This feature makes the camera compatible with most end users existing HD/SD DVRs. The white color blends in nicely to many applications and can also see 98 feet at night with InfraRed technology.

This Listing Includes:

(1) Bullet Security Camera

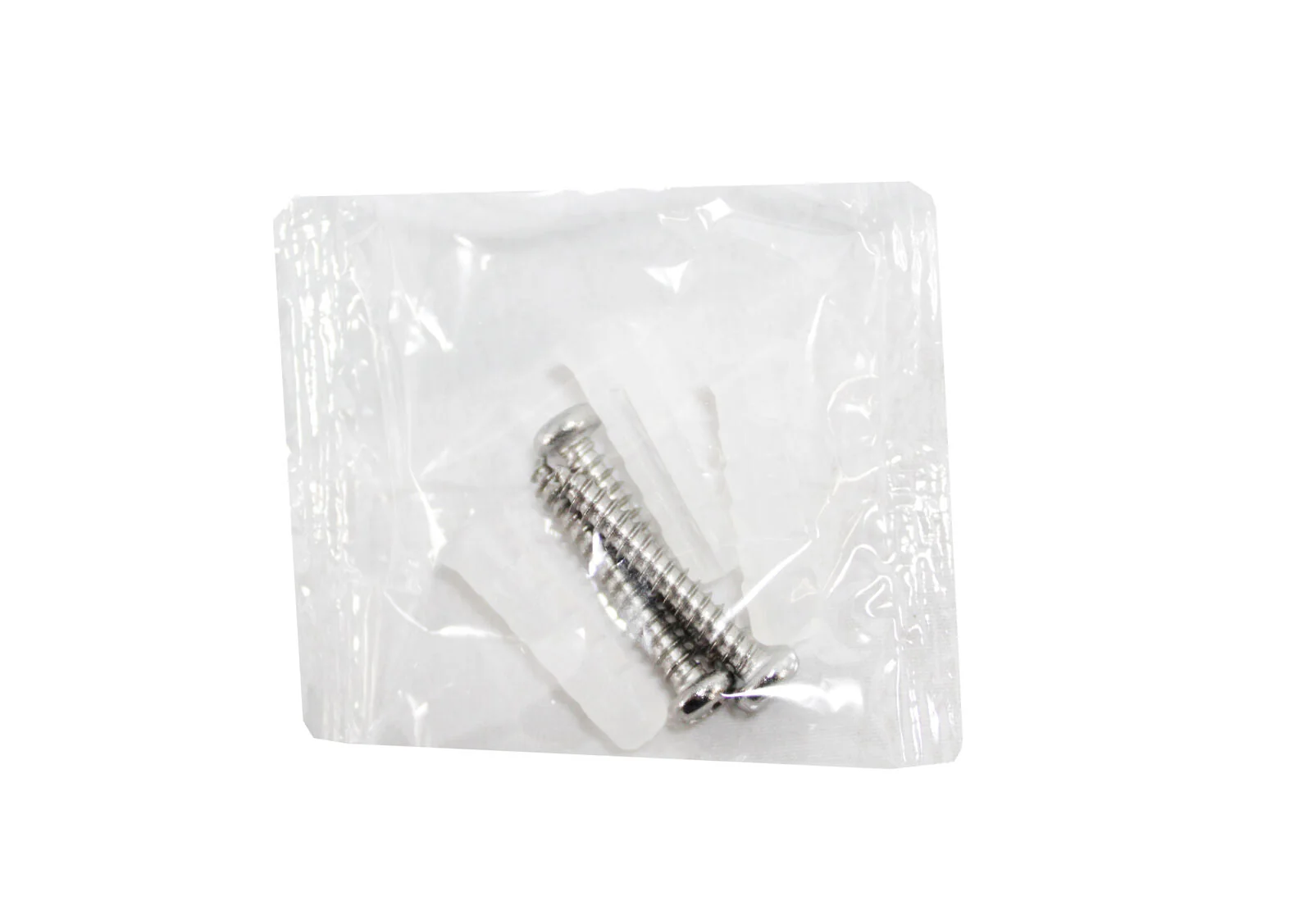

(3) Phillips head screws

(3) Plastic anchors

Features:

-Max 30fps@1080P

-HD and SD output switchable

-2.8mm fixed lens

-Max. IR length 30m 98ft, Smart IR

-IP67, DC12V

Technical Specifications:

Image Sensor: 1/2.7" CMOS

Image Size: 1920(H)1080(V), 2MP

Electronic Shutter: PAL: 1/25~1/100000s NTSC: 1/30~1/100000s

Minimum Illumination: 0.02Lux/F1.85, 30IRE, 0Lux IR on

S/N Ratio: More than 65dB

IR LEDs: 1

Smart IR: Support

IR Distance: Up to 30m (98feet)

IR On/Off Control: Auto / Manual

Focal Length 2.8mm

Angle of View H: 87.5 (103, 54.7)

Max. Aperture: F1.85

Close Focus Distance: 500mm (900mm, 2000mm) 19.69'' (35.43", 78.74'')

DORI Distance:

Detect Observe Recognize Identify

2.8mm: 37m (122ft) 15m (49ft) 8M (25ft) 4m (12ft)

Pan / Tilt / Rotation: Pan: 0 ~ 360 Tilt: 0 ~ 87 Rotation: 0 ~ 360

Video Resolution: 1080P (19201080)

Video Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P

Day / Night: Auto (ICR) / Manual

BLC Mode: BLC / HLC / WDR

White Balance: Auto / Manual

Gain Control: AGC

Digital Noise Reduction: 2D

Certifications: CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Power Supply:12V DC 30%

Power Consumption: Max 3.6W (12V DC, IR on)

Operating Temperature:-40C ~ +60C (-40F ~ +140F) / Less than 95% RH * Start up should be done at above -40C (-40F)

Storage Temperature: -40C ~ +60C (-40F ~ +140F) / Less than 95% RH

Ingress Protection: IP67

Dimensions:

176mm72.4mm72.5mm (6.93"2.85"2.85")

Weight:

Net Weight 0.36kg (0.79lb)

Gross Weight 0.46kg (1.01lb)
