• Max. 20fps@5MP
• Built-in mic
• Max. IR length 30m
• Smart IR: Support
• IR LEDs: 1

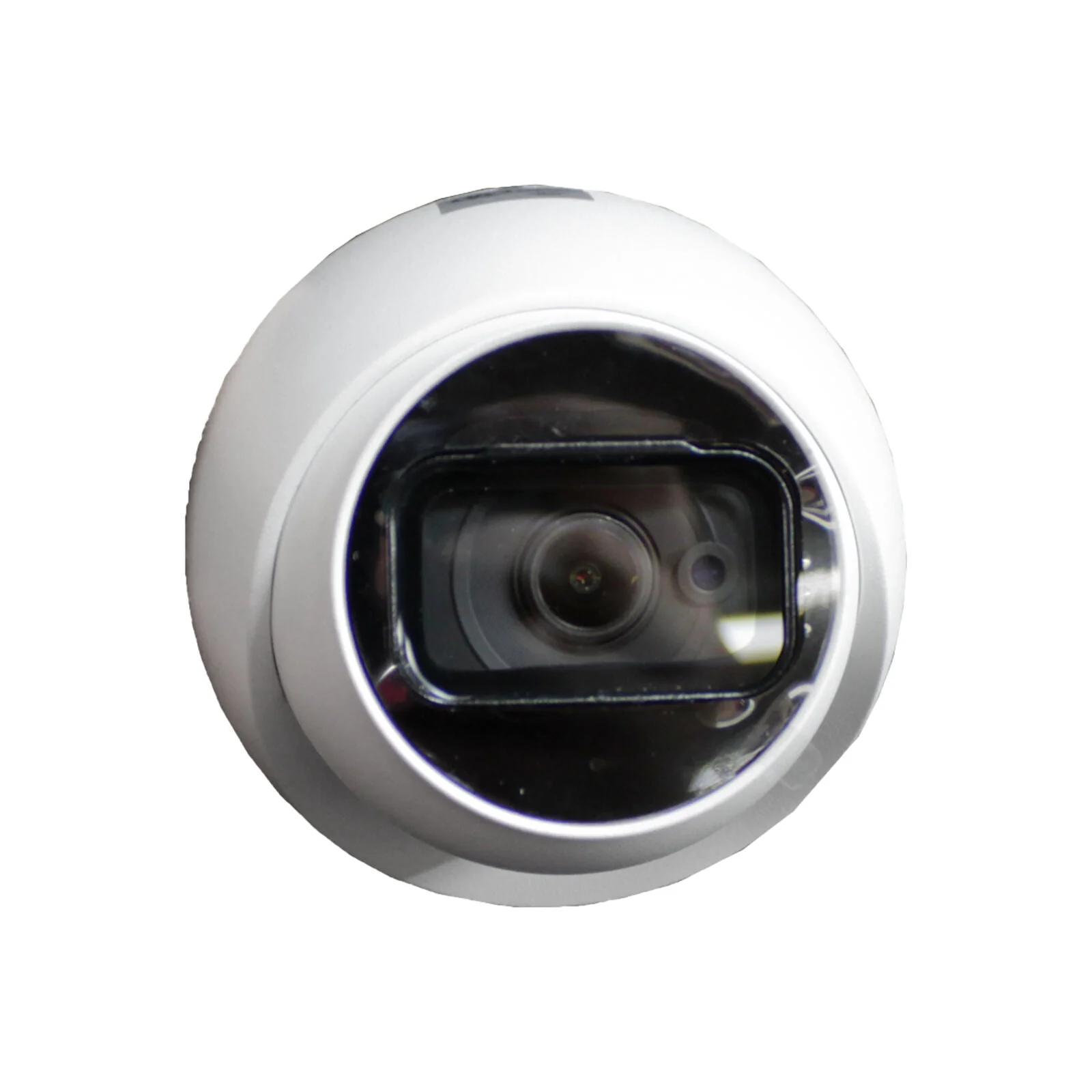

Dauha OEM 5MP IR In/Outdoor Eyeball 2.8mm Fixed Lens CCTV Security Camera CVI

The Dauha 5MP HD eyeball security camera is a high-quality affordable solution to your home or business surveillance needs. It has an IP67 rating and is 100% protected against solid objects like dust and sand, and it has been tested to work for at least 30 minutes while under 15cm to 1m of water, so it can be used indoors or outdoors. The white color blends in nicely to many applications and can also see 98 feet at night with InfraRed technology.  The built-in mic allows the camera to capture audio so you can hear as well as see what is happening.

This Listing Includes:

(1) Eyeball Security Camera

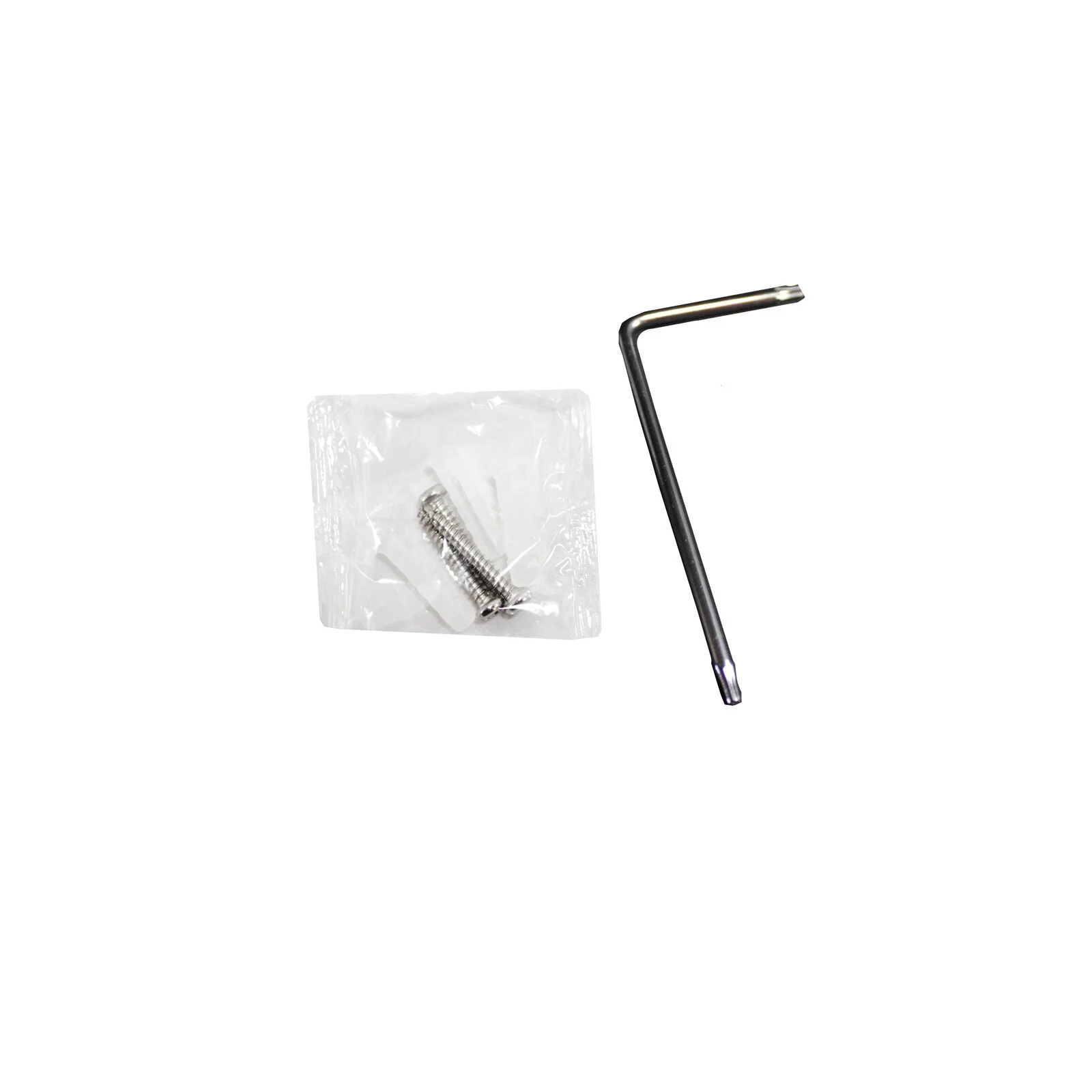

(1) Installation wrench

(4) Phillips head screws

(4) Plastic anchors

Features

-Max. 20fps@5MP

Built-in mic (-A)

CVI/CVBS/AHD/TVI switchable

Max. IR length 30m, Smart IR

IP67, DC12V

TECHNICAL SPECIFICATIONS:

Image Sensor: 1/2.7 inch CMOS

Image Size: 2592 (H)1944 (V), 5MP

Electronic Shutter: PAL: 1/25s-1/100000s NTSC: 1/30s-1/100000s

Minimum Illumination: 0.02Lux/F1.85, 30IRE, 0Lux IR on

IR LEDs: 1

Smart IR: Support

IR On/Off Control: Auto/ Manual

Focal Length: 2.8mm; 3.6mm

Angle of View H: 113, V:60

Max. Aperture: F1.85/F2.0

Close Focus Distance: 1.3m(4.27ft)

DORI Distance:

2.8mm:       Detect: 56m (184ft)      Observe: 22m (72ft);         Recognize: 11m (36ft)     Identify: 6m (20ft);

3.6mm:       Detect: 80m (262ft)      Observe: 32m (105ft)       Recognize: 16m (52ft),    Identify:  8m (26ft)

Video Resolution

5M (25921944); 4M (25601440); 1080P (19201080);960H (960 576/960480)

Video Frame Rate

CVI:

PAL: 5M@20fp; 4M@25fp; 1080P@25fp

NTSC: 5M@20fp; 4M@30fp; 1080P@30fp

AHD:

PAL: 5M@20fp; 4M@25fp; 1080P@25fp

NTSC: 5M@20fp; 4M@30fp; 1080P@30fp

TVI:

PAL: 5M@20fp; 4M@25fp; 1080P@25fp

NTSC: 5M@20fp; 4M@30fp; 1080P@30fp

CVBS:

PAL: 960H

NTSC: 960H

Day / Night: Auto switch by ICR

BLC Mode: BLC / HLC / WDR(120dB)

White Balance: Auto; manual

Gain Control: Auto/Manual

Digital Noise Reduction: 2D NR

Motion Detection: Off / On (4 Zone, Rectangle)

Certifications: CE (EN55032, EN55024, EN50130-4)

                                FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

                                UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Power Supply: 12V30% DC

Power Consumption: Max 3.7W (12V DC, IR on)

Operating Temperature: -40C to +60C (-40F to +140F); =less than 95% (non- condensaon)

Storage Temperature: -40C to +60C (-40F to +140F); less than 95% (non- condensaon)

Ingress Protection: IP67

Dimensions:

97.0mm85.8mm (3.82"3.38")

.

Weight:

Net Weight 0.22kg (0.49lb)

Gross Weight 0.28kg (0.62lb)
