• Advanced IR Full Range Class D for efficient performance
• Mini and waterproof design with IPX7 rating
• MULTIPLE PROTECTIONS including thermal, over current, and short circuit
• Adjustable/Selectable HP/LP frequency control
• SMD with 4-layer fiberglass PCB for superior durability

Audiopipe 4 Ohm 1000W 2 Channel Full Range Class D Marine Weatherproof Amplifier

This Listing Includes:

• (1) Audiopipe 4 Ohm 1000W 2 Channel Full Range Class D Marine Weatherproof Amplifier

Take your audio system to the next level with the Audiopipe APTV-1000.2, a powerful marine amplifier designed for maximum performance in any environment. Engineered to deliver 1000W peak power, this compact, waterproof amplifier is perfect for audiophiles and marine enthusiasts. With advanced Class D technology and IPX7 waterproofing, you can trust Audiopipe for clear, reliable sound, whether you’re on land or water. Upgrade your audio system today with Audiopipe’s durability and cutting-edge features.

Features:

• Advanced IR Full Range Class D for efficient performance


• Mini and waterproof design with IPX7 rating


• MULTIPLE PROTECTIONS including thermal, over current, and short circuit

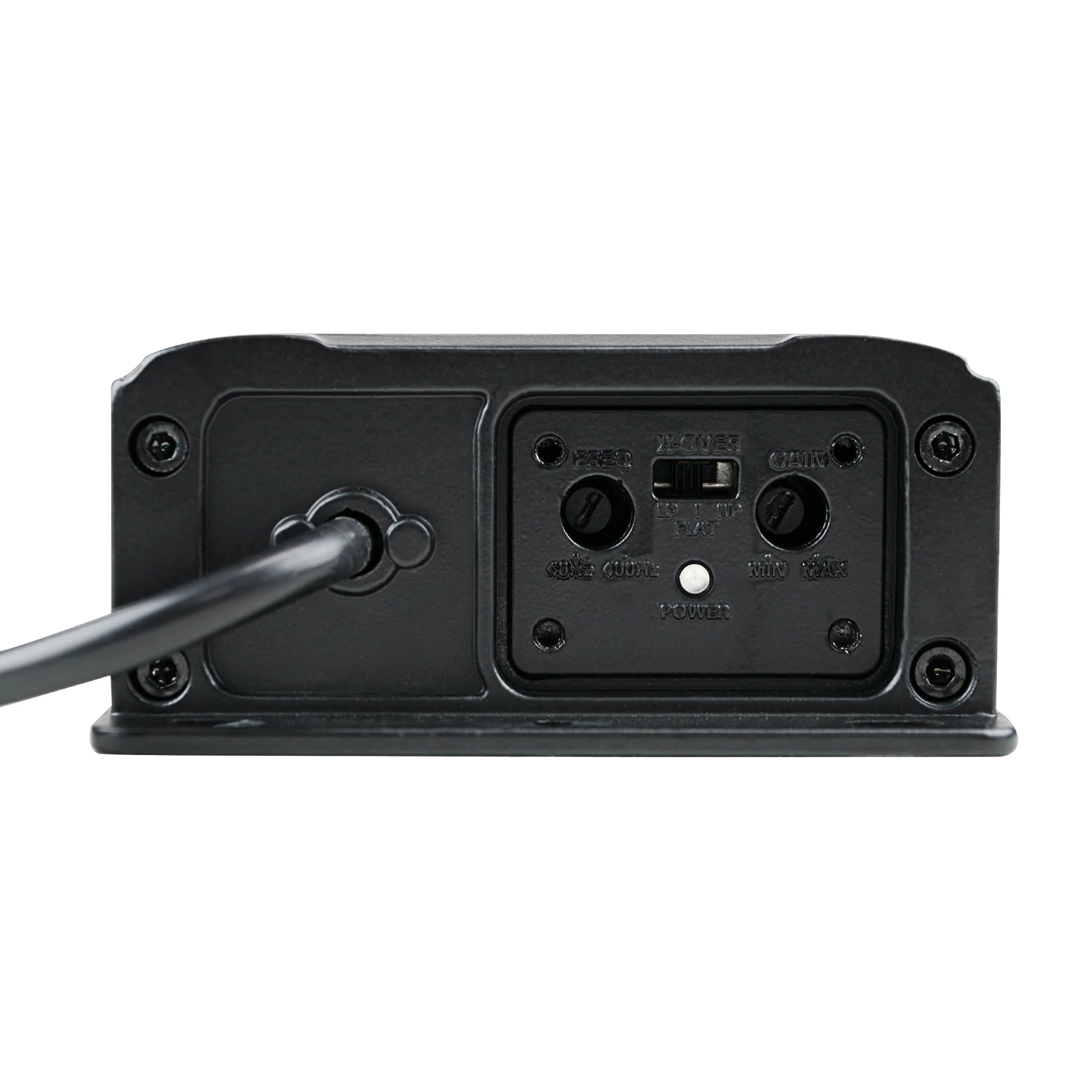

• Adjustable/Selectable HP/LP frequency control


• SMD with 4-layer fiberglass PCB for superior durability

Specifications:

• Amplifier Power (RMS): 100W x 2 (4 Ohms), 160W x 2 (2 Ohms), 320W x 1 (4 Ohms Bridged)


• High Pass/Low Pass Filter: 12 dB


• THD: < 0.08%


• Frequency Response: 20Hz-20KHz


• Input Range: 250mV - 10V


• Signal to Noise: > 90 dBA


• Working Voltage: DC14.4V (Voltage Range 10-16V)

Dimensions:

• Length: 7 inches


• Width: 3.5 inches


• Height: 2 inches
