• Advanced IR Full Range Class D: Delivers efficient and powerful audio performance with less heat.
• Mini and Weather Proof: Compact design with IPX7 rating ensures protection from water, dust, and harsh conditions.
• Multiple Protections: Thermal, over current, and short circuit protection for peace of mind.
• Adjustable/Selectable HP/LP Frequency Control: Customize your sound output with ease.

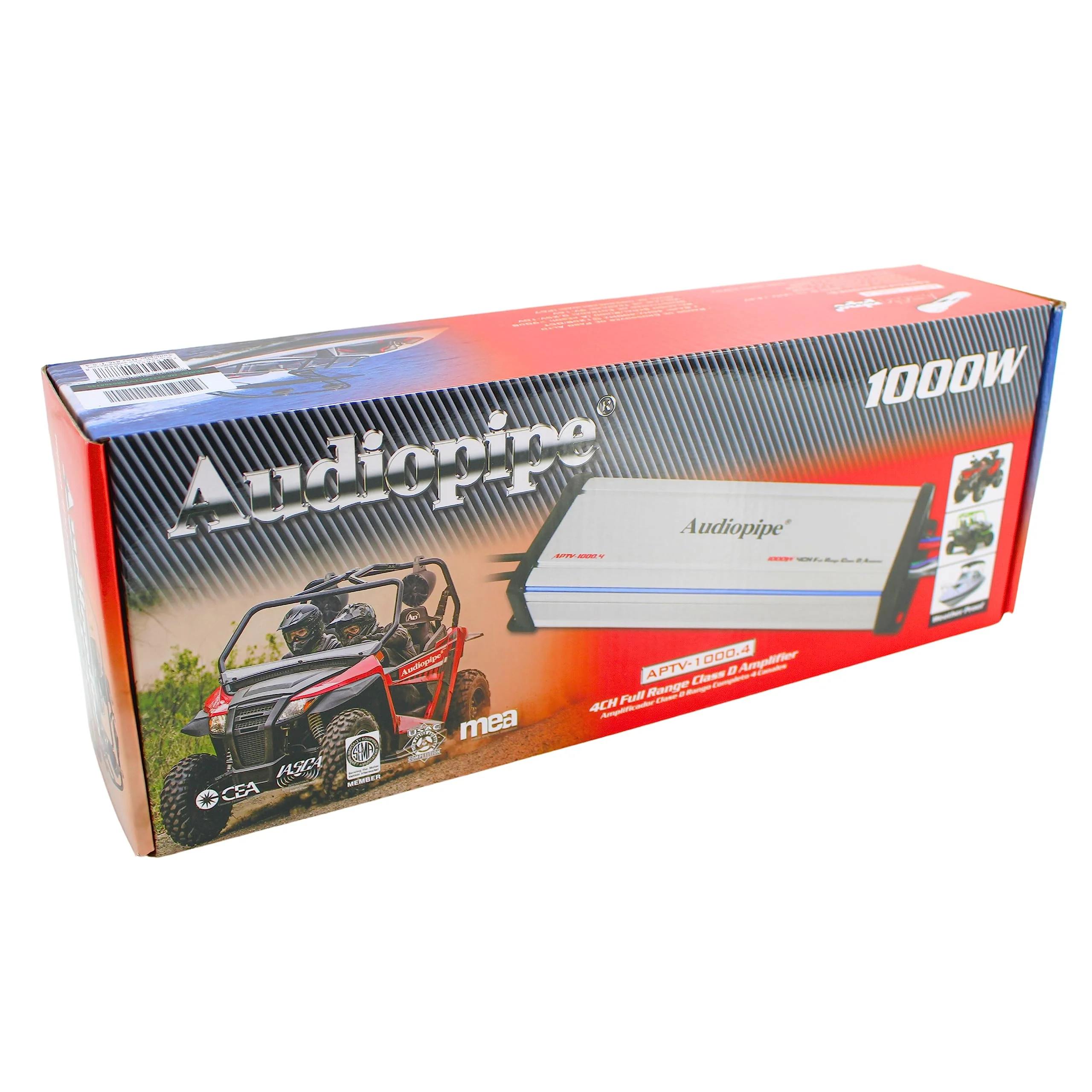

Audiopipe 4 Ohm 1000W 4 Channel Full Range Class D Marine Weather proof Amplifier

This Listing Includes

• (1) Audiopipe 4 Ohm 1000W 4 Channel Full Range Class D Marine Weather Proof Amplifier

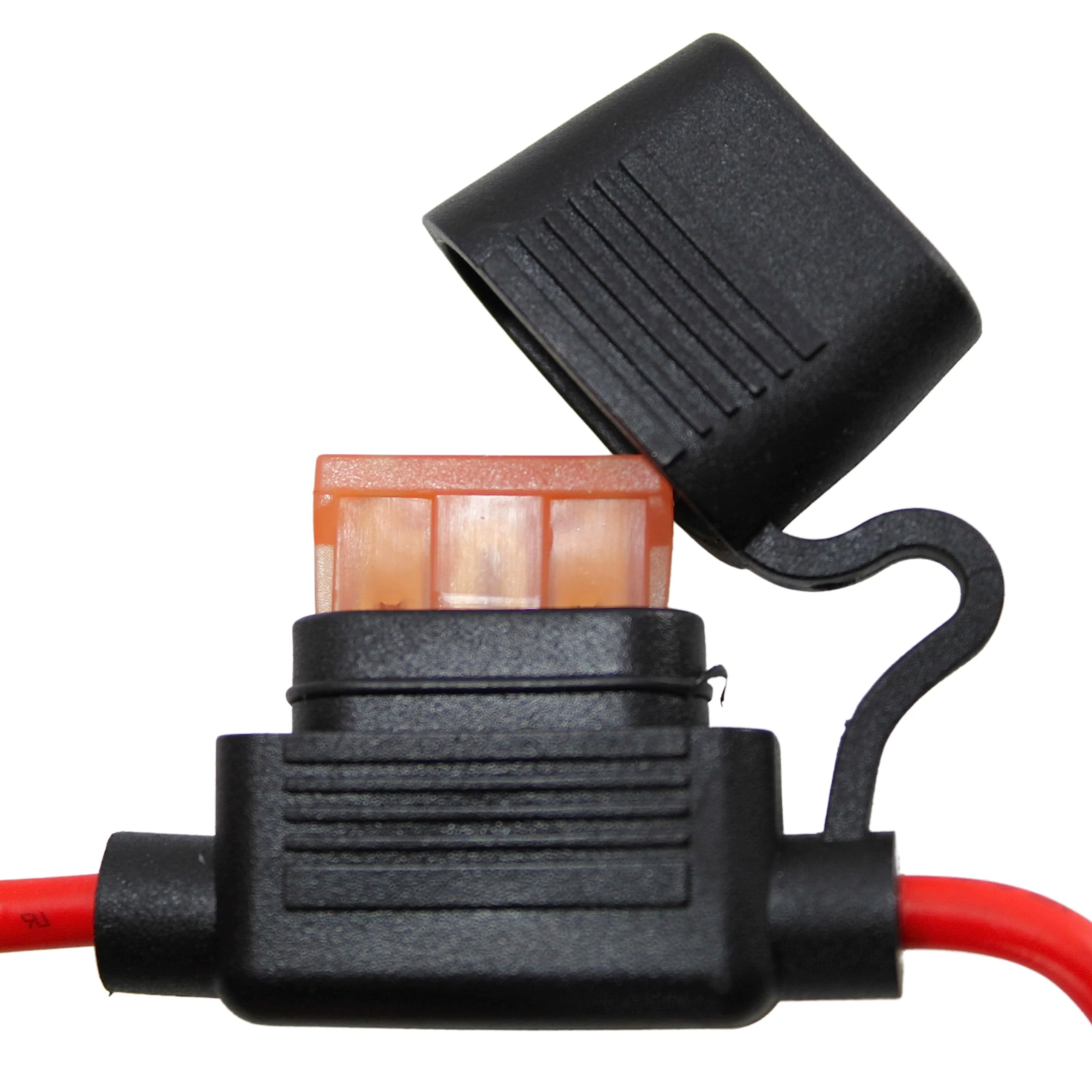

• (1) Hardware Kit


• (1) Manual

For nearly two decades, Audiopipe has been a pioneer in high-performance audio equipment. Whether you're a competitor or an audio enthusiast, their products guarantee reliable performance for a stunning audio experience. The Audiopipe APTV-1000.4 delivers an impressive peak power of 1000W in a sleek and compact design. This amplifier is perfect for your next upgrade, combining high output and rugged durability for marine environments.

Features

• Advanced IR Full Range Class D: Delivers efficient and powerful audio performance with less heat.


• Mini and Weather Proof: Compact design with IPX7 rating ensures protection from water, dust, and harsh conditions.


• SMD with 4-Layer Fiberglass PCB Design: Maximizes durability and reliability.


• Multiple Protections: Thermal, over current, and short circuit protection for peace of mind.


• Adjustable/Selectable HP/LP Frequency Control: Customize your sound output with ease.

Amplifier Power (RMS)

100W x 4 (4 Ohms)

150W x 4 (2 Ohms)

280W x 2 (4 Ohms Bridged)

Specifications

• High Pass/Low Pass Filter: 12 dB


• THD: < 0.08%


• Frequency Response: 20Hz-20KHz


• Input Range: 250mV - 10V


• Signal to Noise: > 90 dBA


• Working Voltage: DC 14.4V (Voltage Range 10-16V)

Product Dimensions

• Length: 9 inches


• Width: 3.5 inches


• Height: 1.5 inches


• Weight: 2 lbs
