• Waterproof Level: IP67
• Freq. Response (-3dB): 20Hz - 20KHz
• Output Power (RMS) @ 1% 1KHz 14.4V Stereo @ 4 OHMS: 4 X 60W Stereo @ 2 OHMS: 4 X 100W
• Crossover Range High and Low Pass: 40Hz @ 12dB/OCT

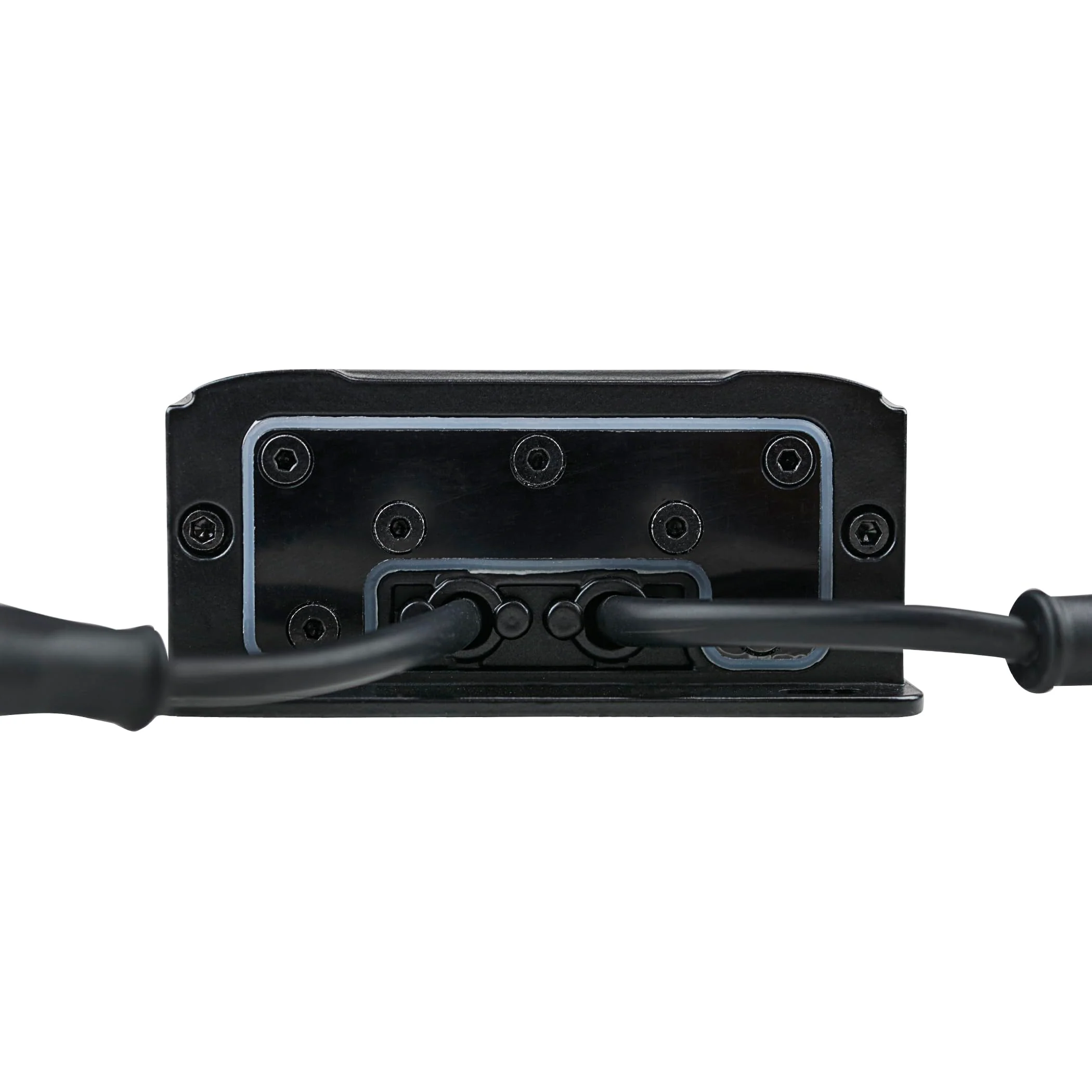

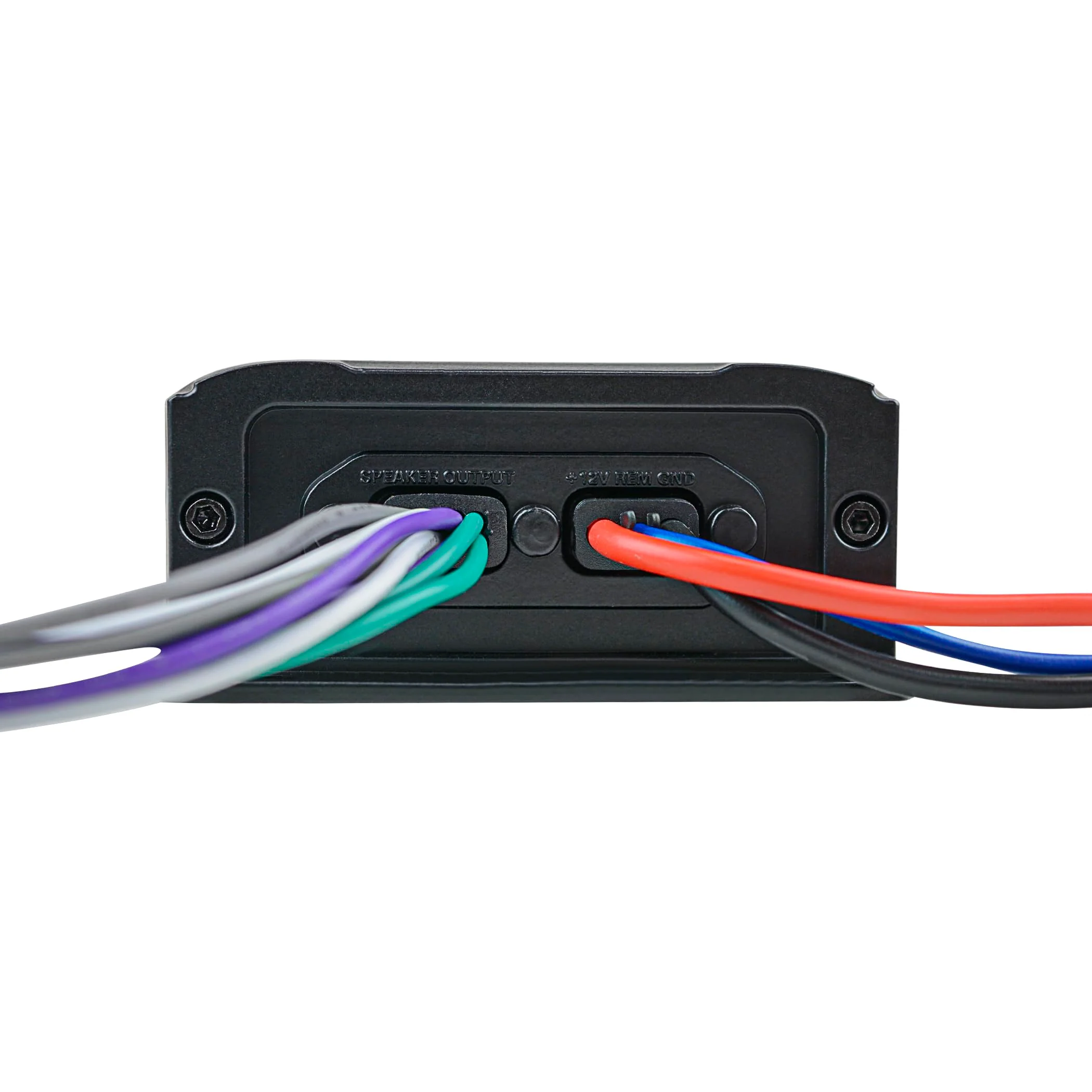

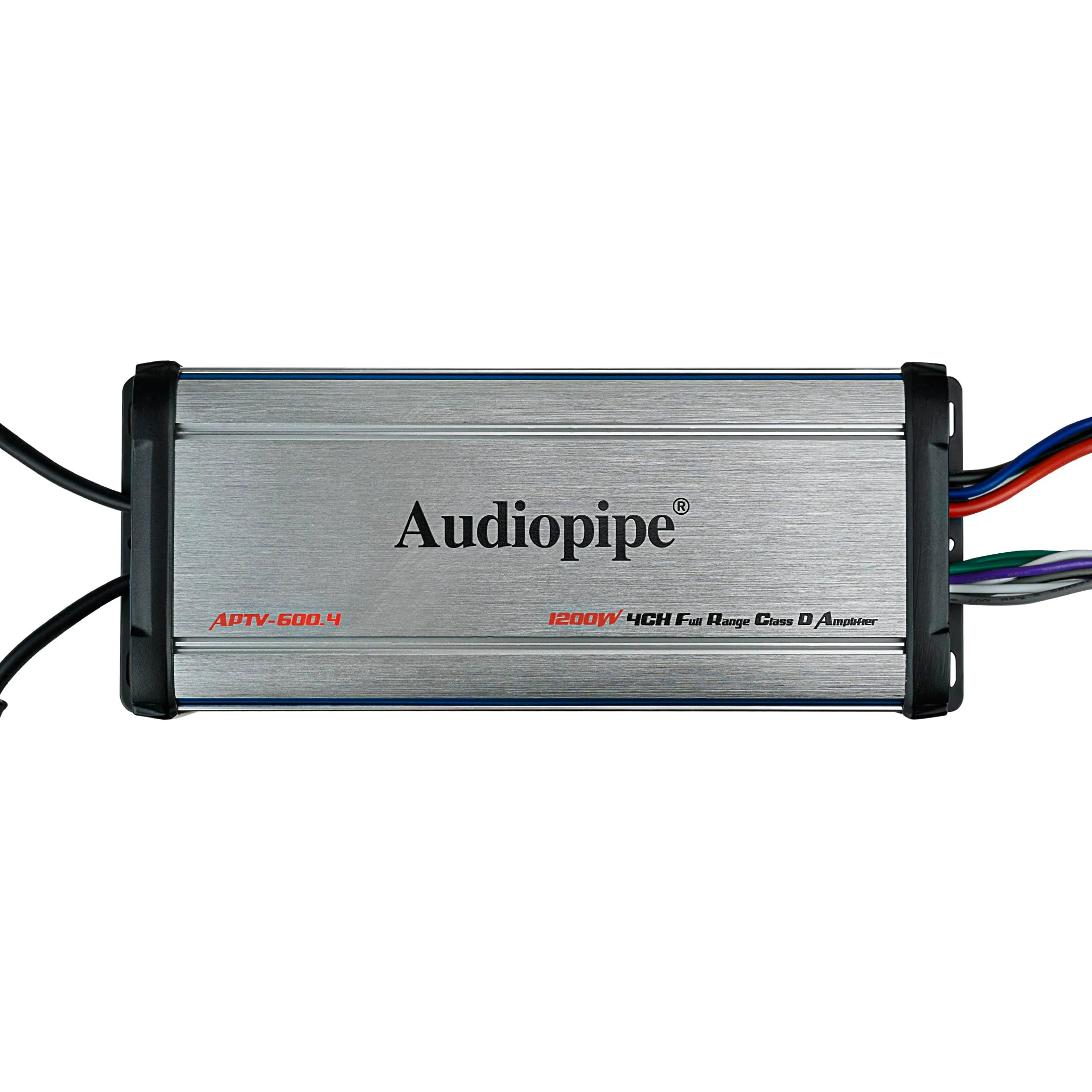

Audiopipe 4 Ohm 200W 4 Channel Full Range Class D Marine Weatherproof Amplifier APTV-600.4

This Listing Includes:

• (1) Audiopipe 4 Ohm 200W 4 Channel Full Range Class D Marine Weatherproof Amplifier

For nearly two decades, Audiopipe has been a pioneer and leader in high performance audio equipment. Whether you are a competitor or audio enthusiast, their products are guaranteed to deliver reliable performance for a stunning audio experience. The Audiopipe APTV-600.4 provides a peak power of 200W in a compact and sleek design, perfect for your next upgrade!

Features:

• Advanced IR Full Range Class D


• Mini and Waterproof


• IPX7 Rated


• SMD with 4 Layer Fiberglass PCB Design


• Multiple Protections (Thermal/Over Current/Short Circuit)


• Adjustable/Selectable HP/LP Frequency Control

Specifications:

• Amplifier Power (RMS): 60W x 4 (4 Ohms), 100W x 4 (2 Ohms), 200W x 2 (4 Ohms Bridged)


• High Pass/Low Pass Filter: 12 dB


• THD: < 0.08%


• Frequency Response: 20Hz-20KHz


• Input Range: 200mV - 10V


• Signal to Noise:> 90 dBA


• Working Voltage: DC14.4V (Voltage Range 10-16V)

Product Dimensions:

• Length: 8"


• Width: 4"


• Height: 1.5"
