• 2 way design that allows you to add a midrange and tweeter while it passively filters the frequencies for both.
• Utilize 2 speakers on 1 channel of your amplifier while filtering out unneeded frequencies and help each speaker complement overall sound quality.
• Rated for high power speakers for a total of 300w RMS so you will also have loudness with great sound quality.

DS18 Car Audio Passive 2 Way Crossovers for Two Way Speaker Tweeter 300W PRO-CFX

This listing includes:

• (2) DS18 Passive 2 Way Crossovers PRO-CFX

With DS18's PRO CFX, you can make your own passive setup and use the speakers of your choosing for an amazingly full sound. This is a 2 way passive crossover that lets you choose a mid woofer 8" and under for the midrange and a tweeter for the high range. The crossover is rated for 300w RMS so you will be able to get great sound at a high volume with great frequency crossover point accuracy. These are the perfect addition for anyone looking to add a passive crossover utilizing only 1 channel on your amp and separate a full range signal for both components.

SPECIFICATIONS:

• Passive Crossover Ways: 2-Ways (High and Low Frequency)


• Frequency Crossover Point: 3.5KHz (@ 4 Ohms)


• Power Handling: Up to 300 Watts


• Cut-off Slope: 12dB/Oct

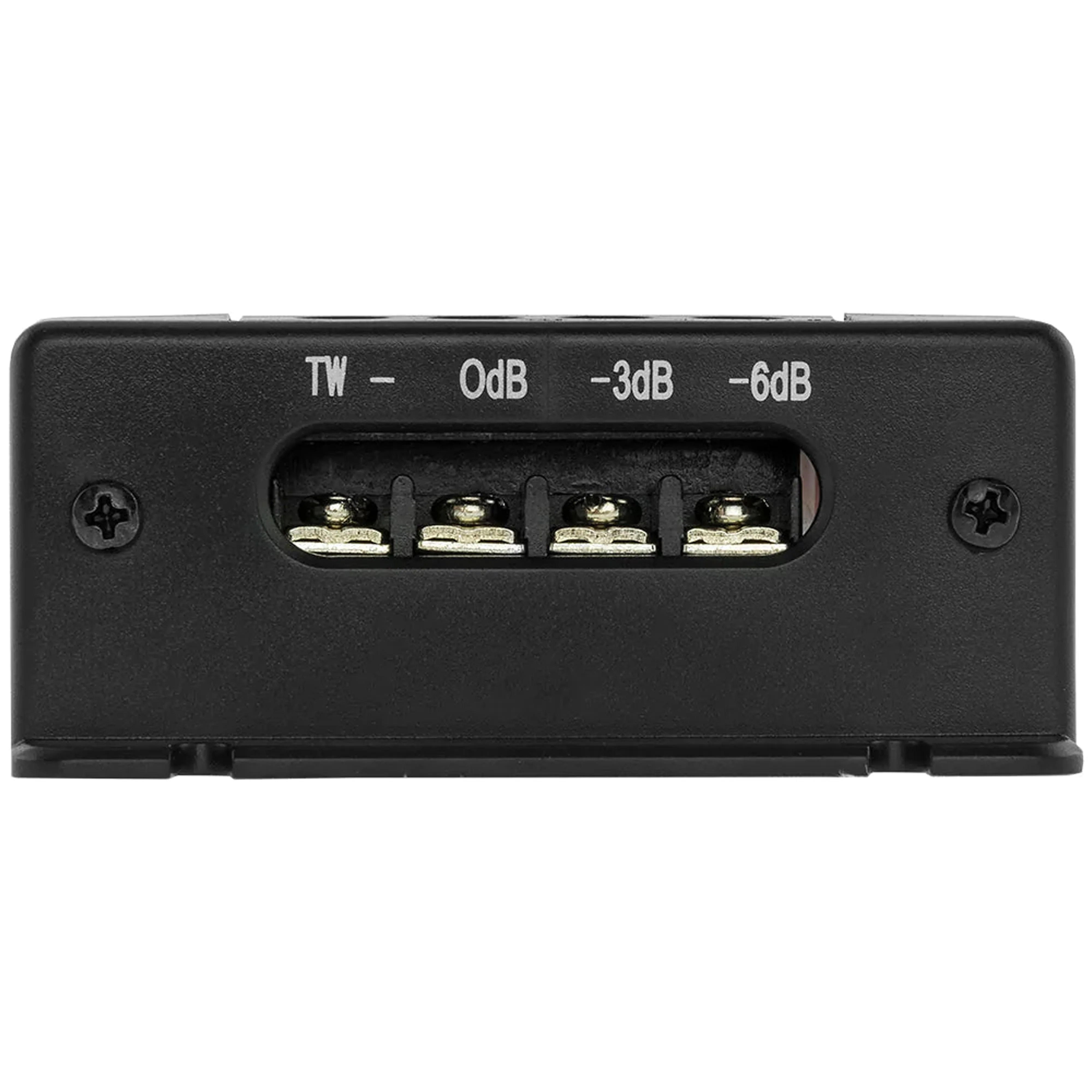

• Tweeter Attenuation: -3dB/-6dB


• Top Cover Material: Steel


• Bottom Cover Material: Clear Acrylic

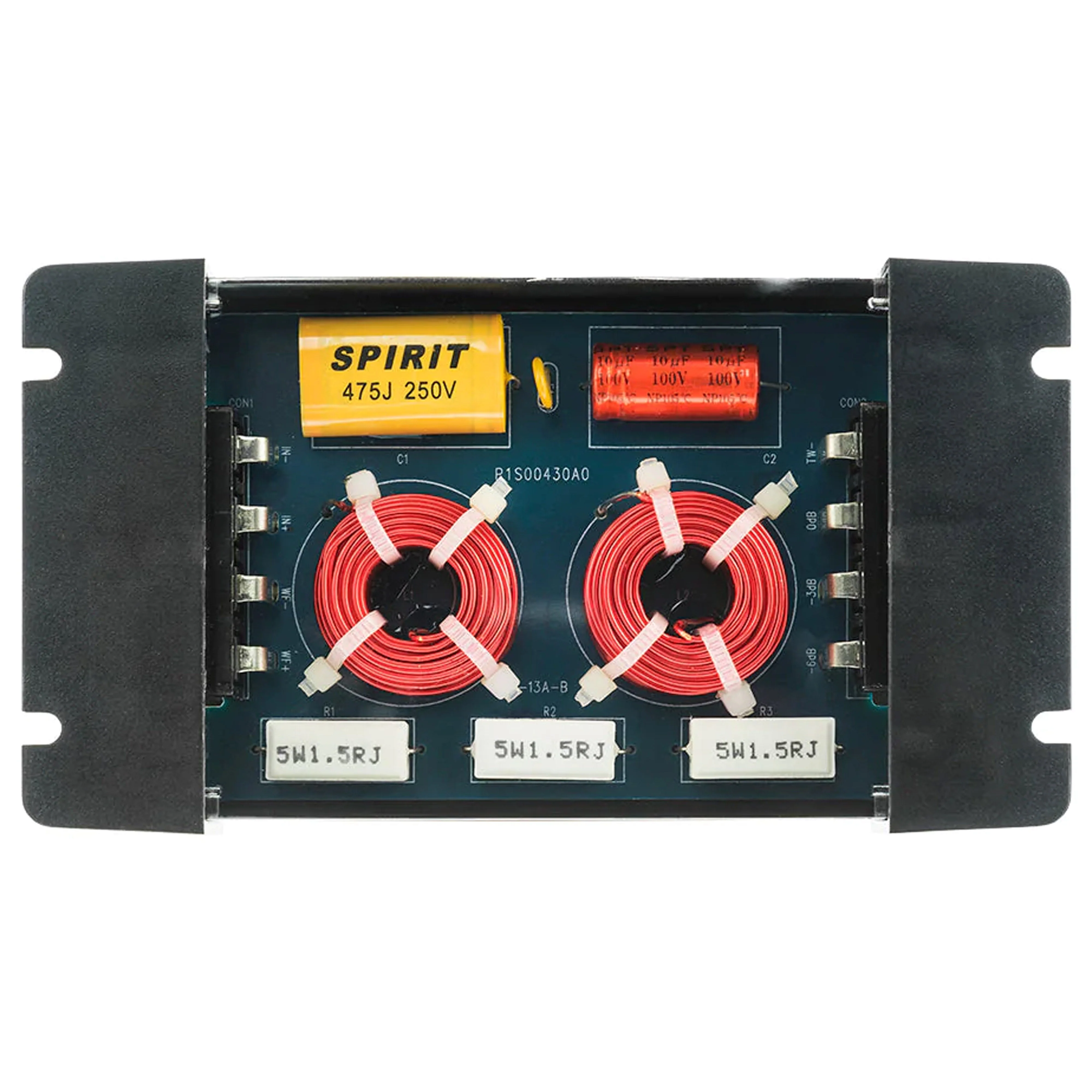

CROSSOVER FEATURES:

• Capacitor Type: NP Mylar


• Coil Type: KSV


• Terminal Type: Screw-On


• Housing Material: Metallic housing + Plastic side covers + Clear Acrylic


• Adjustments: Tweeter Attenuation

DIMENSIONS:

• Overall Length: 6.3 (160mm)


• Overall Depth: 3.5 (88mm)


• Overall Height: 1.5 (38mm)
