• ATO (Auto Turn On)-DC Offset on Hi Level Input
• Nine equalization bands (50Hz, 120Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8KHz, 16KHz)
• Gold-plated RCA connectors to ensure the best audio signal output
• ISO mounting holes and removable trim ring for custom installation

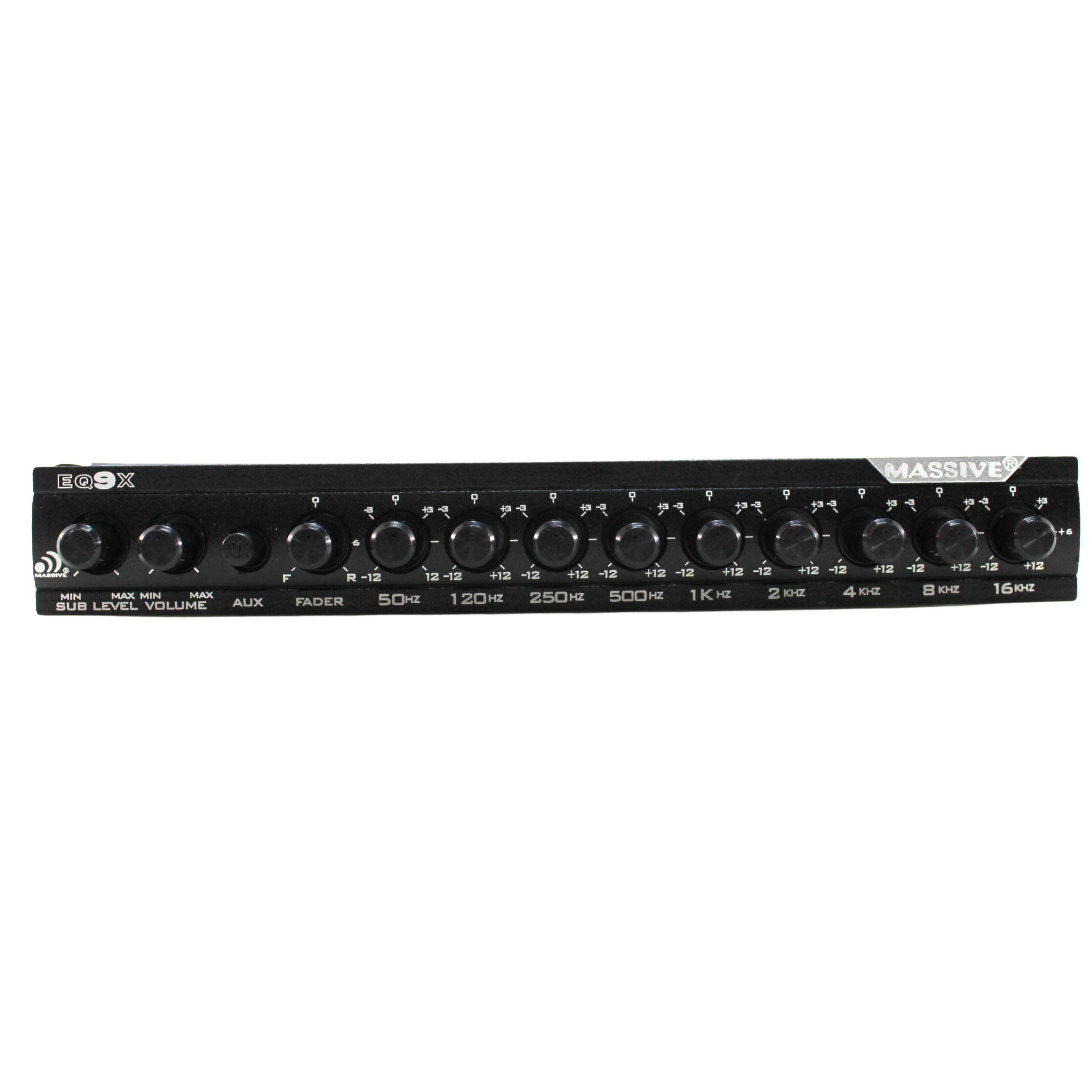

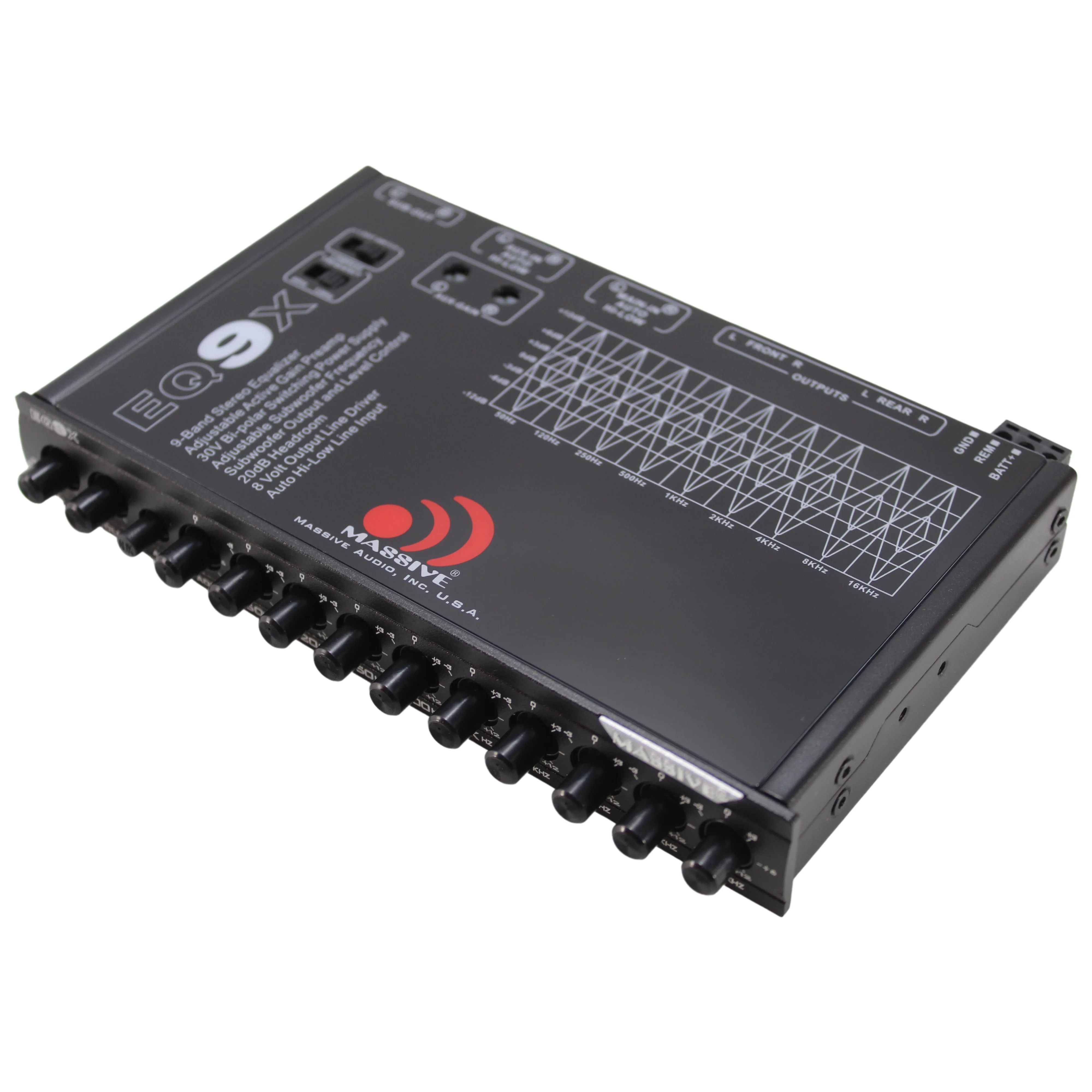

Massive Audio LED 9 Band Graphic Equalizer W/ Gold Plated RCA Connections EQ9X

This listing includes:

• (1) Graphic Equalizer EQ9X

The Massive Audio EQ9X is a cutting-edge equalizer that redefines your car audio experience. With nine bands of precise equalization, it allows you to fine-tune your audio system to perfection, delivering unparalleled sound quality. Its intuitive controls and LED display make adjustments effortless, ensuring that every frequency is optimized to your preference. Whether you're a discerning audiophile or a casual music enthusiast, the EQ9 enhances your car audio system, unleashing the full potential of your speakers and amplifiers for a truly immersive and customized listening experience on the road.

Specifications:

• Boost/Cut:12dB


• S/N Ratio: 100dB


• Frequency Response: 10Hz-50Hz +/-1dB


• Maximum Output Voltage: 7V


• THD: 0.005%


• Input Sensitivity: 50mV - 3V


• Hear Room: 20dB


• Input Impedance: 20K Ohms


• Output Impedance: 2K Ohms


• Stereo Separation: 82dB/1KHz


• Operating Voltage: 11V - 15V Negative Ground

Features:

• Each frequency adjustable from -12dB to +12dB


• Subwoofer output uses a built-in 18dB per octave electronic crossover fixed at 60Hz or 120Hz

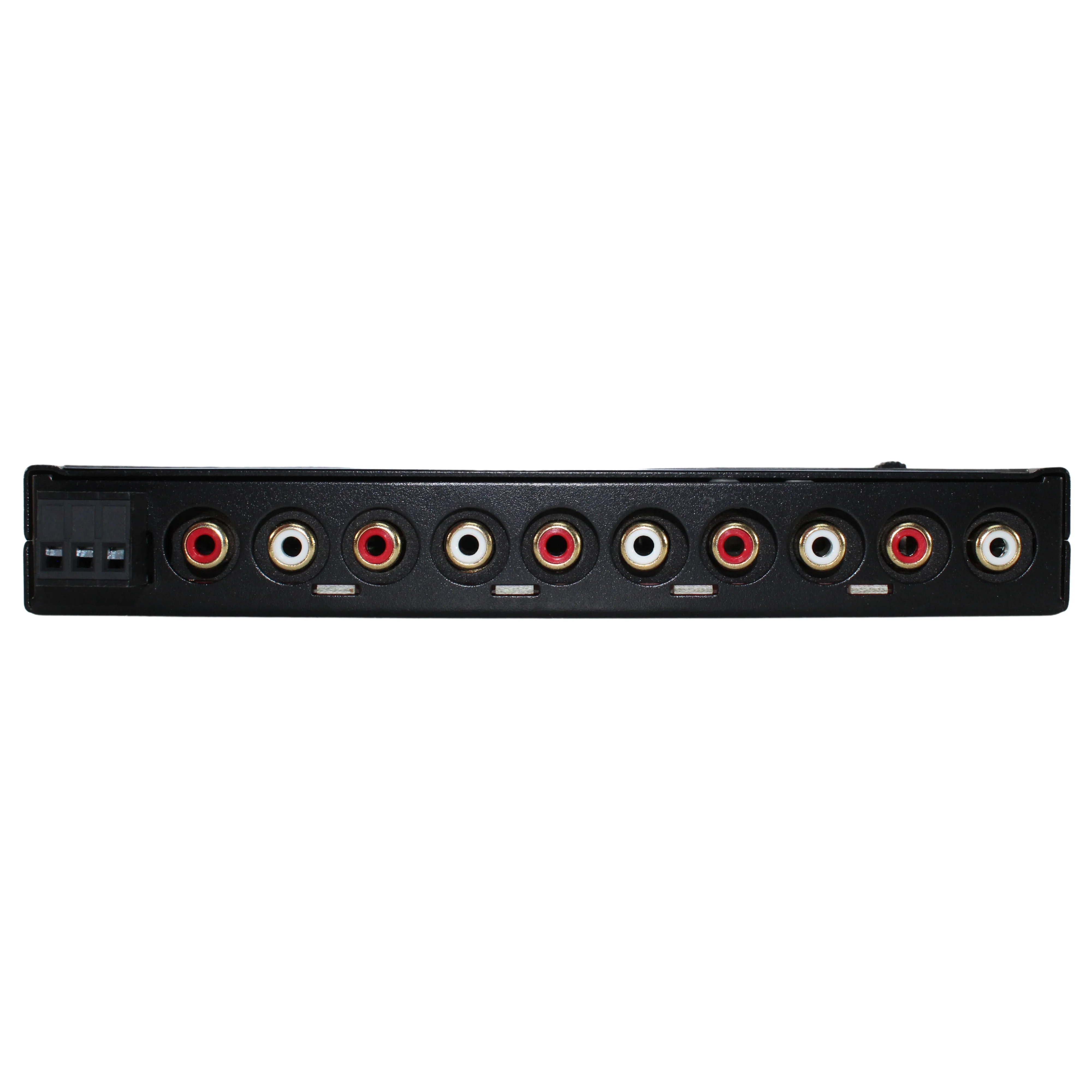

• Three stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers


• Auxiliary stereo RCA input for use with portable devices, such as MP3 player or DVD players


• Separate controls for master volume, sub level, front/rear fader and selection of main or auxiliary inputs
