• This Listing Includes: (1) Equalizer EQ7X
• Input Impedance 20K Ohms - Output Impedance 2K Ohms
• 50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, 16KHz
• 1/2 DIN 7 Band Graphic Equalizer

Massive Audio 8V Line Equalizer Drive 7 Band Graphic EQ7X

This Listing Includes:

(1) Equalizer EQ7X

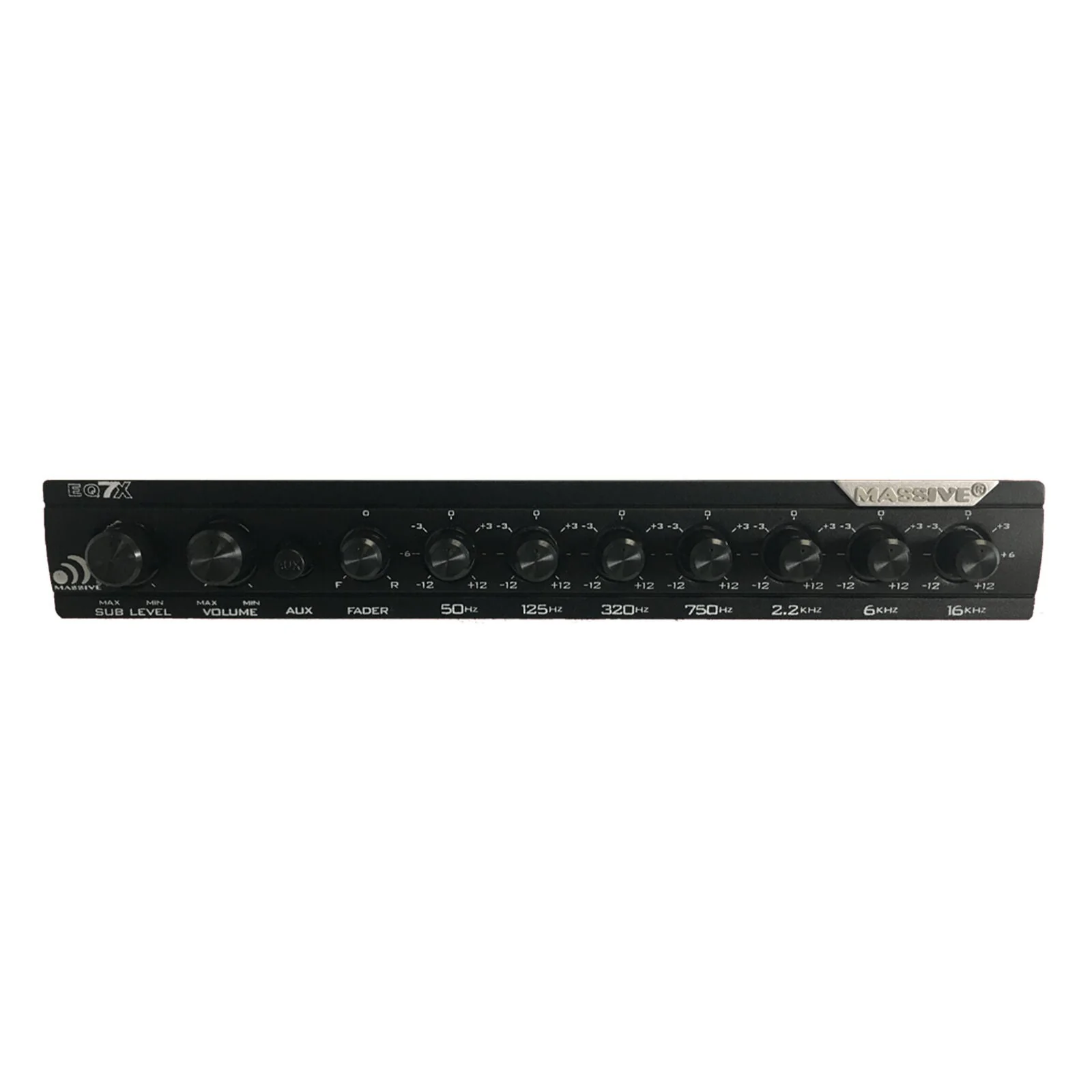

The Massive EQ 7X is a compact 7-band graphic equalizer designed to address fluctuations in sound quality often caused by the acoustic properties of most vehicle interiors, which can affect speaker performance and audio imaging. This EQ unit offers robust functionality in a space-saving half-DIN form factor. Additionally, it includes a convenient switch for adjusting the faceplate backlight color, allowing you to match it to your car's interior lighting, switching between vibrant orange and soothing soft blue hues.

Specifications:

• 1/2 DIN


• 7 Band Graphic Equalizer


• Gold Plated RCA Connectors


• 50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, 16KHz


• Each Frequency Adjustable From -12dB to +12dB


• * -15dB to +15dB for Subwoofer Frequencies


• Subwoofer Output Built-In 18dB per Octave electronic X-Over fixed @ 60Hz or 120Hz


• 8 Volt Output Line Driver


• RCA Auxiliary Input (Rear) inputs for MP3, DVD or Phone


• 6-Channel / 7 Volt RCA Outputs (Front/Rear/Subwoofer)


• Separate Controls for Master, Sub, Volume (Sub level) Front / Rear, Fader, Main or AUX Inputs


• Extended Frequency Response from 20HZ ~ 30Hz / 100dB S/N


• Adjustable Master Volume Level Control


• Adjustable Active Gain Preamp


• 30V Bi-Polar Switching Power Supply


• Adjustable Subwoofer Level Control


• Input Impedance 20K Ohms


• Output Impendence 2K Ohms


• Stereo Separation 82dB / 1KHz


• Operating Voltage 11V - 15V Negative Ground


• ISO Mounting Holes / Removable Trim Ring


• Switchable LED from orange to soft blue to match interior lighting


• 2-Channel RCA Input with Adjustable Gain
