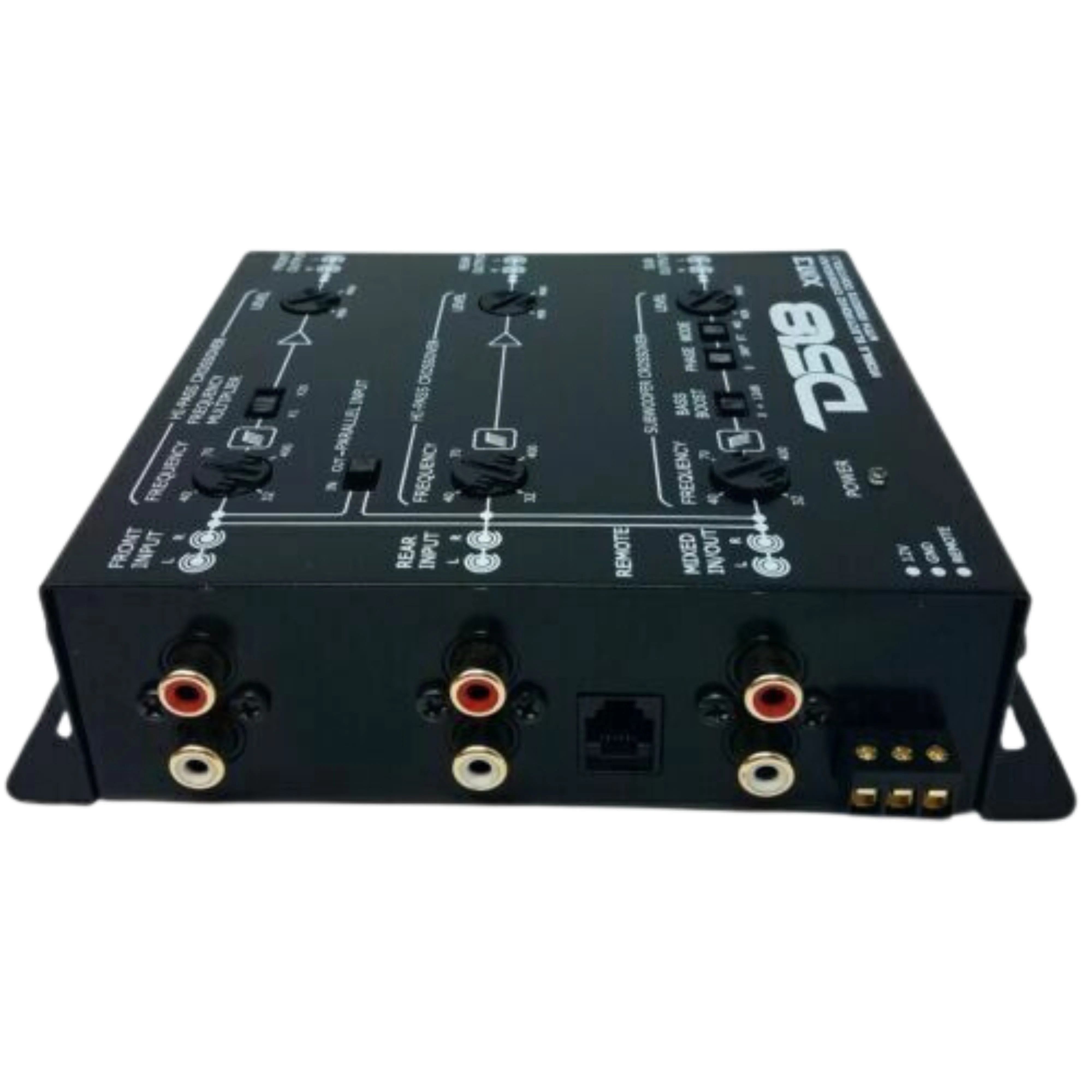

DS18 XM3 3 Way Electronic Car Stereo Crossover Dash Mount Bass Knob Remote Xover
3-Way Active Crossover with x20 Frequency Multiplier Switch by DS18.
Having the perfect tools to make your sound system the ultimate music machine is what
DS18 has for you. DS18 Crossovers are designed to provide the perfect frequency
distribution throughout your system to ensure the clarity and peak efficiency for your acoustic
Signal To Noise Ratio: more-than 102dB
Total Harmonic Distortion: (1KHz, 1VRMS) 0.01%
Crossover Slopes: 12dB/Octave Butterworth
Crossover Frequencies: Front HighPass, Rear
HighPass, and Subwoofer: 32Hz to 400Hz
Remote Sub Level: +18dB Boost
Low Level Input Voltage: 4VRMS
Maximum Output (10 K ohms Load): 9vrms
Supply Voltage: 9-15 VDC
Dimensions: 125mm W x 170mm L x 47mm H
Features:
3 Way Active Crossover with x20 Frequency Multiplier Switch
Remote Sub Level Control
0-180 Degree Subwoofer Phase Switch
Detected Frequency Selection
Control, Gold RCA Input and Output Connectors
Bass Boost
Power
Ground and Remote Connector
PWM Power Supply
LED Power Indicator
Designed to take your audio experience to a whole new level
Proven to deliver outstanding sound quality and clarity
Engineered using the latest technologies for exceptional performance
Made using the highest-quality materials for long-lasting service
Guaranteed to provide the highest levels of quality and reliability
