• Complete 2-way set: two 6.5" woofers, two 2" silk dome tweeters, two passive crossovers
• Yellow Straw cones: composite foam cones with rubber surrounds and aluminum baskets for tight midbass and clean mids
• Strong, efficient output: 150 W RMS, 300 W peak, 4 ohm, 90 dB sensitivity, system response 35 Hz to 20 kHz
• Precision crossovers: 2 kHz point, 12 dB per octave, METAC film caps and inductors, tweeter attenuation 0 dB, −2 dB, −4 dB
• Install friendly: woofer 5.7" cutout and 3" depth, tweeter 1.85" cutout and 0.6" depth, push 14 ga terminals, compact 4.3" x 4.3" x 1.37" crossovers

6.5" 150 Watt RMS 4-Ohm 2-Way Component Speaker Set DS18 DXQ6C2 Yellow Straw Cone

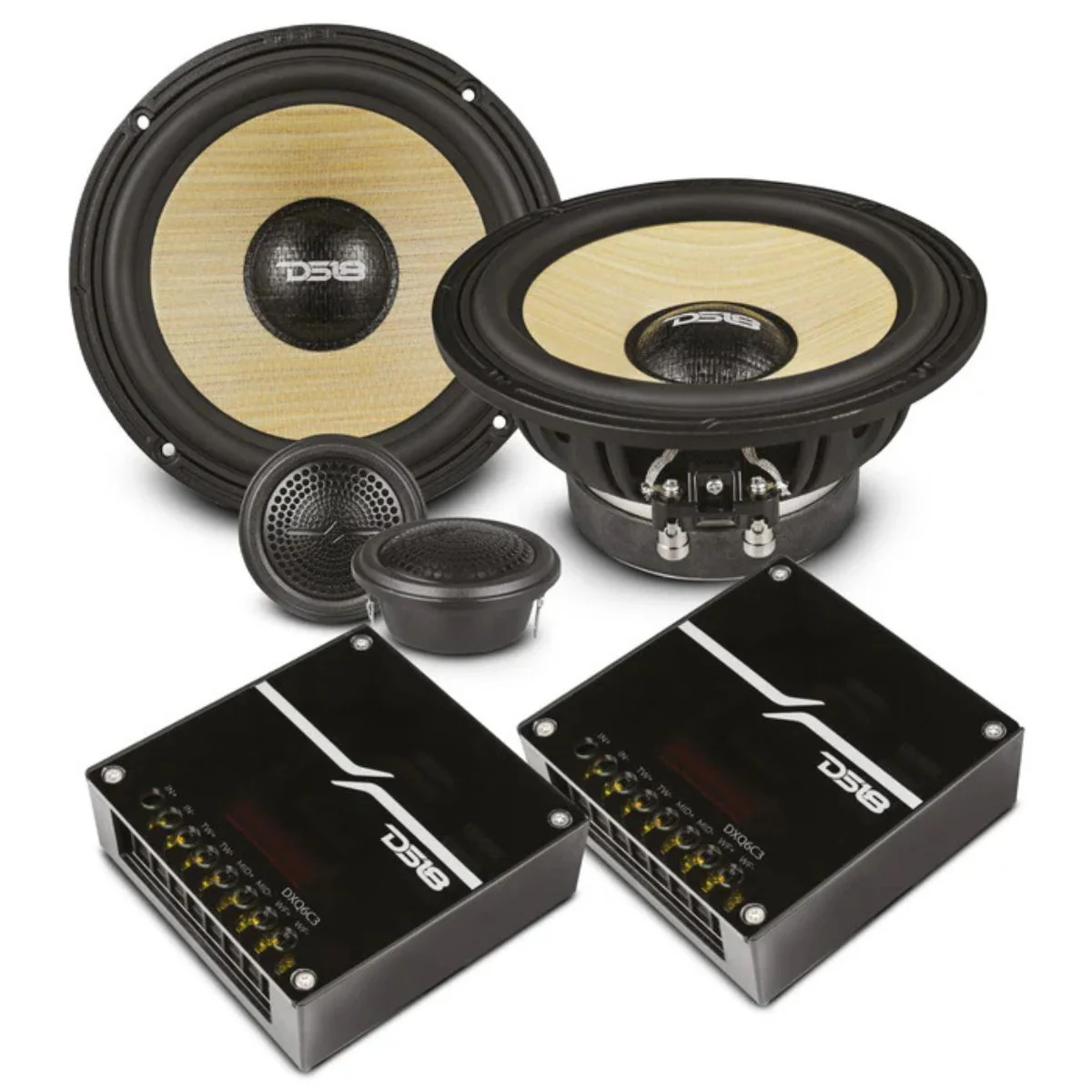

This Listing Includes:

• (2) 6.5" Woofers


• (2) 2" Silk Dome Tweeters


• (2) 2-Way Passive Crossovers

Key Features:

• Yellow Straw + Composite Foam cones, rubber surrounds


• Silk dome tweeters with neodymium magnets


• 150 W RMS, 300 W peak, 4 ohm, 90 dB sensitivity


• System response 35 Hz to 20 kHz


• 2-way crossovers at 2 kHz, 12 dB per octave, tweeter attenuation

Specifications:

General

• Nominal Diameter: 6.5"


• Impedance: 4 ohm


• Power Handling: 150 W RMS, 300 W MAX


• Sensitivity: 90 dB


• Frequency Response: 35 Hz to 20 kHz


• Recommended High-Pass Crossover: 60 Hz


• System: 2-Way, Sold in Pairs

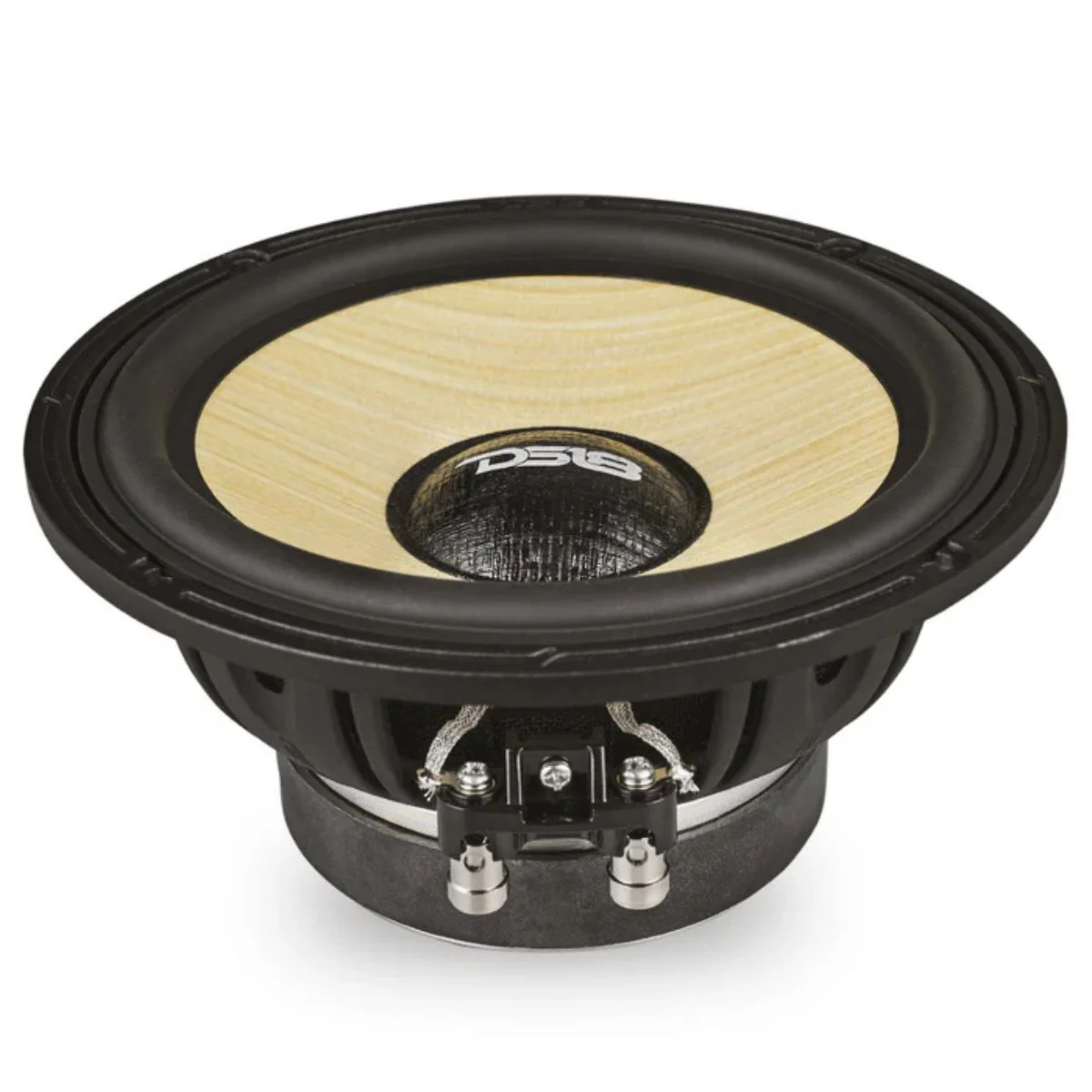

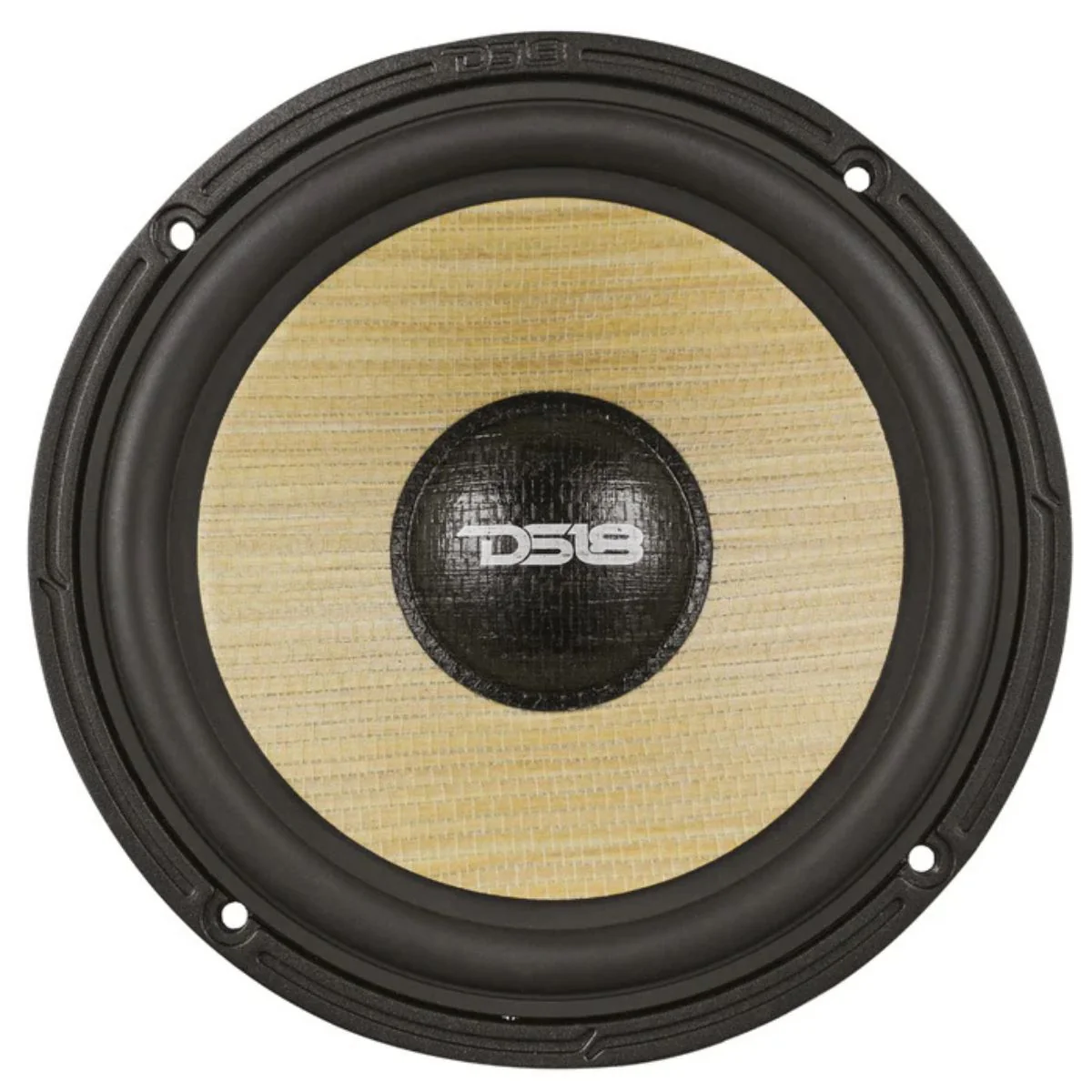

Woofer, 6.5"

• Voice Coil: 1.2" SV winding


• Cone: Yellow Straw + Composite Foam, curvilinear


• Surround: Rubber


• Basket: Aluminum, black finish


• Magnet: Ferrite, 20.2 oz


• Frequency Response: 35 Hz to 12 kHz


• Terminals: Push, 14 ga

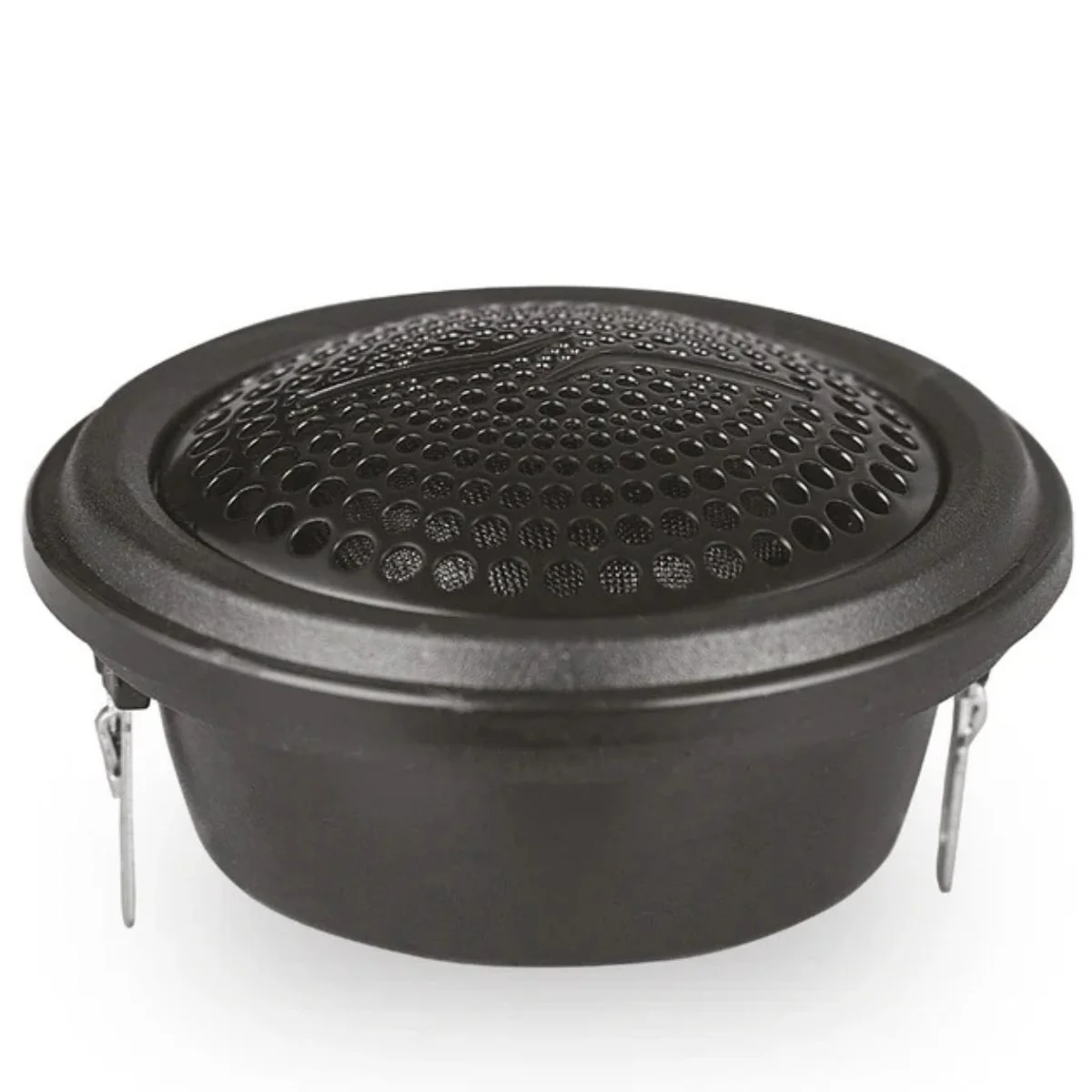

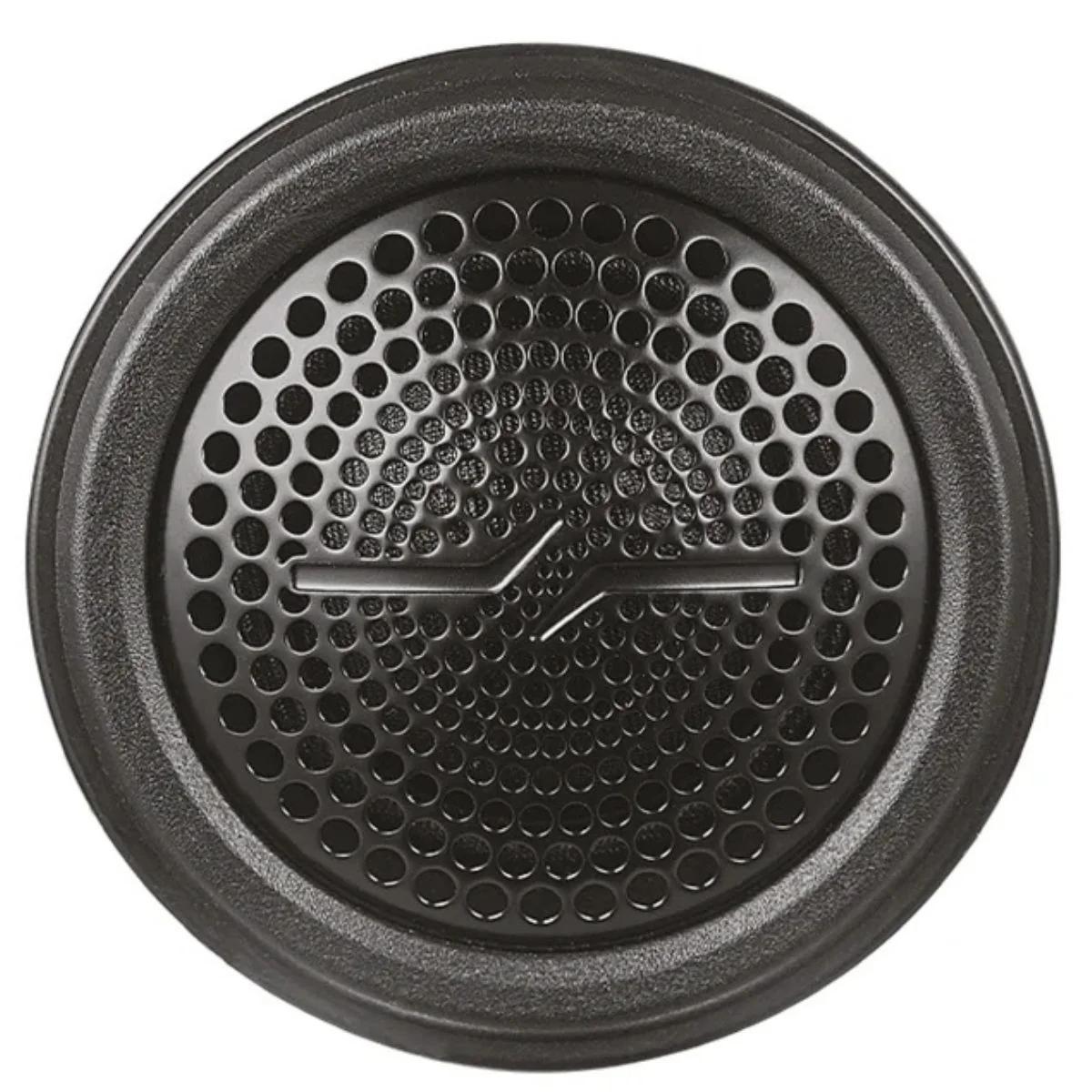

Tweeter, 2"

• Voice Coil: 1" CCAW on ASV former


• Diaphragm: Silk


• Magnet: Neodymium, 0.5 oz


• Sensitivity: 90 dB


• Frequency Response: 800 Hz to 20 kHz

Crossover

• Type: 2-Way Passive


• Crossover Point: 2 kHz


• Slope: 12 dB per octave


• Power Handling: 300 W


• Tweeter Attenuation: 0 dB, â2 dB, â4 dB


• Components: METAC film capacitor, inductor


• Terminals: Screw, housing ABS + acrylic

Dimensions:

Woofer

• Overall Diameter: 6.57"


• Mounting Depth: 3"


• Cutout Diameter: 5.7"

Tweeter

• Overall Diameter: 2"


• Mounting Depth: 0.6"


• Cutout Diameter: 1.85"

Crossover

• Overall Size: 4.3" x 4.3" x 1.37"
