• Full Bridge Class D Mosfet design for high efficiency
• Delivers up to 12,000W RMS @ 1 Ohm
• Built-in protections: over-voltage (16V) & under-voltage (9.5V)
• Wide frequency response (10Hz–20kHz)

Audiopipe 12000W Monoblock 1 Ohm Class D Brazilian Style Amplifier APHF-12000D

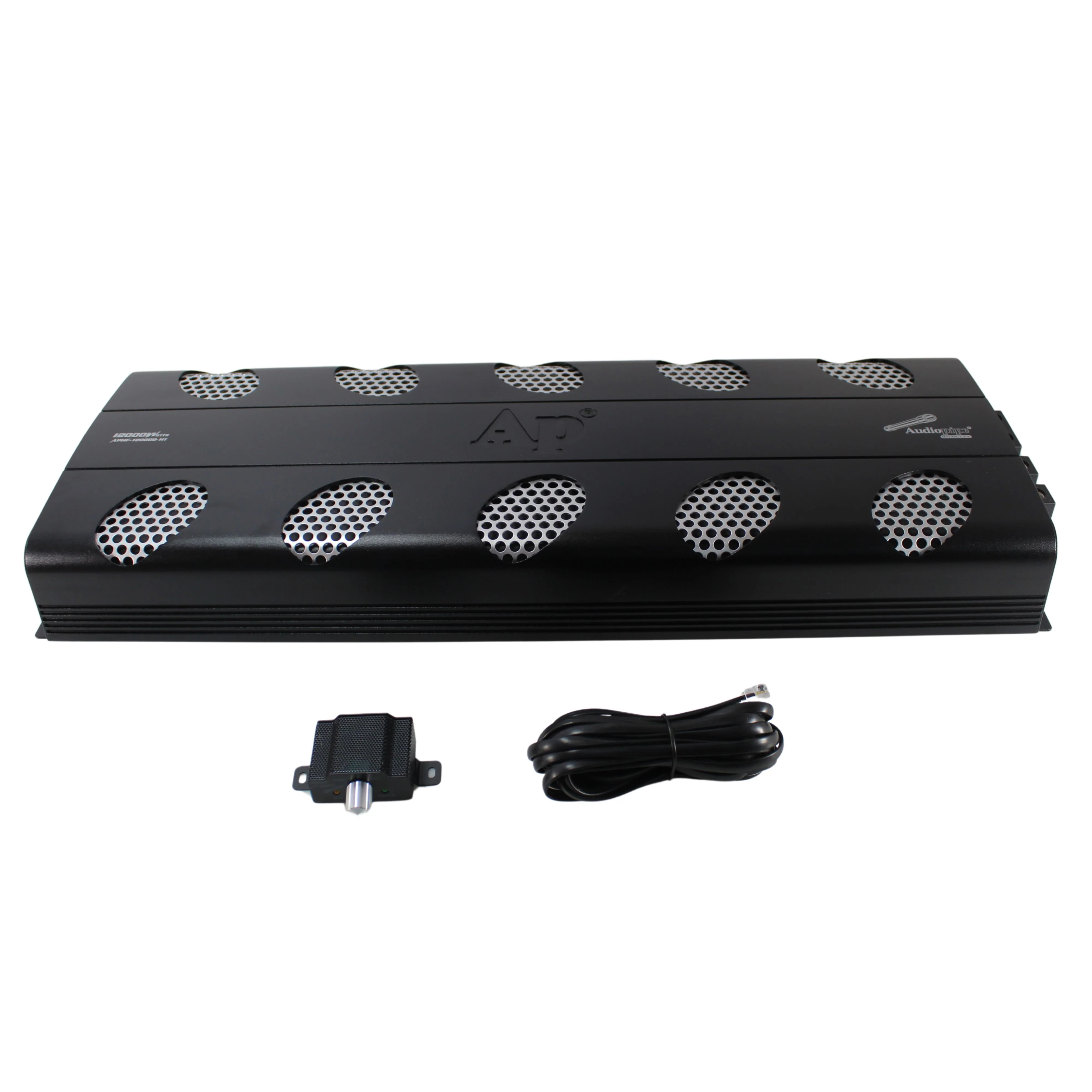

this listing includes

• (1) 12000 Watt Monoblock 1 Ohm Class D Amplifier

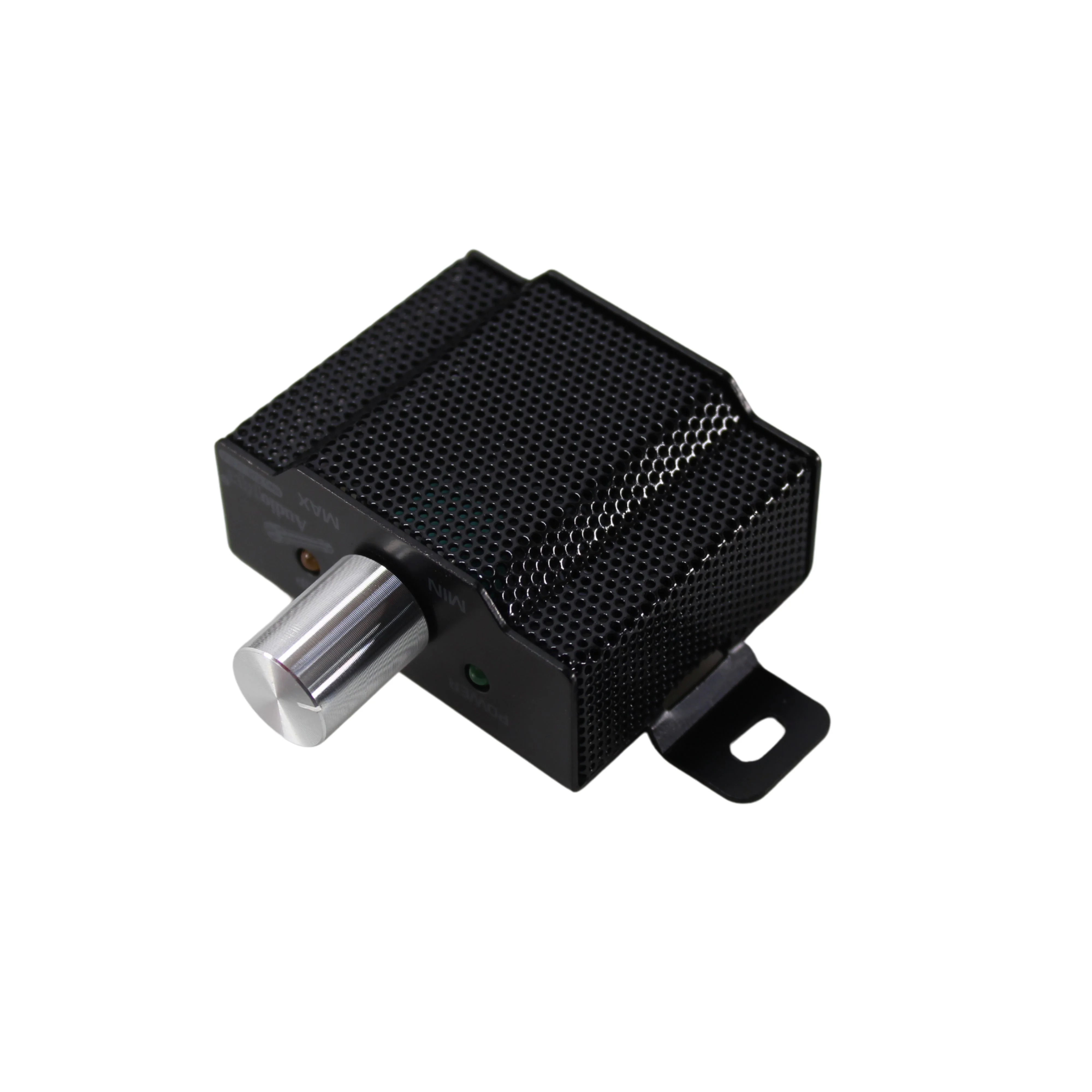

• (1) Remote Level Control


• (1) Remote Cable

Description:

Unleash serious power with the Audiopipe APHF-12000D-H1, a full bridge Class D Mosfet amplifier designed for high-performance audio systems. Built for maximum output and clarity, this amp delivers up to 12,000 watts at 1 ohm with superior control features including variable low-pass, subsonic filtering, and adjustable bass boost. It's ideal for serious bassheads and professional installations alike.

Features:

• Full Bridge Class D Mosfet Design


• Remote Level Control with Clipping Indicator


• Heavy-Duty Construction with Integrated Cooling

Specifications:

• Output Power (RMS) @ 1% THD, 14.4V:

  Mono @ 4 Ohms: 1 x 3900W @ 355A

  Mono @ 2 Ohms: 1 x 7300W @ 685A

  Mono @ 1 Ohm: 1 x 12000W @ 1200A


• Frequency Response (-3 dB): 10Hz - 20KHz


• High-Pass Filter: 10Hz - 80Hz (12dB/Octave)


• Low-Pass Filter: 80Hz - 20KHz (12dB/Octave)


• Bass Boost: 0 - 12 dB @ 35Hz - 90Hz


• Signal-to-Noise Ratio: >85 dB


• Input Sensitivity: 0.25V - 4V


• Protections:

  Over voltage Protection: 16V

  Under voltage Protection: 9.5V

Dimensions:

• Length: 29"


• Width:   12"


• Height:  6"


• Weight:  23.25 Lbs.
