• Full Bridge Class D Mosfet design for high efficiency
• Signal-to-noise ratio over 80dB
• Frequency response: 20Hz–20kHz
• Built-in cooling vents for thermal management

Audiopipe 2500W 4-Channel 2 Ohm Class D Brazilian Style Amplifier APHF-500.4D-H2

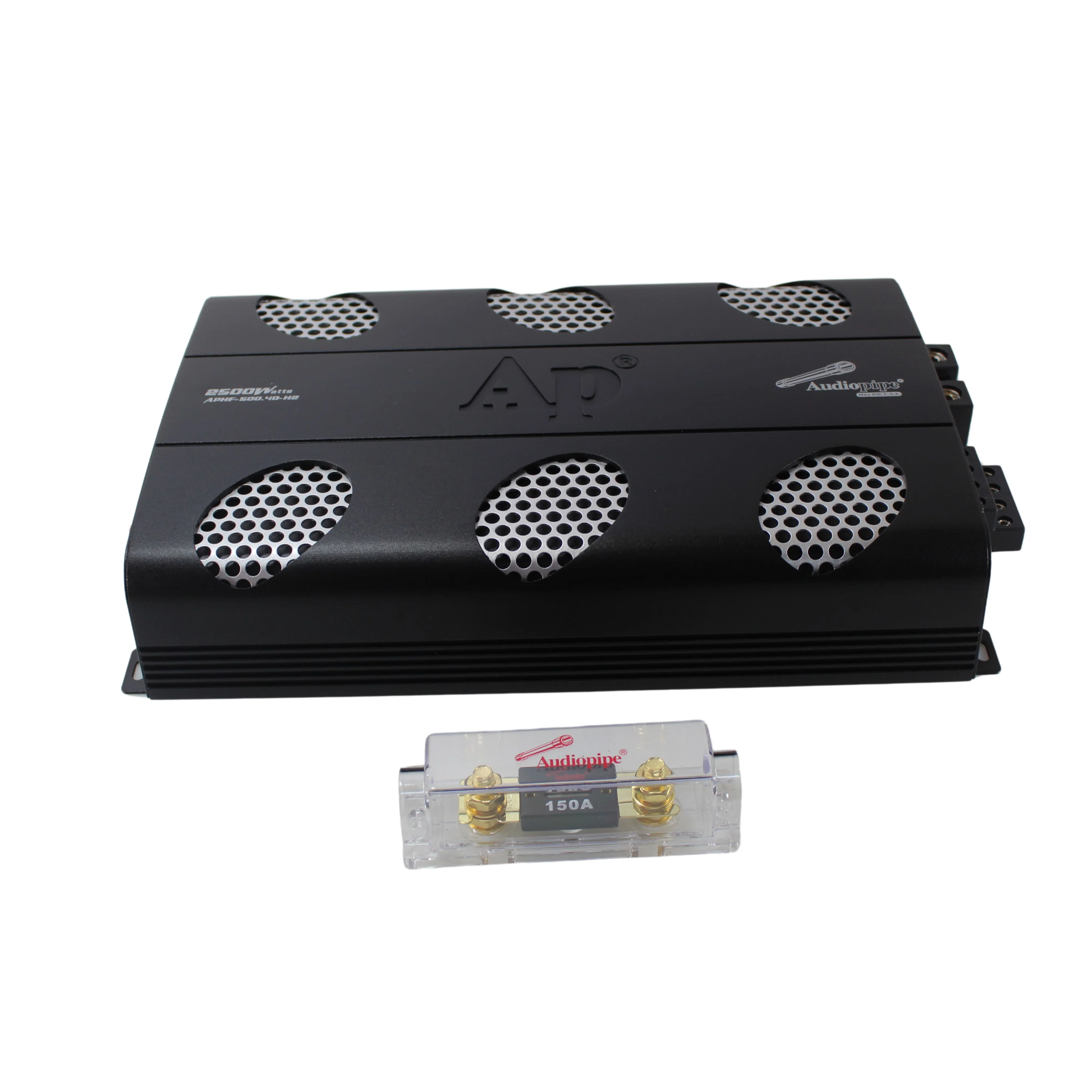

This Listing Includes:

• (1) APHF-500.4D-H2 Full Bridge Class D Mosfet Amplifier


• (1) 150A Audiopipe Fuse

Description:

Power your entire audio system with precision and authority using the Audiopipe APHF-500.4D-H2. This full bridge Class D 4-channel amplifier delivers high-efficiency performance with up to 2500 watts of total power. Equipped with versatile tuning options including high-pass, low-pass, and bass boost filters, it provides complete control for optimizing your sound. Ideal for car audio enthusiasts seeking both clean output and aggressive power.

Features:

• Full Bridge Class D Mosfet Design


• Compact Size with Built-In Cooling Vents


• Adjustable High-Pass and Low-Pass Filters


• 150A Fuse Included for Circuit Protection

Specifications:

• Output Power (RMS) @ 1% THD, 14.4V:

  4 x 300W @ 4 Ohms (104A)

  4 x 500W @ 2 Ohms (190A)

  2 x 1000W @ 4 Ohms Bridged (192A)


• Frequency Response (-3dB): 20Hz - 20kHz


• High Pass Filter: 50Hz - 4kHz (12dB/Octave)


• Low Pass Filter: 50Hz - 4kHz (12dB/Octave)


• Bass Boost: 0 - 12dB @ 35Hz - 90Hz


• Signal-to-Noise Ratio: >80 dB


• Input Sensitivity: 0.2V - 7V


• Over voltage Protection: 16V


• Under voltage Protection: 9V

Dimensions:

• 332 x 229 x 73 mm (13.0" x 9" x 2.9")
