• APXL SERIES: 4-Channel Class A/B Mofset 1400 Watt Power Amplifier, part of Audiopipe's new APXL Series, a transformation from the famous APLE line
• BREAKTHROUGHS: Crucial upgrades include an improved, heavier heat sink with fins and a cooling fan underneath as well as low, mid, and high crossovers allowing for ultimate heat dissipation and performance
• NEW LINE DRIVER IC: Engineered to include a new line driver IC that incorporates various components into one

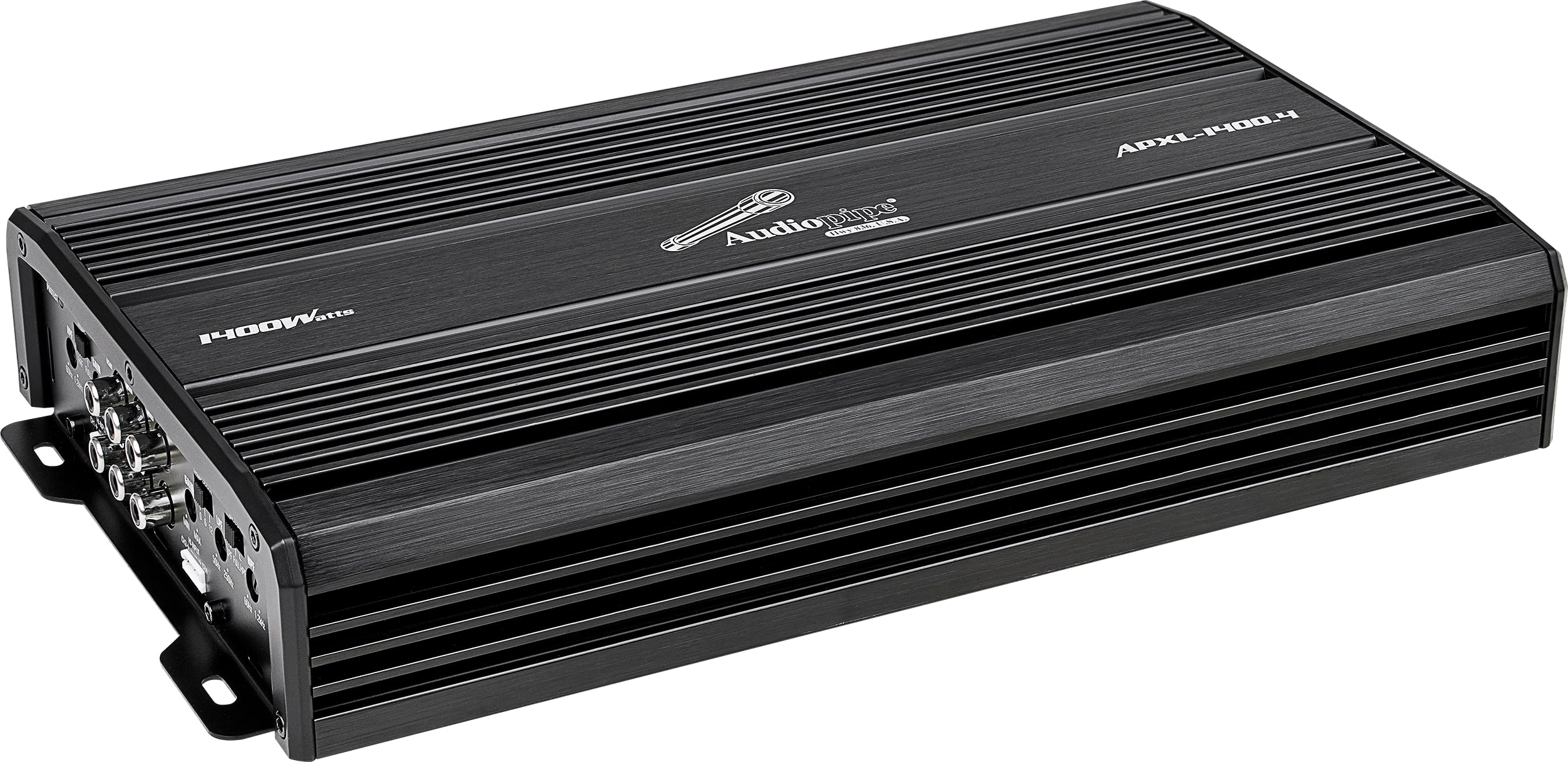

Audiopipe APXL 4-Channel 1400W 2-Ohm Full Range Class-AB Amplifier APXL-1400.4

This Listing Includes:

• (1) Audiopipe APXL amplifier APXL-1400.4

Unleash the full power of the sound system with the brand new APXL Series, a transformation from the famous APLE line of amps. Engineered to include a new line driver IC that incorporates various components into one, this series boasts improved heat dissipation and performance. The heat sink has been enhanced with added weight, fins, and a cooling fan underneath. Integrated low, mid, and high crossovers ensure optimal sound quality for both amplifiers and subwoofers. This series creates a perfect combination for subwoofers and 4 speakers, delivering loud and clear audio for your car.

SPECIFICATIONS:

• CONTINUOUS POWER:


• RMS @ 4 Ohm (<1% Distortion): 4 x 60W


• RMS @ 2 Ohm (<1% Distortion): 4 x 100W


• MAX POWER OUTPUT: 2 x 200W


• THD: <0.5%


• FREQUENCY RESPONSE: (-3dB): 20Hz~20KHz


• SIGNAL TO NOISE RATIO: >80dB


• OVERHEAT PROTECT TEMPERATURE: 82C/180F


• INPUT SENSITIVITY: 0.2 - 6V


• RECOMMENDED FUSE TYPE: 30A x 2


• CURRENT DRAW: 46A

DIMENSIONS:

• Length: 11.6" / 295mm


• Width: 7.3" / 185mm


• Height: 2.0" / 52mm
