• Advanced Thermal Management: The vented aluminum voice coil and heatsink effectively dissipate heat for prolonged high-performance play.
• Robust Power Handling: Designed to handle up to 4500 Watts peak power and 1500 Watts RMS, meeting the needs of hardcore bass enthusiasts.
• Enhanced Excursion: Features a taller surround and increased winding length voice coil for deeper bass and increased sound clarity.
• Elegant and Sturdy Design: Boasts polished aluminum DD logos and an embossed motor boot, combining aesthetic appeal with durability.
• Versatile Application: Ideal for a variety of setups, from daily drivers to competition-grade performance systems.

This Listing Includes:

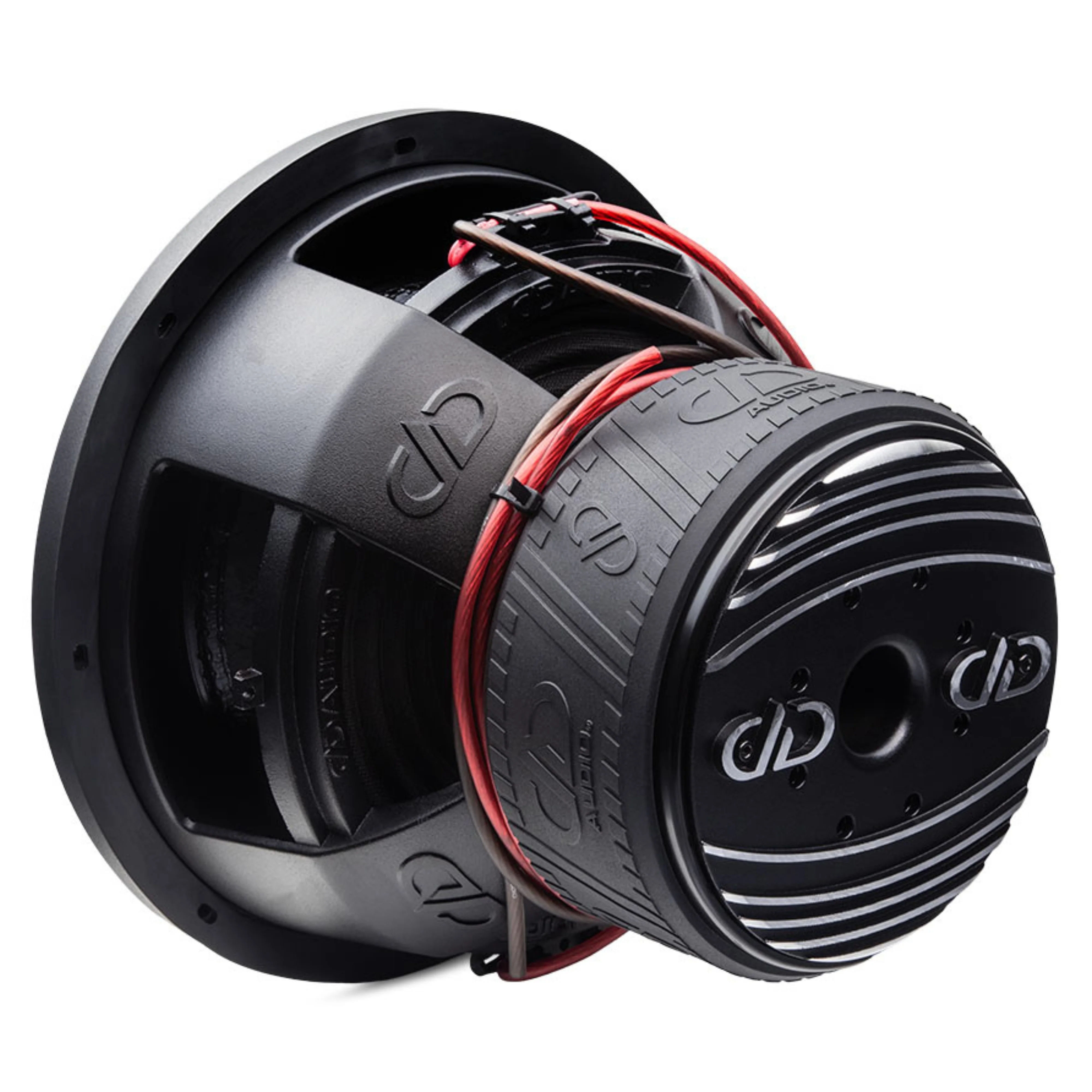

• (1) DD Audio 700 Series 12" Power Tuned Subwoofer

DD Audio's 700 Series subwoofers have undergone a transformative "f" revision, elevating their already impressive performance. The latest enhancements focus on thermal cooling and cutting-edge design, ensuring these subwoofers meet the demanding standards for loud and continuous play.

Specifications:

• Speaker Size: 12 Inches


• RMS Power: 1500 Watts


• Peak Power: 4500 Watts


• Impedance: D2


• Voice Coil Diameter: 3 Inches


• Piston Diameter: 10.25 Inches


• Frequency Response (Fs): 32.13 Hz


• Qms: 6.463


• Qes: 0.5125


• Qts: 0.4749


• Equivalent Volume (Vas): 24.23 Liters


• Maximum Excursion (Xmech): 100 MM


• Maximum Linear Excursion (Xmax): 22 MM


• Frame Outer Diameter: 12.625 Inches


• Frame OD with Gasket: 12.875 Inches


• Mounting Diameter: 11.375 Inches


• Mounting Depth: 9 Inches


• Motor Diameter: 7.562 Inches


• Motor Depth: 4 Inches


• Woofer Displacement: 0.17 CuFt


• Ported Enclosure Range: 1.75 - 3.0 CuFt

Features:

• Vented aluminum voice coil insert and finned heatsink for advanced cooling.


• Tall surround and double stitched cone for increased excursion and durability.


• High-temp voice coils for consistent performance under intense power.


• Elegant design with polished aluminum DD logos and embossed motor boot.


• Optimized for both daily driving and show-stopping builds.
