• Advanced Thermal Cooling: Features vented aluminum voice coil insert and finned heatsink for superior heat dissipation.
• Powerful Excursion Capabilities: Enhanced by a taller surround and increased winding length voice coil for deeper, more impactful bass.
• High-Temperature Resilience: The subwoofer's high-temp voice coils are built to handle intense power loads, ensuring reliability.
• Elegant and Durable Design: Boasts a polished aluminum DD logo on the heatsink and a rubber-boot wrapped motor with an embossed design.
• Optimized for Extreme Performance: Ideal for competitive bassheads, providing competition-grade performance and power handling.

This Listing Includes:

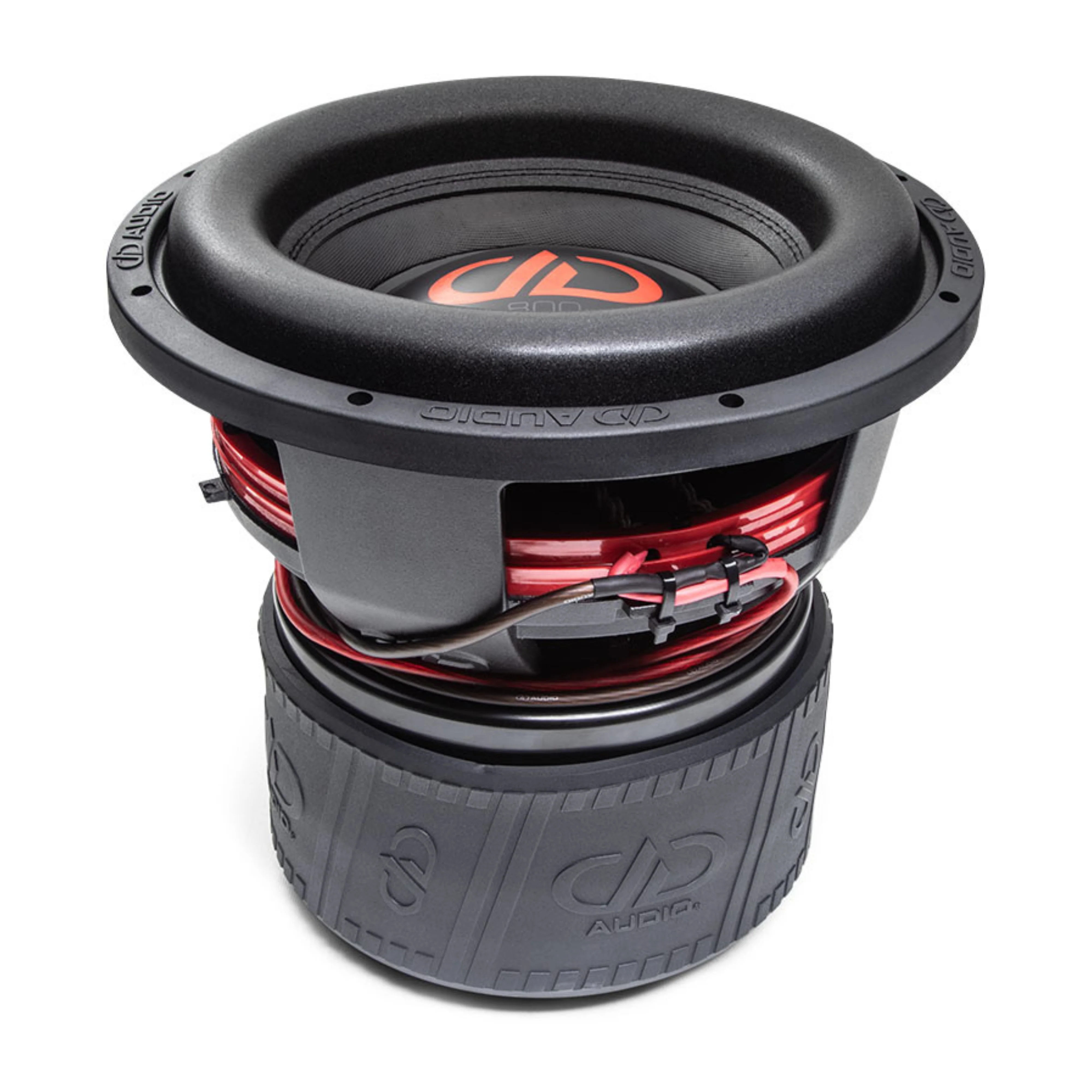

• (1) DD Audio 800 Series 12" Subwoofer

The DD Audio 800 Series 12" subwoofer is a powerhouse of performance and innovation. The latest "f" revision of this series has undergone significant enhancements in thermal cooling and cutting-edge design. This subwoofer is engineered to meet evolving performance standards, providing loud, continuous play without compromise.

Specifications:

• Speaker Size: 12 Inches


• RMS Power: 2500 Watts


• Peak Power: 7500 Watts


• Impedance: D2


• Voice Coil Diameter: 4 Inches


• Piston Diameter: 10.25 Inches


• Frequency Response (Fs): 34 Hz


• Qms: 6.282


• Qes: 0.601


• Qts: 0.548


• Equivalent Volume (Vas): 18.84 Liters


• Maximum Excursion (Xmech): 100 MM


• Maximum Linear Excursion (Xmax): 31 MM


• Frame Outer Diameter: 12.625 Inches


• Frame OD with Gasket: 12.875 Inches


• Mounting Diameter: 11.34 Inches


• Mounting Depth: 11 Inches


• Motor Diameter: 9.45 Inches


• Motor Depth: 5.8 Inches


• Ported Enclosure Range: 1.75 - 3.0 CuFt

Features:

• Vented aluminum voice coil insert and heatsink for enhanced thermal management.


• A taller surround, double stitched to a fiberglass-loaded, non-pressed cone, increases Xmax and adds to the aesthetic appeal.


• High-temp voice coils withstand intense power without degrading sound quality.


• The heat sink boasts beautifully carved, polished aluminum DD logos, adding to the visual appeal.

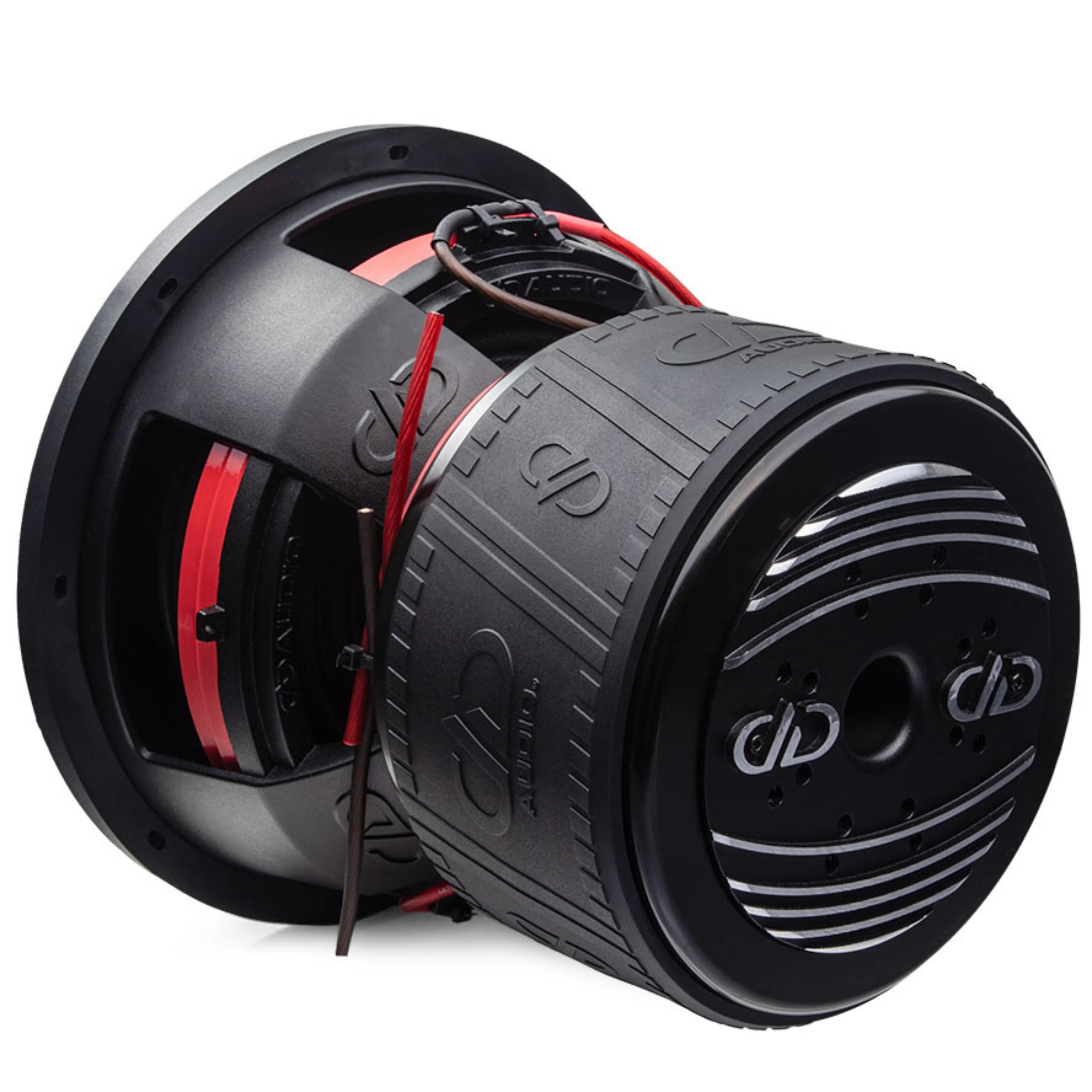

• Rubber-boot wrapped motor with an embossed design enhances the overall look.
