• High Strength Neo Magnet and Vented Gap: Ensures efficient cooling and improved performance
• 25mm Textile Dome Tweeter: Delivers smooth, balanced, and high-fidelity highs
• Underhung Copper-Clad Aluminum Voice Coil: Provides precise sound reproduction with high sensitivity
• Contoured Dome Design: Reduces breakup mode distortions and extends high-frequency bandwidth
• Versatile Mounting Options: Includes both flush and surface mounts for flexible installation

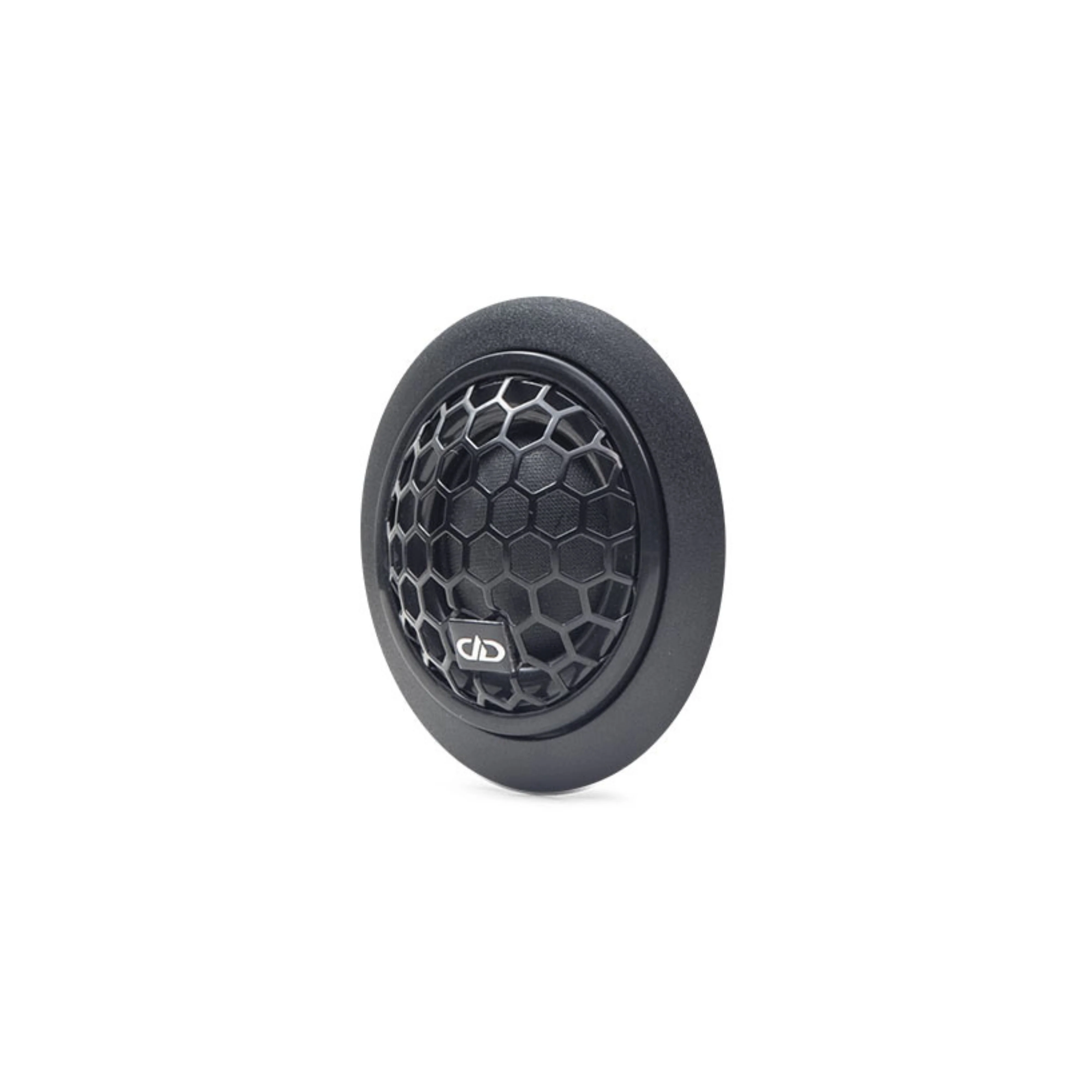

DD Audio 25mm 4 Ohm 125W Peak/25W RMS Cloth Dome Tweeter w/o Crossover D-T25a

This Listing Includes:

• (2x) DD Audio D-T25a 25mm Tweeter

The D-T25a from DD Audio's D Series represents a pinnacle in tweeter design, offering exceptionally smooth and balanced highs. This tweeter features a high strength neo motor and an underhung, copper-clad, aluminum voice coil, achieving a sensitivity of 93.6dB. Its vented gap design enhances long-term cooling around the neo motor, ensuring superior response and reliability.

Specifications:

• Speaker Size (MM): 25


• Watts RMS: 25


• Watts Peak: 125


• Impedance: S4


• Frequency Response: 1500 - 20k Hz


• dBSPL: 93.6


• Mounting Diameter (In/MM): 1.62 (41)


• Overall Diameter (In): 2.24


• Mounting Depth (In/MM): 0.71 (18)


• Overall Depth (In): 1.09


• Item Weight (Oz): 1.8

Features:

• Neo Magnet with Vented Gap for enhanced motor cooling


• Kapton Former CCA Voice Coil for precise sound reproduction


• 25mm Textile Dome Tweeter for high-fidelity audio


• Contoured Dome design to reduce distortions


• Underhung Voice Coil for superior audio performance

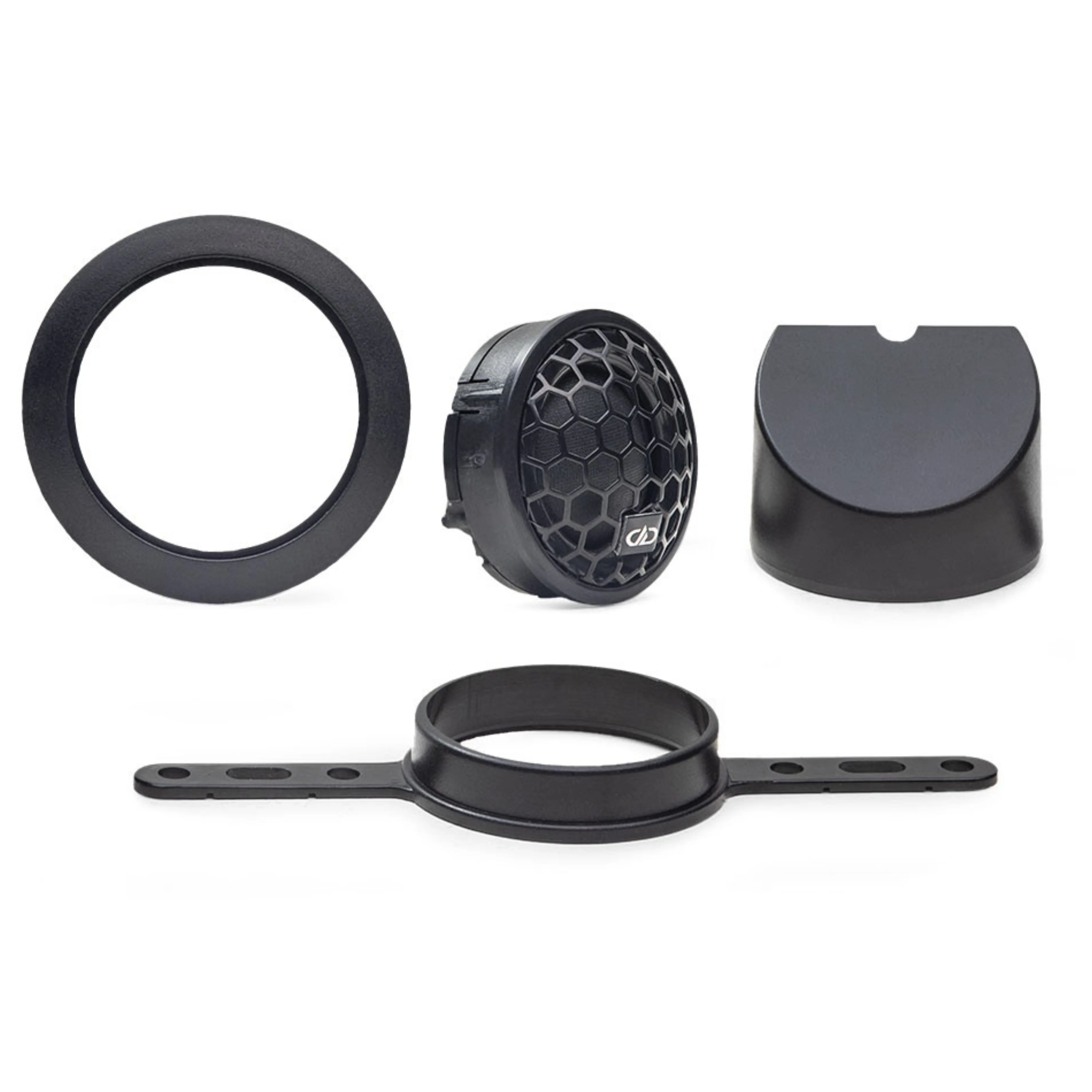

• Includes Flush and Surface Mounts for installation flexibility


• High Sensitivity of 93.6dB for effective sound output
