• 10TB HDD Included
• HDCVI/AHD/TVI/CVBS Auto-detect : The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.
• AI Coding : Compared with H.265, AI codec can reduce up to 50% bit rate and storage requirements while have no loss of decoding compatibility, providing clear human and vehicle details.
• Coaxial Audio/Upgrade/Alarm : The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

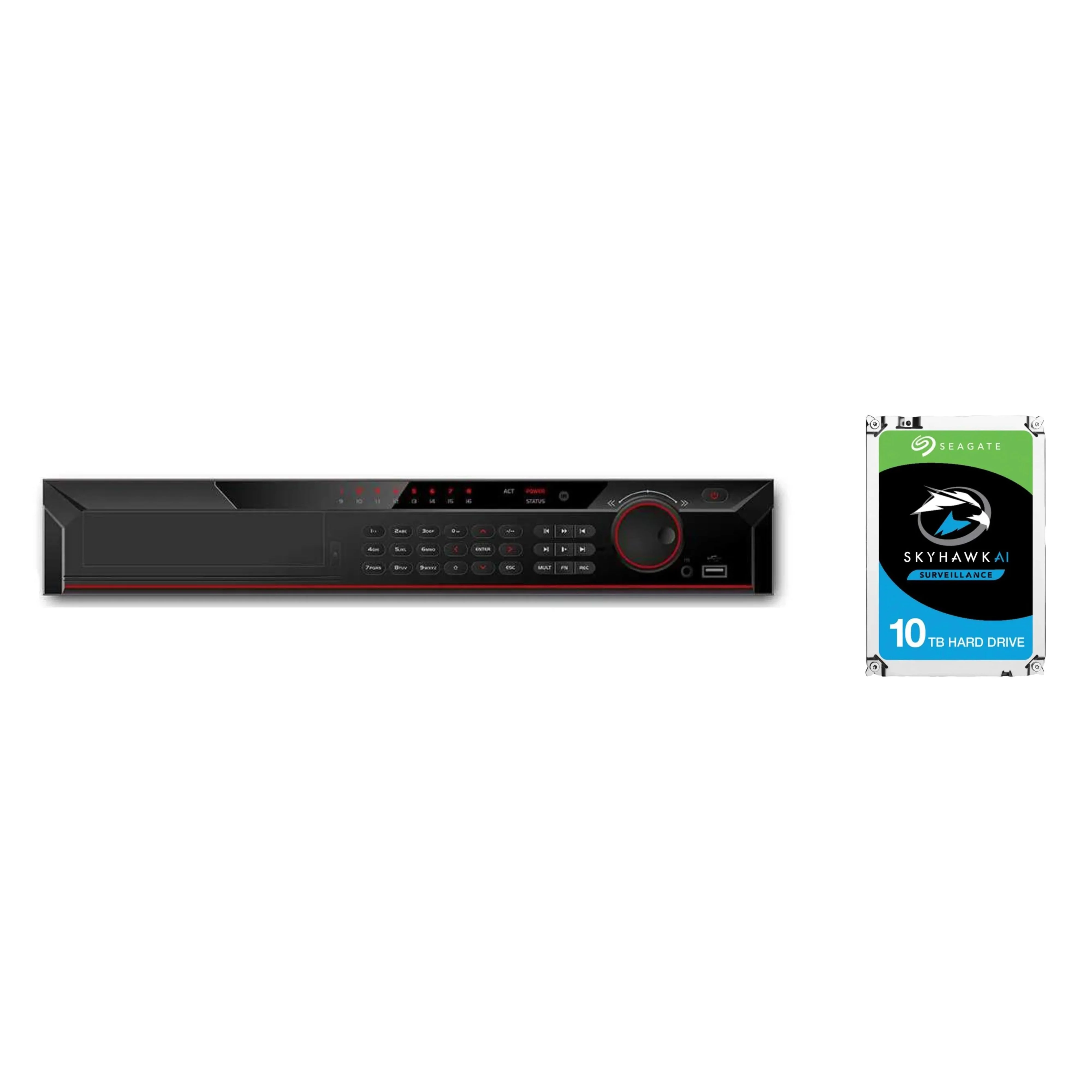

ENS Security 32 CH Penta-brid 5MP 1080P 1.5U Digital Video Recorder + 10TB HDD

This Listing Includes:

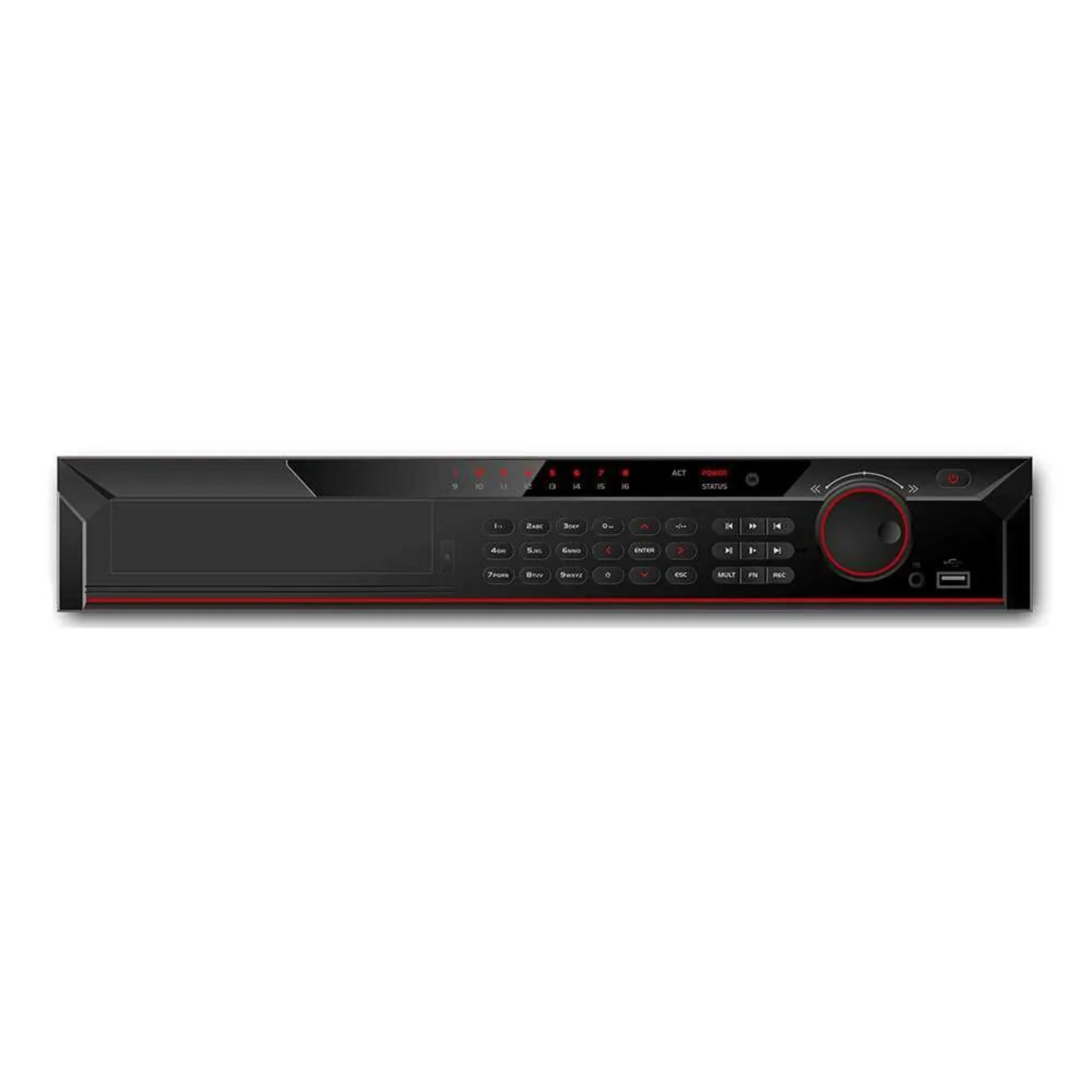

(1) 32 Channel 5MP Digital Video Recorder

(1) 10TB HDD

XVR504L-32-I3 features full-channel SMD Plus (except for 32-channel devices) to benefit customers from AI upgrade. The series are designated to reduce false-alarm rates and human surveillance costs, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities. ENS Diamond Series is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. XVR504L-32-I3 provides intelligent, simple and inclusive products and solutions.

Secifications:

• Max Recording Resolution: 5MP Lite


• LAN Ports: 1


• SATA: 4X SATA PORTS


• Video Outputs: HDMI / VGA, HDMI 2


• NDAA Compliant: No


• Hardware Features: Alarm in, Alarm out, Audio in, Audio out


• H.265+/H.265 dual-stream video compression


• Supports HDCVI/AHD/TVI/CVBS/IP video inputs


• Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth


• Up to 2 channels video stream ( analog channel ) perimeter protection


• Up to 16 channels video stream ( analog channel ) SMD plus


• Up to 2 channels video stream (analog channel ) human face recognition


• IoT & POS functionalities

HDD Features:

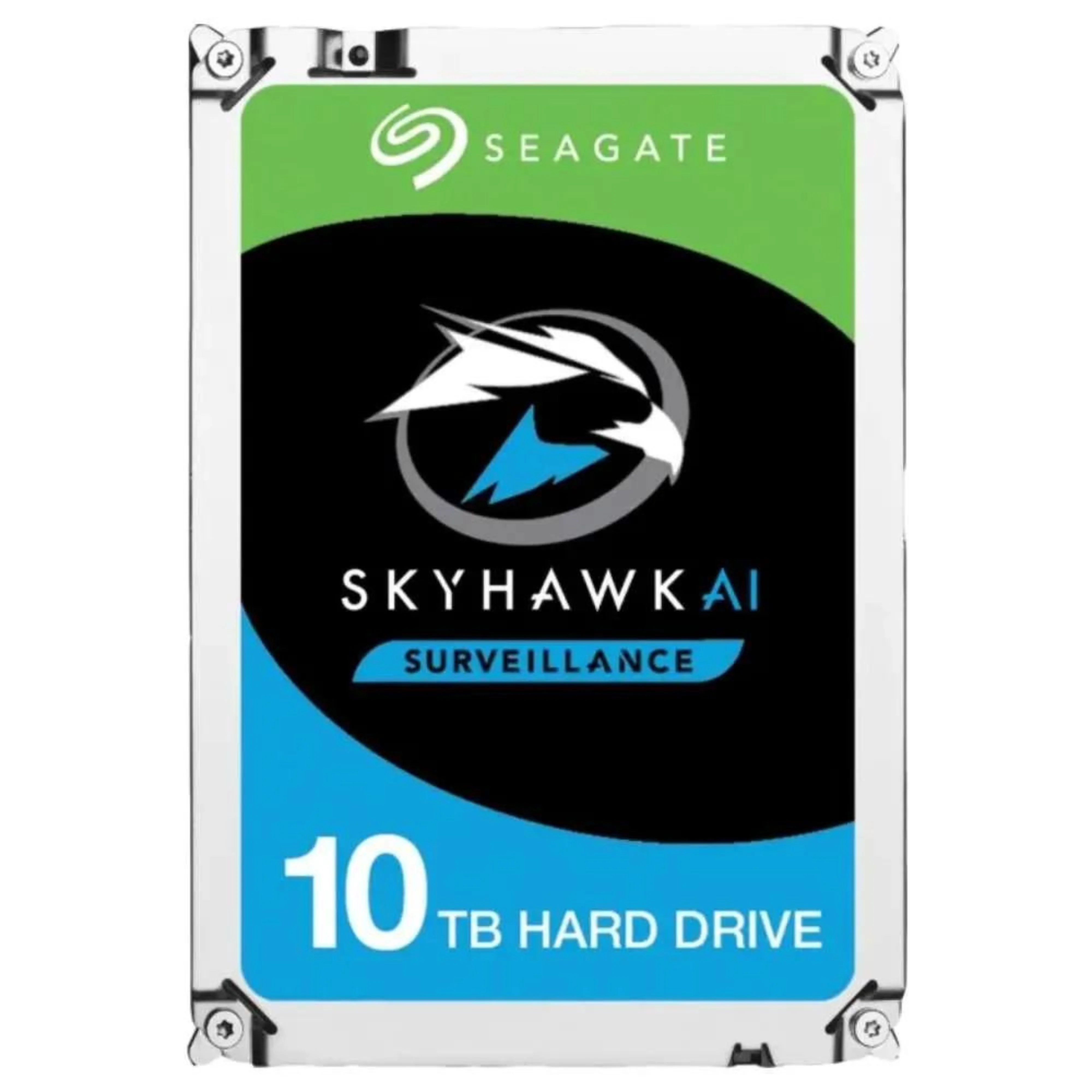

• Seagate SkyHawk 10TB AI Surveillance Hard Drive


• ImagePerfect AI firmware for superior image integrity alongside additional AI workload support in always-on, AI-enabled surveillance systems.


• Custom designed to support an additional 32 AI streams while simultaneously and flawlessly recording footage up to 64 HD cameras.


• Designed and built to handle heavy surveillance workloads in traditional video recording and advanced video analytics environments. At 550TB/year, SkyHawk AI is designed for 3x the workload of standard surveillance drives.


• Advanced vibration management for superior and sustained performance in 16 bay NVR systems.


• SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options. 1 Included is RAID RapidRebuild, which provides 3x faster volume rebuilds.


• Improved reliability and reduced total cost of ownership with 1.5M-hr. MTBF

HDD Specifications:

• Series: Seagate SkyHawk 12TB AI Surveillance Hard Drive


• Item model number: C-HDD12T-VE


• Item Weight: 1.43 pounds


• Item Dimensions L x W x H: 5.8" x 4.01" x 1.03"


• Capacity: 10 TB


• Hard Drive Interface: SATA 6Gb/s


• Hard Drive Rotational Speed: 7200 RPM


• Cache: 256MB
