• 2TB HDD Included
• HDCVI/AHD/TVI/CVBS Auto-detect : The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.
• AI Coding : Compared with H.265, AI codec can reduce up to 50% bit rate and storage requirements while have no loss of decoding compatibility, providing clear human and vehicle details.
• Coaxial Audio/Upgrade/Alarm : The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

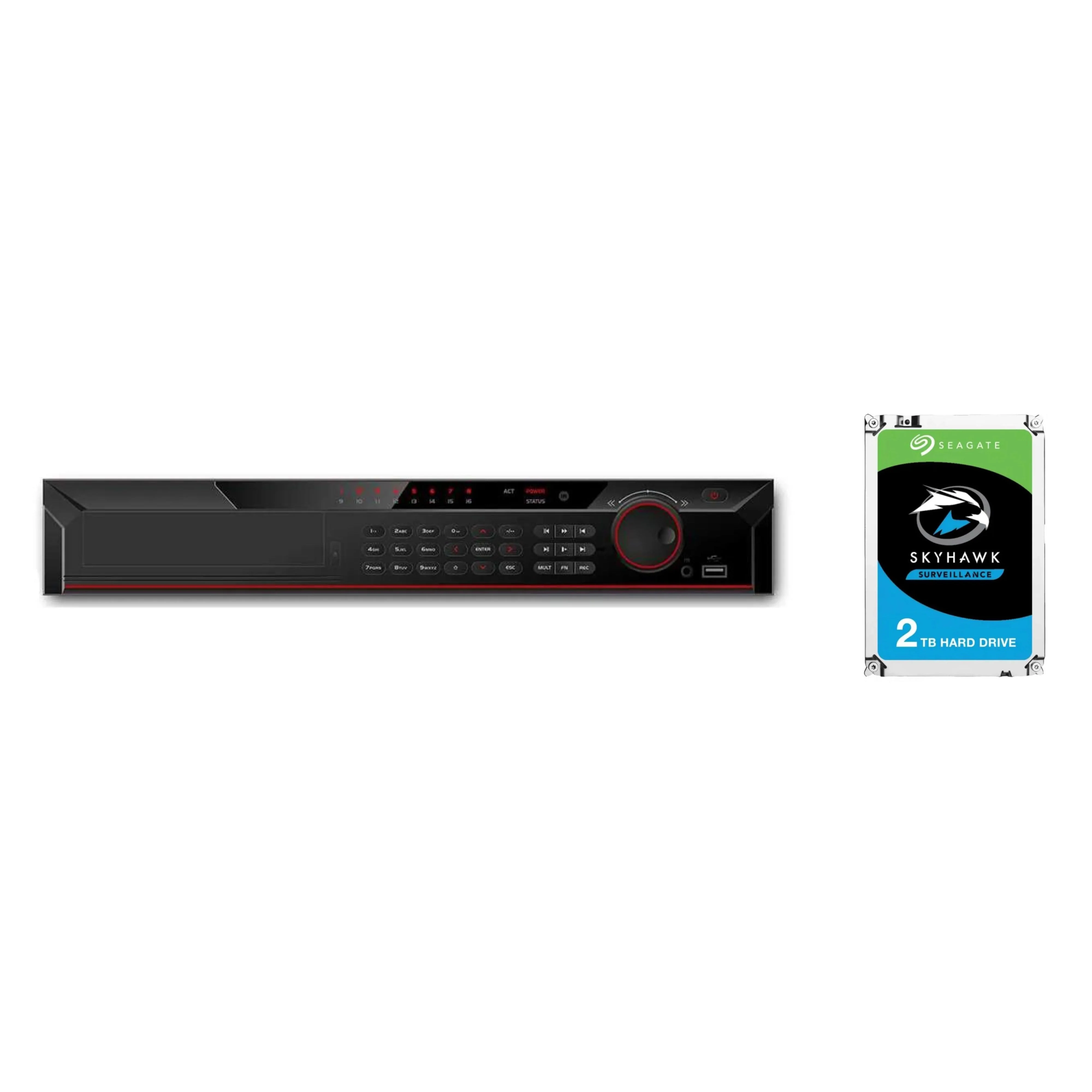

ENS Security 32 CH Penta-brid 5MP 1080P 1.5U Digital Video Recorder + 2TB HDD

This Listing Includes:

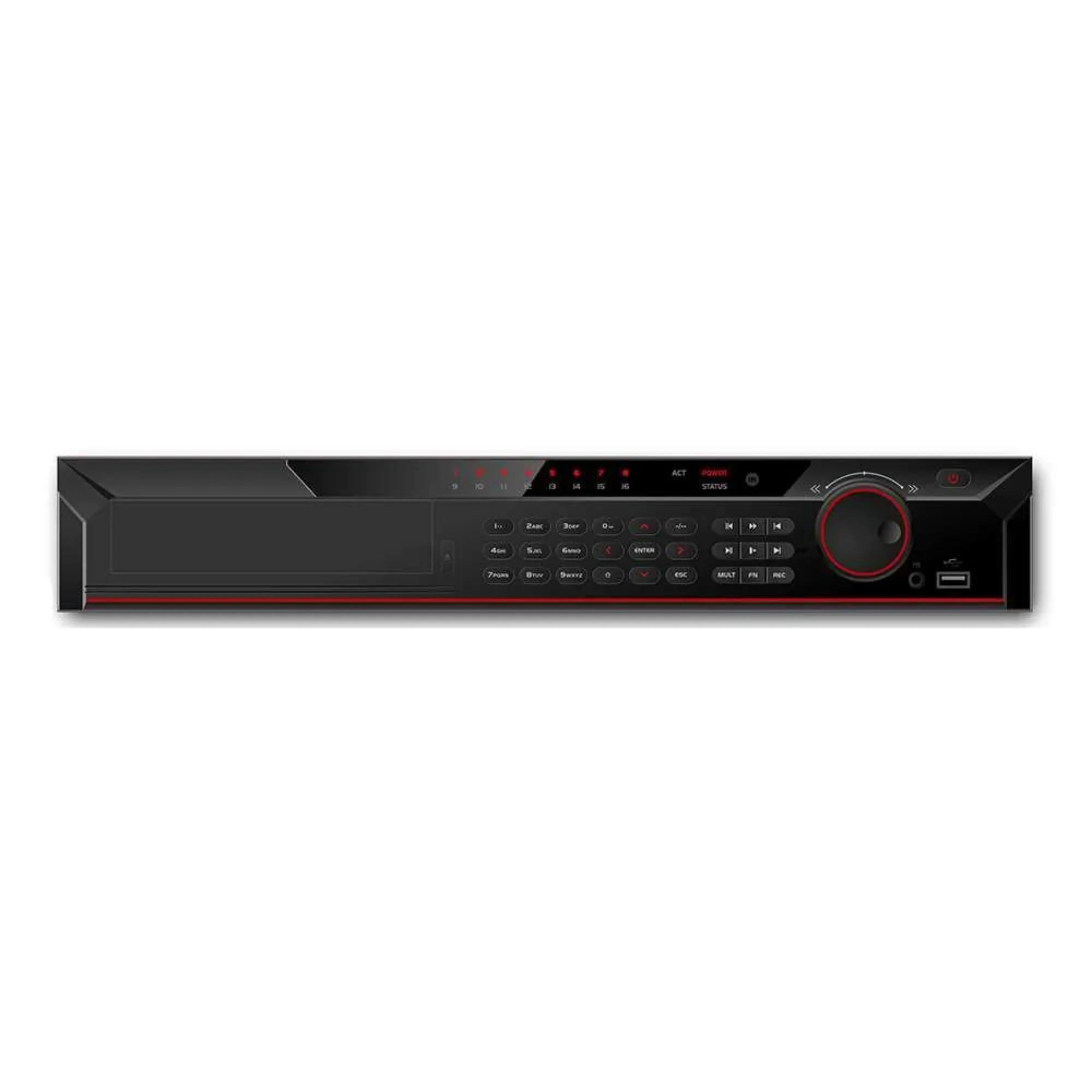

(1) 32 Channel 5MP Digital Video Recorder

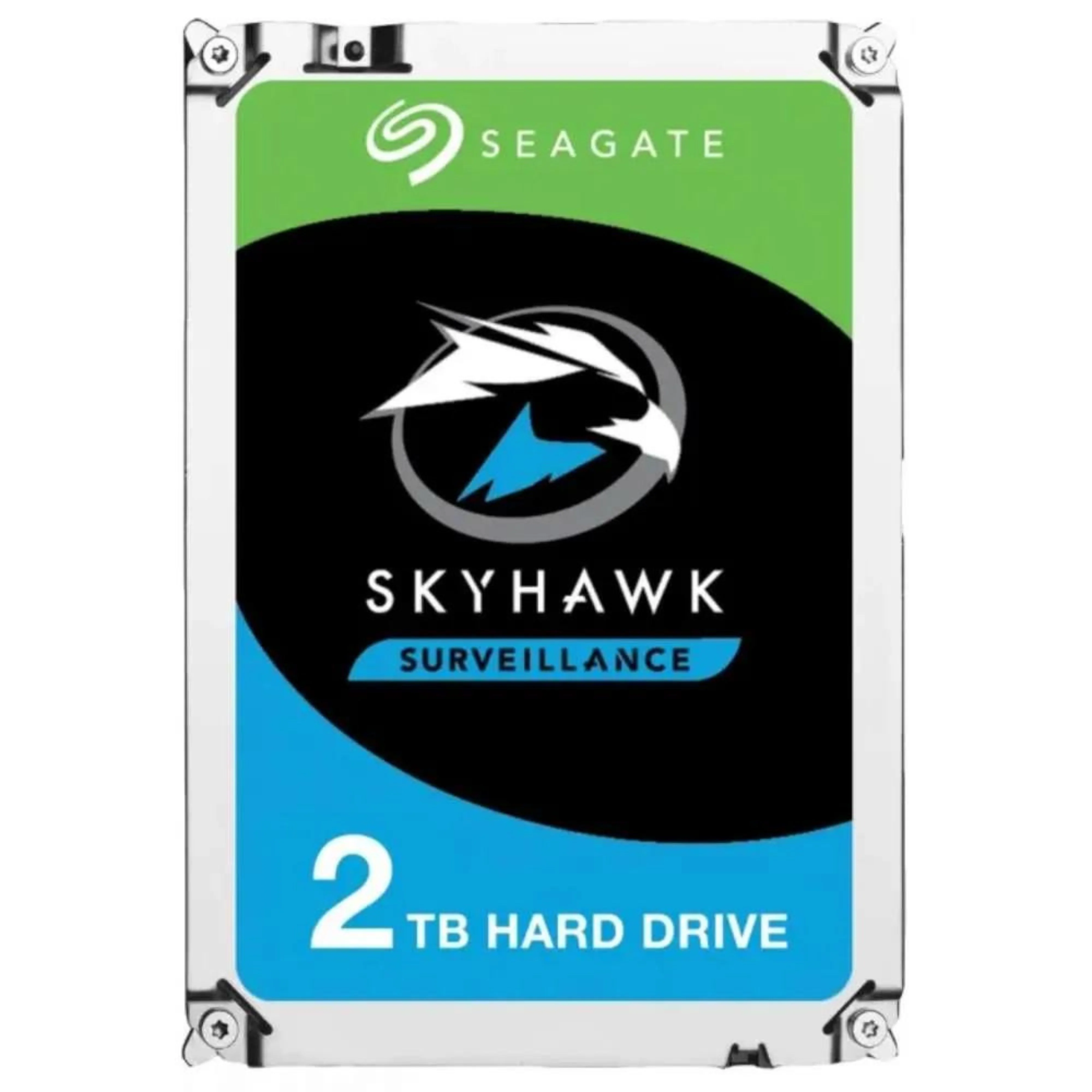

(1) 2TB HDD

XVR504L-32-I3 features full-channel SMD Plus (except for 32-channel devices) to benefit customers from AI upgrade. The series are designated to reduce false-alarm rates and human surveillance costs, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities. ENS Diamond Series is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. XVR504L-32-I3 provides intelligent, simple and inclusive products and solutions.

Secifications:

• Max Recording Resolution: 5MP Lite


• LAN Ports: 1


• SATA: 4X SATA PORTS


• Video Outputs: HDMI / VGA, HDMI 2


• NDAA Compliant: No


• Hardware Features: Alarm in, Alarm out, Audio in, Audio out


• H.265+/H.265 dual-stream video compression


• Supports HDCVI/AHD/TVI/CVBS/IP video inputs


• Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth


• Up to 2 channels video stream ( analog channel ) perimeter protection


• Up to 16 channels video stream ( analog channel ) SMD plus


• Up to 2 channels video stream (analog channel ) human face recognition


• IoT & POS functionalities

HDD Features:

• Interface: SATA 6Gb/s


• Cameras Supported: up to 64


• Max Sustained Transfer Rate OD: 180MB/s


• Cache: 64MB


• Tarrish Resistant: No


• Load/Unload Cycles: 300,000


• Power-On Hours per year: 8760 hrs


• Average Operating Power: 5.6W


• Dimension (WxDxH) : 4" x 5.8" x 1"


• Weight: 1.35Lbs

HDD Specifications:

• Drive Bays Supported: Up to 8


• Cameras Supported: Up to 64


• RV Sensors: No


• Max Sustained Transfer Rate OD (MB/s): 180MB/s


• Cache (MB): 256MB


• Nonrecoverable Read Errors Rate, Max: 1 per 10E14


• Workload Rate Limit (WRL): 180


• Mean Time Between Failures (MTBF) (hours): 1000000hr
