• *NO HDD INCLUDED*
• A video broadcast of up to one channel is possible (analog channel ) Perimeter Security
• A video stream with up to four channels is available (analog channel ) SMD Plus
• A video broadcast of up to one channel is possible (analog channel ) identification of human faces
• IP camera inputs with a maximum of 6 channels, each with a resolution of 6MP

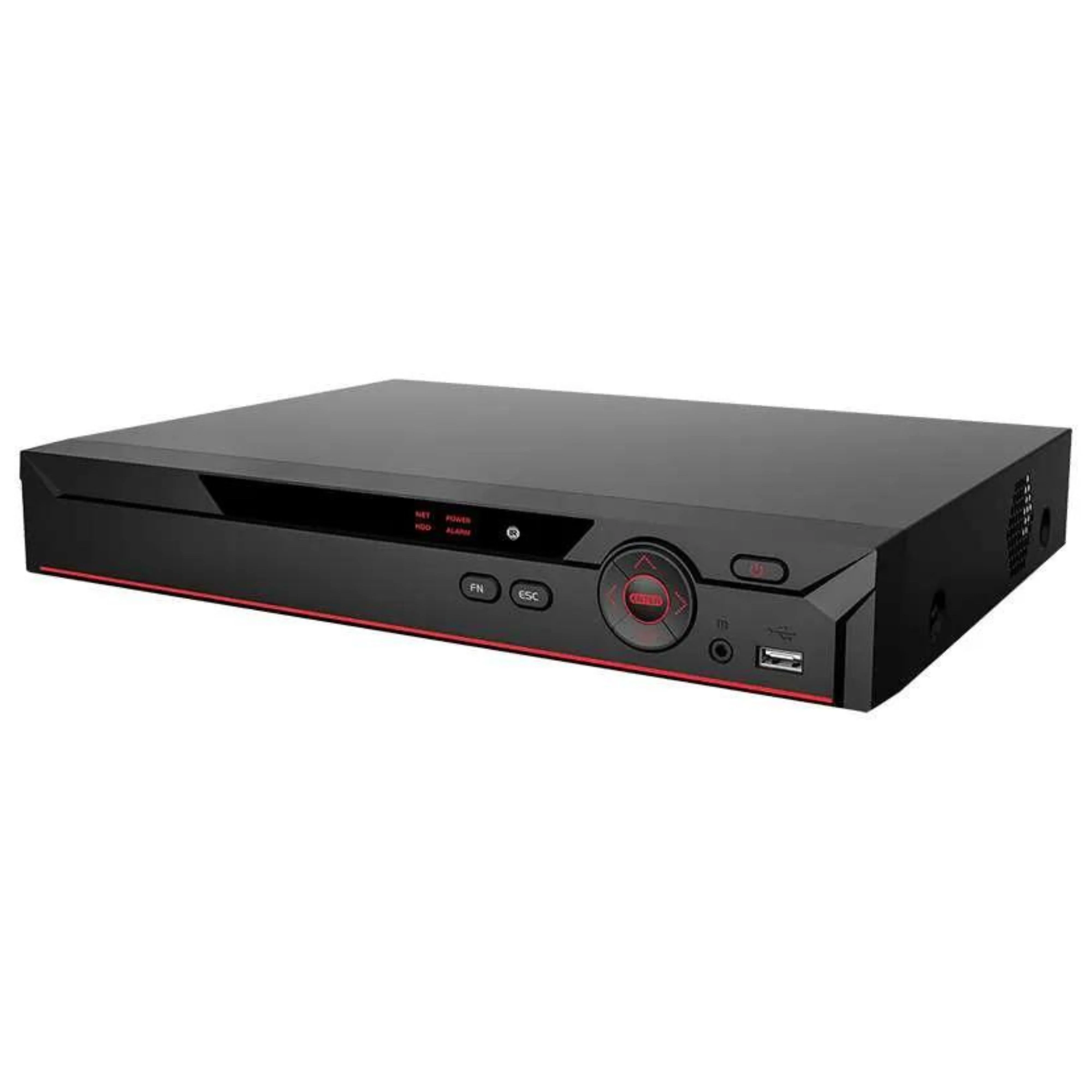

ENS Security 6 Ch XVR for Home Surveillance Camera System 1x SATA Port HDMI/VGA

This Listing Includes:

(1) 6 Channel XVR

ENS Diamond Series XVR501H-04-I3 features full-channel SMD Plus (except for 32-channel devices) to benefit customers from AI upgrade. The series are designated to reduce false-alarm rates and human surveillance costs, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities. Adopting AI chip and advanced deep-learning algorithm, AI enables precise recognition of human and vehicle for accurate alarm and quick target search, making it easy for users to focus on real threats, enhancing video analysis efficiency, and thus significantly reducing labor costs. With SMD Plus, the XVR recorder only sets off an alarm for human and vehicle detection, filtering out all other movements. This helps users to focus on saving time and labor costs associated with checking false alarms. Perimeter Protection provides an intelligent analysis based on tripwire and intrusion detection. ENS Face Recognition makes it possible to do image search, as well as face attribute search by comparison.

Features:

• *NO HDD INCLUDED*


• H.265 /H.265 dual-stream video compression


• Full-channel AI-Coding is supported.


• Supports HDCVI/AHD/TVI/CVBS/IP video inputs


• IP camera inputs with a maximum of 6 channels, each with a resolution of 6MP;


• Incoming bandwidth 32 Mbps.


• A video broadcast of up to one channel is possible ( analog channel ) Perimeter Security


• A video stream with up to four channels is available ( analog channel ) SMD Plus


• A video broadcast of up to one channel is possible (analog channel ) identification of human faces


• IoT & POS functionalities


• Hardware Features: Audio in, Audio out

Specifications:

• Main Processor: Embedded processor


• Operating System: Embedded LINUX


• Object classification: Human/Vehicle secondary recognition for tripwire and intrusion


• Stranger Mode: Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually


• LAN Ports: 1


• SATA: 1X SATA PORT


• Video Outputs: HDMI / VGA

Video & Audio

• Analog Camera Input: 4 channels, BNC


• HDCVI Camera Input: 5MP/4MP/1080P @ 25/30 fps -- 720P @ 50/60 fps, 720P @ 25/30 fps


• AHD Camera Input 5MP/4MP/1080P @ 25/30 fps -- 720P @ 25/30 fps


• TVI Camera Input 5MP/4MP/1080P @ 25/30 fps -- 720P @ 25/30 fps


• CVBS Camera Input: PAL/NTSC


• IP Camera Input: 4+2 channels, each channel up to 6MP

*NO HDD INCLUDED*
