• 2-Channel High-to-Low Conversion – Easily integrates factory speaker-level outputs into RCA signals for aftermarket amplifiers.
• Selectable Input Handling – Supports 20V or 40V (100W / 400W RMS) input levels to match a wide range of OEM systems.
• Automatic Turn-On Options – Choose from audio sensing, DC offset, or remote trigger for seamless amplifier activation.
• Durable Aluminum Housing – Compact black casing reduces noise interference and provides reliable heat protection.
• Clean Signal Transfer – Wide 10Hz–20kHz frequency response with <0.01% THD and >110dB signal-to-noise ratio.

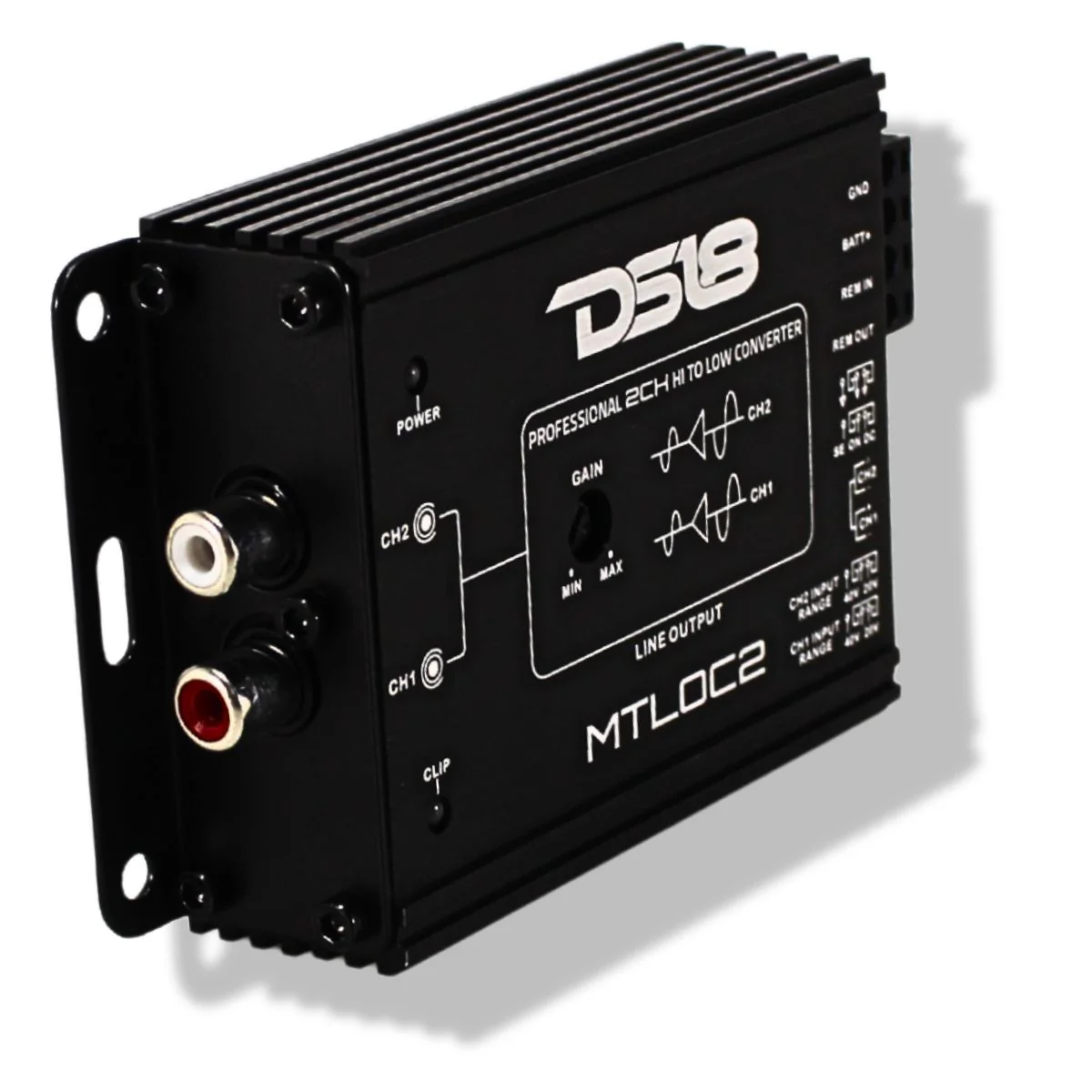

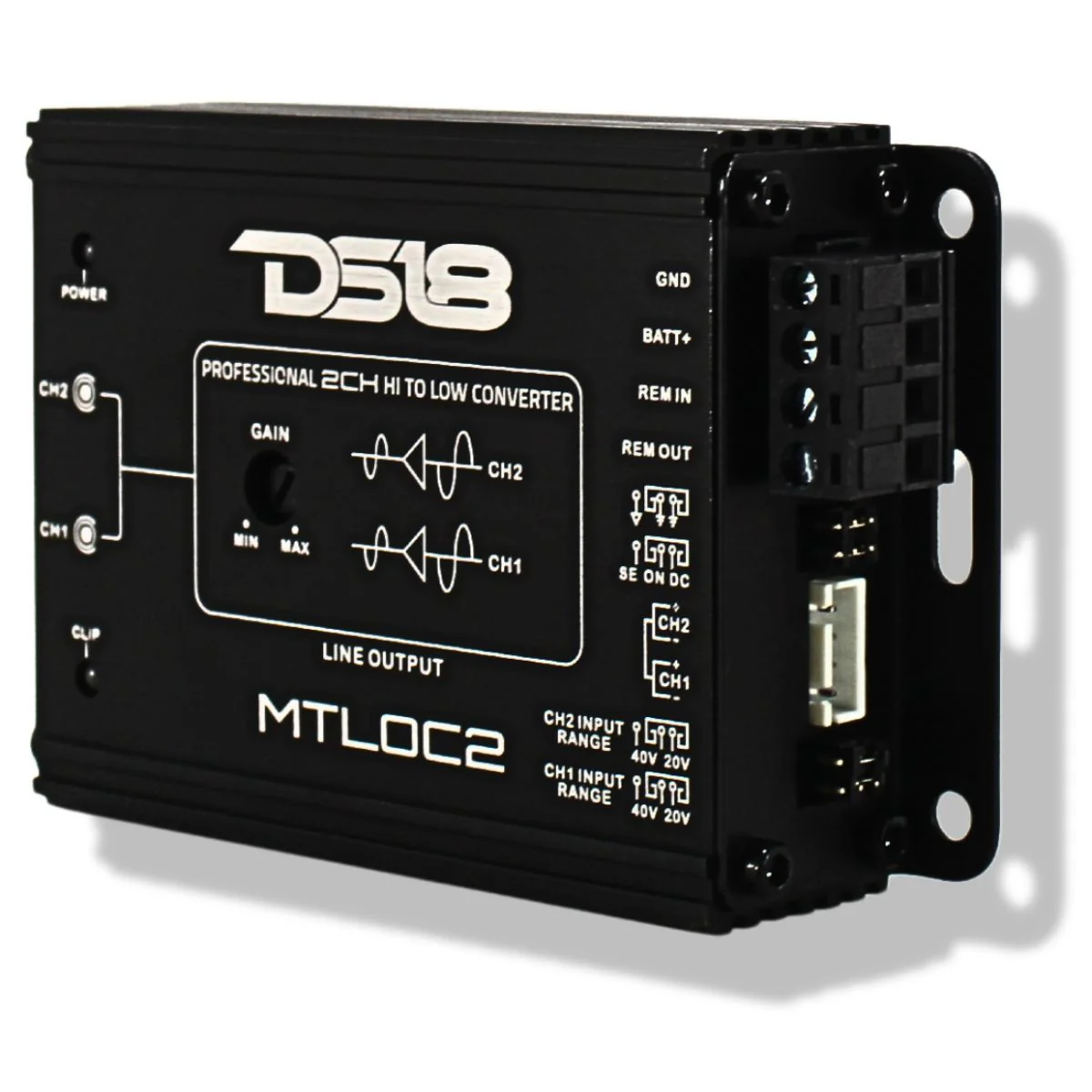

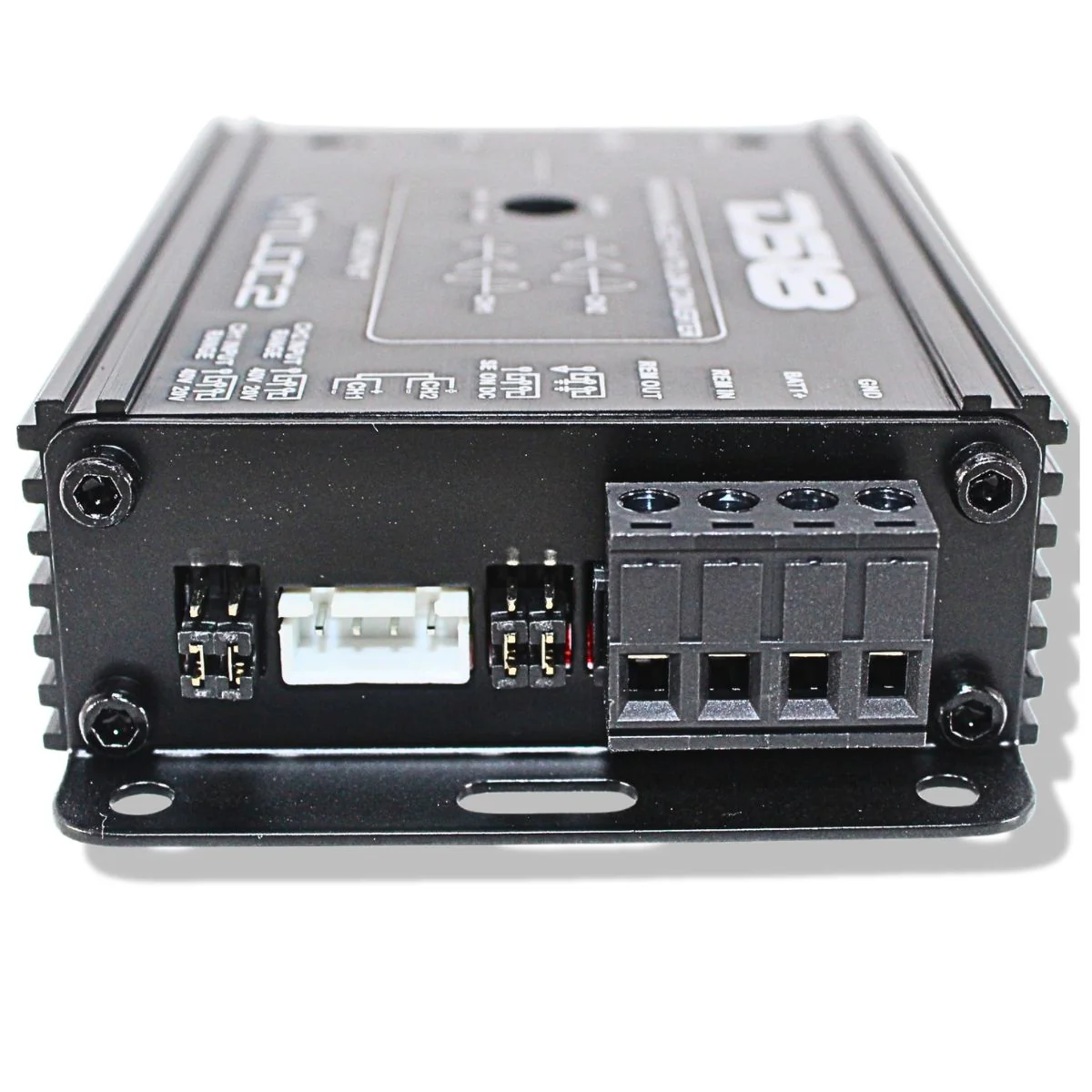

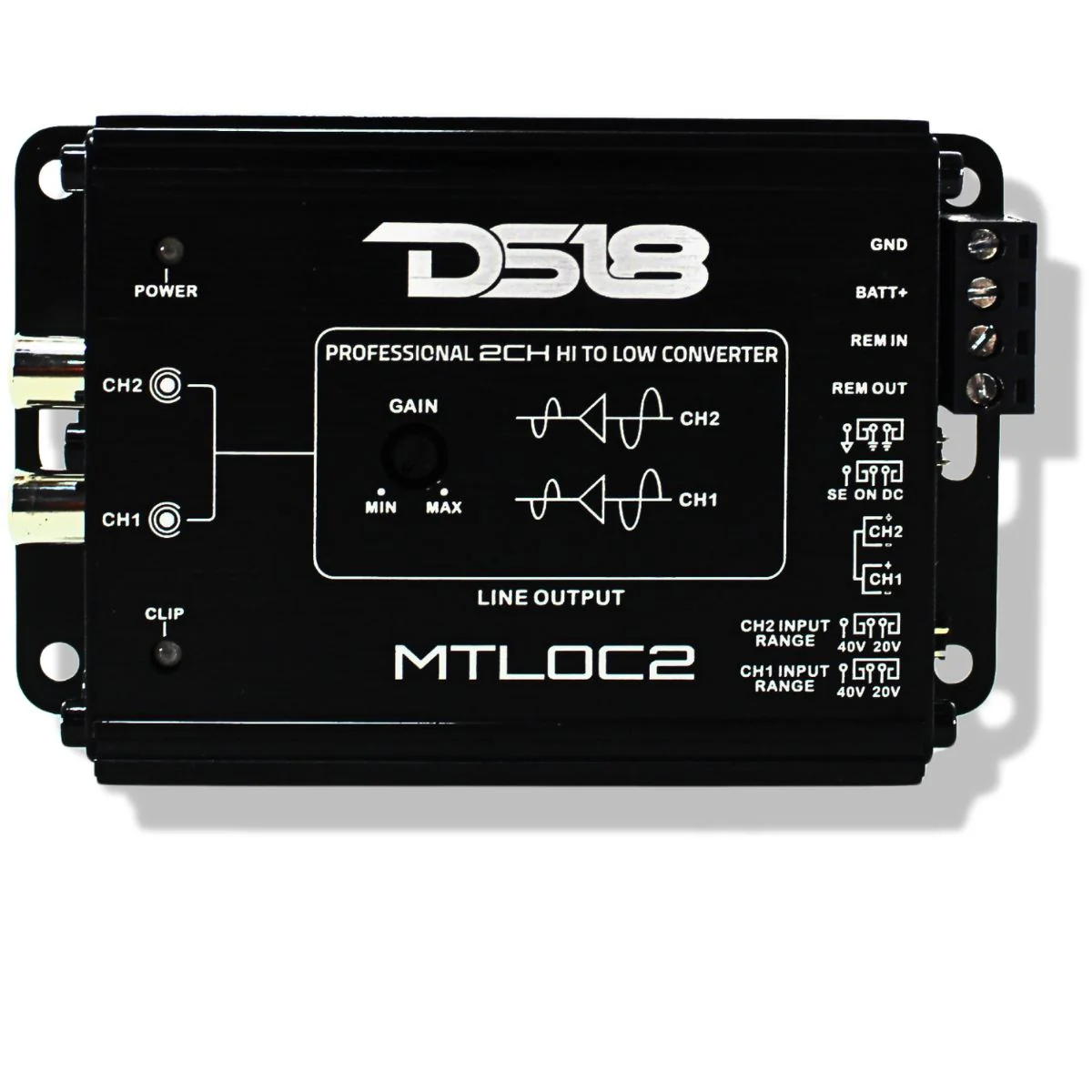

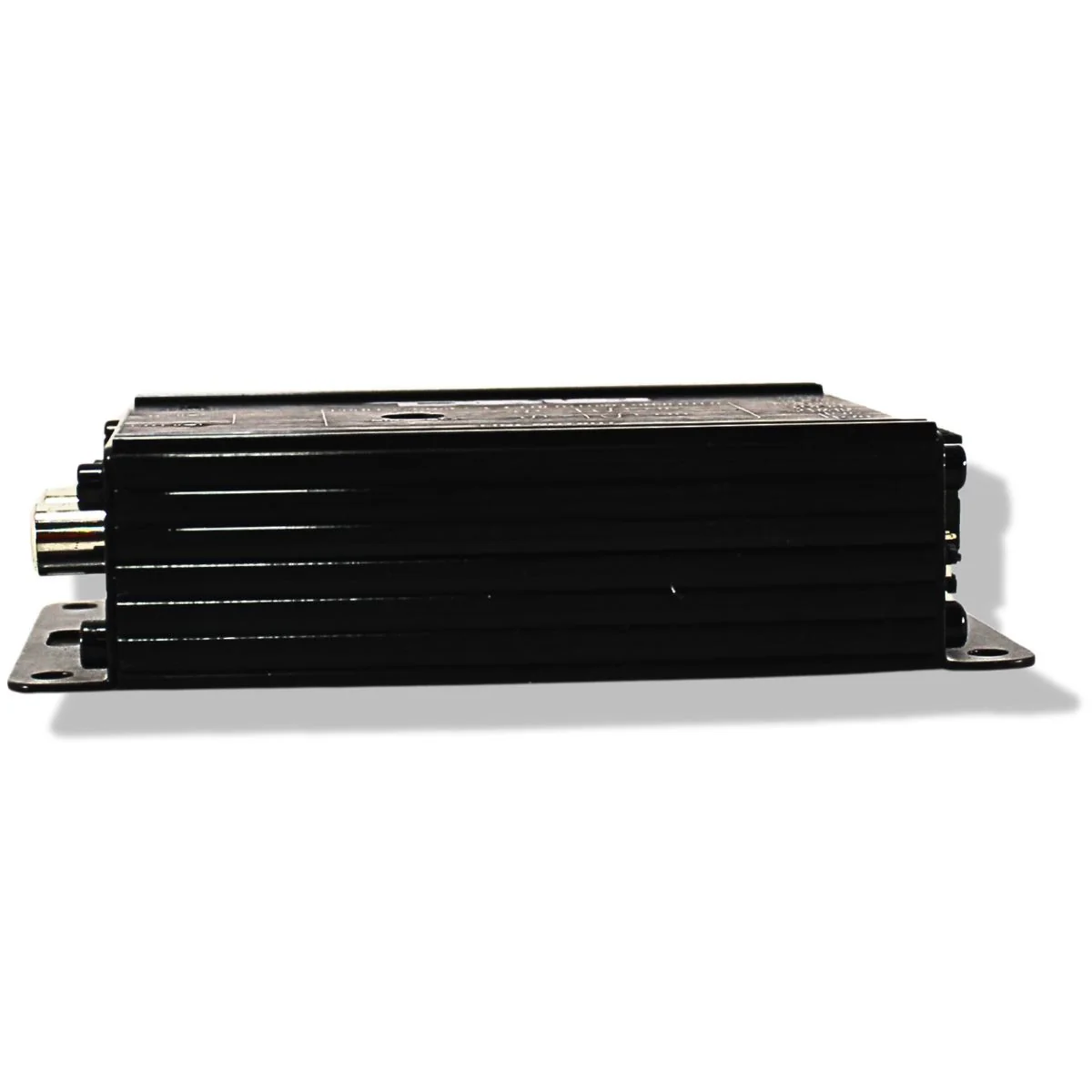

2-Channel High-to-Low Line Output Converter with Remote/Automatic Turn-On MTLOC2

This Listing Includes:

• (1) MTLOC2 2-Channel Line Output Converter


• Mounting Hardware

The MTLOC2 is the ultimate solution for integrating your factory system with aftermarket amplifiers. This 2-channel high-to-low line output converter delivers clean, powerful RCA signals while eliminating noise and distortion. With selectable 20V or 40V inputs, it's designed to handle both standard and high-output factory speaker signals without errors.

Equipped with automatic turn-on (audio sensing, DC offset, or remote), the MTLOC2 ensures seamless amplifier activation without extra wiring. Its rugged aluminum housing not only shields against interference but also provides a compact, heat-resistant design for hassle-free installation.

Whether upgrading your OEM system or fine-tuning your aftermarket setup, the MTLOC2 delivers the clarity, reliability, and performance your build deserves.

Features

• 2-Channel High-to-Low Conversion


• Selectable 20V / 40V Input Handling (100W / 400W RMS)


• Auto Turn-On: Audio Sensing, DC Offset, or Remote


• Rugged Aluminum Housing with Noise Rejection


• Wideband 10Hz - 20kHz Frequency Response (<0.01% THD)


• LED Power & Clip Indicators


• Compact Size: Easy to Install Anywhere

Specifications

• Maximum Speaker Input: Selectable 20V / 40V (100W / 400W RMS)


• Maximum Preamp Output: Up to 9V


• Conversion Ratio: 4:1


• Frequency Response: 10Hz - 20kHz


• THD: <0.01%


• Signal-to-Noise Ratio: >110dB


• Input Impedance: 100 Ohms


• Output Impedance: 100 Ohms


• Power Draw: 50mA


• Recommended Fuse: 1A


• Weight: 6.4 oz

Additional Features

• Bass Boost: No


• Auto Turn-On: Yes (Audio Sens / REM / DC)


• Remote Output: Yes


• Level Matching Controls: Yes


• Dash Remote Control: No


• LED Indicators: Power / Clip


• Housing Material: Color: Aluminum, Black Finish


• Wiring Connector: 14ga Quick Connector


• Step-Down Method: Transformer

Dimensions

• Length: 4.3" (110mm)


• Width: 2.75" (70mm)


• Height: 1.1" (28mm)

Why Choose the MTLOC2?

If you're upgrading your sound system but want to keep your factory head unit, the MTLOC2 is the perfect bridge to clean aftermarket power. With seamless OEM integration, superior noise rejection, and automatic amplifier activation, you get professional-level performance in a compact, easy-to-install package.

Upgrade your ride with the MTLOC2 High-to-Low Converter and experience the clarity your system has been missing.
