• High-Quality Signal Separation: 2-way passive crossover network ensures your woofer and tweeter receive the correct frequencies for cleaner, more accurate audio.
• 150W RMS / 300W Peak Power Handling: Built to handle solid power without distortion or overheating.
• Premium Internal Components: Features high-grade polymer capacitors and ferrite & air-cooled spools for stable, reliable performance.
• 12dB Per Octave Slope (4 Ohms): Smooth crossover transition for natural-sounding highs and mids.
• Gold-Plated Screw Terminals: Corrosion-resistant, secure connections for maximum signal integrity.

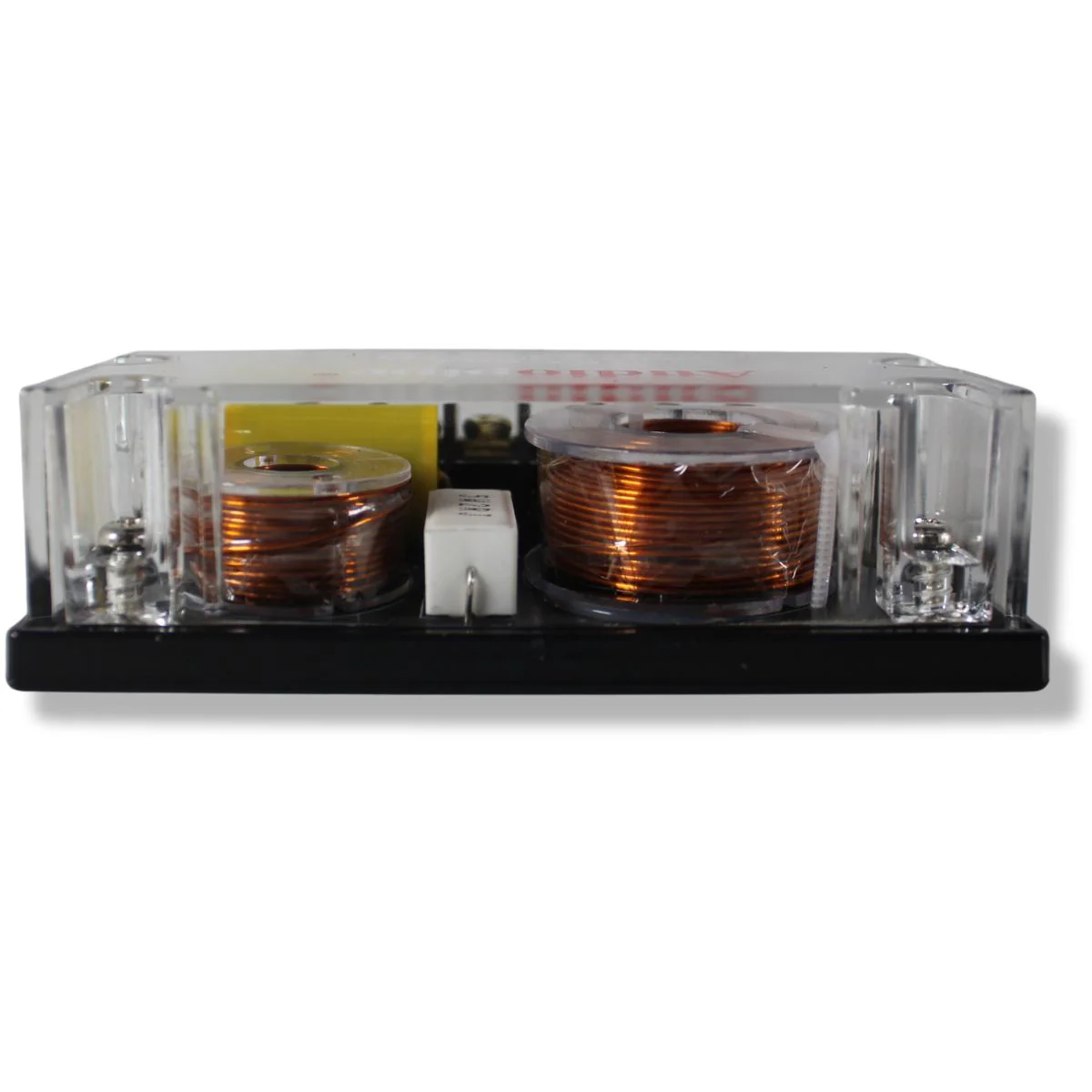

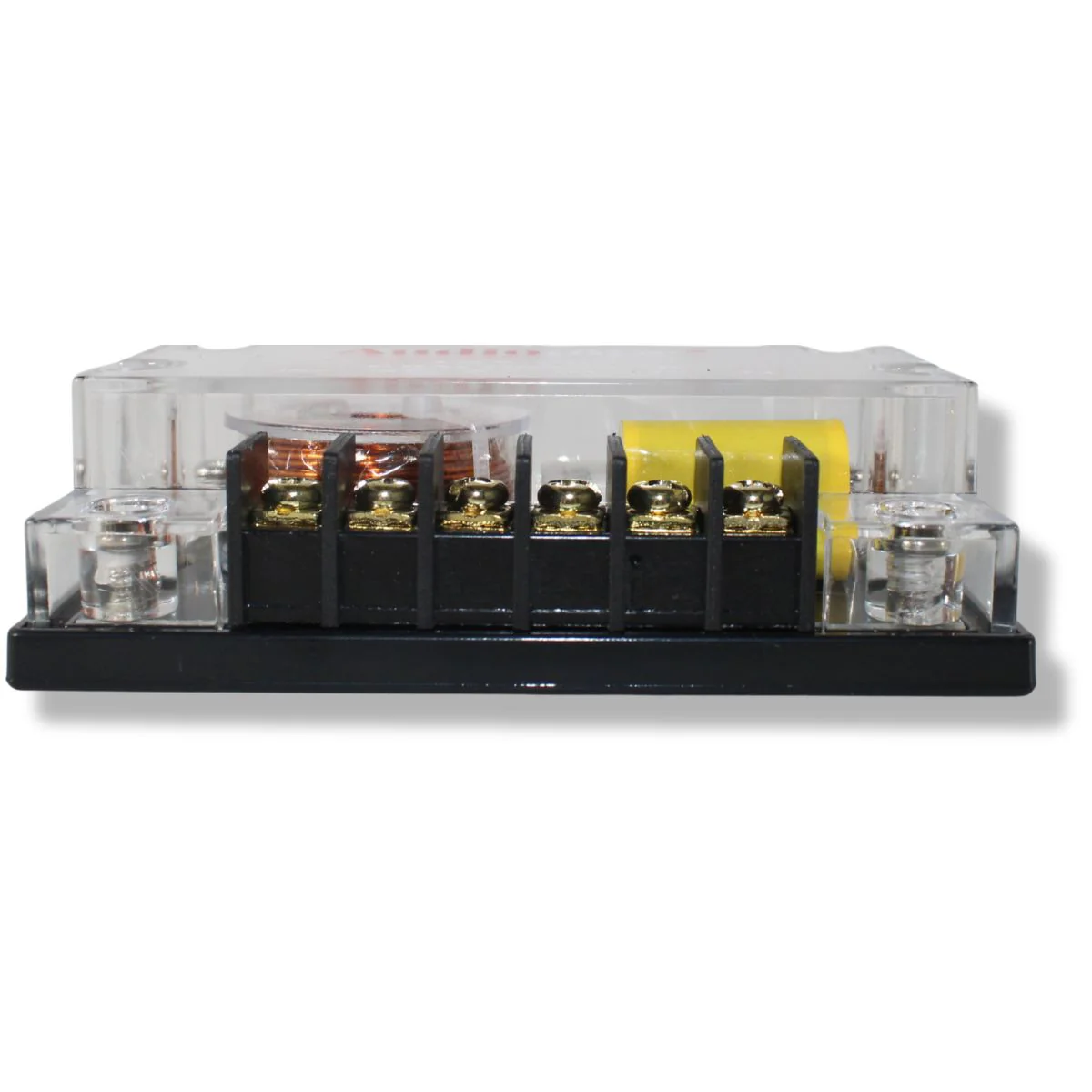

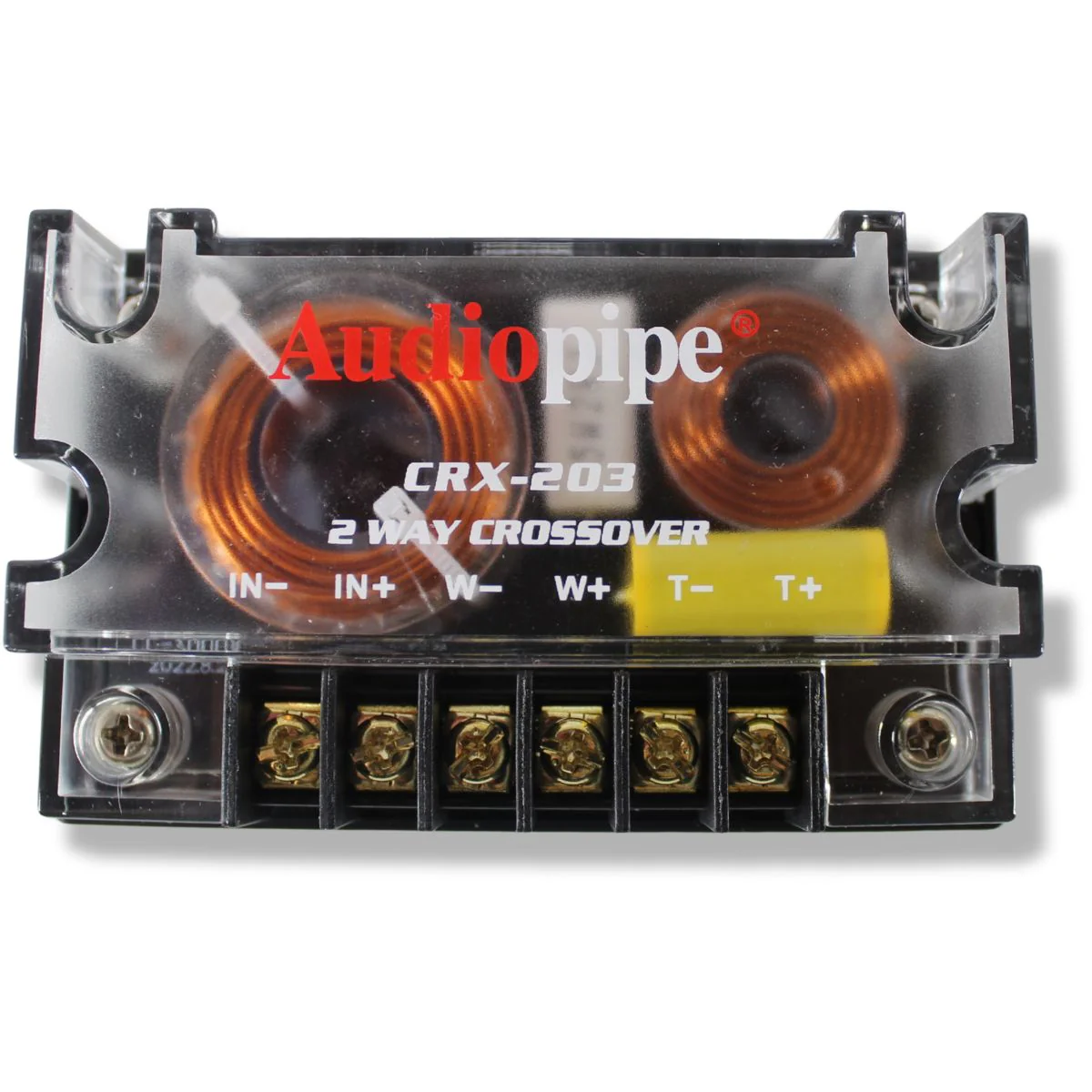

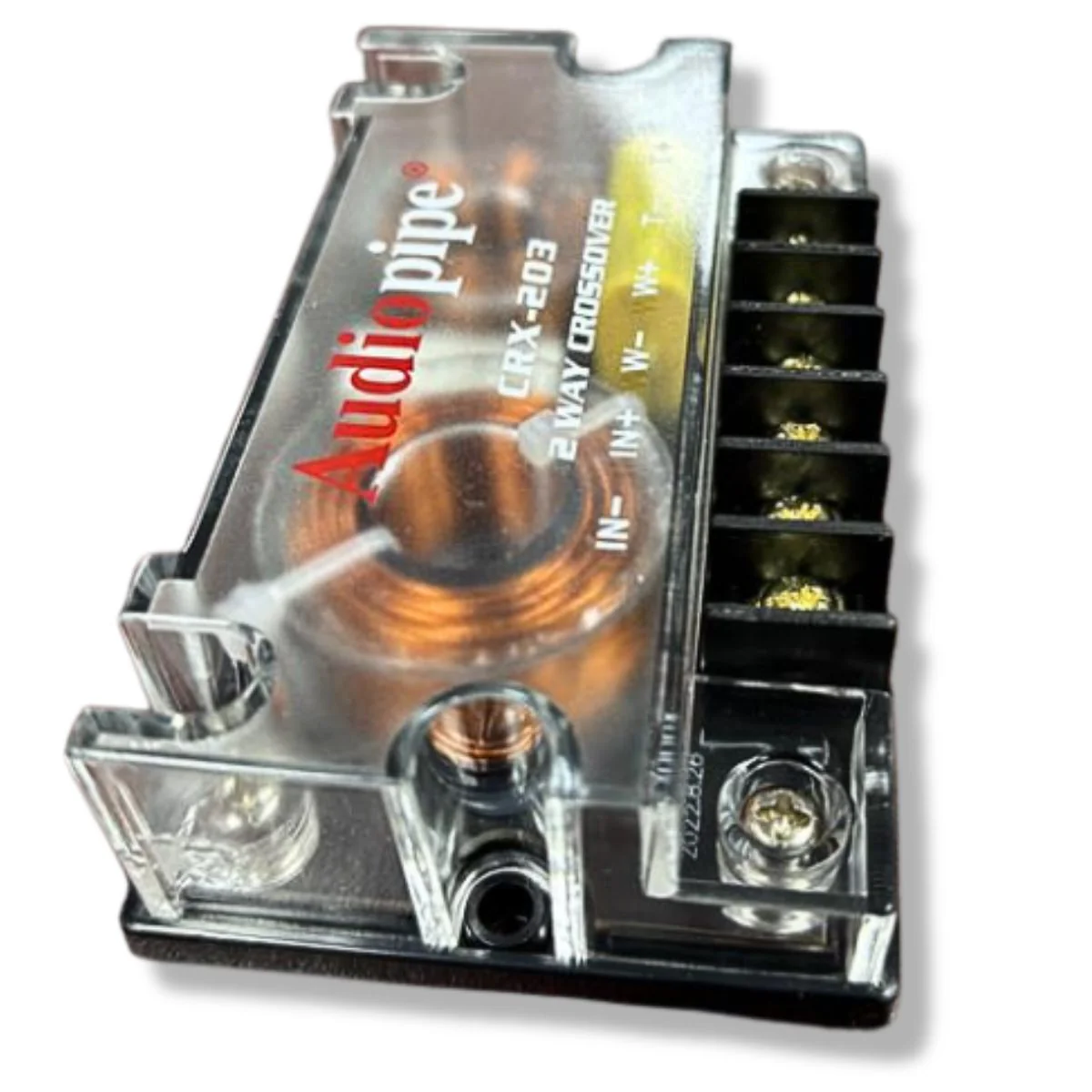

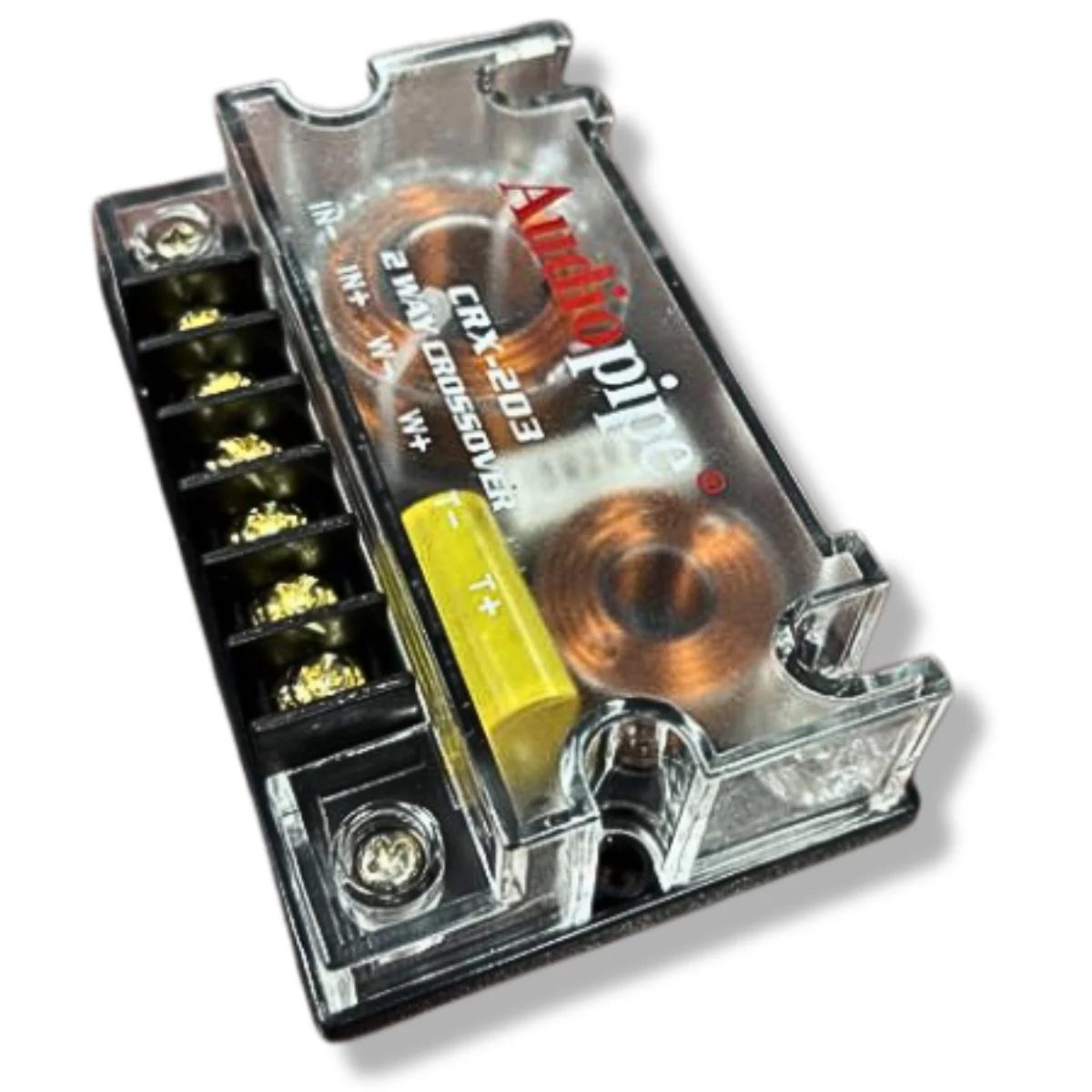

2-Way Passive Crossover Network 150W RMS / 300W Peak with Gold Plated Terminals Audiopipe CRX-203

This Listing Includes

• (1) 2-Way Passive Crossover Network Audiopipe CRX-203

Upgrade your sound system with the Audiopipe CRX-203 2-Way Passive Crossover Network, engineered to deliver cleaner audio and better frequency separation for your mids and highs. Whether you're building a custom component setup or replacing factory crossover networks, the CRX-203 gives you dependable performance backed by high-quality components.

The CRX-203 uses high-grade polymer capacitors, ferrite coils, and air-cooled spools to maintain stable frequency control under high power. With 150 watts RMS / 300 watts peak power handling, it pairs perfectly with aftermarket woofers and tweeters in the 4-ohm range.

Gold-plated screw terminals ensure secure cable connections, while the rugged ABS enclosure protects the internal circuitry for long-lasting durability.

Perfect for component speakers, midrange/tweeter upgrades, car audio restorations, and DIY sound quality builds.

Features

• Gold Plated Screw Terminals for clean, corrosion-resistant connections


• 150 Watts RMS / 300 Watts Peak power handling


• High Grade Polymer Capacitors for stable, accurate filtering


• Ferrite and Air-Cooled Spools for improved heat dissipation


• Woofer Frequency Range: 20Hz - 4.3kHz


• Tweeter Frequency Range: 3.3kHz - 20kHz


• 12dB per Octave Slope (4-ohms) for smooth crossover transitions


• Durable Enclosed ABS Cabinet protects internal circuitry

Specifications:

• Model: CRX-203


• Type: 2-Way Passive Crossover Network


• Housing: Enclosed ABS Cabinet


• Terminals: Gold-Plated Screw Terminals

Power Handling

• RMS Power: 150 Watts


• Peak Power: 300 Watts

Crossover Performance

• Crossover Slope: 12dB per Octave (4-ohms)


• Woofer Frequency Range: 20Hz - 4.3kHz


• Tweeter Frequency Range: 3.3kHz - 20kHz

Components

• Capacitors: High-Grade Polymer Capacitors


• Coils: Ferrite and Air-Cooled Spools

Dimensions:

• length: 4.25"


• Width: 2.50"


• Depth: 1.25"
