• High-Performance Compression Driver – Designed for powerful and clear midrange and high frequencies.
• Superior Clarity and Efficiency – Produces natural vocals and crisp highs with a wide frequency range.
• Precision CNC Machined Motor – Ensures tight tolerances and high magnetic strength for optimal performance.
• Titanium Diaphragm Construction – Delivers durability and accuracy for professional sound applications.
• This listing does NOT include a horn. The horn must be purchased separately.

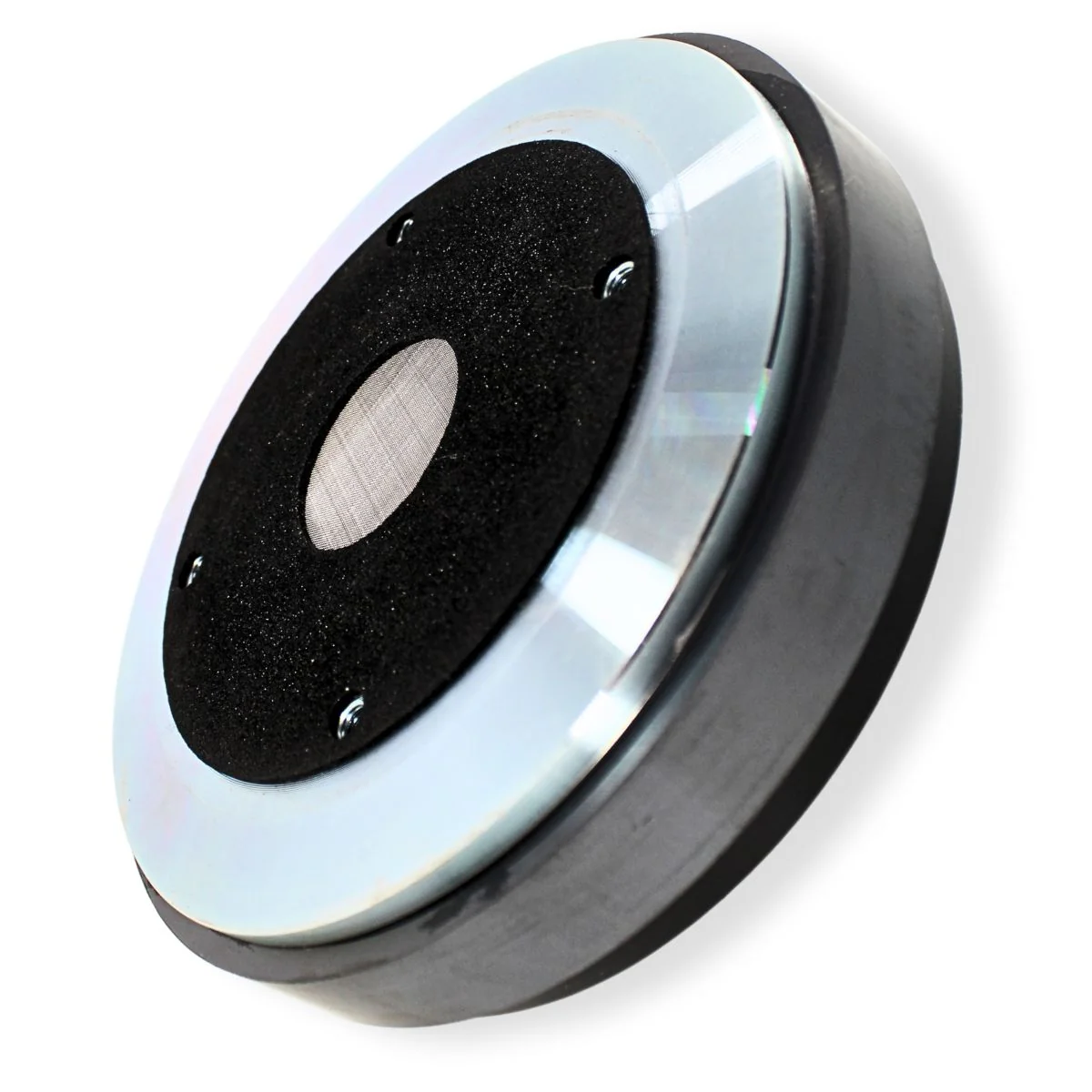

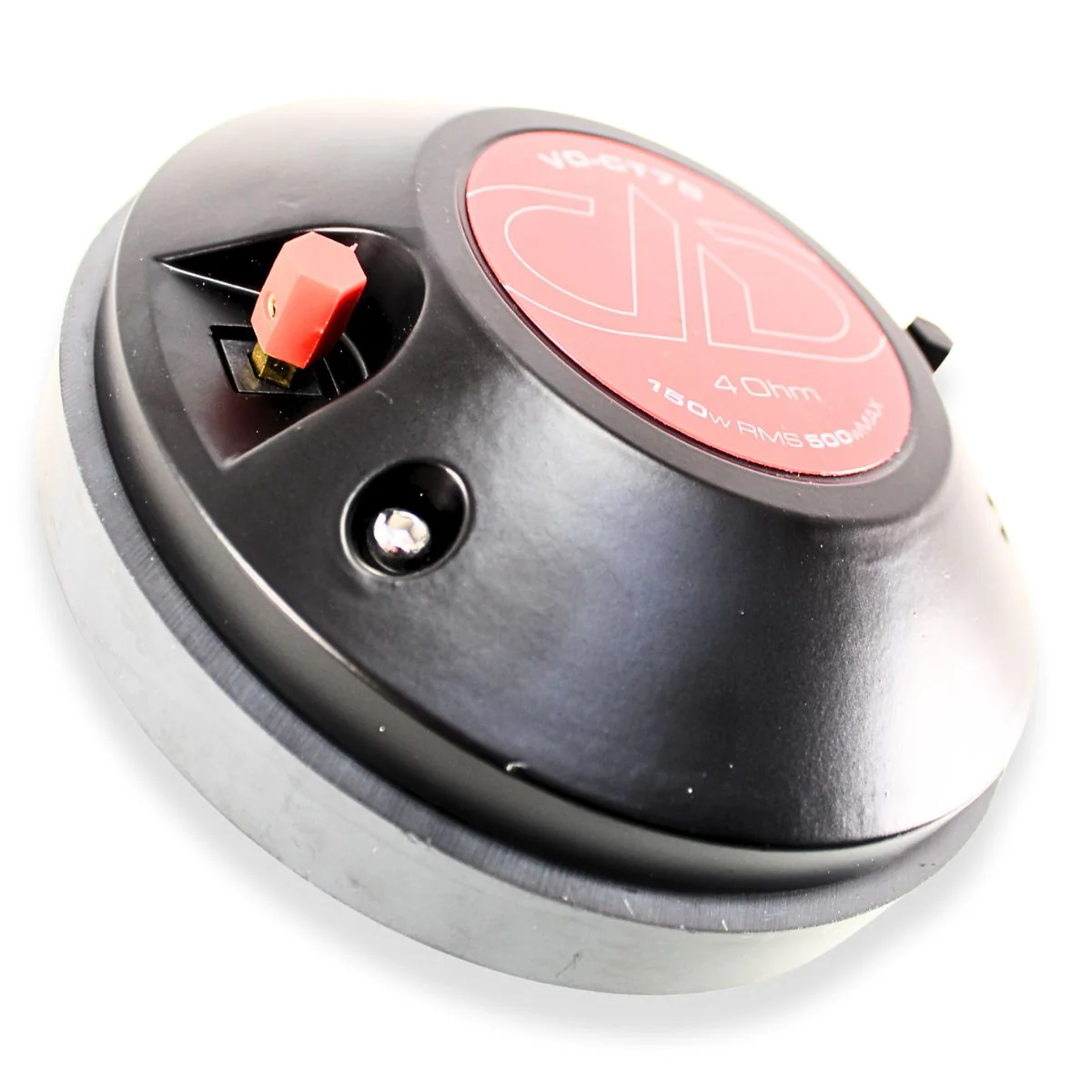

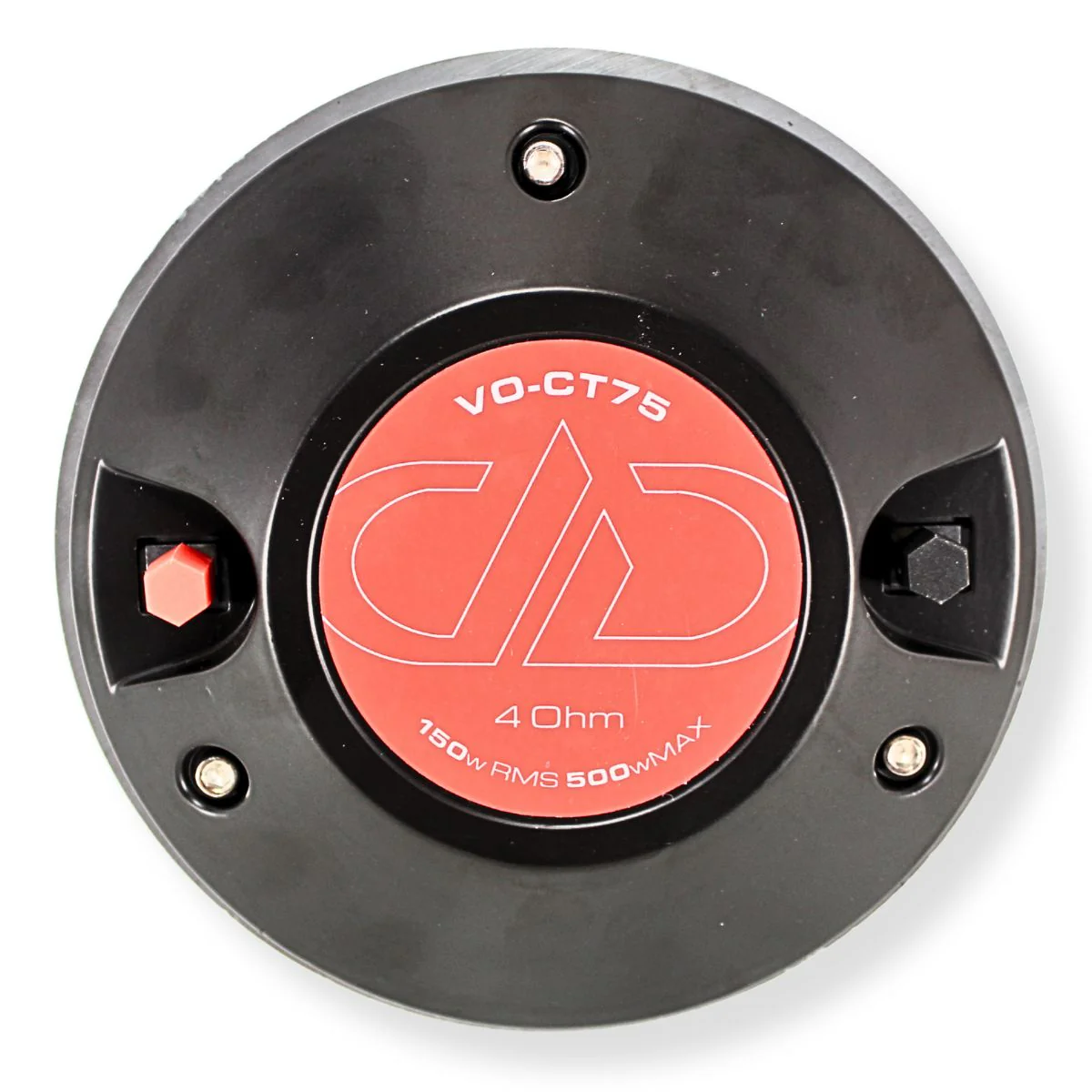

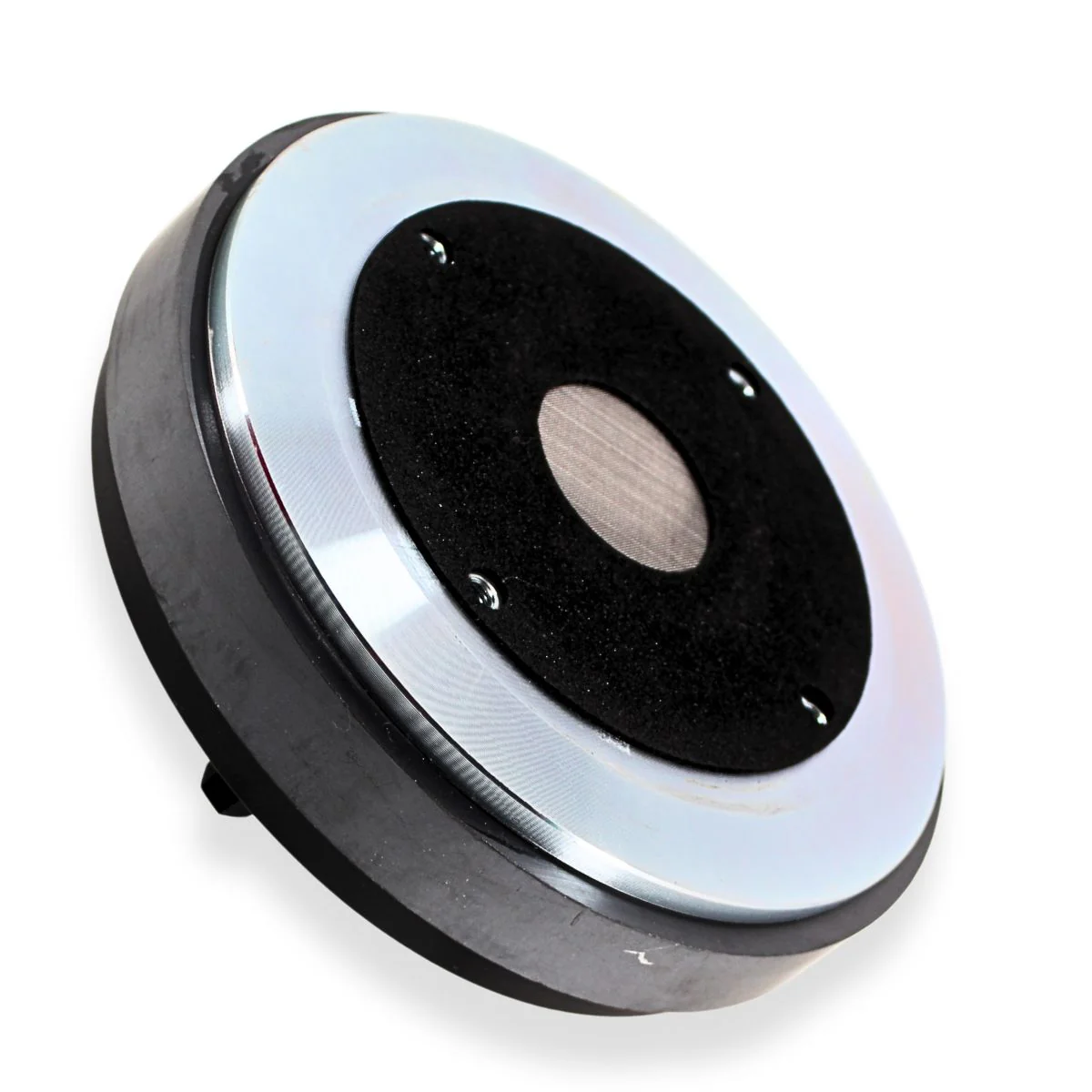

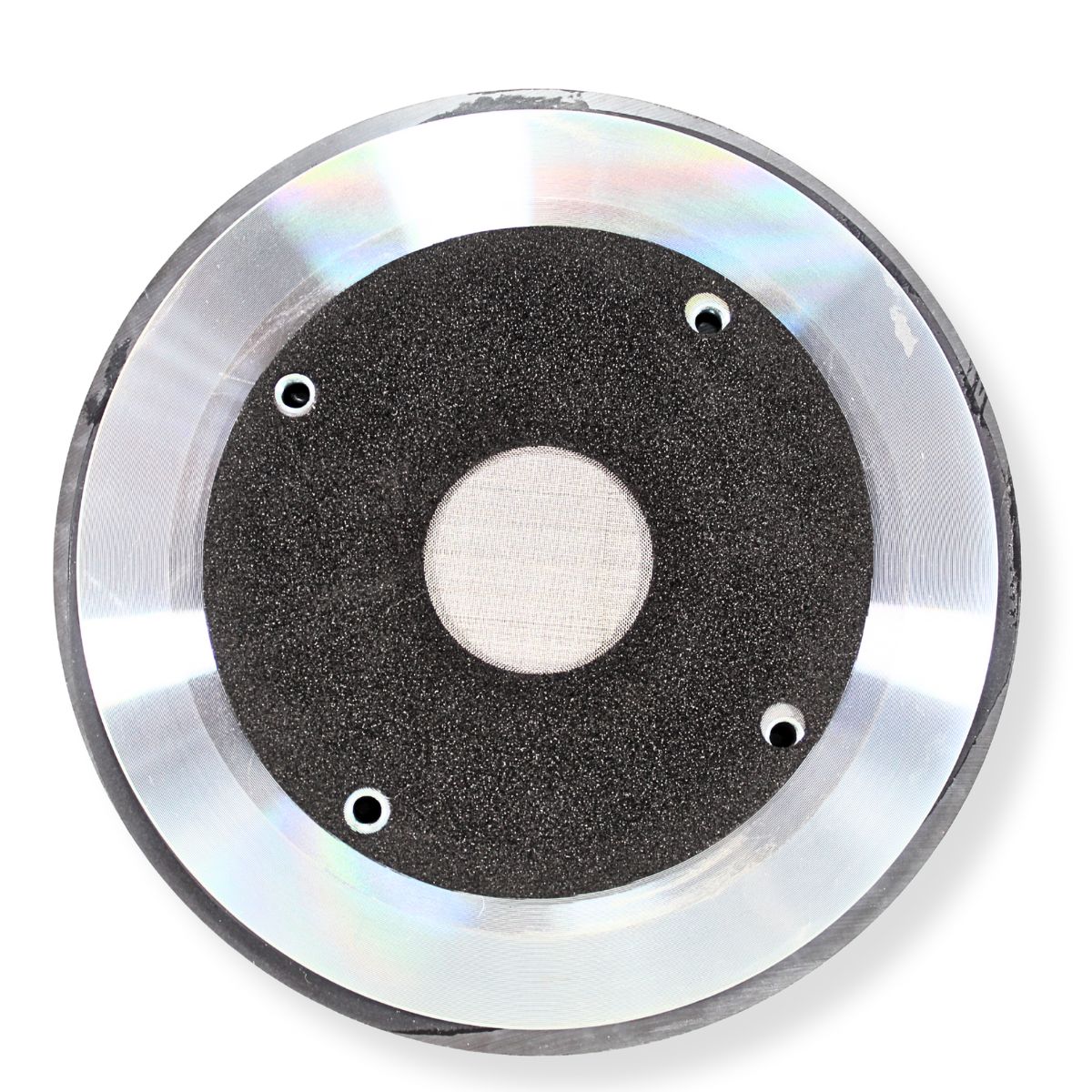

DD Audio 3" 4-Ohm 150 Watts RMS Titanium Compression Tweeter w/ Dual 3" Voice Coils - VO-CT75

This Listing Includes:

• (1) 3" 4-Ohm 150 Watts RMS Titanium Compression Tweeter w/ Dual 3" Voice Coils


• This listing does NOT include a horn. The horn must be purchased separately.

The VO-CT75 compression driver is engineered for high-performance sound reproduction, featuring a 1.4-inch bolt-on throat and a 3-inch high-temperature voice coil. Designed to extend from where VO mid-range and woofers leave off, this driver delivers natural midrange, clear vocals, and crisp highs up to 20kHz. With a lower crossover point than the CT45, it ensures seamless integration in your audio setup. The CNC-machined motor structure provides precise tolerances and high magnetic strength, driving a rigid titanium diaphragm for exceptional performance.

Key Features:

• 3.0" High-Temperature Voice Coil – Ensures durability and high power handling.


• Titanium Diaphragm – Delivers clarity and extended frequency response.


• 1.4†Throat, Bolt-On Horn – Secure mounting with versatile compatibility.


• 110 dB Sensitivity – High efficiency for powerful output.


• 400W Program Power Handling – Strong power capacity for demanding applications.


• 500Hz to 20,000Hz Frequency Range – Wide bandwidth for a full audio spectrum.

Specifications:

• Speaker Size: 3"


• RMS Power: 150W


• Peak Power: 500W


• Impedance: 4 Ohm


• Frequency Response: 500Hz - 20kHz


• Sensitivity (dB SPL): 110


• Mounting Diameter (with 8x8 horn): 8.25"


• Mounting Depth (with 8x8 horn): 8.5"


• Dimensions (without 8x8 horn): 6.75" x 2.325"

8X8 HORN DISCLAIMER

This listing does NOT include a horn. The horn must be purchased separately.

• Horn Required: 8x8 Horn – SKU: DD-VO-CT-HORN-PL-8x8


• Only Compatible With: DD-VO-CT-HORN-PL-8x8
