• 4 IN / 8 OUT FULL SYSTEM CONTROL: Features 4 RCA inputs and 8 fully configurable RCA outputs for active systems, multi-amp builds, and precise channel routing with adjustable mixing.
• HIGH RESOLUTION AKM DSP PROCESSING: Built with AKM AK7735 DSP chip and 96kHz/32-bit sampling for detailed tuning, clean processing, and accurate sound reproduction.
• 31-BAND EQ + CROSSOVER PER CHANNEL: Includes 31-band parametric EQ on each channel plus selectable crossovers (HPF/LPF/Band-Pass), phase control, time alignment (0-20ms), and limiter control.
• BLUETOOTH APP CONTROL + PRESETS: Bluetooth 5.1 with iOS/Android app control, 6 onboard presets stored locally, plus app voltmeter and easy tuning from your smartphone.
• CLEAN SIGNAL PERFORMANCE + COMPACT BUILD: Up to 3.3V output, 101dB S/N ratio, <0.04% THD, Tiffany RCA connectors, anti-corrosion coated PCB, and aluminum housing in a compact 5.3” design.

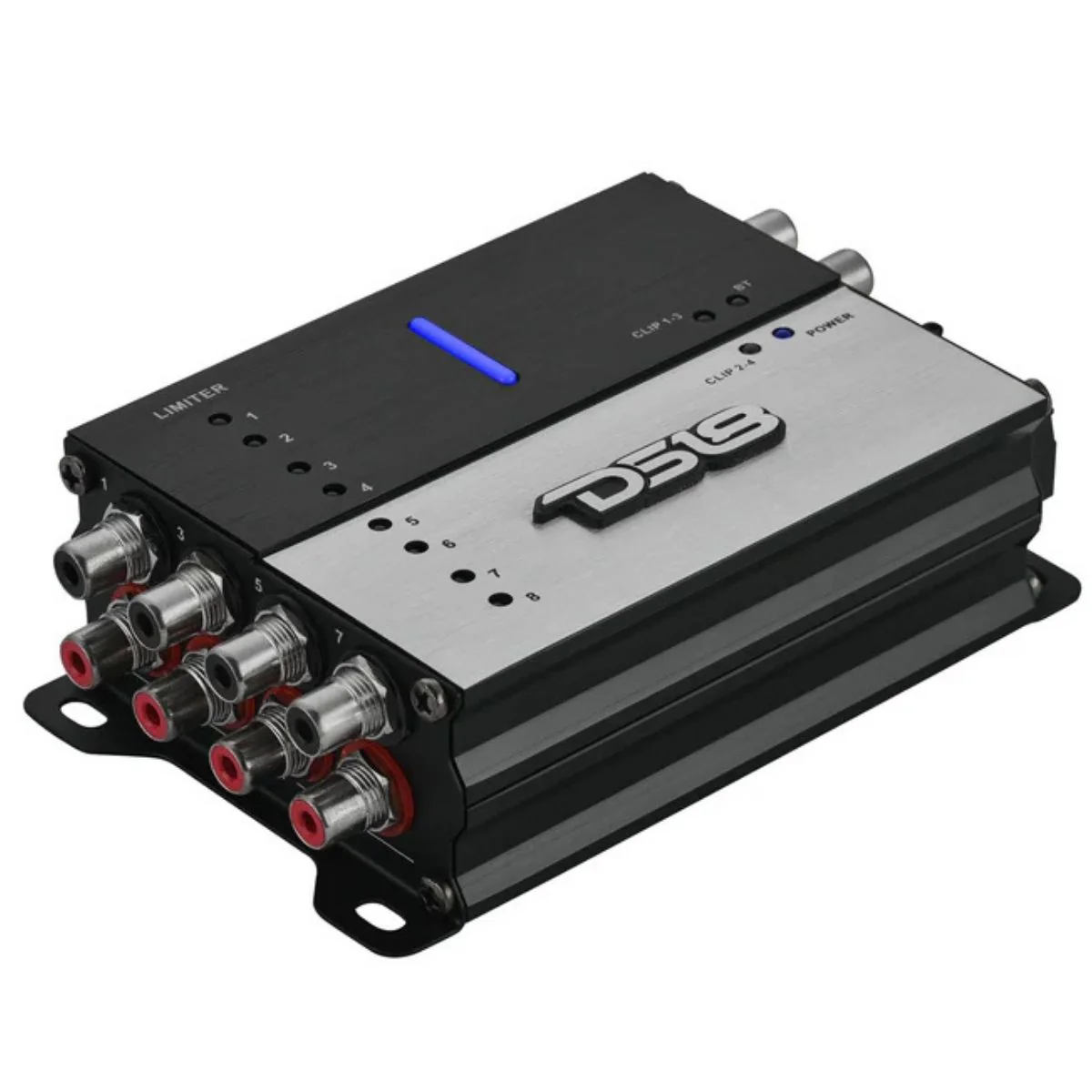

4-In 8-Out Digital Sound Processor with Bluetooth App Control 96kHz/32-Bit DSP

This Listing Includes:

• (1) 4-Input / 8-Output Digital Sound Processor

This 4-input / 8-output digital sound processor is built for precise system tuning with flexible routing and clean signal control. It features 4 RCA inputs and 8 fully configurable RCA outputs, letting you run multi-amp and active systems with full adjustability per channel.

At the core is an AKM AK7735 DSP chip running a 96kHz/32-bit sampling rate, giving you high-resolution processing and detailed control over your audio. Each channel includes 31-band parametric EQ, crossover control, time alignment (0 to 20ms), and limiter adjustment, along with adjustable noise gate settings. Output voltage reaches up to 3.3V, with 101dB S/N ratio, 0.04% THD, and strong balanced input noise rejection.

Bluetooth connectivity is included for smartphone control through the app on iOS and Android devices, with 6 saved presets stored locally on the device for quick switching. The aluminum housing comes in a black / silver brushed finish and supports compact installations across many applications. Additional features include remote turn-on input, app voltmeter, LED indicators (Power / BT / Clip / Limiter), anti-corrosion coated PCB, and surface mount component technology.

Specifications:

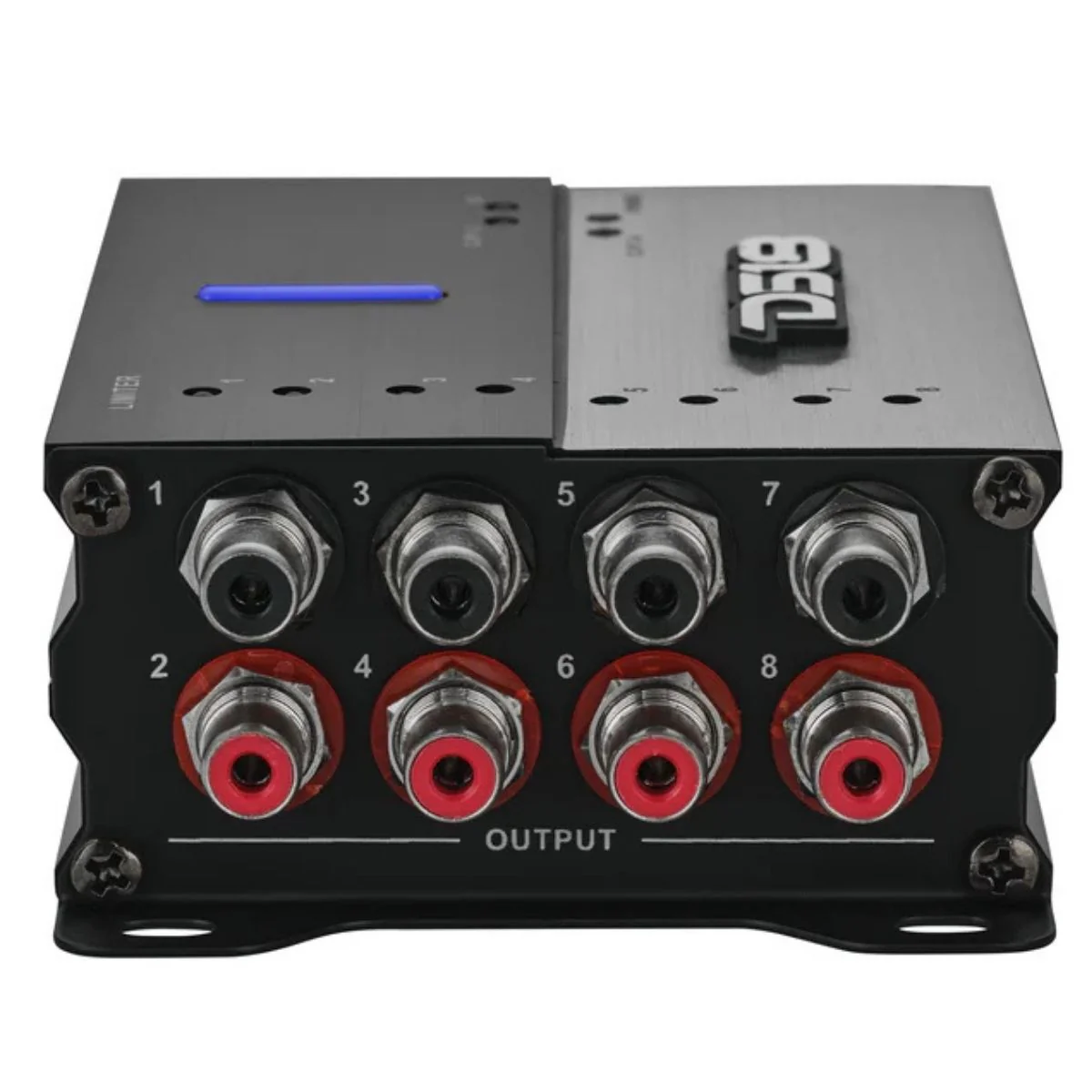

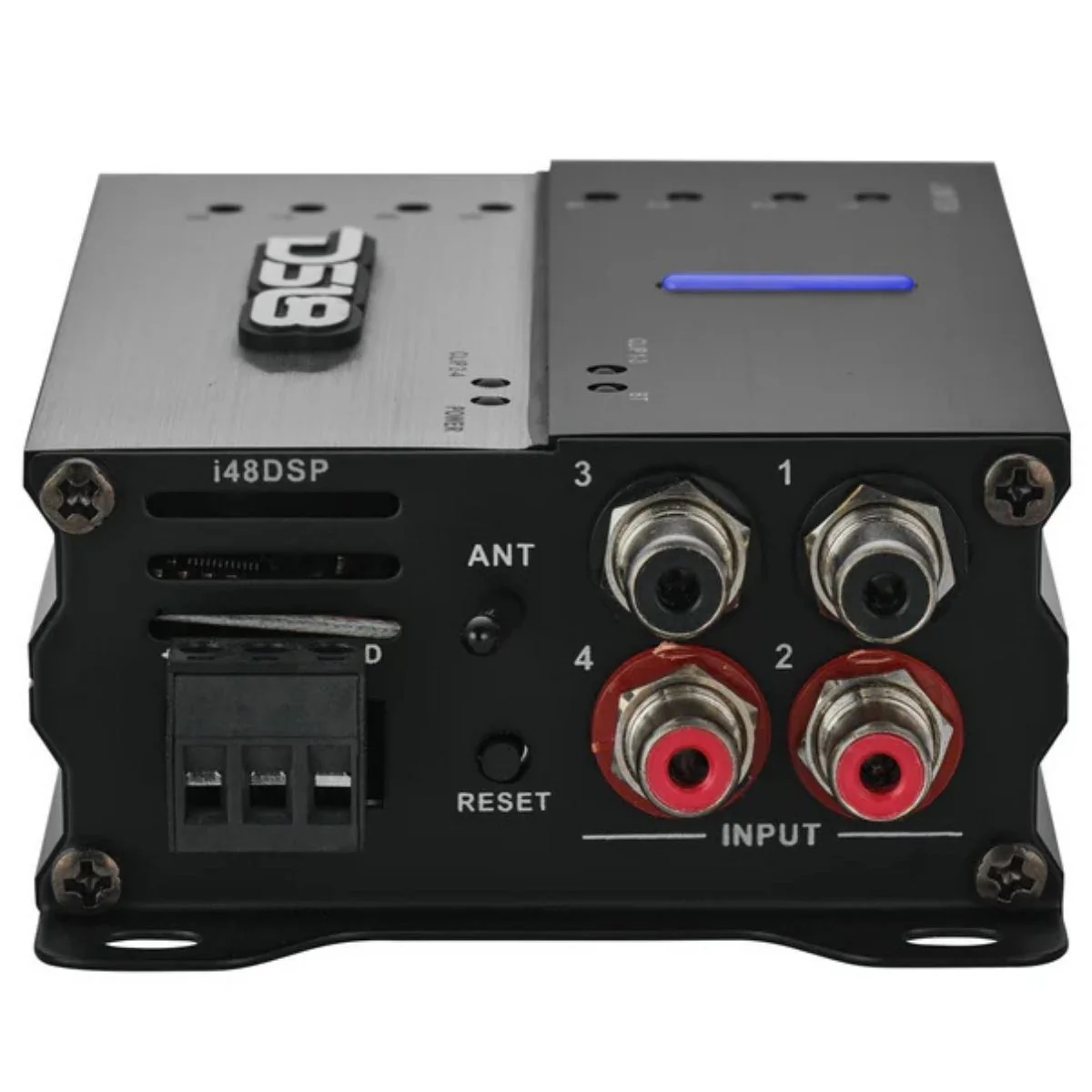

• Inputs / Outputs: 4 RCA inputs / 8 RCA outputs


• Smartphone App Control: Yes (Android and Apple devices)


• Bluetooth: 5.1


• Settings Presets: Yes (6 presets, local device)


• DSP Chip: AKM AK7735


• Sampling Rate: 96kHz / 32-bit


• Signal Conversion AD/DA: CS4344


• Frequency Response: 20Hz to 20kHz


• S/N Ratio: 101dB


• THD: 0.04%


• Input Sensitivity (Low-Level): 200mV to 6V


• Output Voltage: Up to 3.3V


• Balanced Input Noise Rejection: 94dB


• Stereo Separation: 93dB


• Time Alignment: 0 to 20ms


• Noise Gate: Yes, adjustable (-60 to -120dB)


• Routing Channels: Yes, adjustable with mixing

Equalizer:

• EQ Type: Parametric (each channel) / Graphic (general)


• Bands: 31 (each channel / general)


• Frequency Points: Selectable (each channel)


• Boost/Cut: +/- 18dB


• Q Factor: 0.3 to 15 (each channel)

Crossover:

• Crossover Ways: 8 (each channel)


• Crossover Slopes: ButterWorth 6-48dB/Oct, Bessel 12-48dB/Oct, Linkwitz 12-48dB/Oct


• Frequency Cut-off: Selectable 20Hz to 20kHz (HPF / LPF / Band-Pass)


• Phase (Polarity): 0 / 180 selectable (each channel)

Limiter:

• Channels: 8 (each channel)


• Threshold: -60 to 6dB


• Attack: 0 to 200ms


• Release: 0 to 990ms


• Auto Mode: Yes (attack and release)

General Features:

• Operating Voltage: 9.5 to 15V


• Power Consumption: 300mA


• Recommended Fuse Rating: 1A


• Power Input Terminal Size: 16Ga

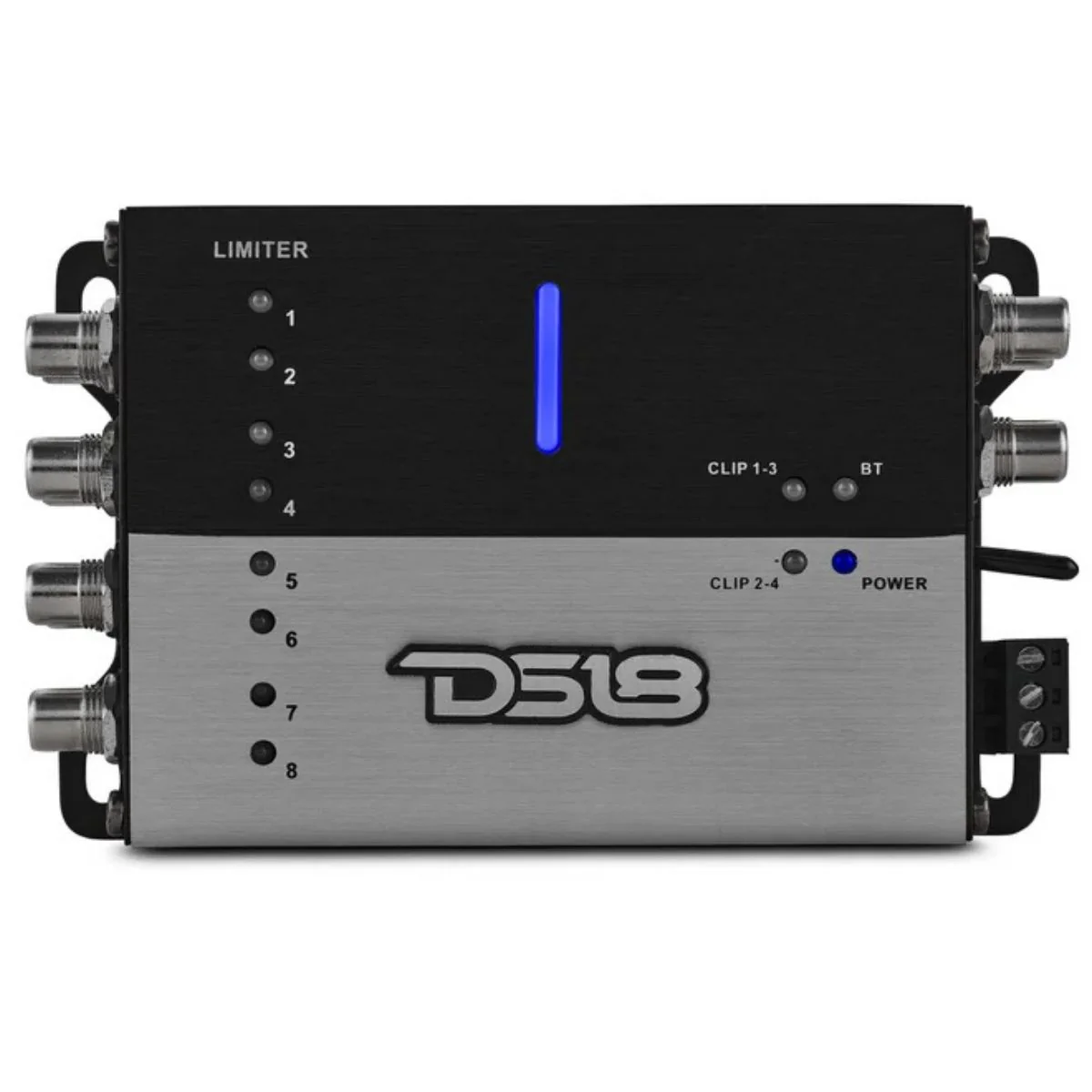

• LED Indicator: Power / BT / Clip / Limiter


• Voltmeter: Yes (app)


• Remote Turn-on (Input): Yes


• RCA Connector Type: Tiffany


• Housing Material: Aluminum


• Body Color / Finish: Black / Silver Brushed


• PCB Anti-Corrosion Protection Coating: Yes


• Surface Mount Component Technology: Yes

Dimensions:

• Overall Length: 5.3" (135mm)


• Overall Width: 3.25" (83mm)


• Overall Height: 1.3" (34mm)

Tune it once, save your presets, then let your system hit exactly the way it should.
