• 5-Channel High-to-Low Conversion – Converts factory speaker outputs into RCA signals for clean integration with aftermarket multi-channel amplifiers.
• Flexible Input Modes – Supports both 2-channel and 5-channel input configurations, making it compatible with a wide range of OEM systems.
• Automatic Turn-On – Activates your amplifier with audio sensing, DC offset, or remote trigger for hassle-free installation.
• Durable & Noise-Resistant – Rugged aluminum housing, selectable ground isolation, and transformer step-down ensure interference-free performance.
• High-Fidelity Audio – Wide 10Hz–20kHz frequency range with <0.01% THD, >110dB SNR, and up to 11V preamp output preserves sound clarity.

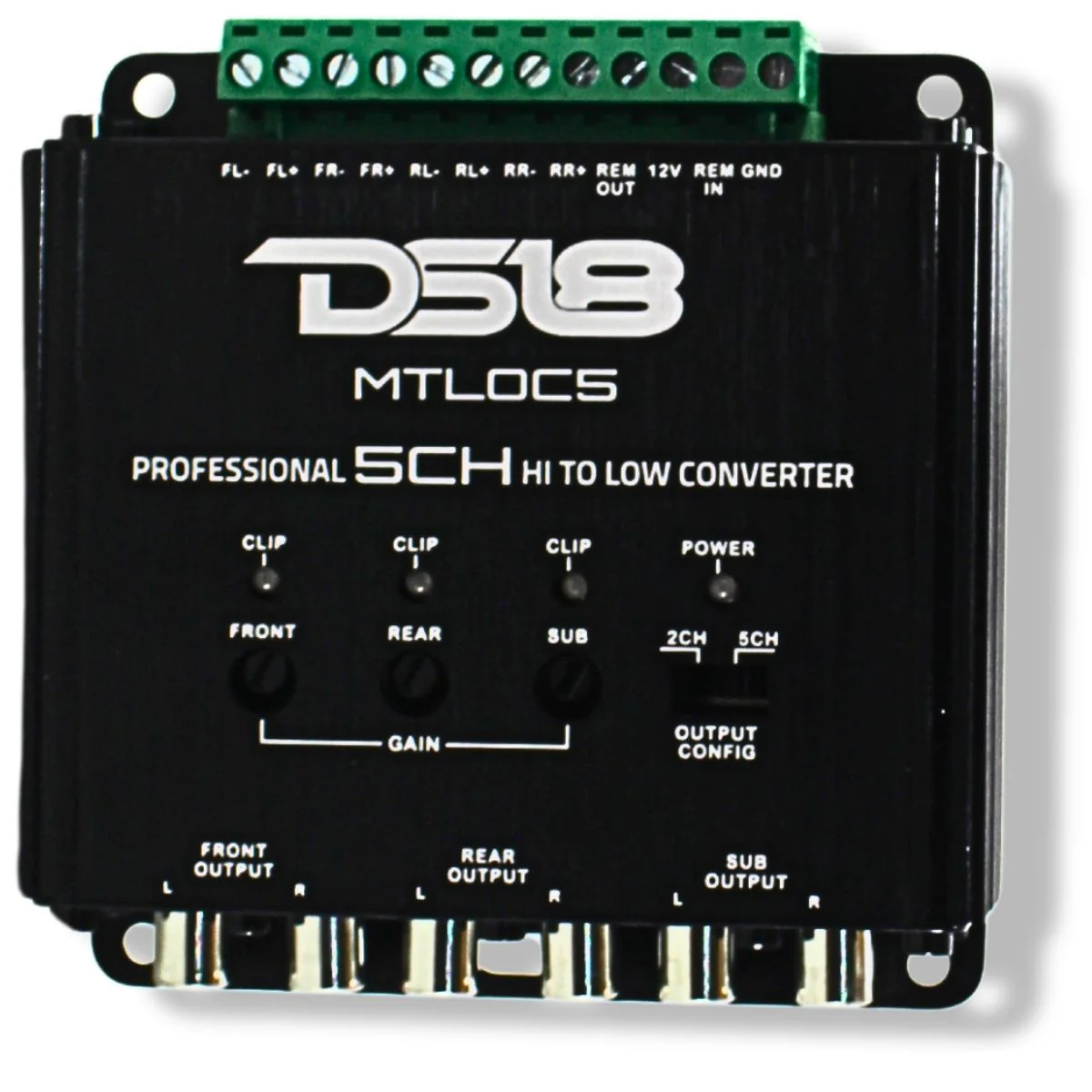

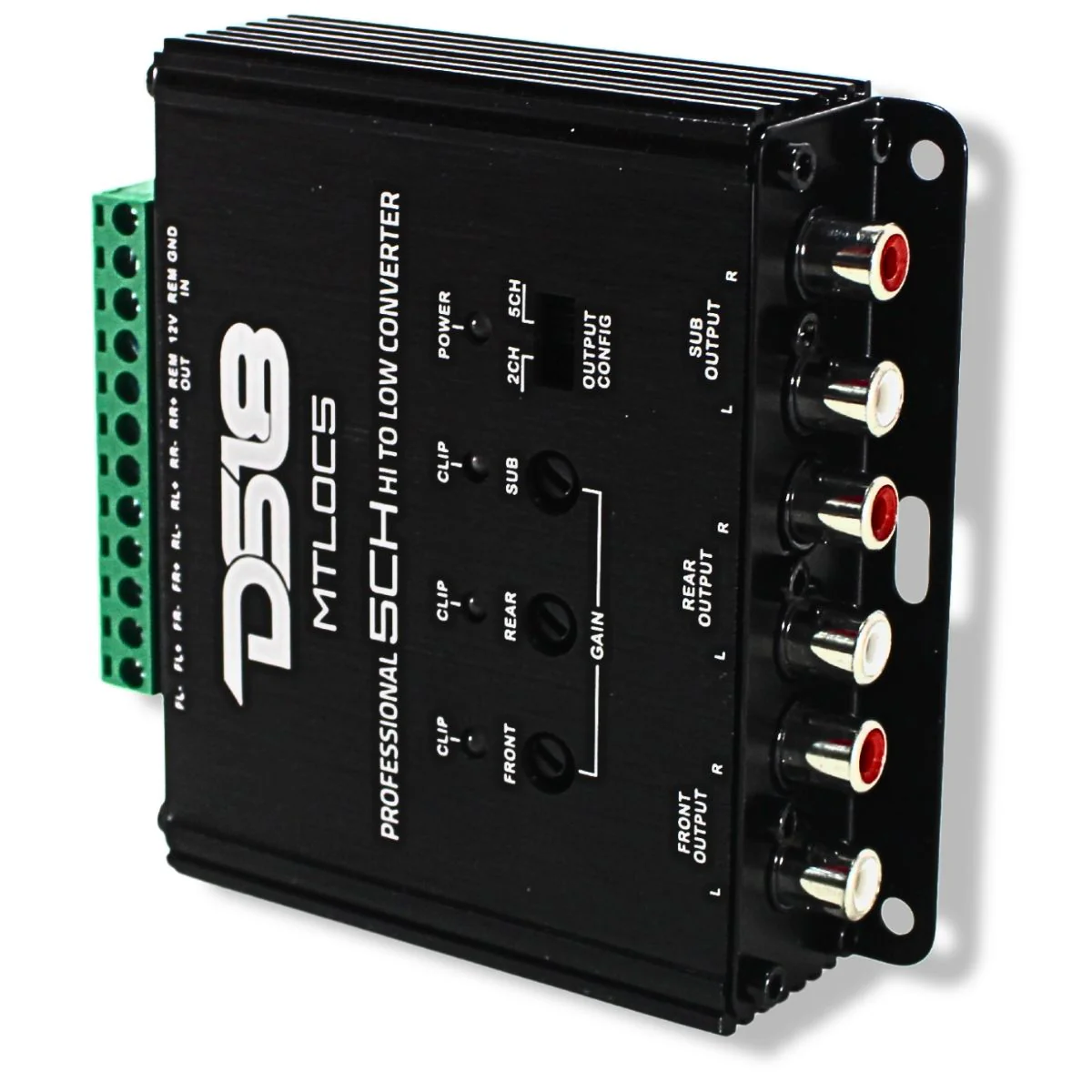

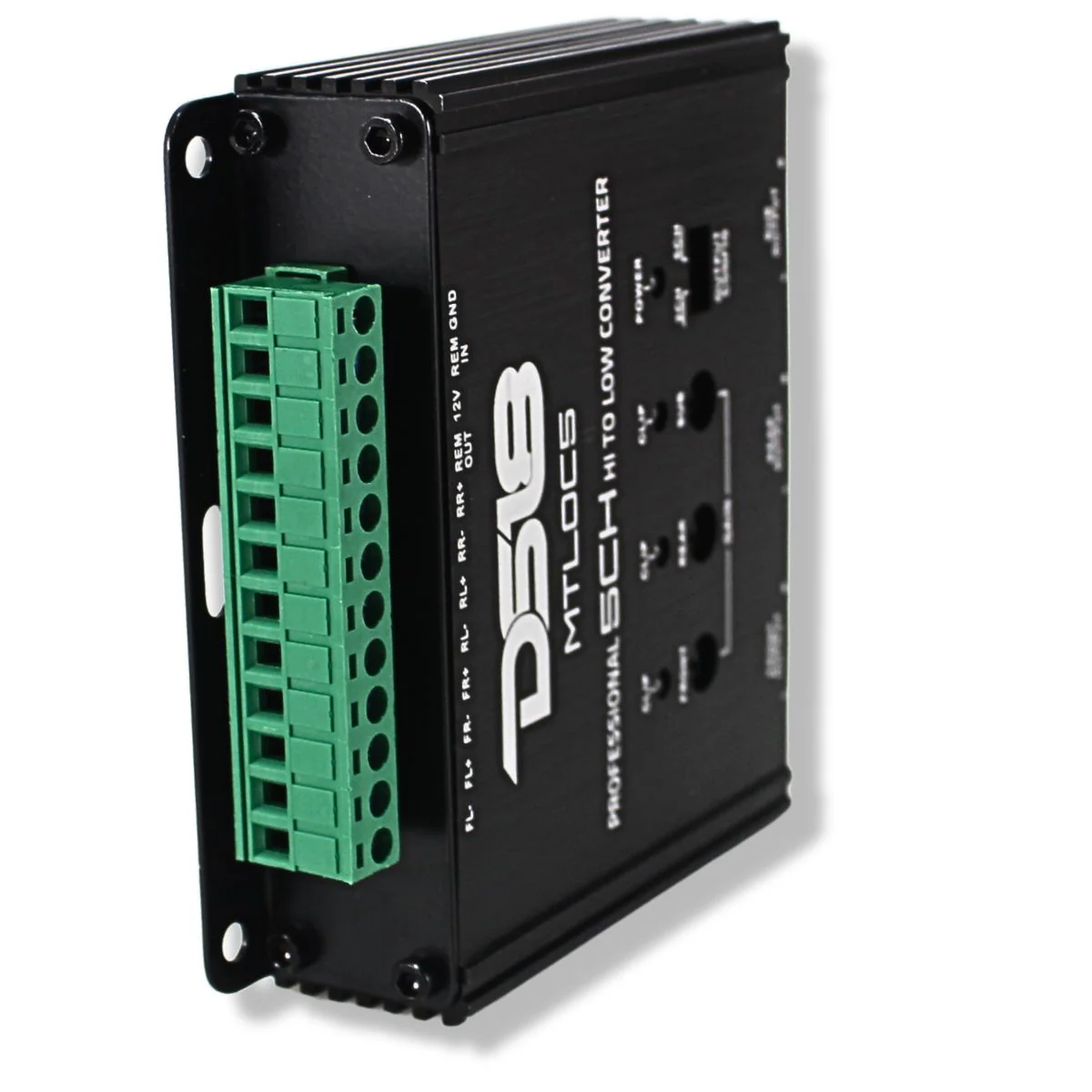

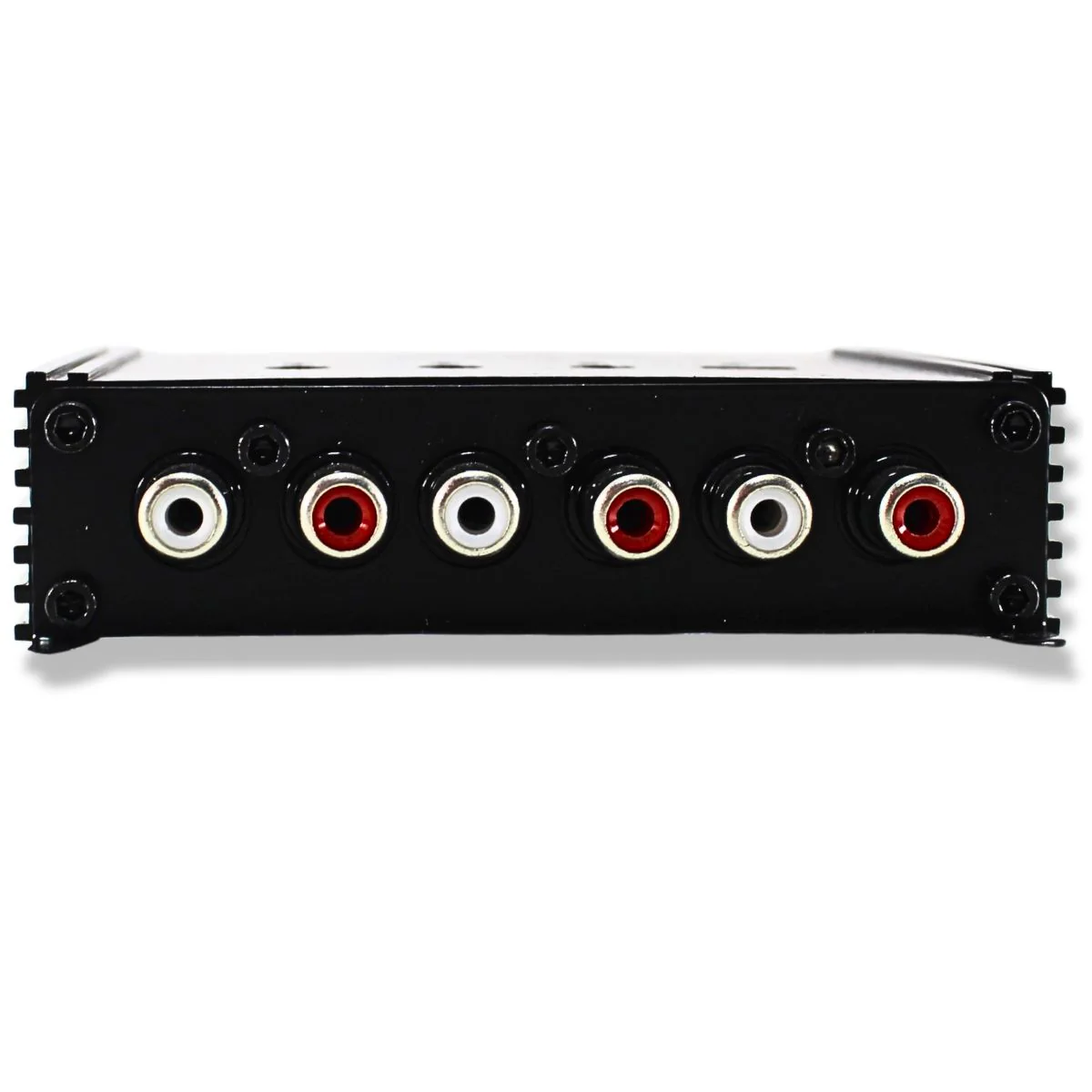

5-Channel High-to-Low Line Output Converter with Remote/Automatic Turn-On MTLOC5

This Listing Includes

• (1 ) 5-Channel Line Output Converter MTLOC5

The MTLOC5 is designed for vehicles with multi-channel factory audio systems. It converts 2- or 5-channel speaker-level outputs into clean RCA signals, making it easy to connect aftermarket amplifiers without triggering factory errors. With automatic turn-on options including audio sensing, DC offset, or remote, the MTLOC5 powers amplifiers reliably and simplifies installation. Its aluminum housing provides durability and noise rejection, while the wide frequency response keeps your music clear and detailed. Compact, reliable, and flexible, the MTLOC5 is the right choice for advanced car audio upgrades.

Features

• 5 Channel High to Low Conversion


• 2 or 5 Channel Input Configuration


• Automatic Amplifier Turn On via Audio, DC, or Remote


• Durable Aluminum Housing with Noise Rejection


• 10Hz to 20kHz Frequency Range with less than 0.01 percent THD


• LED Indicators for Power and Clip Status


• Compact Size for Easy Installation

Specifications

• Maximum Speaker Input: Up to 40V 400W RMS


• Maximum Preamp Output: Up to 11V


• Conversion Ratio: 4 to 1


• Frequency Response: 10Hz to 20kHz


• THD: less than 0.01 percent


• Signal to Noise Ratio: greater than 110dB


• Input Impedance: Selectable 20 ohms, 60 ohms, or 20k ohms


• Output Impedance: 100 ohms


• Power Draw: 130mA


• Recommended Fuse: 1A


• Weight: 6.4 Oz

Additional Features

• Bass Boost: No


• Auto Turn On: Yes Audio, Remote, DC


• Remote Output: Yes


• Level Matching Controls: Yes


• Dash Remote Level Control: No


• LED Indicators: Power and Clip


• Housing Material: Aluminum Black Finish


• Wiring Connector: 14-gauge Quick Connector


• Ground Isolation: Selectable 200 ohms, Isolated, Grounded


• Step Down Method: Transformer


• Input Selector: 2-channel or 5-channel

Dimensions

• Length: 5.7" (145mm)


• Width: 3.5" (88mm)


• Height: 1.1"  (28mm)

Why Choose the MTLOC5

The MTLOC5 delivers clean signal conversion for multi-channel factory systems. With selectable inputs, noise rejection, and automatic turn-on functions, it offers professional-level integration in a compact and durable design
