• High-Efficiency Design – Optimized for maximum output using minimal RMS power, perfect for factory or amplified setups.
• Precision Motor System – Y35 strontium magnet with shorting ring minimizes distortion and extends frequency range.
• Advanced Thermal Management – 30mm CCA voice coil with fiberglass former enhances cooling and long-term performance.
• Durable Construction – Water-resistant synthetic resin cone with carbon fiber dust cap ensures clarity and strength.
• OEM-Friendly Fit – Shallow basket design allows easy installation in factory speaker locations or custom builds.

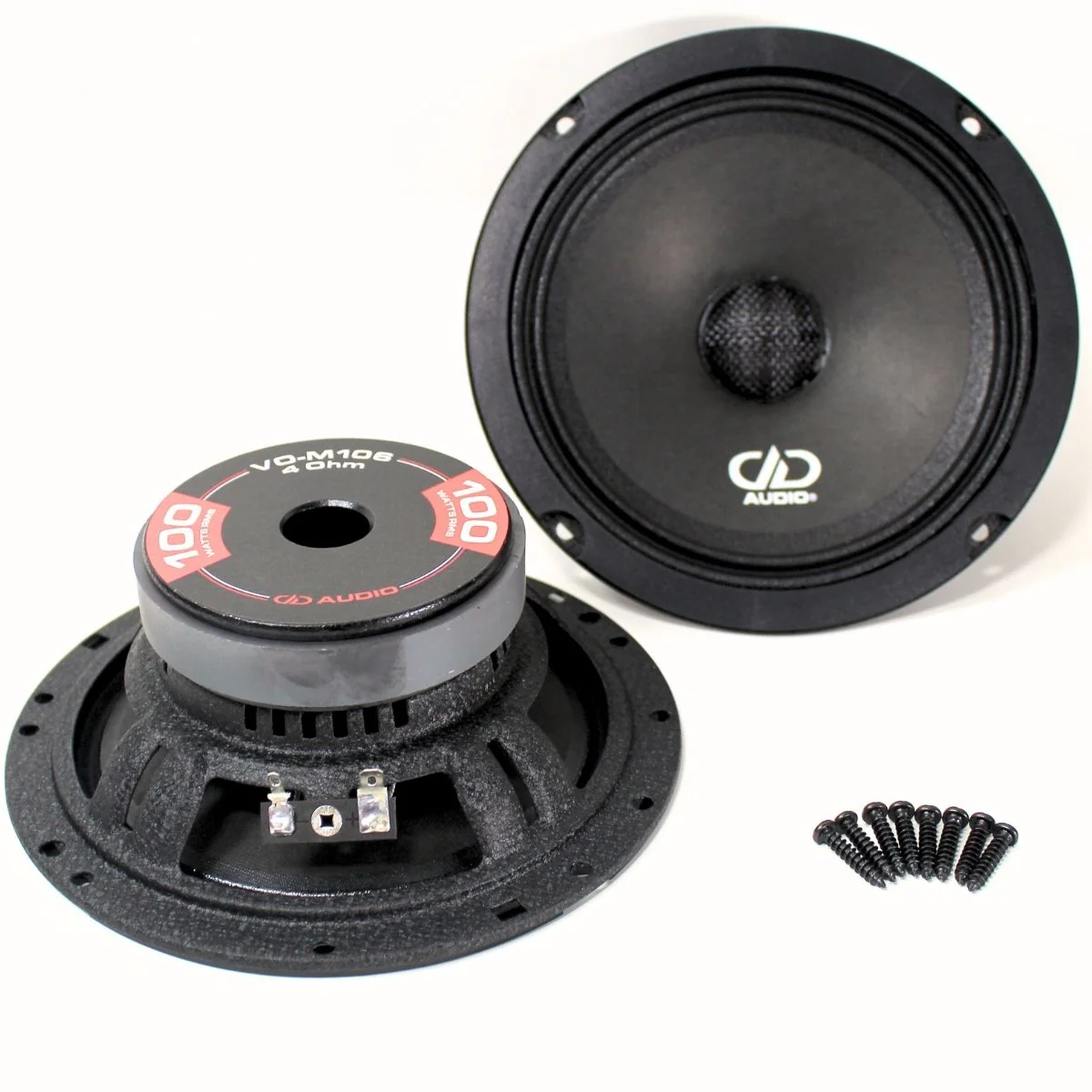

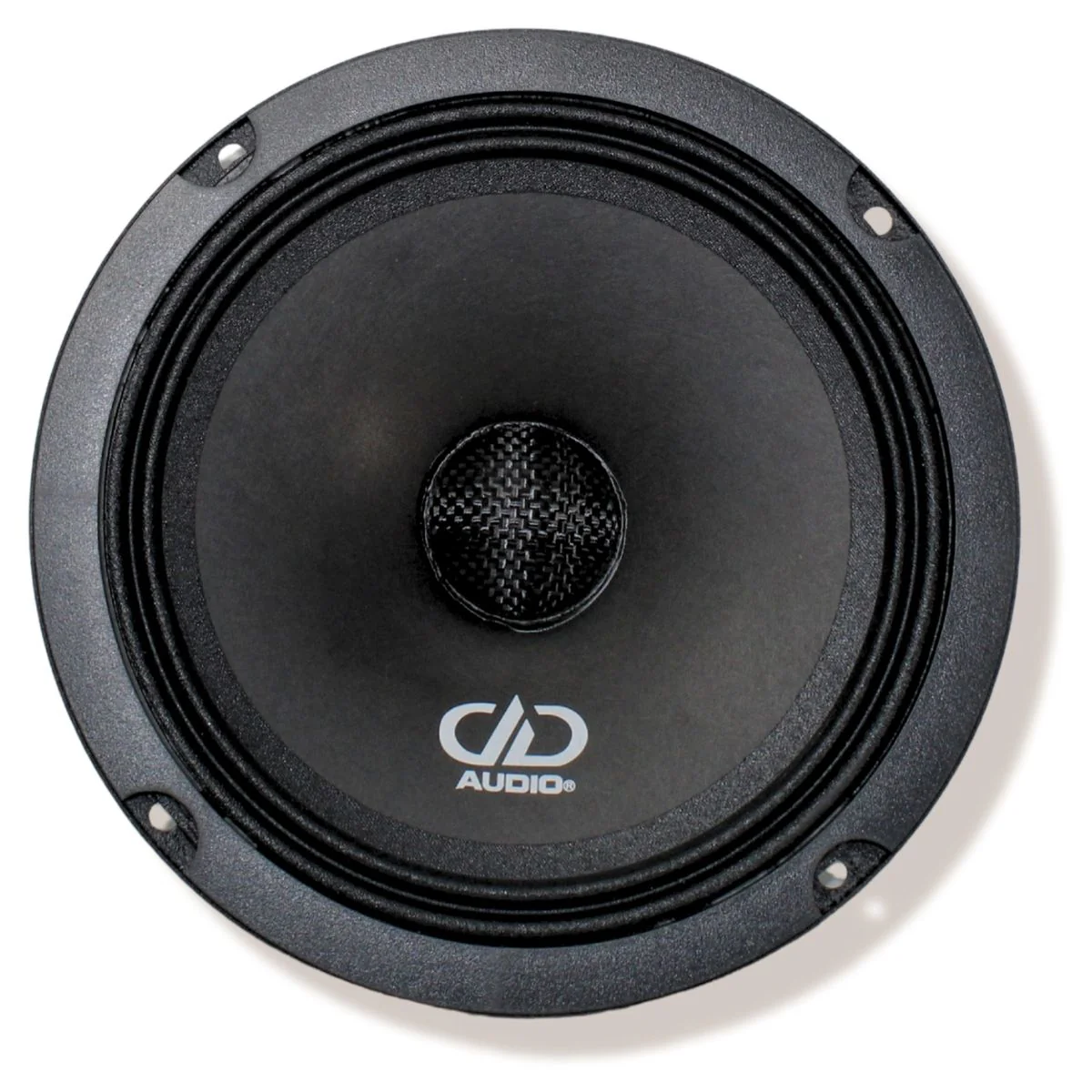

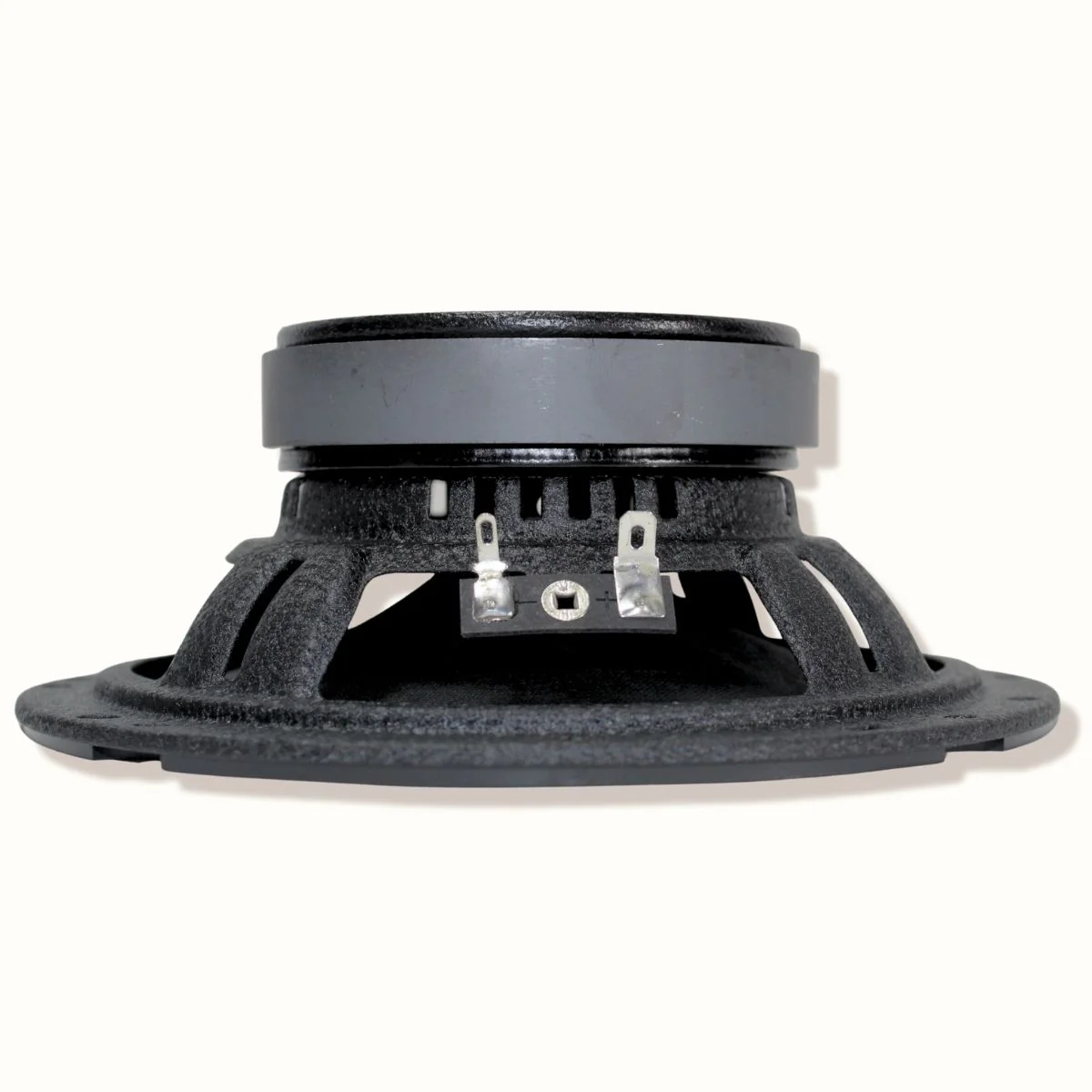

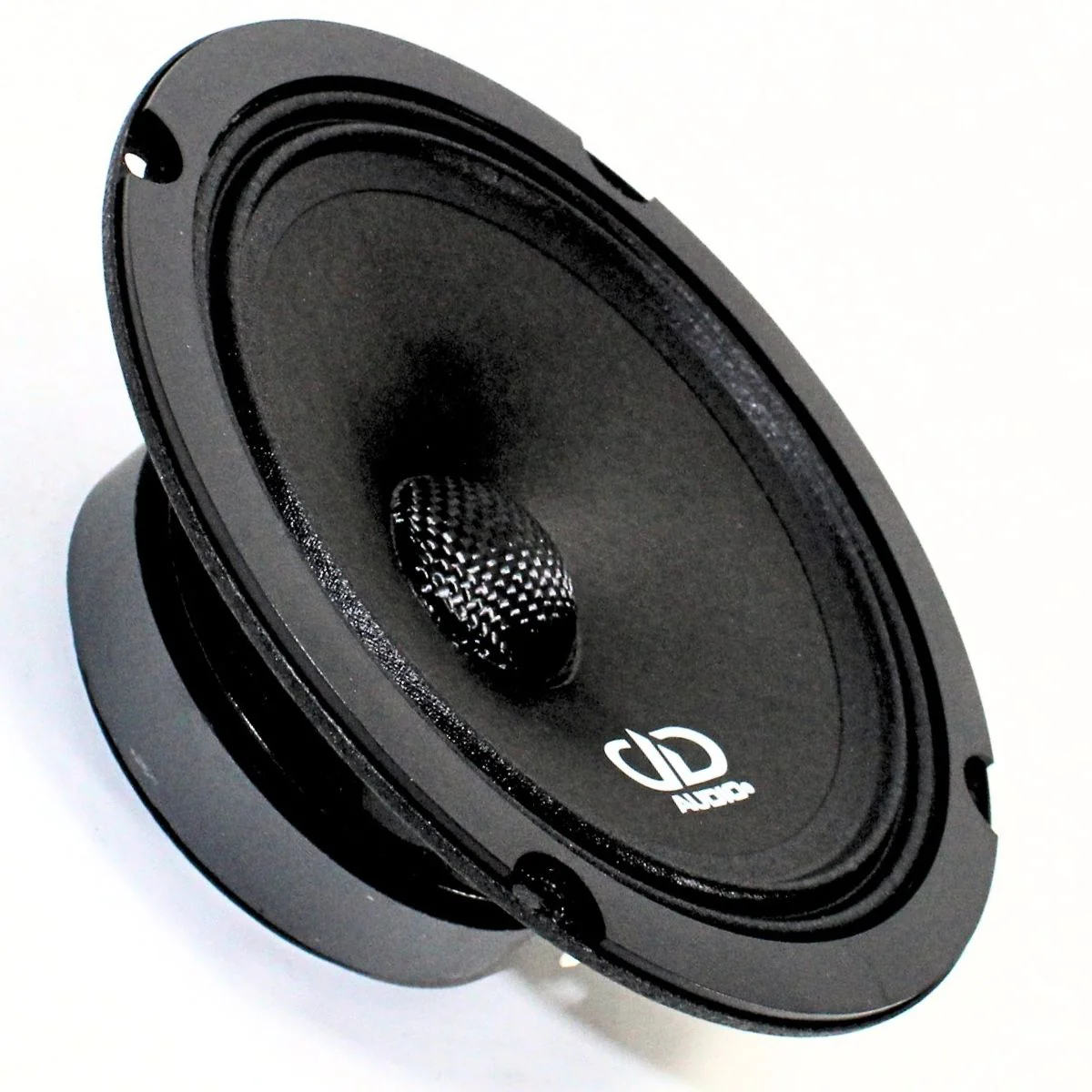

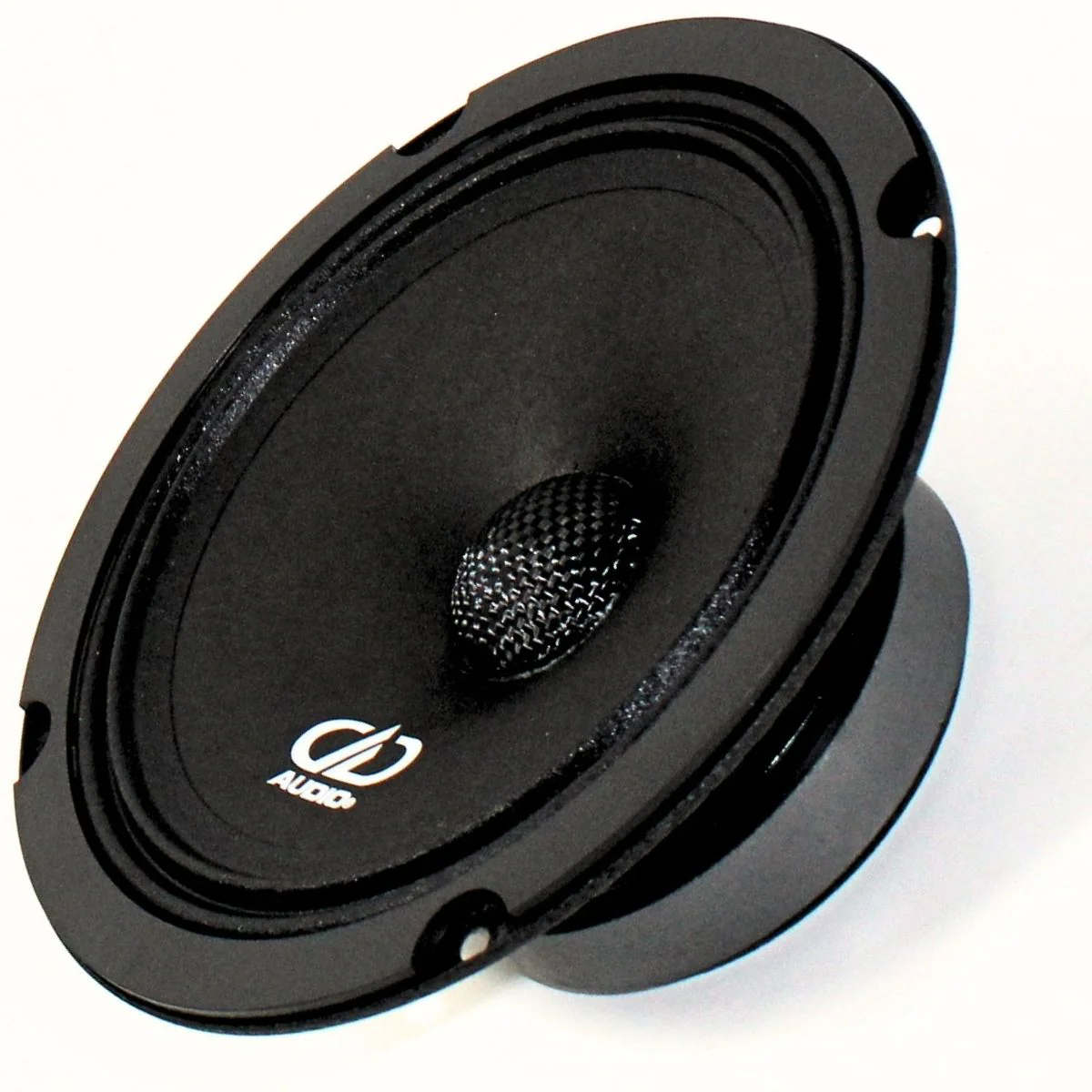

6.5" 100 Watt RMS 4 Ohm Voice Optimized Midrange Speaker Pair DD Audio VO-M106

This Listing Includes:

• (1) Pair of DD Audio VO-M106 6.5" Speakers

The DD Audio VO-M106 6.5" Voice Optimized Midrange Speaker delivers high output, high fidelity performance with exceptional efficiency. Designed to maximize sound clarity while minimizing RMS power demands, it bridges the gap between pro audio strength and audiophile precision.

Built around a Y35 strontium magnet motor with Faraday shorting rings, the VO-M106 achieves extended frequency response and low distortion. Its ultralight moving mass and 30mm copper-clad aluminum voice coil enhance thermal performance and sensitivity, keeping the driver cool even during long, loud sessions.

The water-resistant synthetic resin cone and carbon fiber dust cap ensure lasting transparency and durability. The shallow basket design with perimeter venting allows for easy OEM factory replacements or custom upgrades. Whether powered by factory systems or paired with DD’s SS amplifiers, the VO-M106 offers clean, dynamic sound with incredible clarity and efficiency.

Specifications:

• Speaker Size: 6.5 in


• Power Handling: 100W RMS


• Impedance: 4 Ohm


• Voice Coil Diameter: 1.25 in (30 mm)


• Frequency Response: 130Hz - 20kHz


• Resonant Frequency (Fs): 130Hz


• Sensitivity: 98 dB


• Qms: 12.55


• Qes: 1.34


• Qts: 1.21


• Vas: 4.5 Liters


• BL (TM): 4.4


• Xmax: 4 mm


• Suspension Travel: 12 mm


• Mounting Diameter: 5.6 in (142 mm)


• Mounting Depth: 2.5 in (63 mm)


• Cone Material: Proprietary Long Fiber Pulp


• Surround Material: Fabric


• Voice Coil Former: Non-Conducting Fiberglass


• Dust Cap: Carbon Fiber


• Magnet Type: Y35 Strontium with Shorting Ring


• Basket Design: Shallow with Perimeter Venting

Dimensions:

• Total Diameter: 6.5"


• Mounting Diameter: 5.6"


• Mounting Depth: 2.5"


• Cutout Diameter: 5.6"


• Weight (Each):1.95 lbs

The DD Audio VO-M106 redefines midrange performance, combining pro audio punch with audiophile precision. Built to play loud, clear, and effortlessly efficient.
