• High-performance PA-style woofer with exceptional output and clarity.
• Extended low-frequency response for enhanced midbass performance.
• Durable cast aluminum frame with a long excursion ½ roll surround.
• Compatible with VO-CT compression tweeters for coaxial applications.
• Designed for ultra-fast transients and powerful sound in any setup.

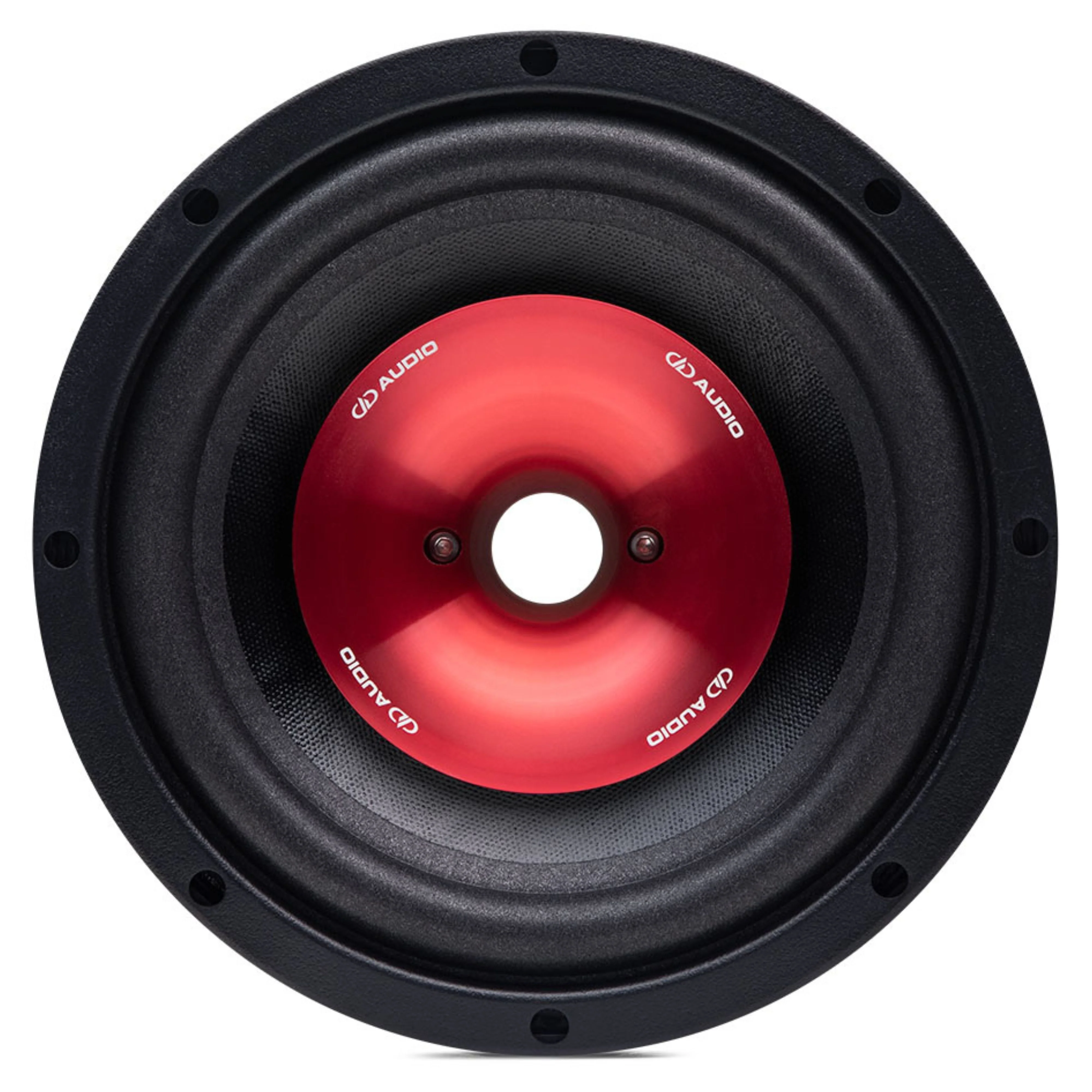

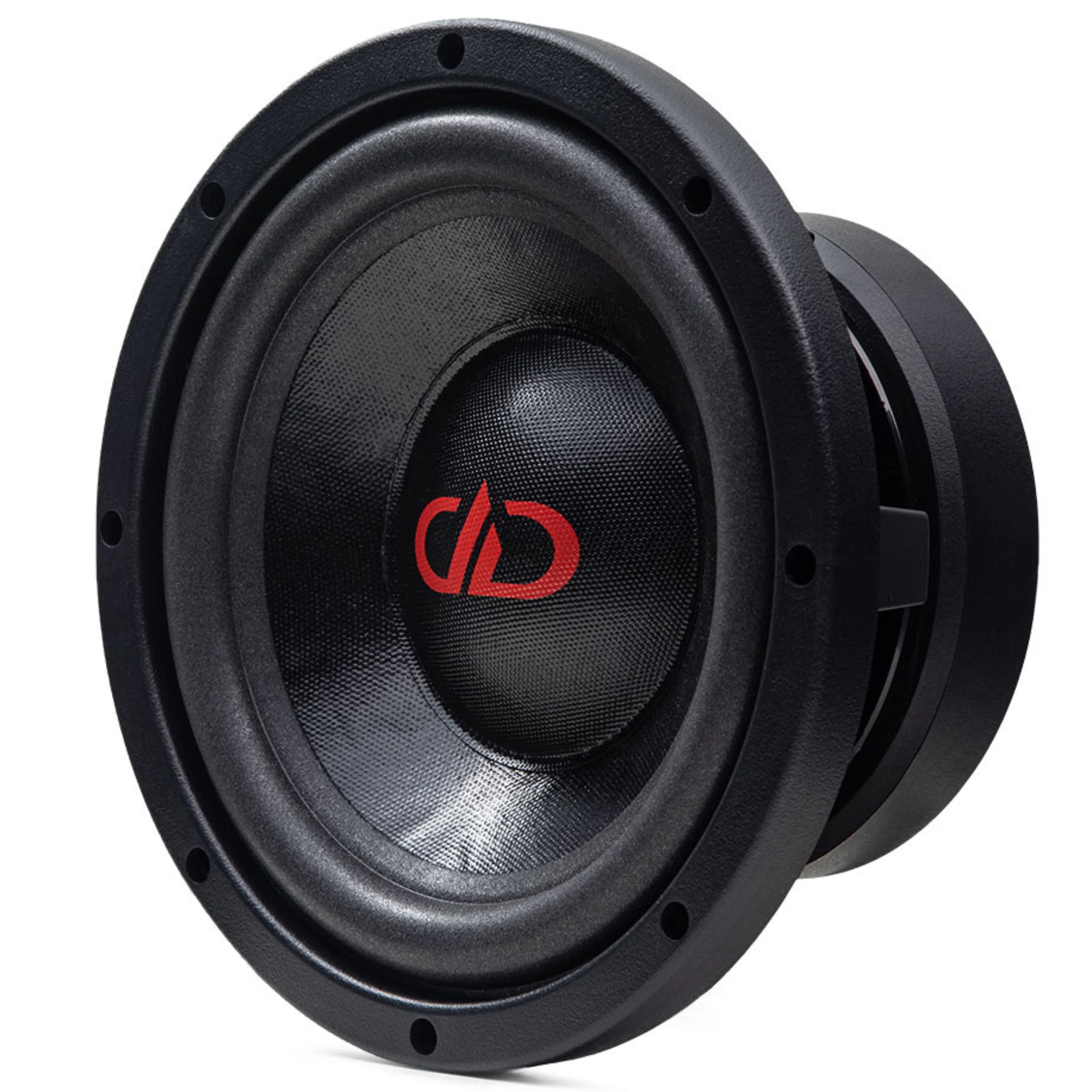

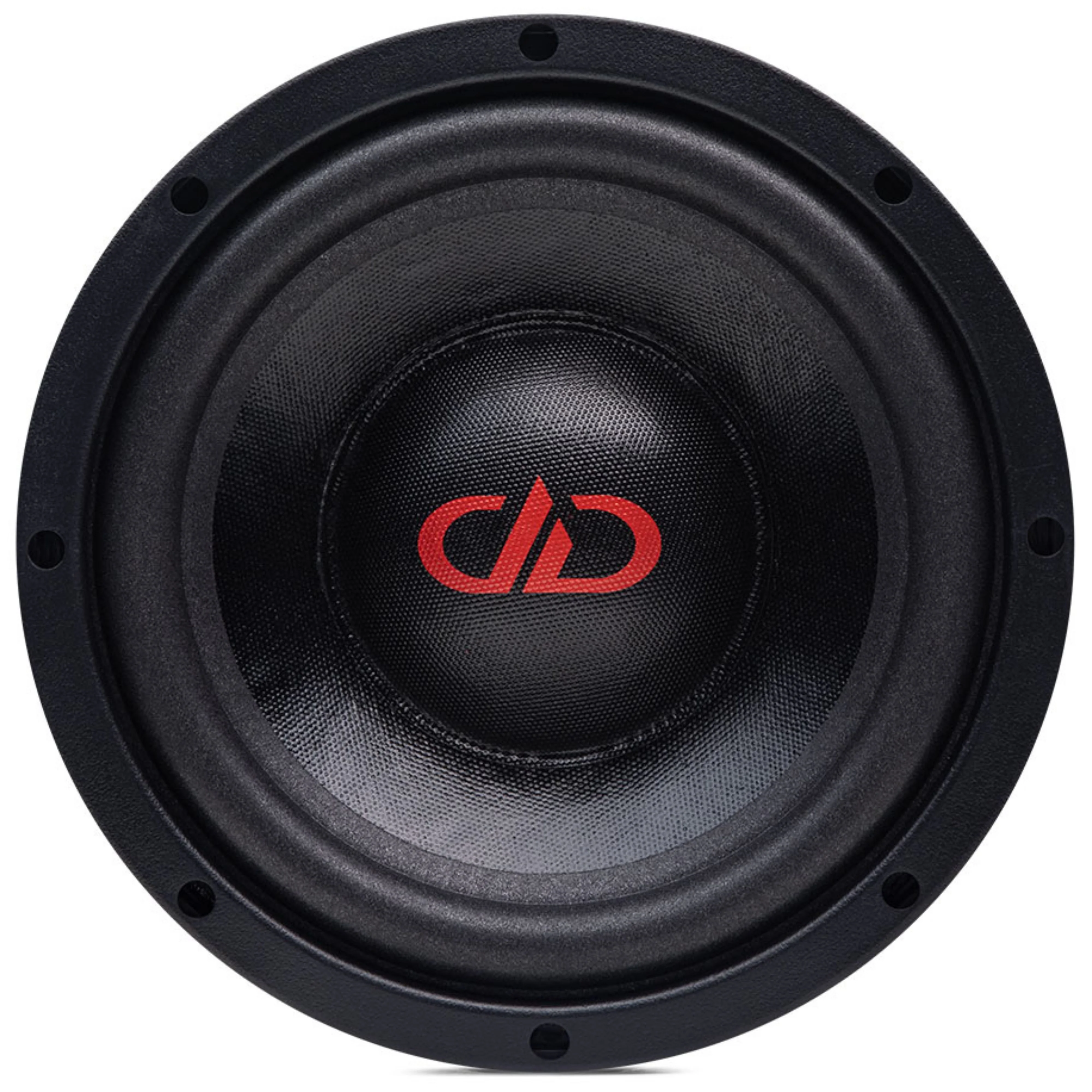

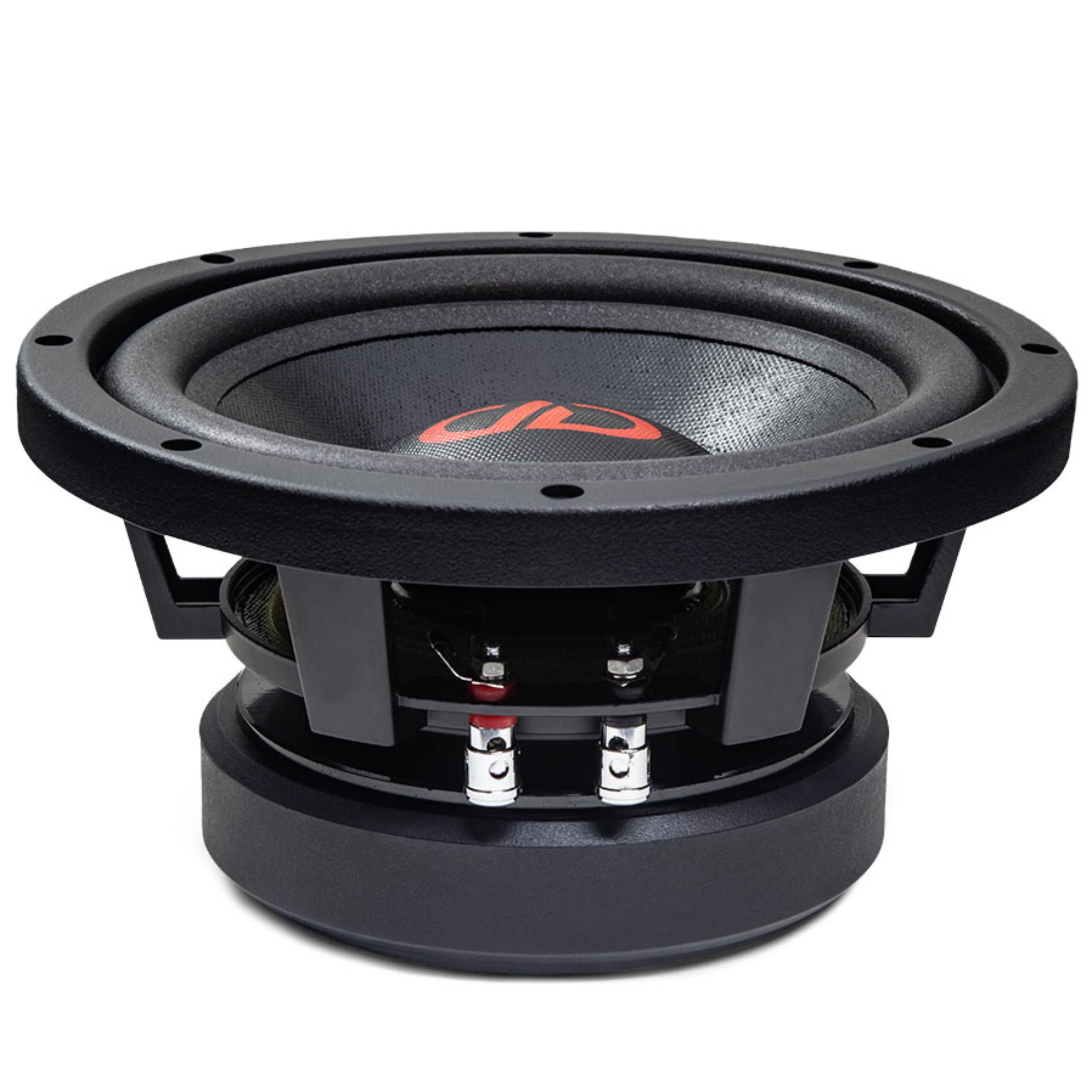

8" 2-Ohm 400 Watts Voice Optimized PA Style Subwoofer with 2.5" Single VC - VO-W508-S2

This Listing Includes:

• (1) DD Audio 8" 2-Ohm 400 Watts Voice Optimized PA Style Subwoofer with 2.5" Single VC - VO-W508-S2

The VO-W500 Voice Optimized Woofers are high-output, PA-style woofers that blend professional and high-end car audio engineering for powerful, precise performance. With a low moving mass, low inductance, and a shorting ring motor, they deliver ultra-fast transients and extended low-frequency mid-bass for accurate sound reproduction. Featuring a long excursion roll surround, poly-cotton spider, and cast aluminum frame, they are built for durability and versatility. A 2.5" copper-clad aluminum voice coil ensures efficiency, while a threaded back plate allows compatibility with VO-CT compression tweeters for coaxial setups, making them ideal for any demanding audio system.

Key Points

• 2.5" VCD: Large voice coil for high efficiency and durability.


• Threaded Back Plate: Allows mounting of VO-CT compression tweeters.


• Cast Aluminum Frame: Robust design for enhanced stability and heat dissipation.


• 8mm Xmax, 30mm Suspension Travel: Delivers extended excursion and superior sound control.


• Roll Surround and Poly-Cotton Spider: Ensures long-lasting performance and accurate sound reproduction.


• CCA Coil Wire: Copper-clad aluminum coil for lightweight and high efficiency.


• Shorting Ring Motor: Reduces distortion for cleaner sound output.

Specifications

• Speaker Size (In): 8


• Watts RMS: 400


• Impedance: S2-Ohm


• Frequency Response (Hz): 60 - 8k


• Fs (Hz): 60


• Qms: 2.169


• Qes: 0.645


• Qts: 0.497


• Vas (Liters): 25.59


• dBSPL: 95


• Xmax (MM): 8


• Suspension Travel (MM): 30


• Mounting Diameter (In): 7 3/8


• Mounting Diameter (MM): 187.3


• Mounting Depth (In): 3.75


• Mounting Depth (MM): 96
