• Wireless Streaming: Bluetooth capability for seamless streaming
• 4-Band Equalizer: Equalization frequencies of 45Hz, 120Hz, 2200Hz, and 12000Hz for precise sound control
• Adjustable Gain: Gain control of up to >40dB with adjustable low-pass and high-pass filters
• Water-Resistant Front Face: Durable design for enhanced reliability (not submersible)
• High Output Voltage: Provides >15V maximum output voltage for improved signal amplification
• Compact & Easy Installation: 1/2 DIN design with included mounting brackets for hassle-free setup

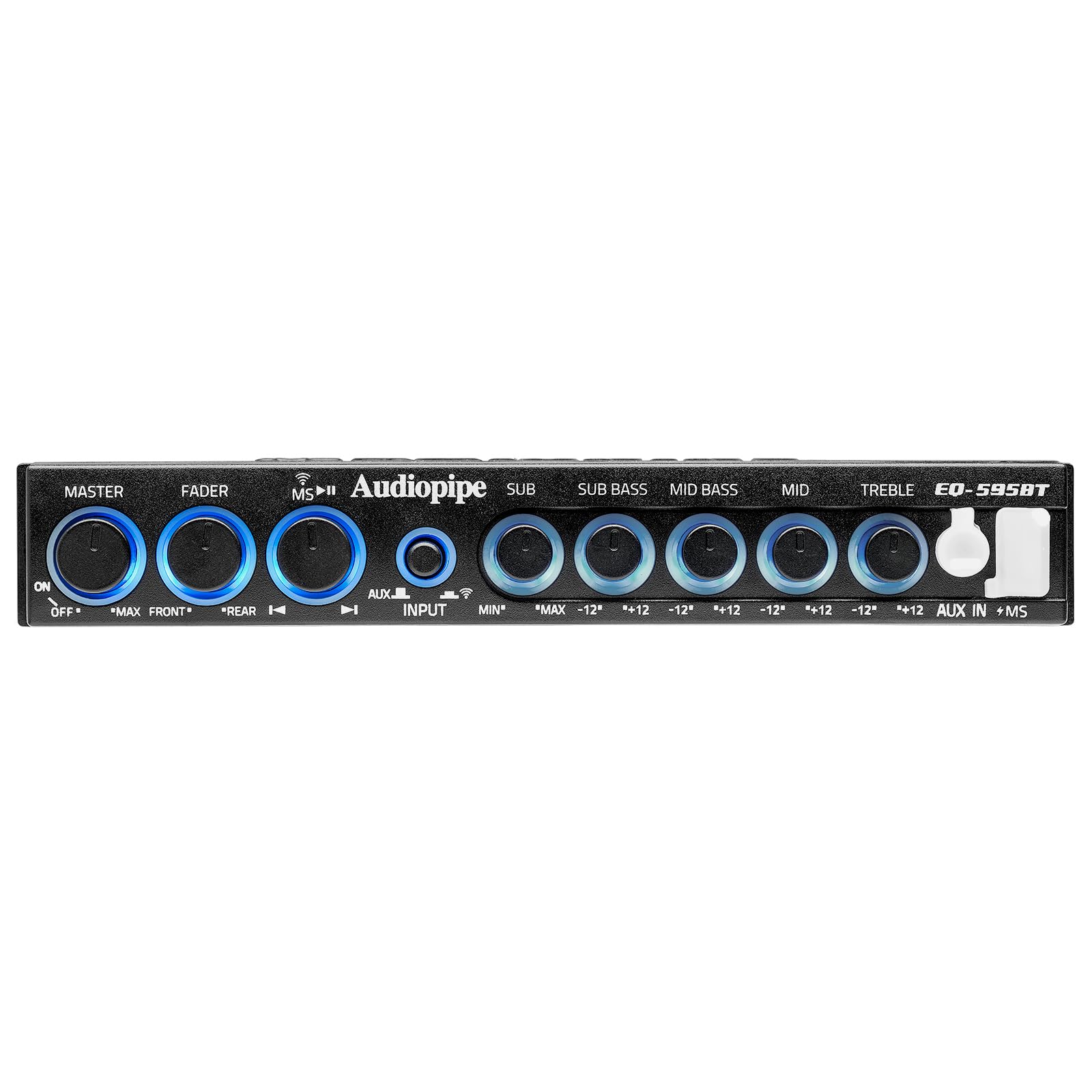

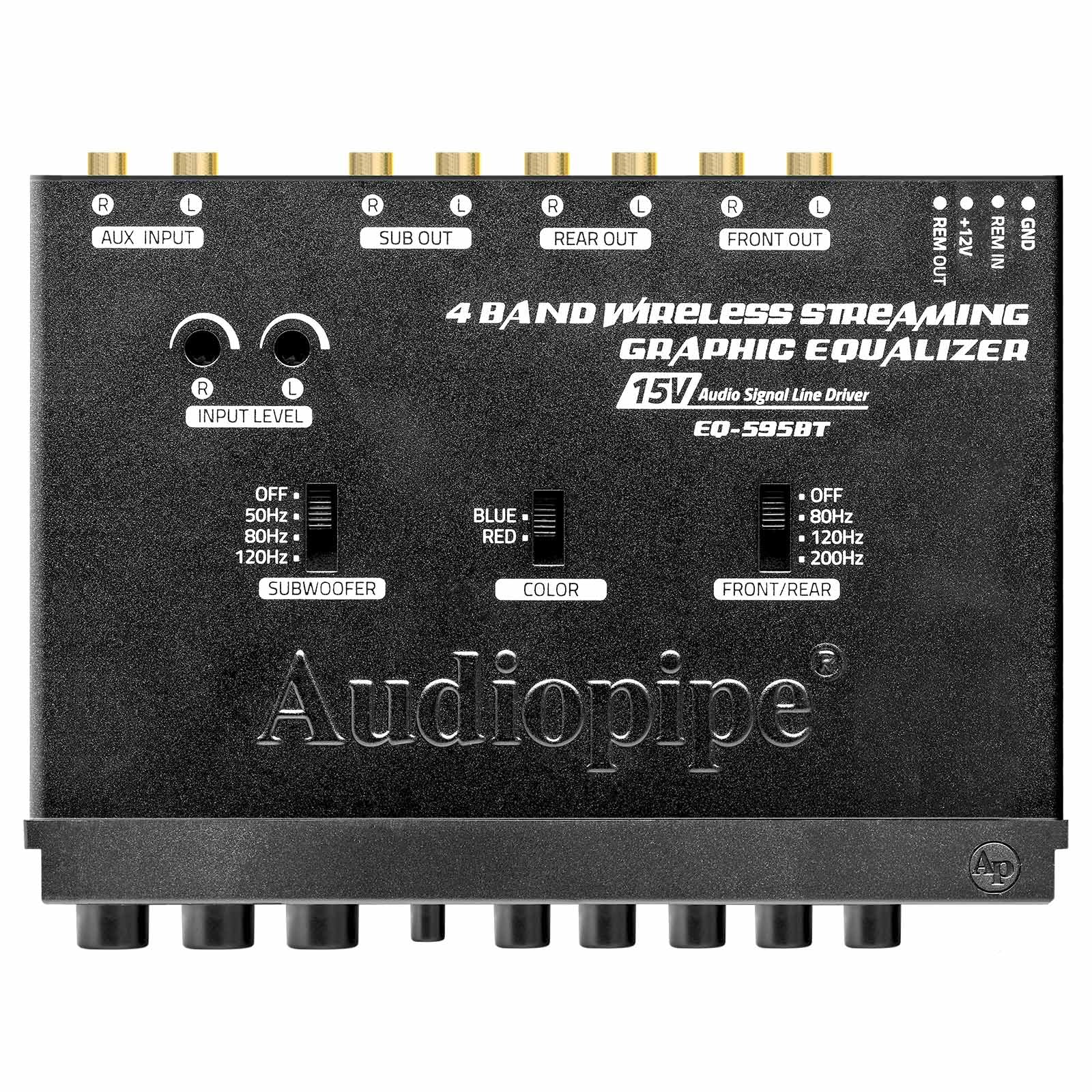

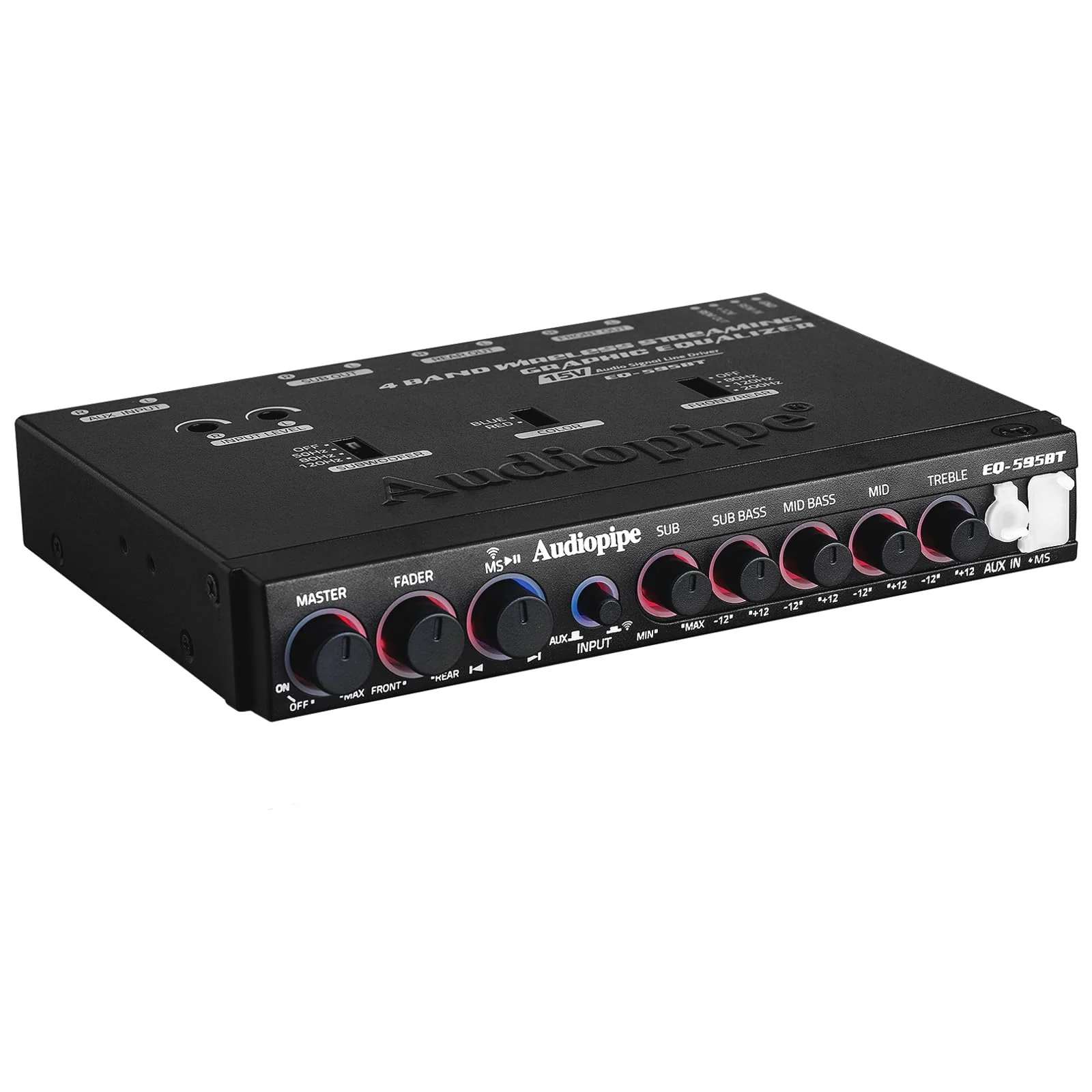

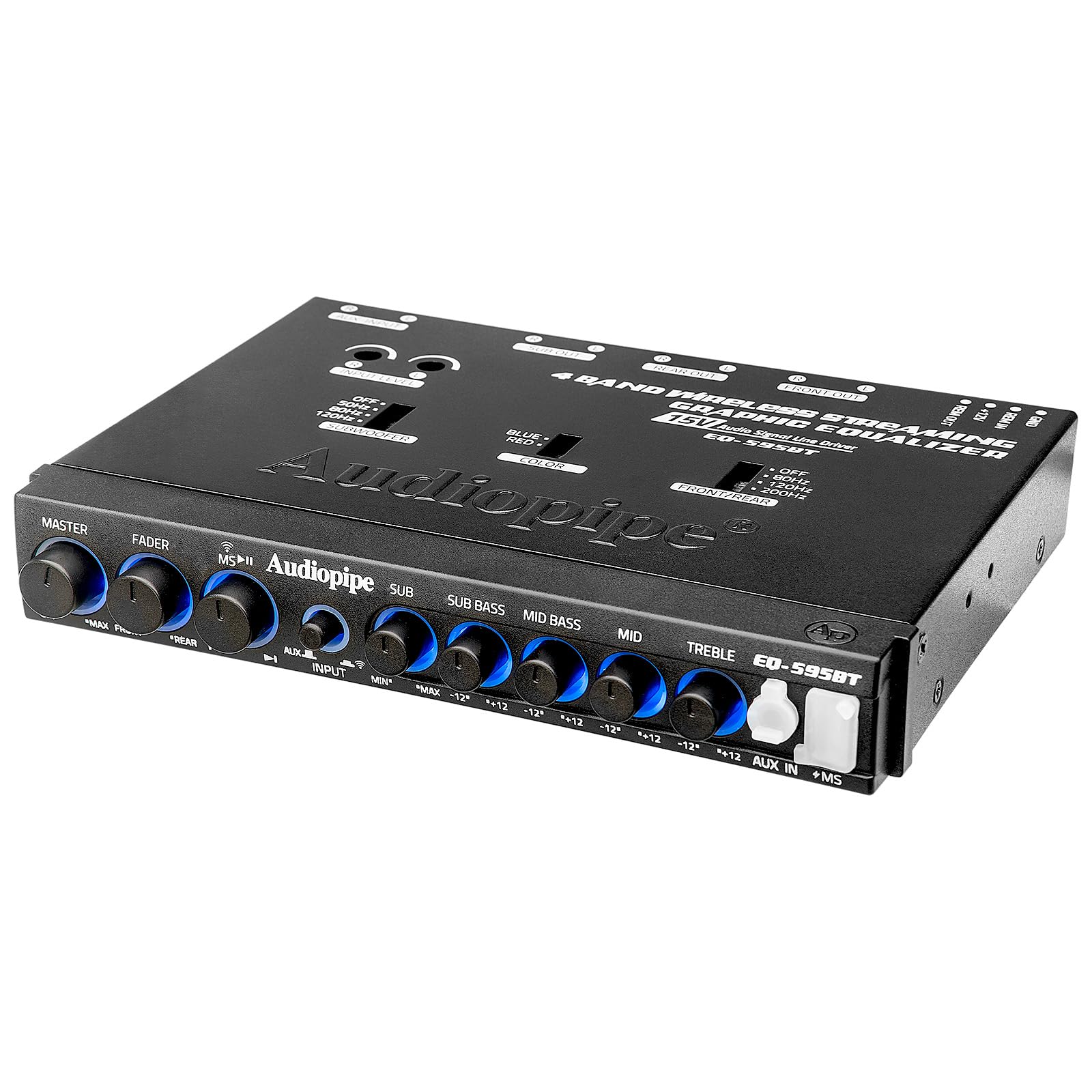

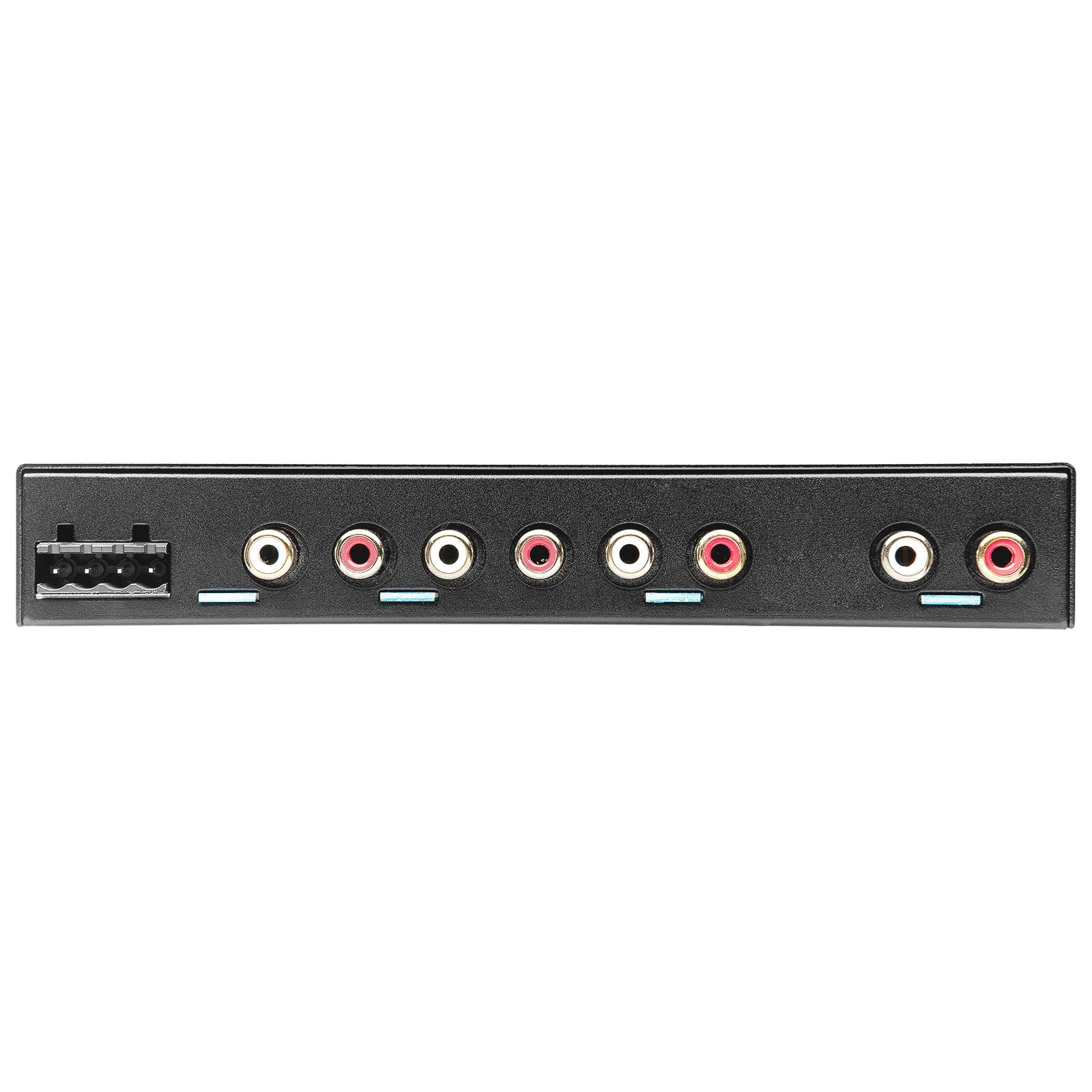

Audiopipe 4-Band 15V 1/2 Din Wireless Streaming Line Driver Graphic Bluetooth Equalizer

This Listing Includes

• (1) Audiopipe 4-Band 15V 1/2 Din Wireless Streaming Line Driver Graphic Bluetooth Equalizer


• Installation Hardware

This Audiopipe 4-Band 15V 1/2 Din Wireless Streaming Line Driver Graphic Bluetooth Equalizer is designed to upgrade your audio system with wireless streaming, precise control, and signal amplification. This equalizer offers a high signal-to-noise ratio, wide frequency equalization, and low distortion to provide a premium listening experience. Featuring adjustable gain controls, high and low-pass filters, and customizable subwoofer settings, you can fine-tune your system to perfection. With its 1/2 DIN design, easy installation, and water-resistant face, it’s built to last and enhance your audio experience like never before.

Key Features

• Wireless Streaming: Bluetooth capability for seamless streaming


• 4-Band Equalizer: Equalization frequencies of 45Hz, 120Hz, 2200Hz, and 12000Hz for precise sound control


• Adjustable Gain: Gain control of up to >40dB with adjustable low-pass and high-pass filters


• Water-Resistant Front Face: Durable design for enhanced reliability (not submersible)


• High Output Voltage: Provides >15V maximum output voltage for improved signal amplification


• Compact & Easy Installation: 1/2 DIN design with included mounting brackets for hassle-free setup

Specifications

• Input Range of Gain Control: >40dB


• Maximum Input Voltage: >10V


• Input Impedance: >20kOhms


• Maximum Output Voltage: >15V


• Volume Gain: >40dB


• Low Pass Frequency: 50Hz, 80Hz, 120Hz (-3dB)


• High Pass Frequency: 80Hz, 120Hz, 200Hz (-3dB)


• Low Pass/High Pass Slope/OCT: 12dB


• Equalization Frequencies: 45Hz, 120Hz, 2200Hz, 12000Hz


• Equalization Boost/Cut: 18dB


• Distortion at 1kHz(1V): 0.01%


• Channel Separation at 1kHz(1V): >80dB


• Signal to Noise Ratio: >100dB


• Frequency Response (-1dB): 10Hz-50kHz

Dimensions

• Length: 7.5"


• Width: 3.5"


• Height: 1.5"


• Weight: 0.9 lb
