• Adjustable subwoofer frequency: 50Hz / 80Hz / 120Hz
• Universal Half-din Chassis for ease of installation
• Subwoofer output and level controls
• Gold-plated RCA input connectors
• Three stereo RCA outputs

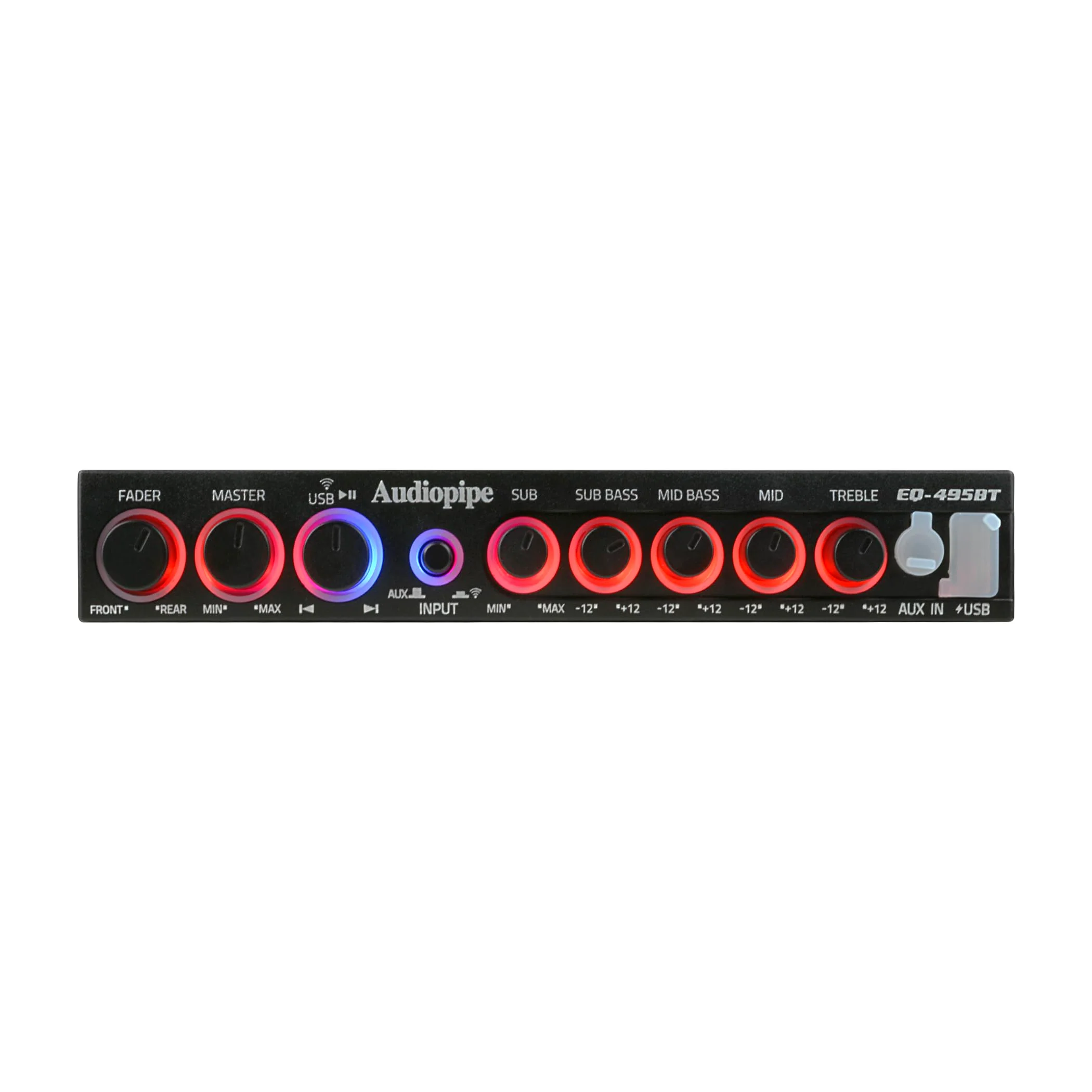

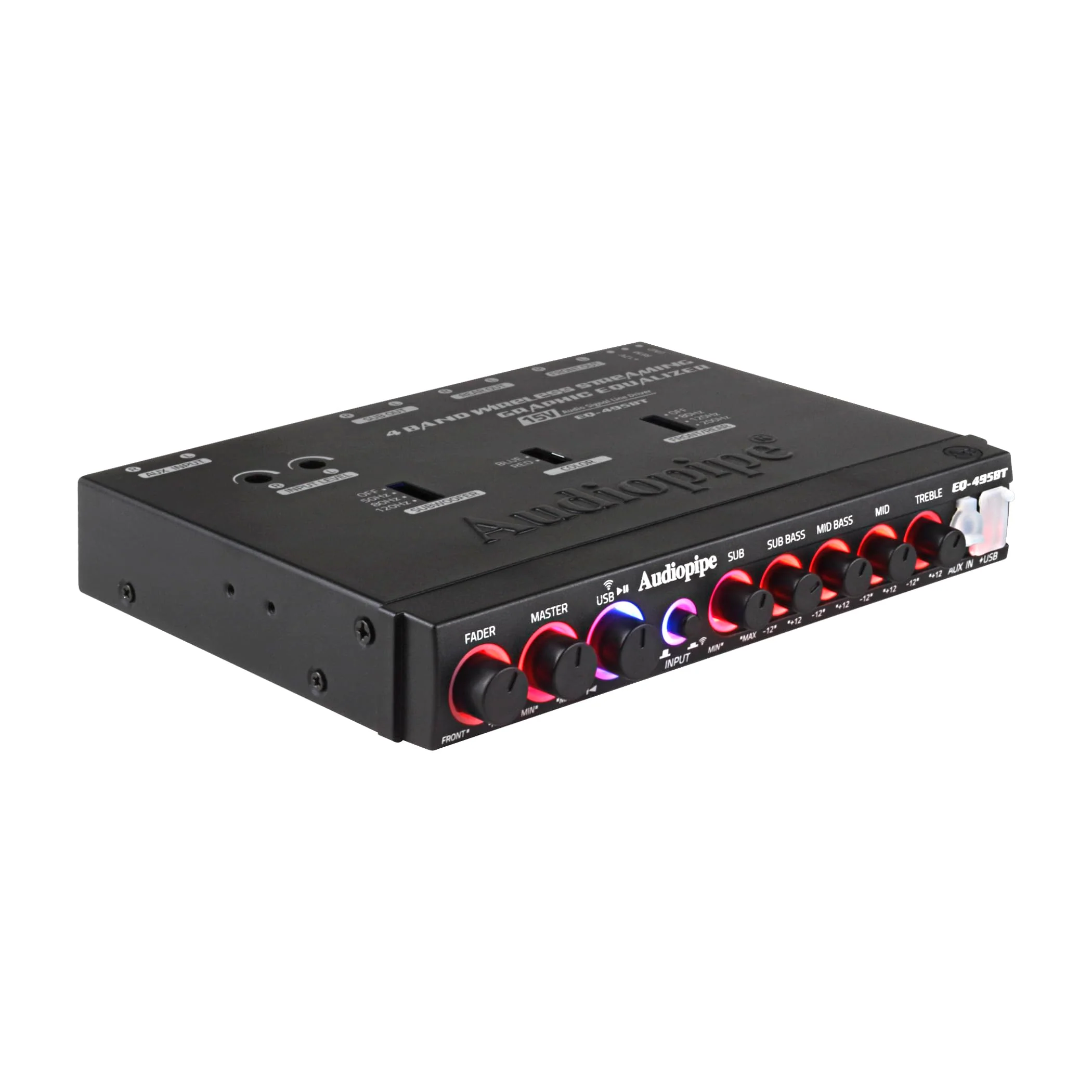

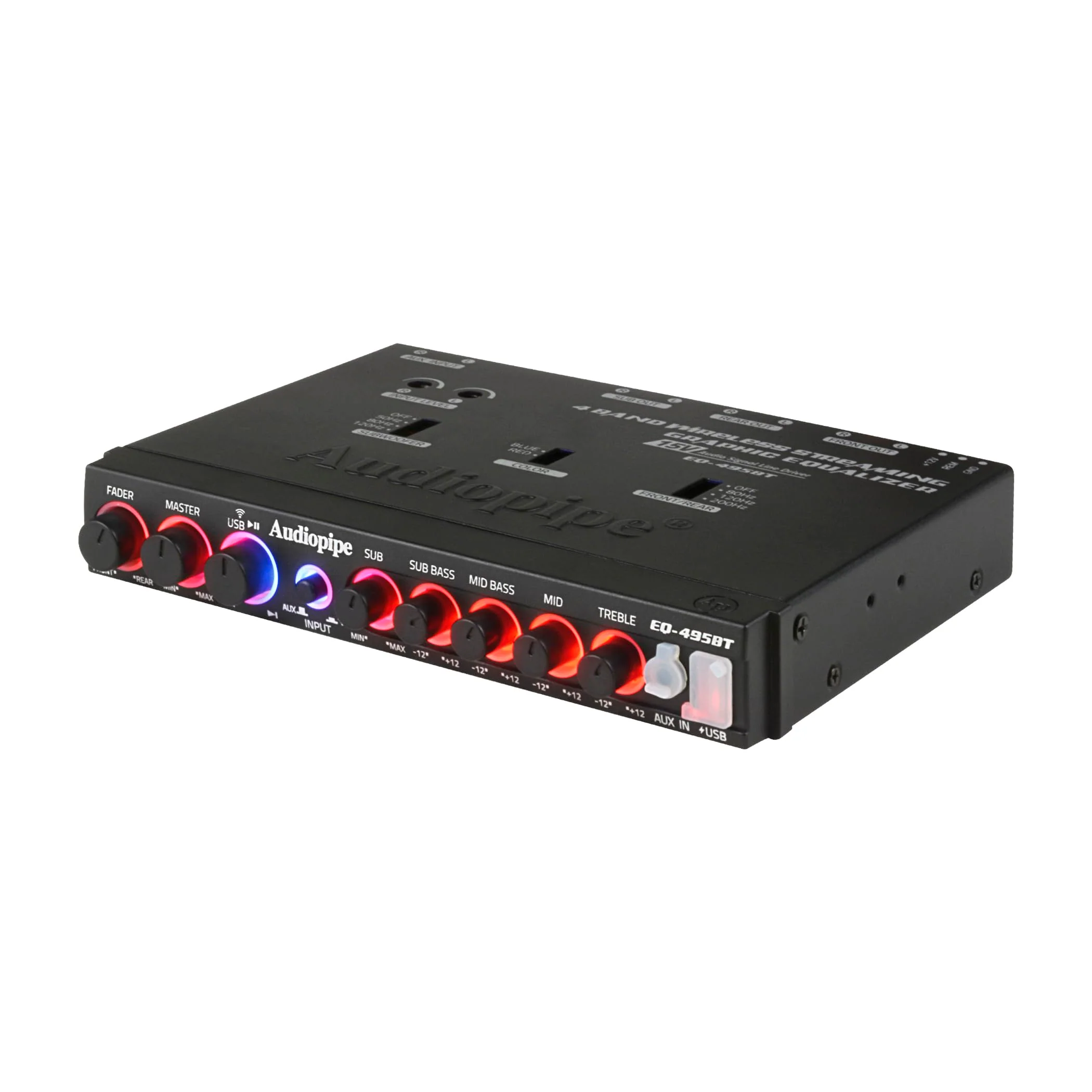

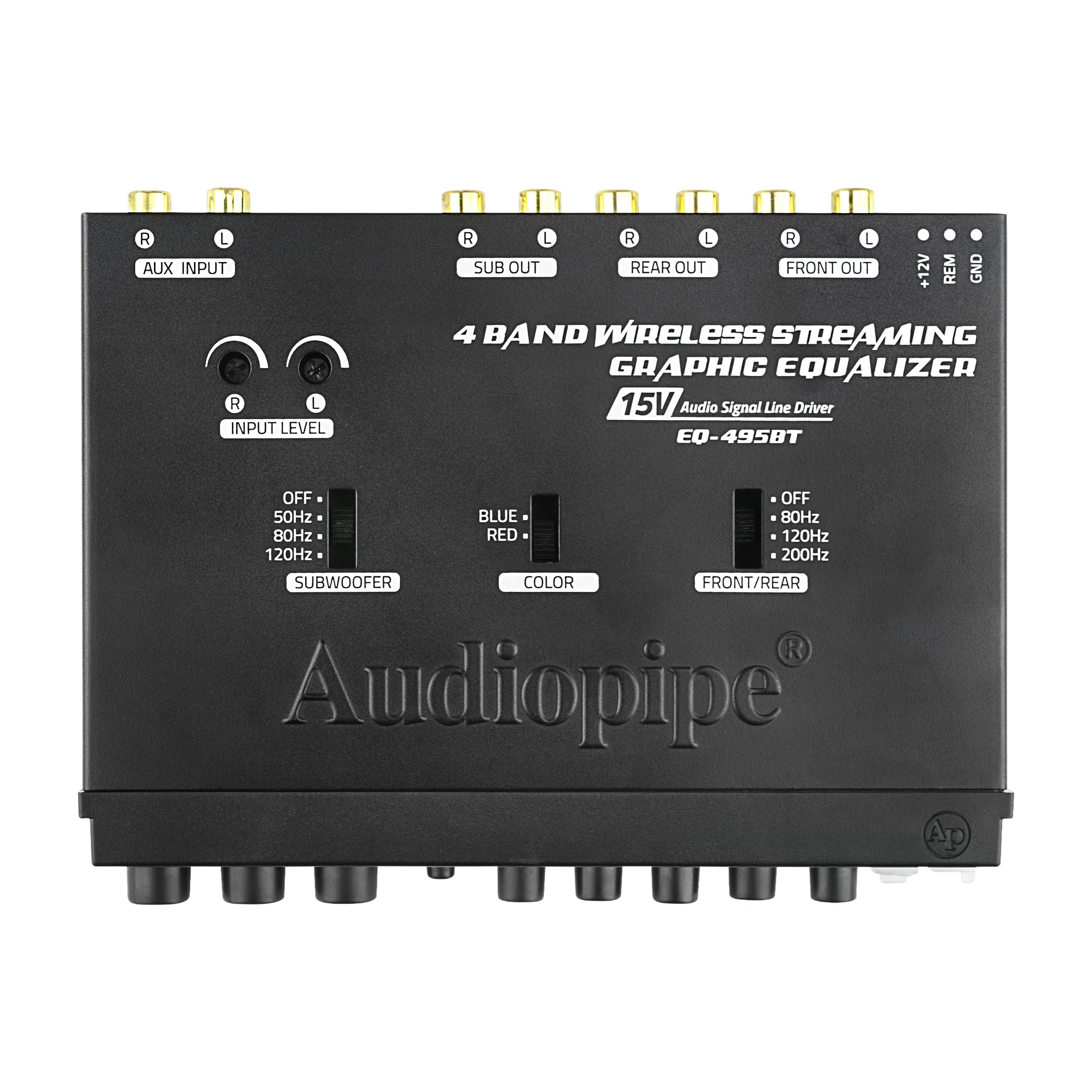

Audiopipe 4 Band 15V Half-Din Line Driver Wireless Streaming Equalizer EQ-495BT

This listing includes:

• (1) 4 Band 15 Volt Half-Din Line Driver Wireless Streaming Equalizer


• Installation Materials

Features:

• Four equalization bands (SUB BASS, MID BASS, MID, and TREBLE), each frequency adjustable from -12 to +12dB


• Subwoofer output uses a built-in 18dB per octave electronic crossover fixed at 50Hz, 80Hz, or 120Hz


• Three stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers


• Separate controls for master volume, subwoofer volume (sub level), front/rear fader, and selection of AUX input or wireless streaming


• Extended frequency response from 10Hz to 50kHz with exceptional 100dB signal-to-noise performance


• Gold-plated RCA connectors to ensure the best audio signal output


• ISO mounting holes and removable trim ring for custom installation


• Wireless music streaming

Specifications:

• Input Range of Gain Control: >40dB


• Maximum Input Voltage: >10V


• Input Impedance: >20kOhms


• Maximum Output Voltage: >15V


• Volume Gain: >40dB


• -3dB Low Pass Frequency: 50>80>120Hz


• -3dB High Pass Frequency: 80>120>200Hz


• Low Pass/High Pass Slope / OCT: 12dB


• Equalization Frequencies: 45>120>2200>12000Hz


• Equalization Cut or Boost: 18dB


• Distortion at 1kHz (1V): 0.01%


• Channel Separation at 1kHz (1V): >80dB


• Signal-to-Noise Ratio: >100dB


• Frequency Response (-1dB): 10Hz-50kHz
