• Precision Sound Control: 7-band graphic equalizer with adjustable subwoofer frequencies (60Hz/90Hz) for tailored audio performance.
• Enhanced Signal Performance: Active Gain Pre-Amplifiers with adjustable input sensitivity and individual left/right controls for auxiliary input.
• Multiple Output Options: Features a subwoofer output and three RCA stereo outputs for versatile system integration.
• Easy Installation & Durable Design: 1/2 DIN chassis with nickel-plated locking knobs and gold-plated RCA connectors for reliable, high-quality sound.

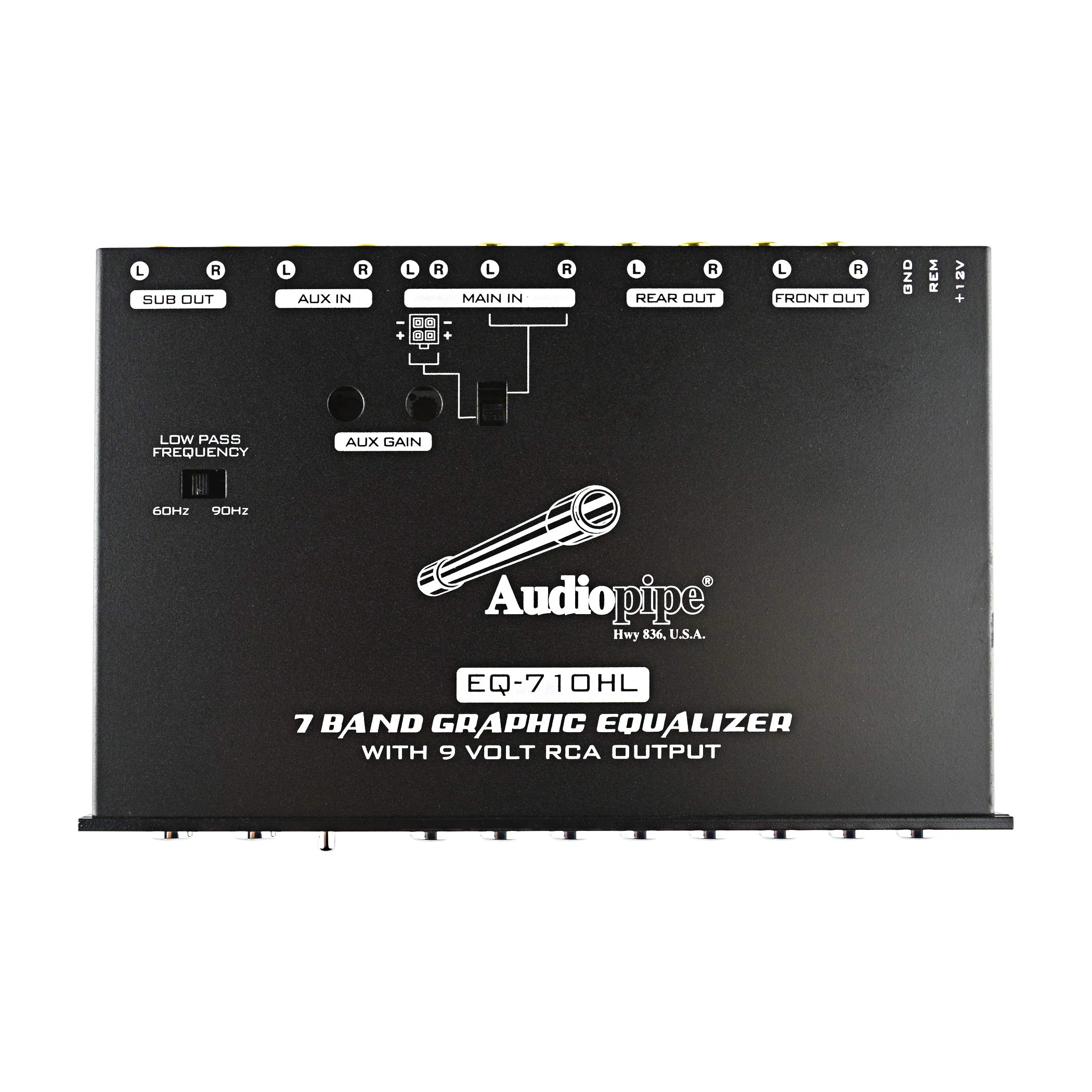

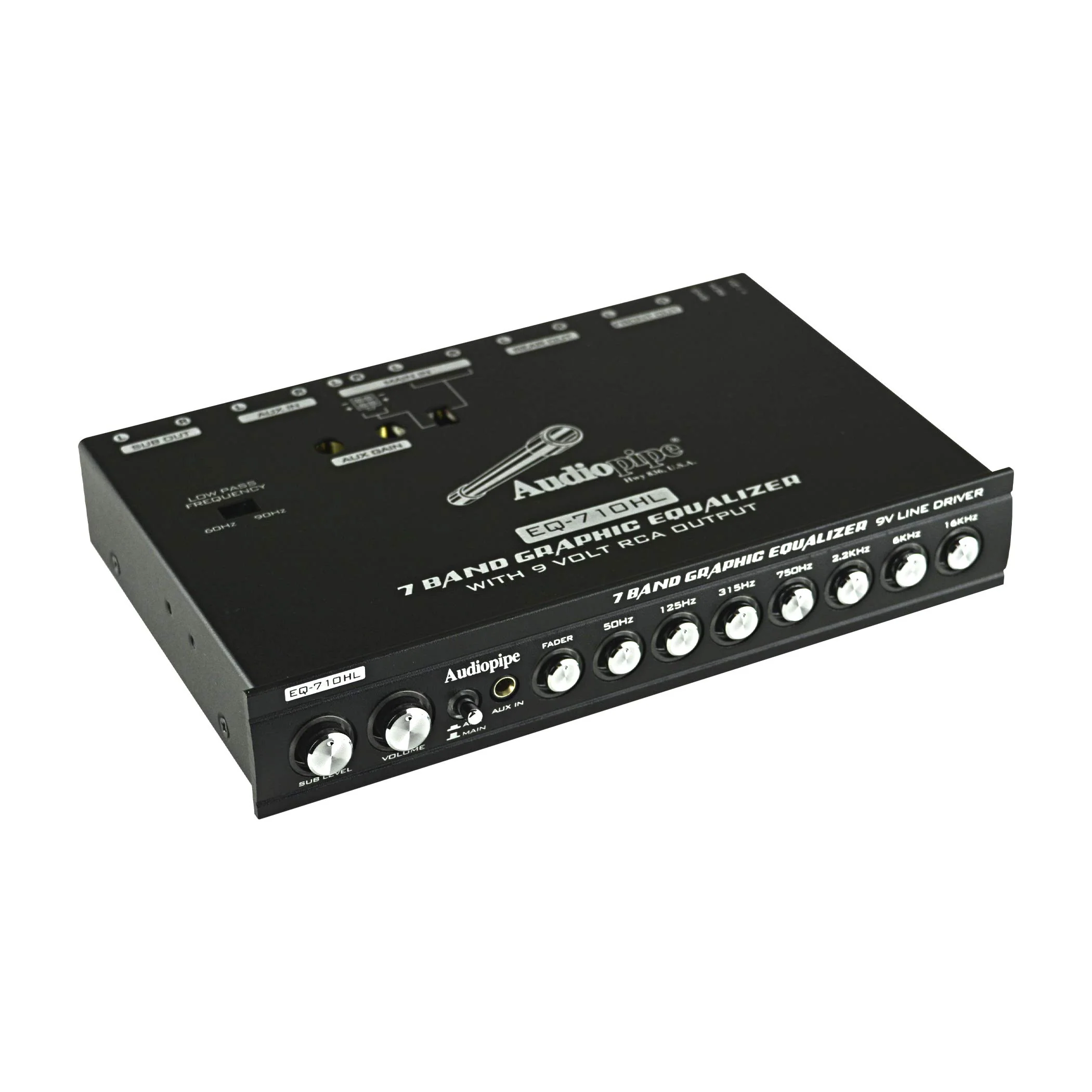

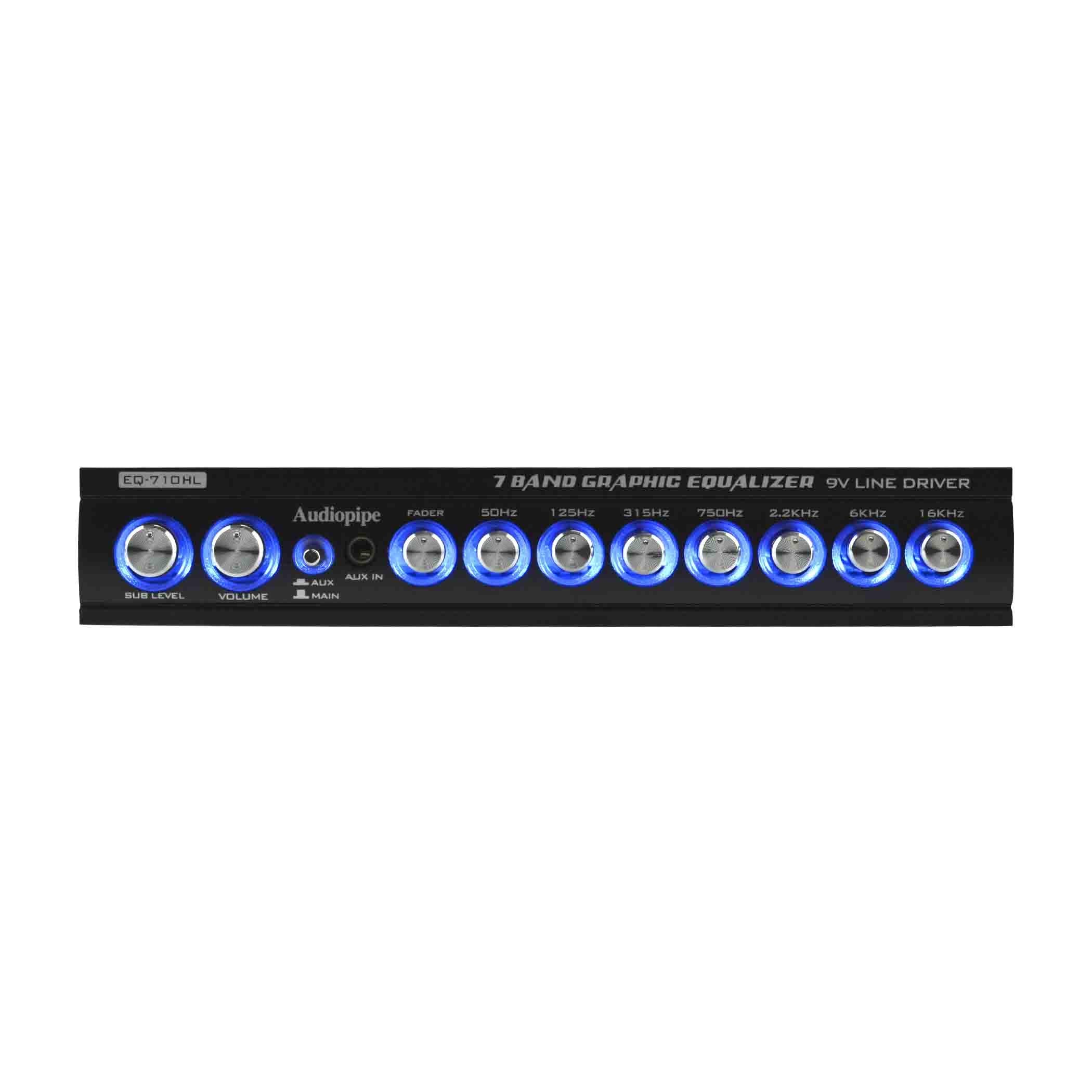

Audiopipe 7 Band 9 Volt Half-Din Line Driver Graphic Equalizer with Hi/Lo EQ-710HL

This Listing Includes:

• (1) 7 Band 9 Volt Half-Din Line Driver Graphic Equalizer with Hi/Lo


• Installation Materials

This Audiopipe 7 Band 9 Volt Half-Din Line Driver Graphic Equalizer with Hi/Lo EQ-710HL is the perfect addition to your car audio system. Designed for audiophiles and car audio enthusiasts, this equalizer lets you fine-tune your sound with precision. Featuring seven adjustable bands and the ability to tweak subwoofer frequencies (60Hz/90Hz), it ensures your system delivers optimal audio performance. With a durable 1/2 DIN chassis and easy installation, the EQ-710HL is ready to bring professional-grade audio control to your vehicle.

Features

• Precision Sound Control: 7-band graphic equalizer with adjustable subwoofer frequencies (60Hz/90Hz) for tailored audio performance.


• Enhanced Signal Performance: Active Gain Pre-Amplifiers with adjustable input sensitivity and individual left/right controls for auxiliary input.

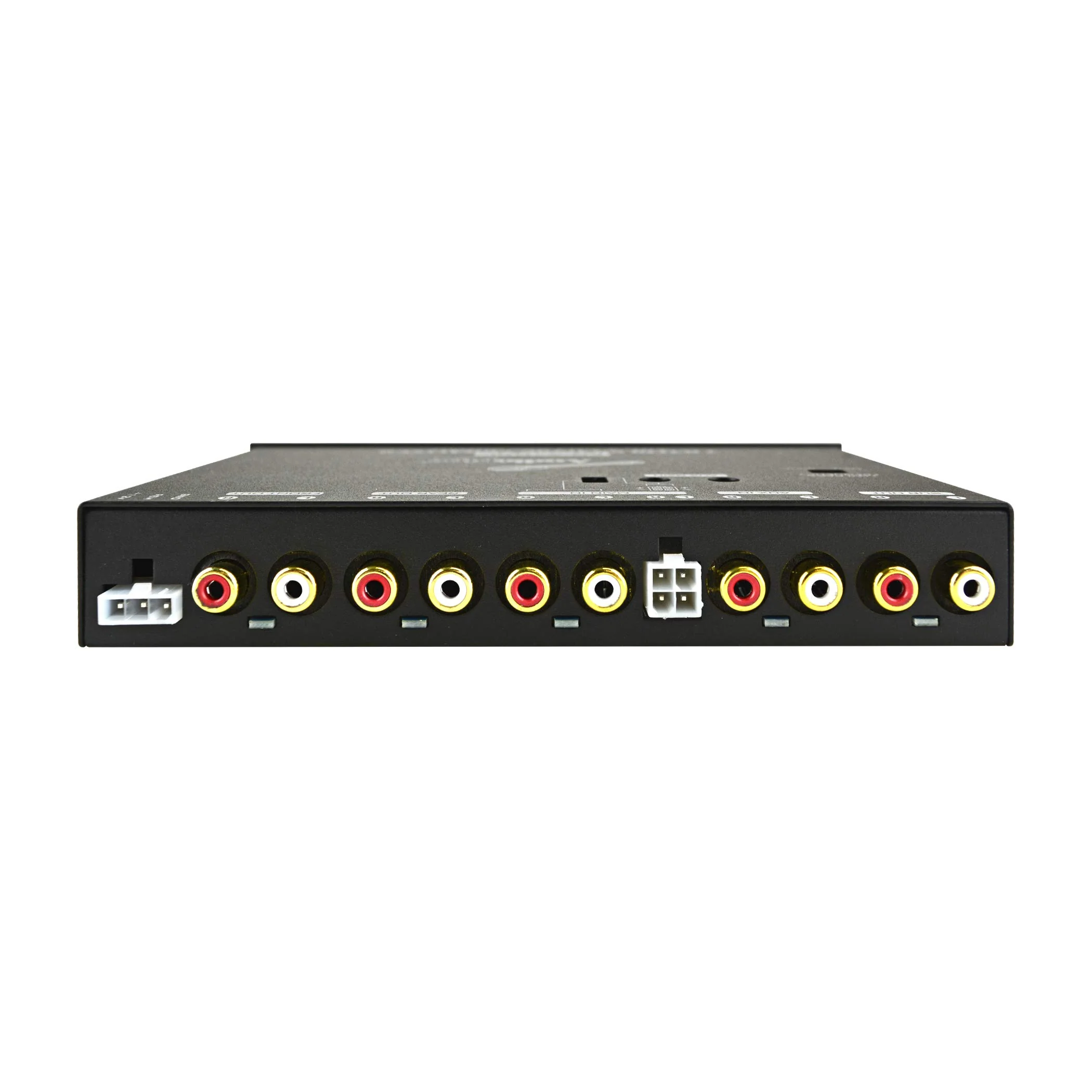

• Multiple Output Options: Features a subwoofer output and three RCA stereo outputs for versatile system integration.


• Easy Installation & Durable Design: 1/2 DIN chassis with nickel-plated locking knobs and gold-plated RCA connectors for reliable, high-quality sound.

Specification

• Input Range of Gain Control: >40dB


• Maximum Input Voltage: >10V


• Input Impedance: >20kOhms


• Maximum Output Voltage: >15V


• Volume Gain: >40dB


• -3dB Low Pass Frequency: 50>80>120Hz


• -3dB High Pass Frequency: 80>120>200Hz


• Low Pass/High Pass Slope/OCT: 12dB


• Equalization Frequencies: 45>120>2200>12000Hz


• Equalization Cut or Boost: 18dB


• Distortion at 1kHz(1V): 0.01%


• Channel Separation at 1kHz(1V): >80dB


• Signal to Noise Ratio: >100dB


• Frequency Response(-1dB): 10Hz-50kHz

Dimensions:

• Length: 7 inches


• Width: 5 inches


• Height: 2 inches


• Weight: 1.15 lbs
