• Precise Control: Use the built-in knob or encoder with the LCD screen for easy adjustment of settings.
• 12-Band Equalizer: Fine-tune your audio with a 12-band graphic equalizer for ultimate sound customization.
• Advanced Audio Processing: Equipped with a 32-bit digital audio processor for superior input and output management.
• Accurate Frequency Definition: Define cutoff and attenuation frequencies with pinpoint precision for optimal sound performance.

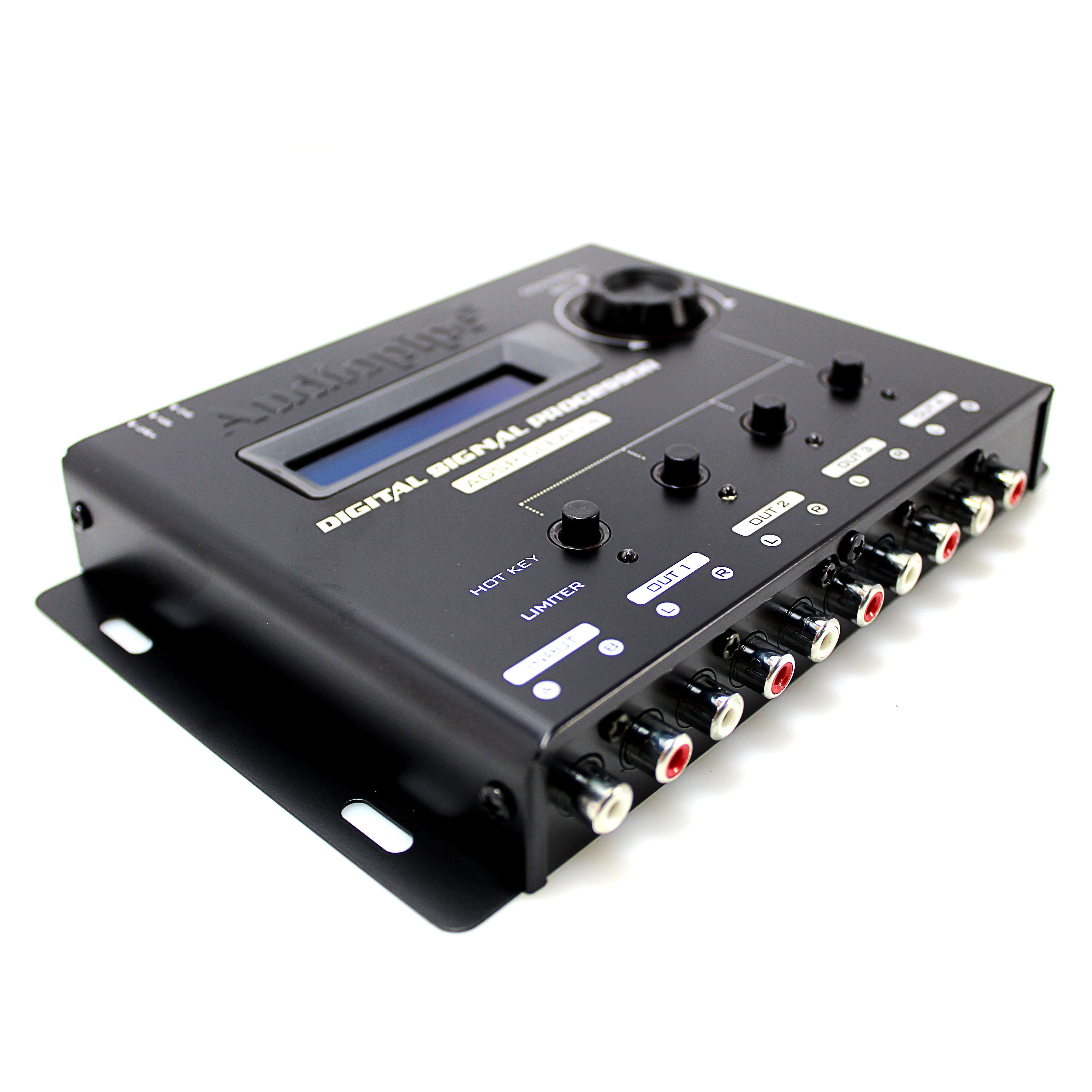

Digital 1 in / 4 out Signal Processor Audiopipe ADSP-CLEAN-4

This listing includes

• (1) ADSP-CLEAN-4 Digital Processor


• (4) Installation Screws

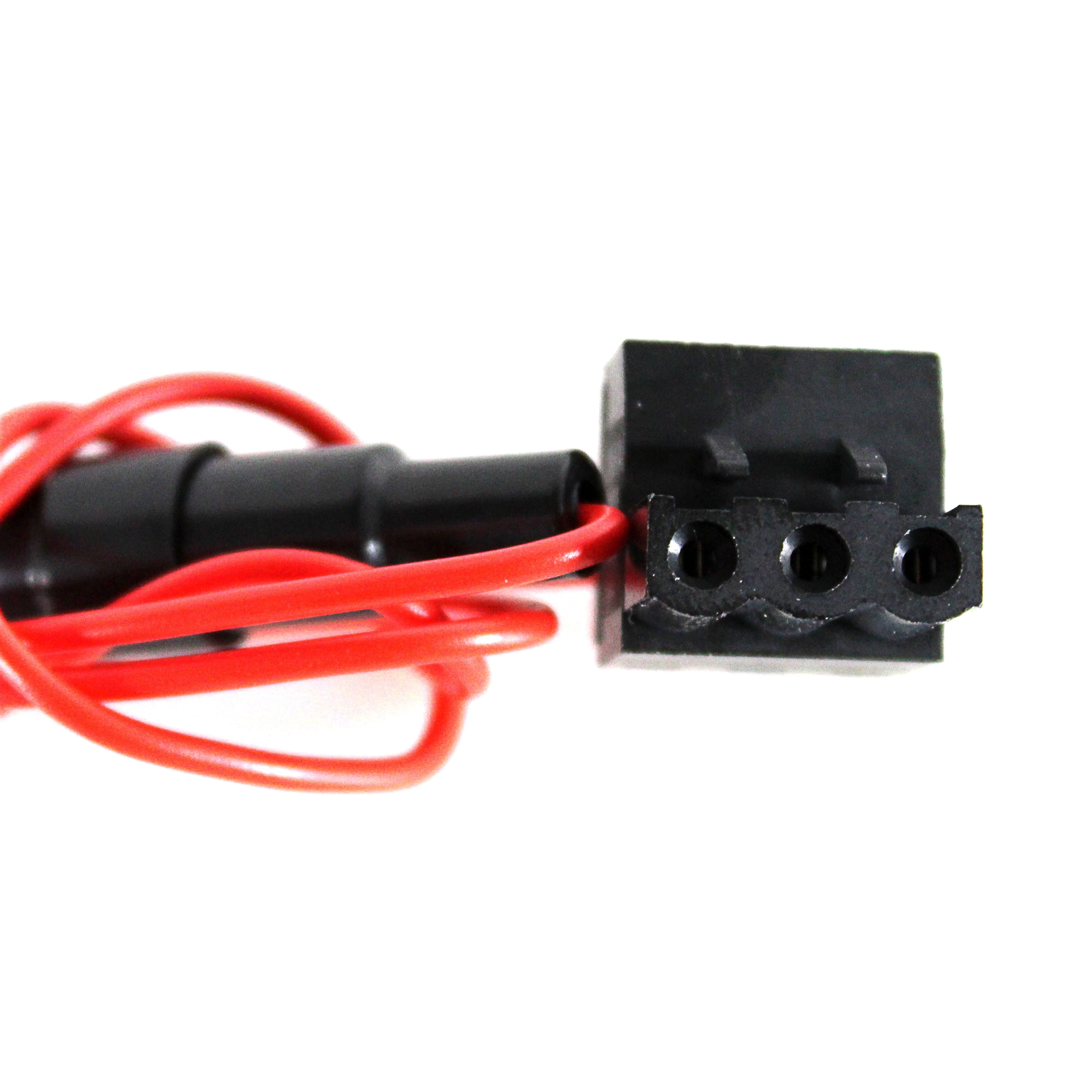

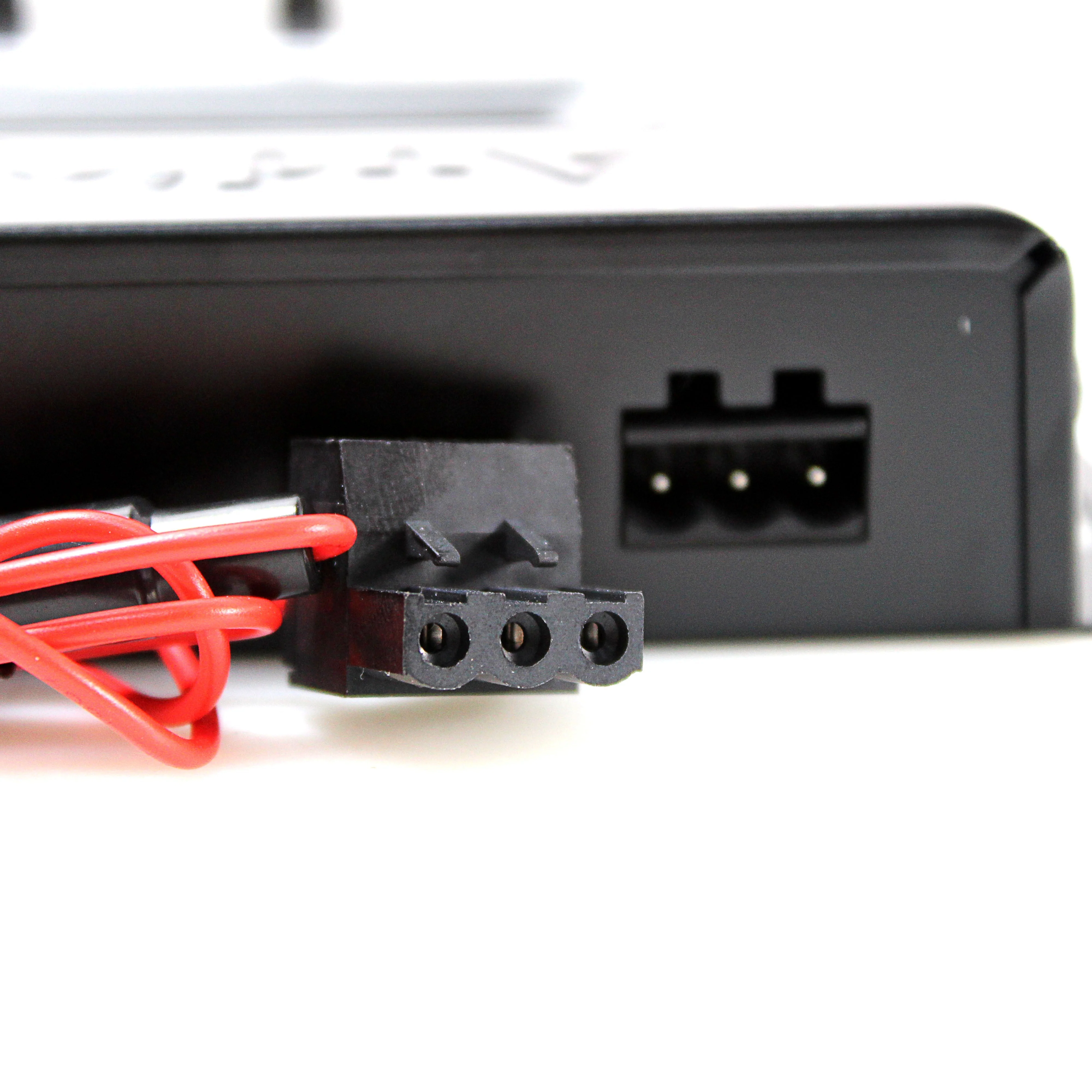

• (1) Connector

The Audiopipe ADSP-CLEAN-4 is a cutting-edge Digital 1 in / 4 out Signal Processor designed to revolutionize your car audio system. Engineered for precision, this versatile processor offers a single input that can be split into four independent outputs, allowing you to tailor your soundstage with incredible accuracy. Whether you're driving a simple setup or a complex multi-amp configuration, the ADSP-CLEAN-4 delivers pristine audio quality, ensuring every note and beat is crystal clear. Perfect for those who demand nothing but the best, this signal processor is your key to achieving a perfectly balanced and powerful audio experience on the road.

Features

• Precise Control: Use the built-in knob or encoder with the LCD screen for easy adjustment of settings.


• 12-Band Equalizer: Fine-tune your audio with a 12-band graphic equalizer for ultimate sound customization.


• Advanced Audio Processing: Equipped with a 32-bit digital audio processor for superior input and output management.


• Accurate Frequency Definition: Define cutoff and attenuation frequencies with pinpoint precision for optimal sound performance.

Input and Output Processing

• 12 Band Graphic Equalizer


• Tone Generator


• Precisely Define the Cutoff and Attenuation Frequencies


• Measures real-time battery voltage at push of a button.


• Master mute function at the push of a button

Specification

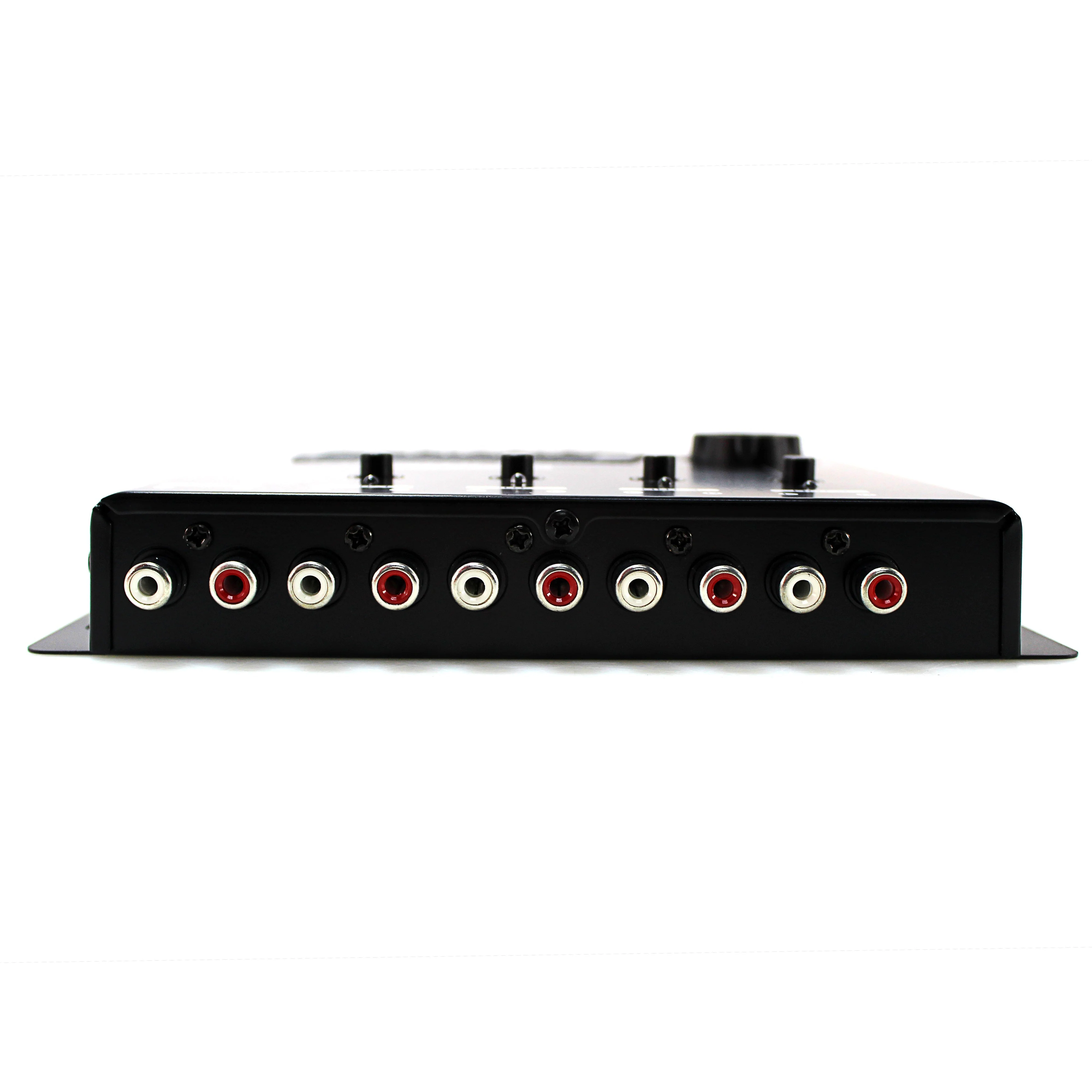

• Inputs: 1 RCA


• Outputs: 4 RCA


• Input Impedance: 10K


• Output Impedance: 47 Ohms


• Signal to Noise Ratio: >90dB


• Total Harmonic Distortion (THD): <0.01%


• Channel Separation: >80dB


• Frequency Response: 10Hz - 22,000Hz


• Tone generator: Freq: 10  22,000Hz, Gain 0 at -60dB


• Frequency Sweep: 10 to 22,000Hz, Gain: 0 at -60dB, 3 Sweep Speeds

Common Controls

• Master Level (Volume Control): 0-100%


• Graphic Equalizer: 12 bands at 2/3 Octave, Boost  12dB


• Presets: 12 presets


• Input Parametric Equalizer: Freq: 10  22,000Hz, Gain: -12 to +12db, Q: 0.4 to 10

Controls for the 4 Outputs

• Routing: A, A+B, B


• Output Parametric Equalizer: Freq: 10  22,000Hz, Gain: -12 to +12db, Q: 0.4 to 10


• Crossover: Freq: 10  22,000Hz, Attenuation: BW 12,18,24 db/8th and LR


• 12,24,36,48 db/8th


• Delay: 0 to 8ms (0 to 275cm)


• Phase: 0 to 180


• Limiter: Threshold: 0 to -24db, Attack: 0.1 to 100ms, Release: 1 to 1600ms.


• Output Gain: -45 to +15db


• Mute: ON-OFF

Presets

• Memory: 1 to 5

Security

• Block/Unblock:  Password: 4 Alpha Numeric Character


• Factory Reset:  Yes


• Language: English / Spanish

Technical Specifications

• Input Impedance: 10 K


• Output Impedance: 47 Ohms


• Signal to Noise Ratio: >90db


• Total Harmonic Distortion (THD) : <0.01%


• Channel Separation: >80db


• Frequency Response: 10Hz to 22,000Hz


• Input Voltage: 5.6 Vpp


• Max. Output Voltage: 5.6 Vpp


• Current Consuption: 360 mA at 12.5V

Item Dimension in inches

• Length:  5.5 inches


• Width:  7.5 inches


• Height:  1.5 inches


• Weight : 1.5 pounds
