• Enhanced Sound Quality: Fine-tune your audio to perfection with 9 adjustable frequency bands.
• Powerful Signal Boost: 9V line driver delivers a robust, distortion-free audio signal.
• User-Friendly Interface: Intuitive controls and LED display make adjustments straightforward and accessible.
• Versatile Compatibility: Works with both 12V and 24V systems, suitable for a wide range of vehicles.
• Comprehensive Connectivity: Multiple input sources, including RCA, ensure you can connect all your audio devices effortlessly.

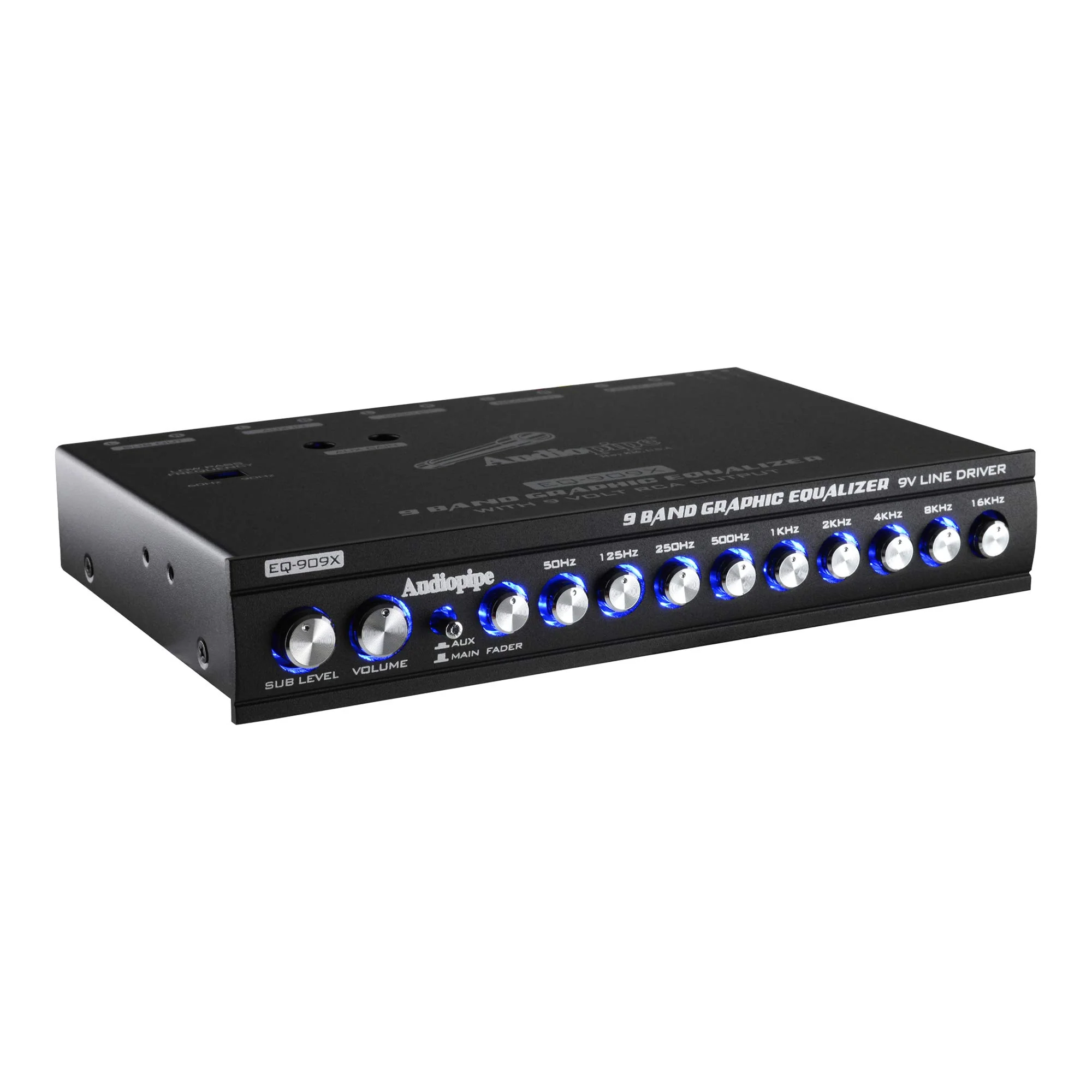

Audiopipe In-Dash 9 Band Graphic Equalizer w/ 9V Line Driver / EQ-909X

This Listing Includes:

• (1) EQ-909x Equalizer

Description:

Experience unparalleled audio control with the Audiopipe In-Dash 9 Band Graphic Equalizer with 9V Line Driver. This powerful device puts you in command of your car audio system, allowing you to fine-tune your sound to perfection. Featuring a sleek, user-friendly interface and robust construction, the Audiopipe equalizer ensures superior performance and durability. Whether you're a casual listener or an audiophile, this equalizer will elevate your in-car audio experience to new heights.

Features:

The EQ-909X is a 9-band stereo equalizer/crossover specifically created for the mobile environment. The EQ-909X provides powerful features in a compact size:

• Nine equalization bands (50 Hz, 125 Hz, 250 Hz, 500 Hz, 1 KHz, 2 KHz, 4 KHz, 8 KHz, and 16 KHz), each frequency adjustable from -12 to +12 dB (-15 to +15dB for subwoofer frequencies)

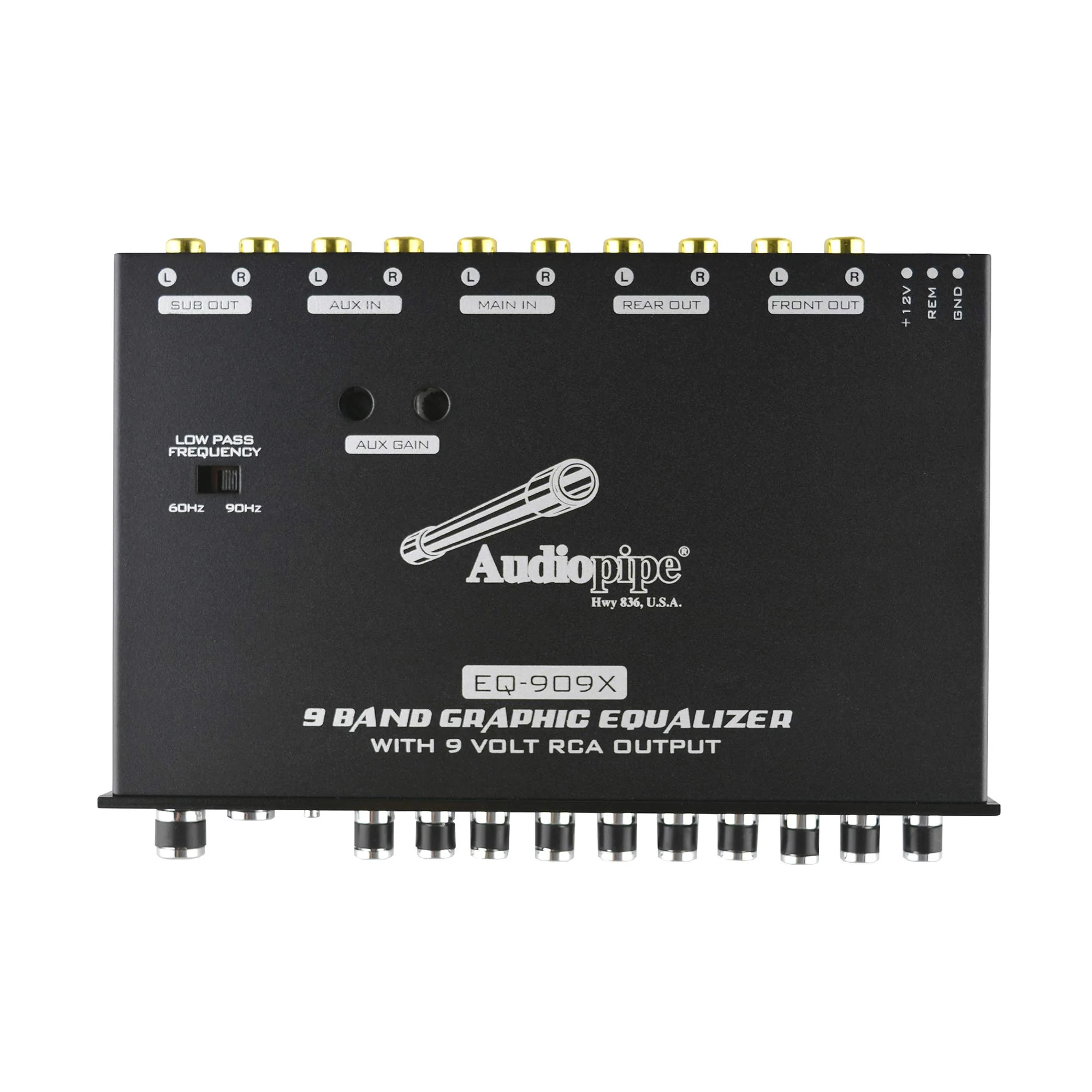

• Subwoofer output uses a built in 18 dB per octave electronic crossover fixed at 60 Hz or 90 Hz.

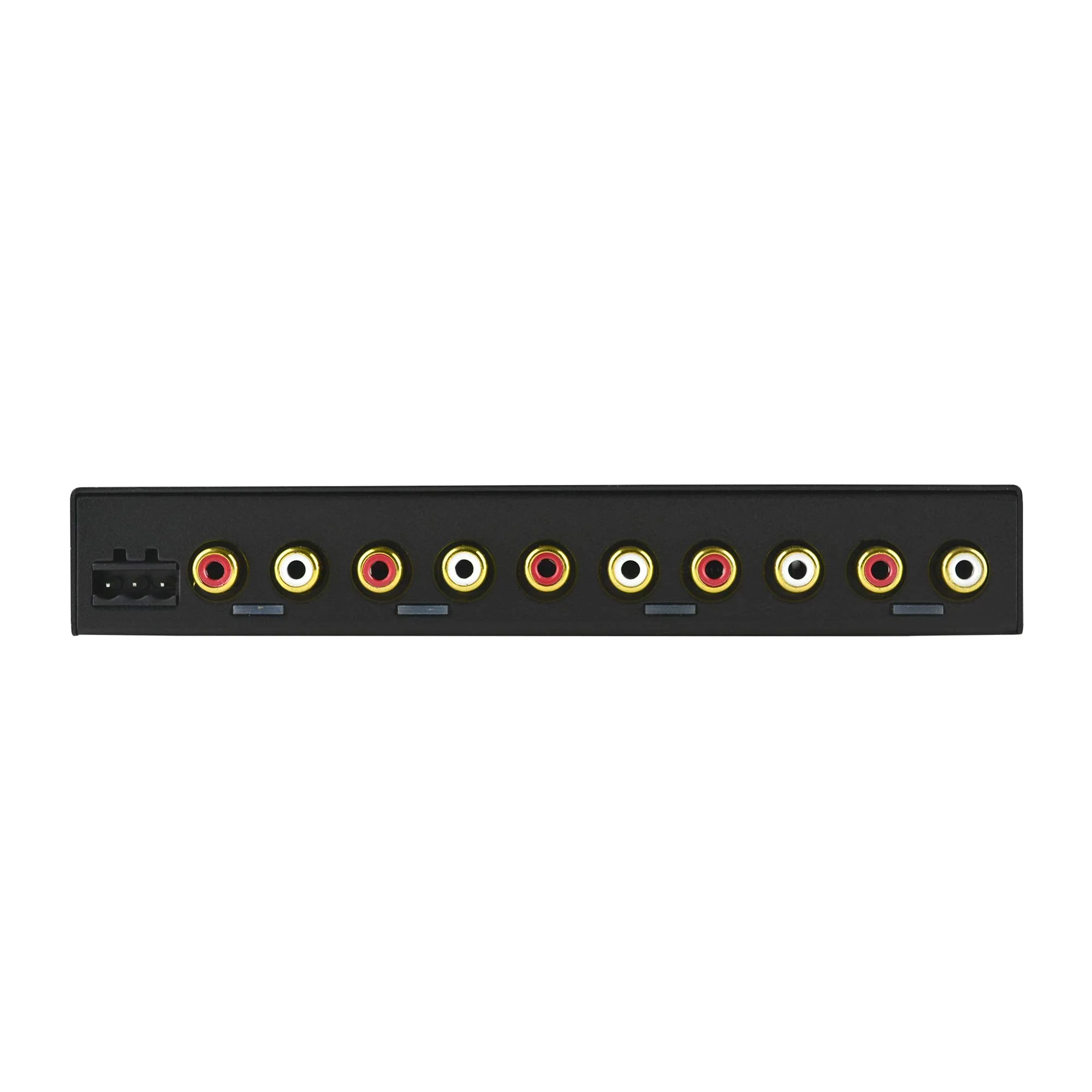

• Three stereo RCA outputs to drive front, rear and subwoofer audio amplifiers


• An auxiliary stereo RCA input for use with portable devices, such as an MP3 player or DVD player

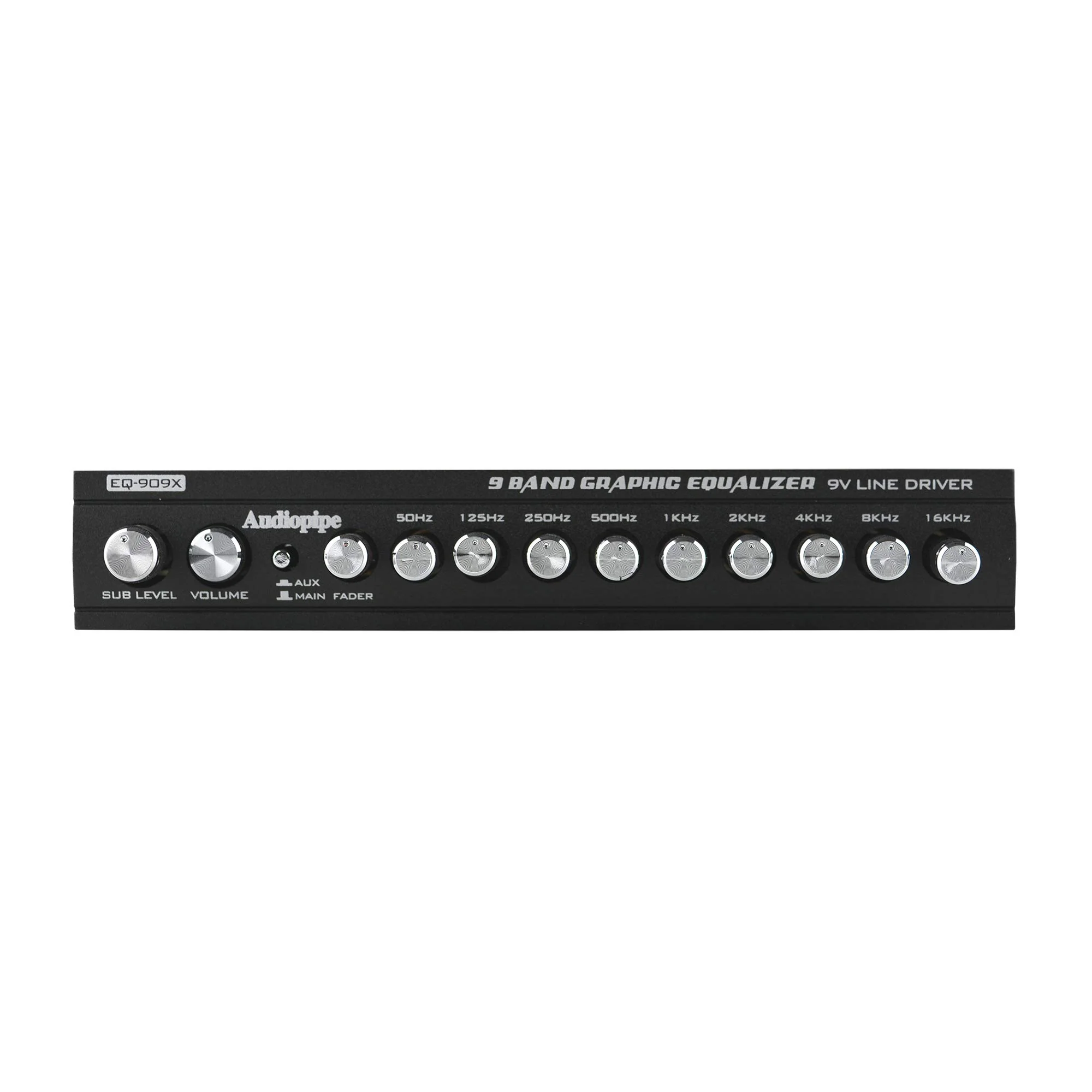

• Separate controls for master volume, subwoofer volume (sublevel), front/rear fader, and selection of main or auxiliary inputs


• Extended frequency response from 20 HZ to 30 KHz with exceptional 100dB signal to-noise performance


• Gold-plated RCA connectors to ensure the best audio signal output


• ISO mounting holes and removable trim ring for custom installation

Specifications:

• Graphic Center Frequencies: 50 Hz, 125 Hz, 250 Hz, 500 Hz, 1 KHz, 2 KHz, 4 KHz, 8 KHz, 16 KHz


• Boost/Cut: 12 dB


• S/N Ratio: 100 dB


• Frequency Response: 10 Hz - 50 KHz +/- 1 dB


• Maximum Output Voltage: 9V


• THD: 0.005 %


• Input Sensitivity: 50 mV  - 3V


• Head Room: 20 dB


• Input Impedance: 2k Ohms


• Output Impedance: 2k Ohms


• Stereo Separation: 852 dB / 1 KHz


• Operating Voltage: 11V - 15V negative ground

Measurements:

• Equalizer: 6.85 x 4.38 x 1.08 in


• Faceplate: 7 x 1.2 x 0.1 in

Package Dimension:

• Weight: 1.75 lb


• 9 x 7.75 x 2 in
