• Clear, Distortion-Free Sound – Converts high-level signals to low-level outputs for crisp, clean audio.
• Automatic Amplifier Activation – Built-in 12V remote turn-on powers your amps when an audio signal is detected.
• Compact & Rugged Design – Small yet durable, easily fits into your setup while providing long-lasting performance.
• Dual-Channel Support – Handles two audio sources simultaneously, perfect for upgrading your stereo system.
• Easy Installation – Connects with ease and gets your system up and running in no time.

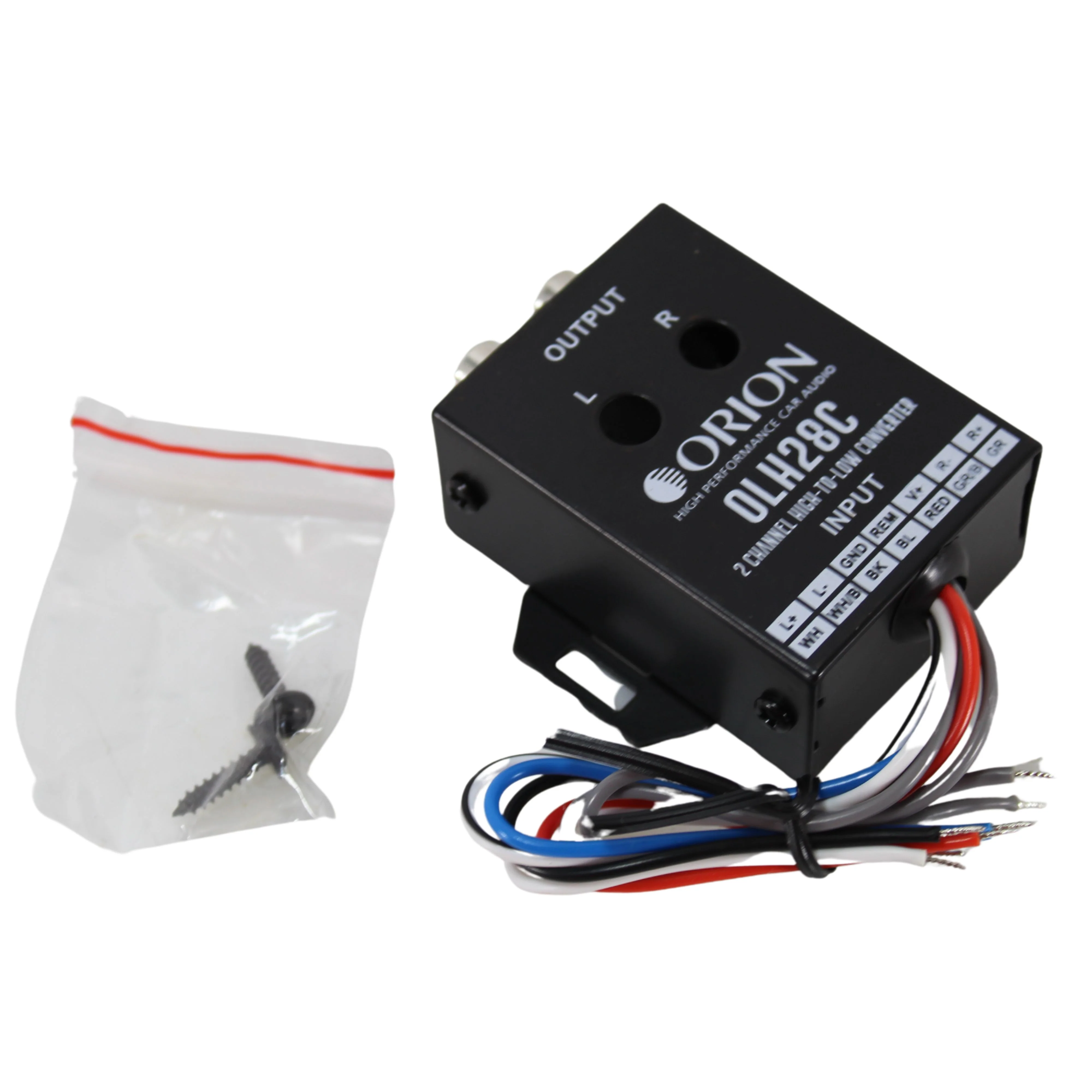

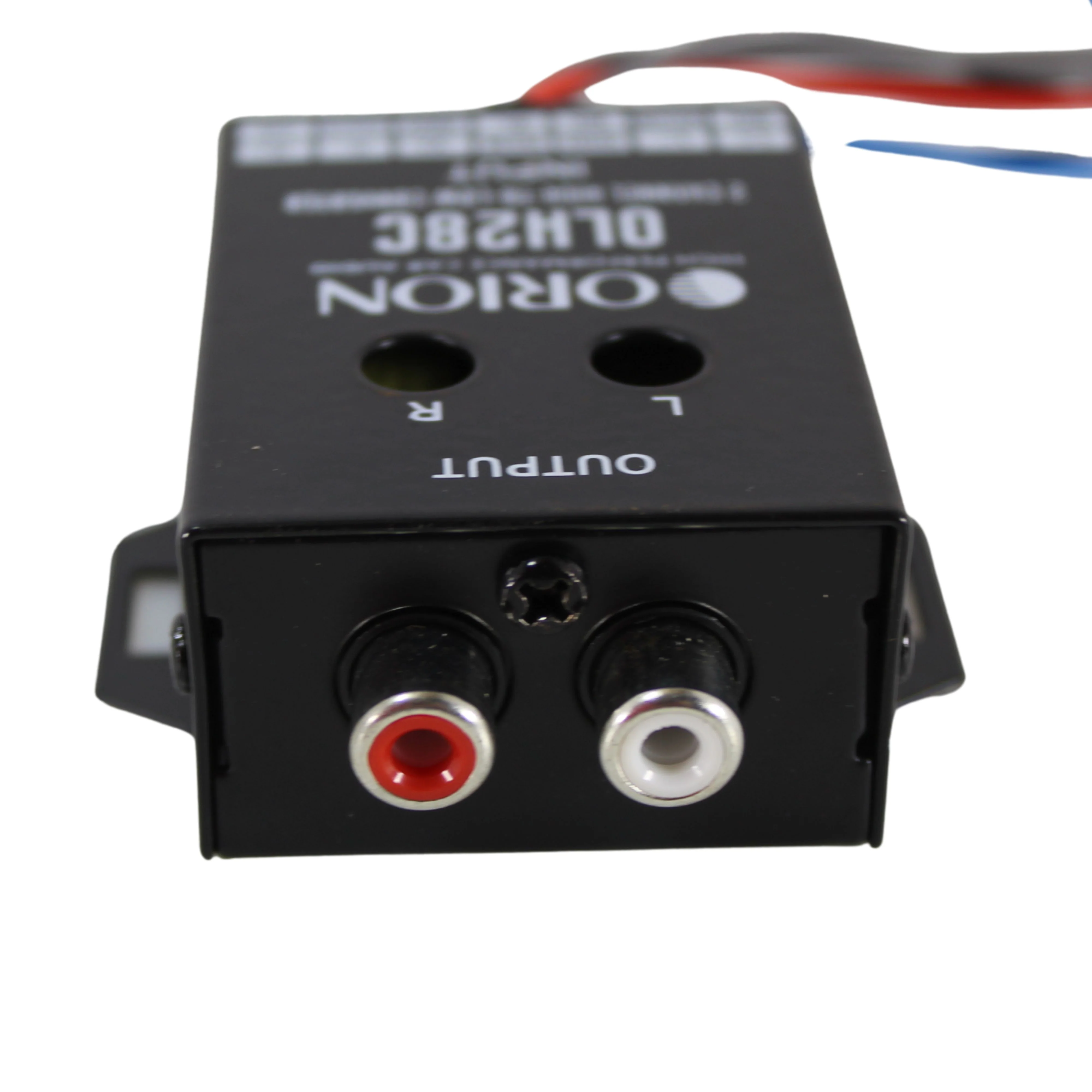

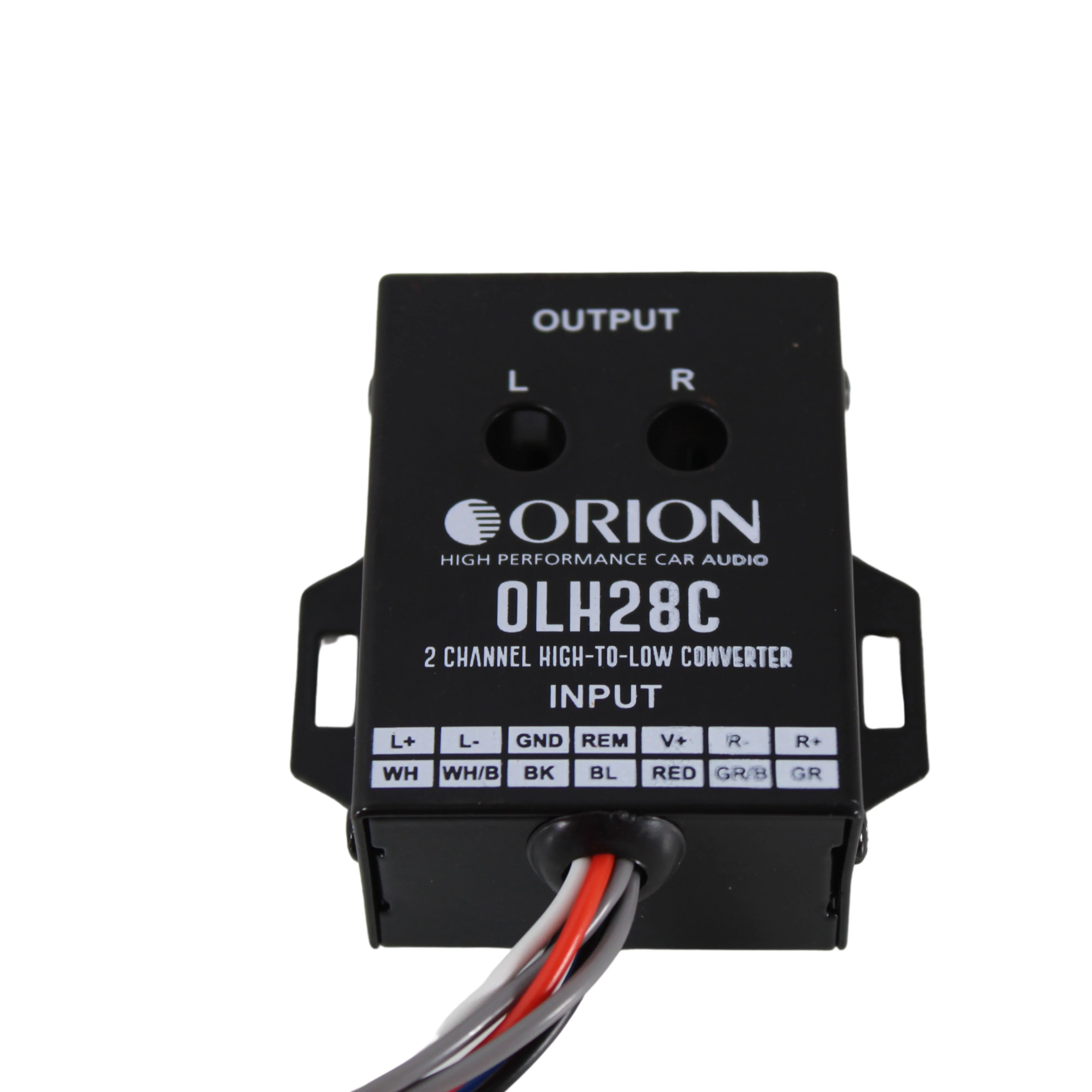

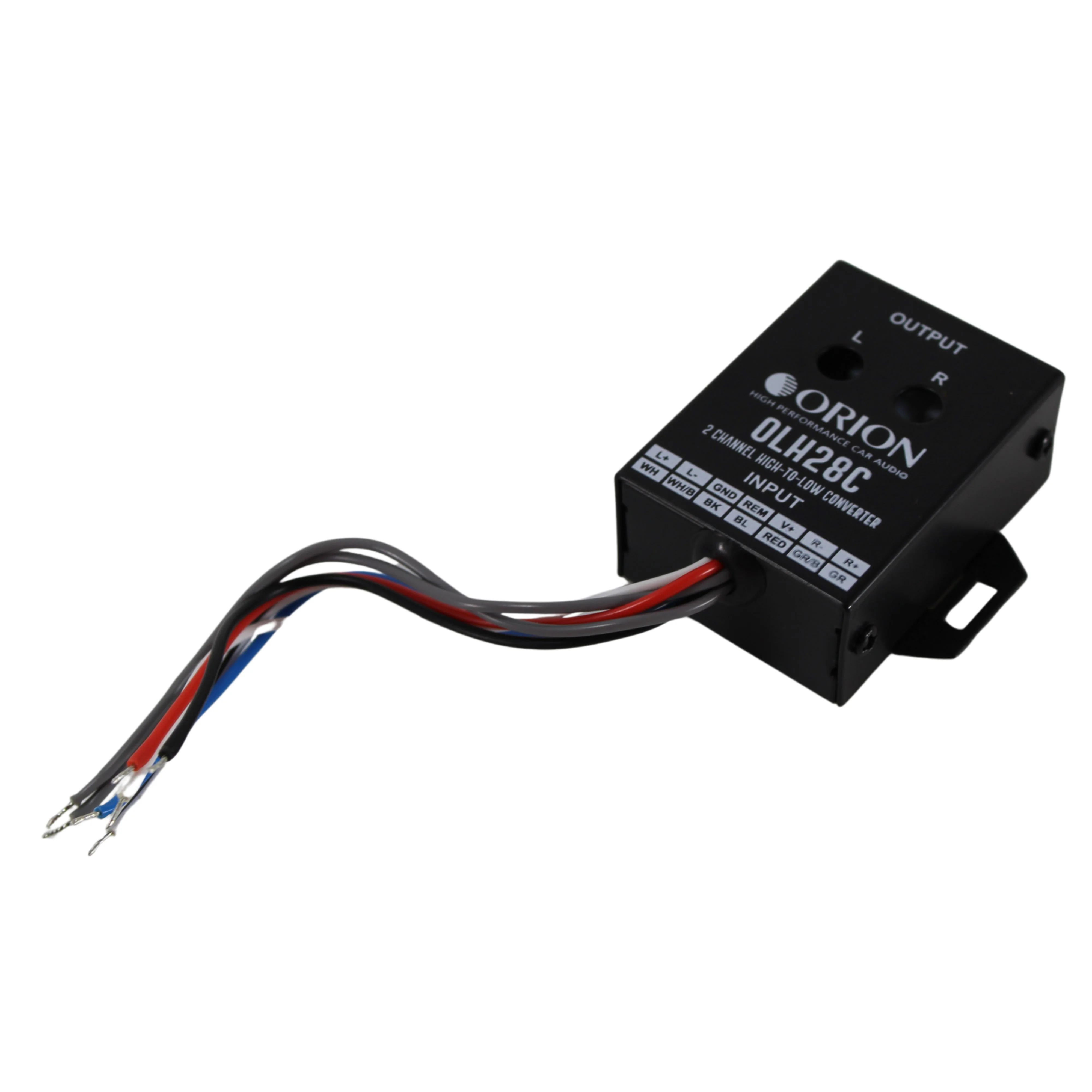

Auto Start 2 Channel High to Low RCA Level Converter w/ Built-In 12V Remote

This Listing Includes:

• (1) Auto Start 2 Channel High to Low RCA Level Converter w/ Built-In 12V Remote

Tired of distorted sound and lackluster audio performance? The ORION OLH28C 2 Channel High to Low Converter is here to transform your car audio experience. With its seamless signal conversion and built-in 12V remote turn-on feature, this compact device ensures crystal-clear sound and hassle-free connectivity for your amplifiers. Setting up the OLH28C is a breeze! Simply connect the high-level input from your head unit, the low-level output to your amplifier, and the remote turn-on wire for seamless activation. Ready to roll in no time!

Key Features:

• High to Low Signal Conversion – Converts high-level signals from your head unit into low-level RCA outputs, ensuring clean, distortion-free sound.


• Built-in 12V Remote Turn-On – Powers your amplifiers automatically when an audio signal is detected, eliminating the need for manual switches.


• Dual-Channel Support – Handles signals from two audio sources at once, perfect for upgrading your stereo system.


• Compact and Durable Design – A rugged metal housing that fits easily into your setup while delivering reliable performance.


• Adjustable Input Sensitivity – Allows customization for optimal signal clarity and audio balance.

Specifications:

• Input Voltage: 11-15V DC


• Maximum Input: 50 watts


• Input Impedance: 15K ohms


• Signal-to-Noise Ratio (S/N): 90dB


• Total Harmonic Distortion (THD): 0.05%


• Channel Separation: 70dB


• Frequency Response: 10Hz-50kHz, -3dB


• Dimensions: Approx. 2.13"W x 2.24"L x 0.9"H

Easy Installation

Setting up the OLH28C is a breeze! Simply connect the high-level input from your head unit, the low-level output to your amplifier, and the remote turn-on wire for seamless activation. Ready to roll in no time!
