• High-Voltage 7V RMS Output – Drives amplifiers with a strong, clean signal for louder, distortion-free performance across your entire system.
• 4-Band Graphic Equalizer – Fine-tune your sound with ±9dB of boost or cut across four key frequency ranges for precise tonal balance.
• Precision Subwoofer Control – Independent sub level adjustment and adjustable 40Hz–250Hz crossover deliver deep, accurate low-end response.
• Advanced Signal Optimization – Active gain equalization, MAIN/AUX input switch, and gold-plated RCA connections ensure maximum clarity and flexibility.
• User-Friendly Design – Backlit knobs, front/rear fader control, and rugged metal construction make tuning easy and reliable in any setup.

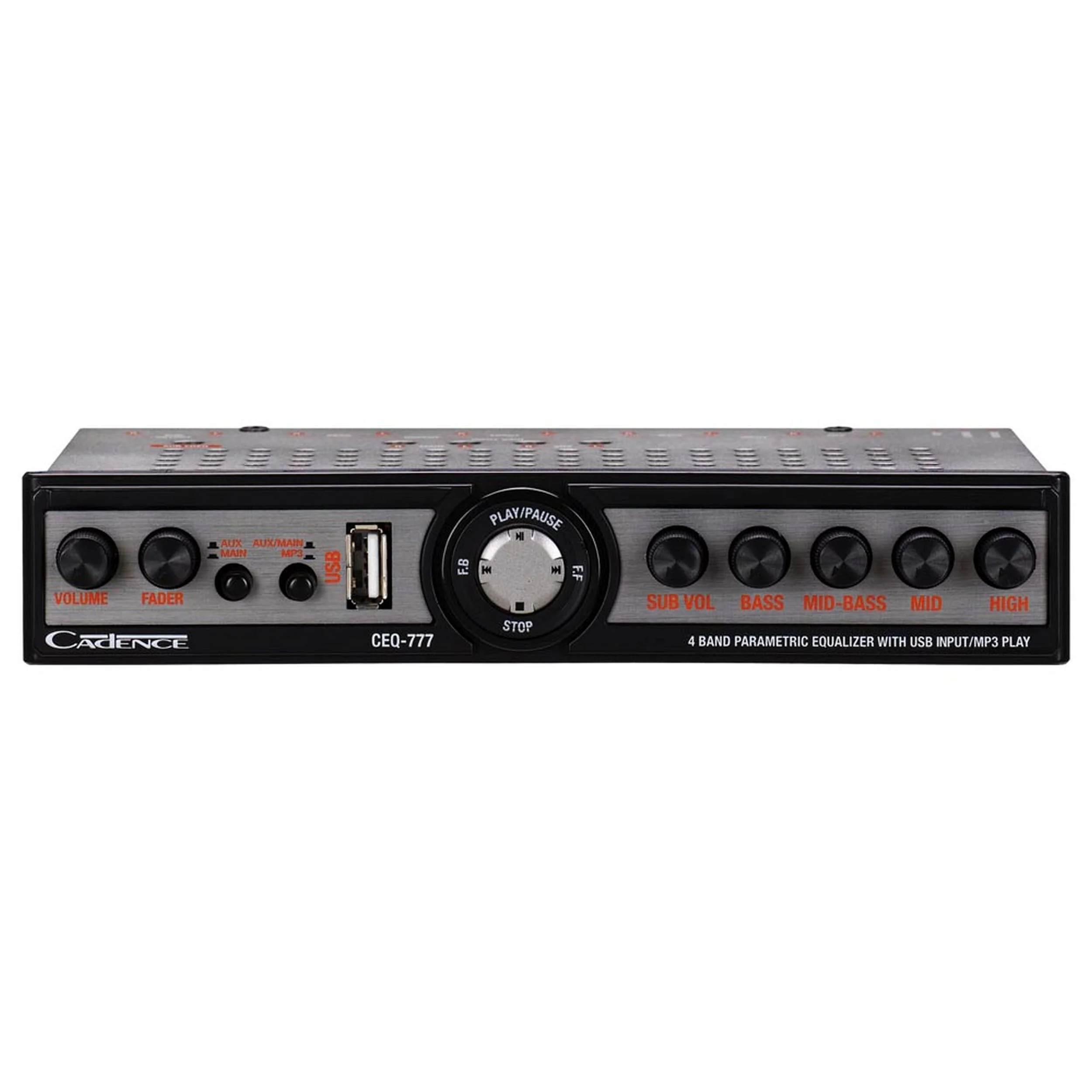

Cadence 7V Line Driver 4-Band EQ, Subwoofer Control, Adjustable Crossover CEQ777

This Listing Includes:

• (1) Quartz Core CEQ777 7V Line Driver with 4-Band Equalizer

Description:

The Quartz Core CEQ777 is engineered to bring pure signal strength and clarity to your car audio system. Delivering a powerful 7V RMS output, this advanced line driver eliminates background noise and distortion while optimizing your amplifier’s performance. With a 4-band equalizer, precision subwoofer control, and an adjustable 40Hz-50Hz crossover, it gives you total command over your sound. The CEQ777 features active gain equalization, gold-plated RCA connectors, and front/rear fader control for seamless system integration. Housed in a sleek, durable chassis with backlit controls, it’s designed for precise, real-time tuning on the go. Whether you’re upgrading a factory setup or fine-tuning a competition system, the CEQ777 delivers unmatched power, purity, and precision.

Specifications:

• Type: 7V Line Driver with 4-Band Equalizer


• EQ Bands: 4


• EQ Range: 9dB Boost/Cut


• Output Voltage: 7V RMS


• Subwoofer Control: Independent Level & Adjustable 40Hz-250Hz Crossover

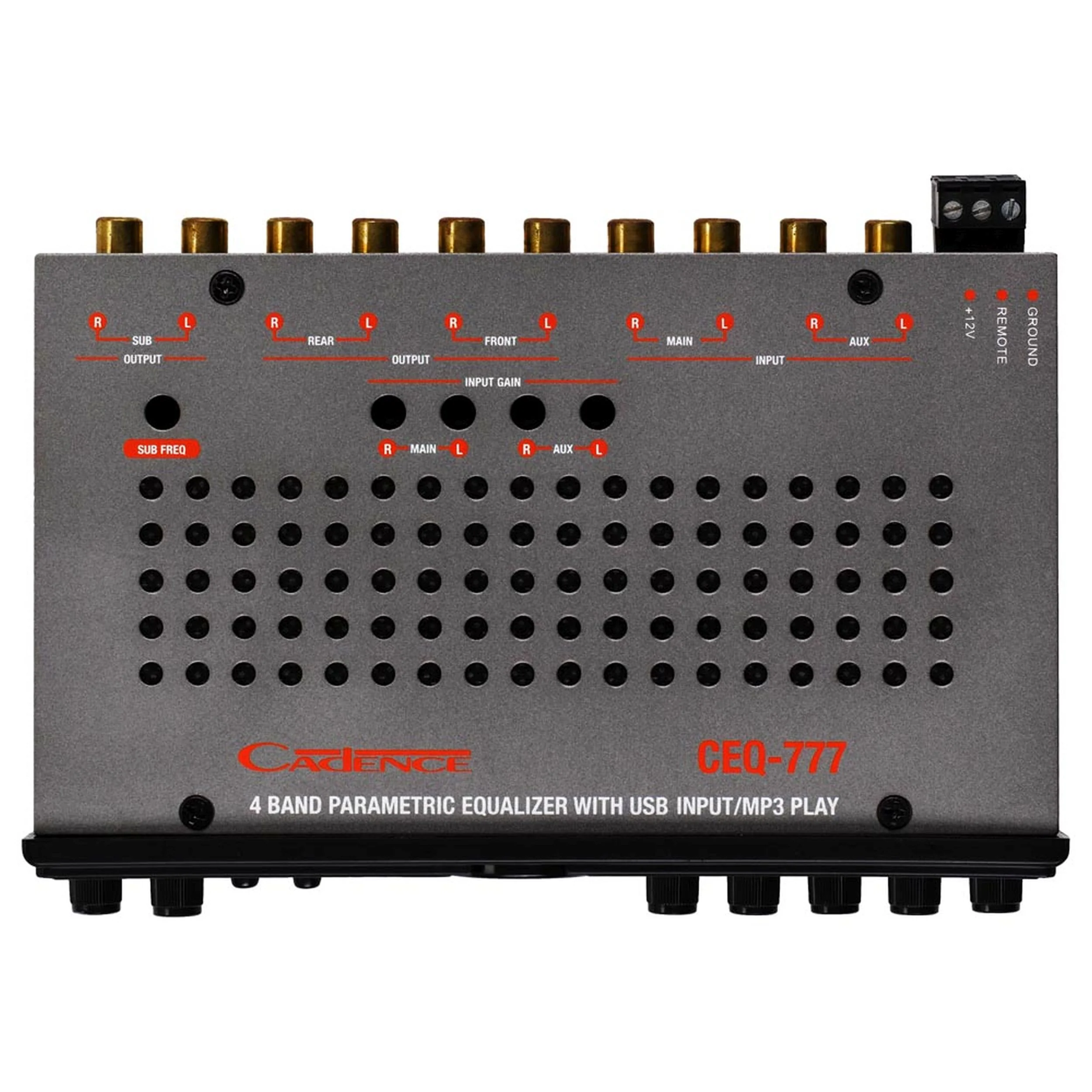

• Inputs: RCA (Main/AUX switchable)


• Outputs: Front, Rear, Subwoofer (RCA)


• Fader Control: Front/Rear


• Signal Optimization: Active Gain Equalization with adjustable input sensitivity


• Power Supply: 30V Bipolar Switching

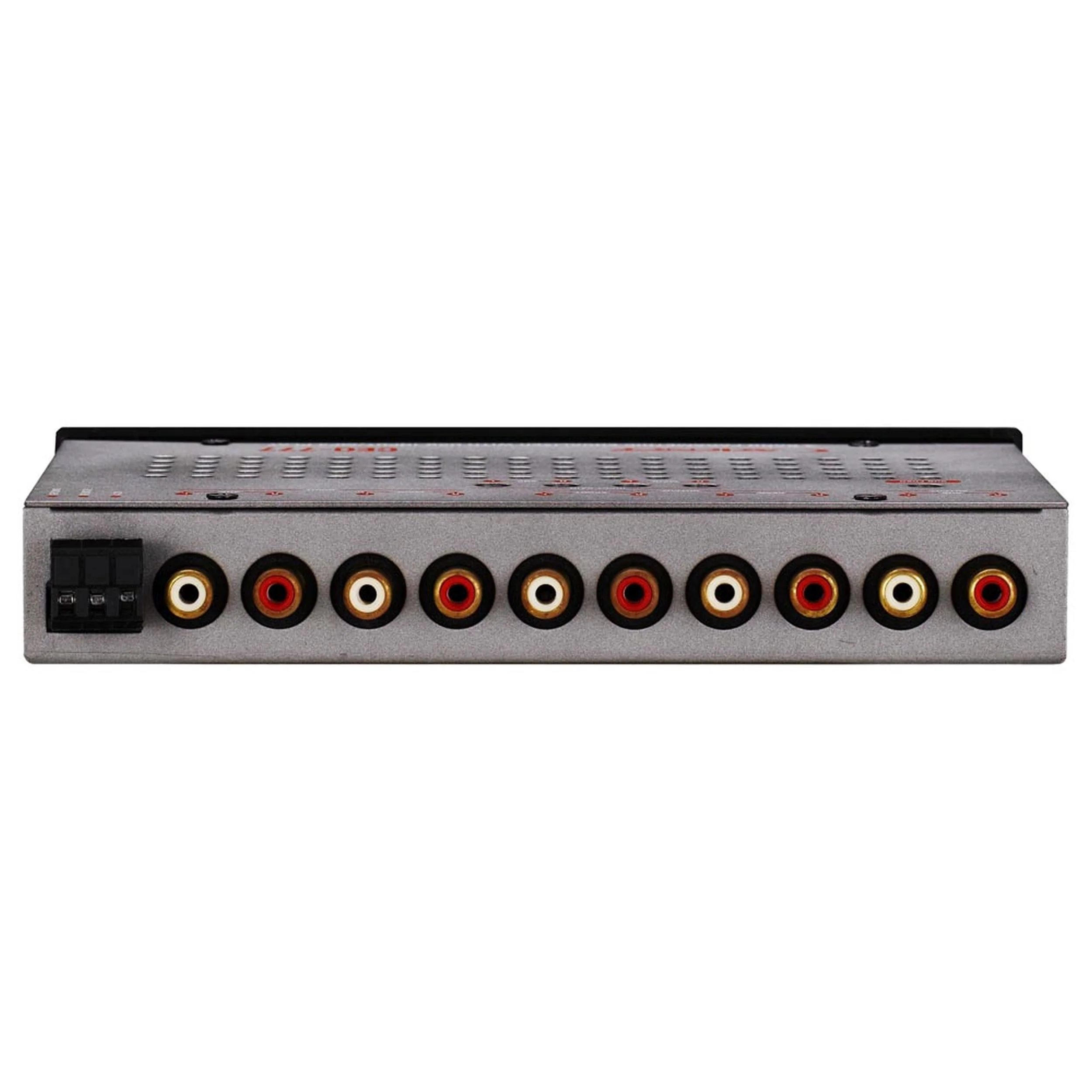

• Connectors: Gold-Plated RCA Inputs and Outputs


• Controls: Backlit with USB 2.0 full-speed host functionality


• Construction: Rugged metal chassis with illuminated control layout

Dimensions:

• Length: 10.66 in (271 mm)


• Width: 9.68 in (246 mm)


• Height: 4.05 in (103 mm)


• Weight: 3.7 lbs


• Shipping Dimensions: 10.66 x 9.68 x 4.05 in
